Baraldi Elea Isola Hood

ELEA ISOLA HOOD

Baraldi Elea Isola Hood

ELEA ISOLA HOOD

The perfect combination of style and functionality for a hood

Elea Isola is a hood with a refined and elegant design, in stainless steel or black with matching tie rods that make it a modern furnishing product.

Its entire horizontal surface can be used as a shelf and is available in three different lengths with the chimney on the right or left, to adapt to any kitchen layout.

It has an electronic control panel, perimeter extraction along the entire lower surface and new LED lights for powerful lighting of the cooking area. Equipped with latest-generation motors up to 900 m3/h, it is an appliance designed to eliminate fumes, vapors and odors released during cooking.

INFORMATION

SIZE

116 x 60, 146 x 60, 176 x 60 cm, with chimney on the right or left

BRAND

Baraldi

PRODUCT TYPE

Hood

COLLECTION

Elea Isola

PRODUCTION

Made in Italy

LIGHT EFFICIENCY

A

FILTER EFFICIENCY

C - A*

NOISE LEVEL IN 3RD SPEED

59 dB

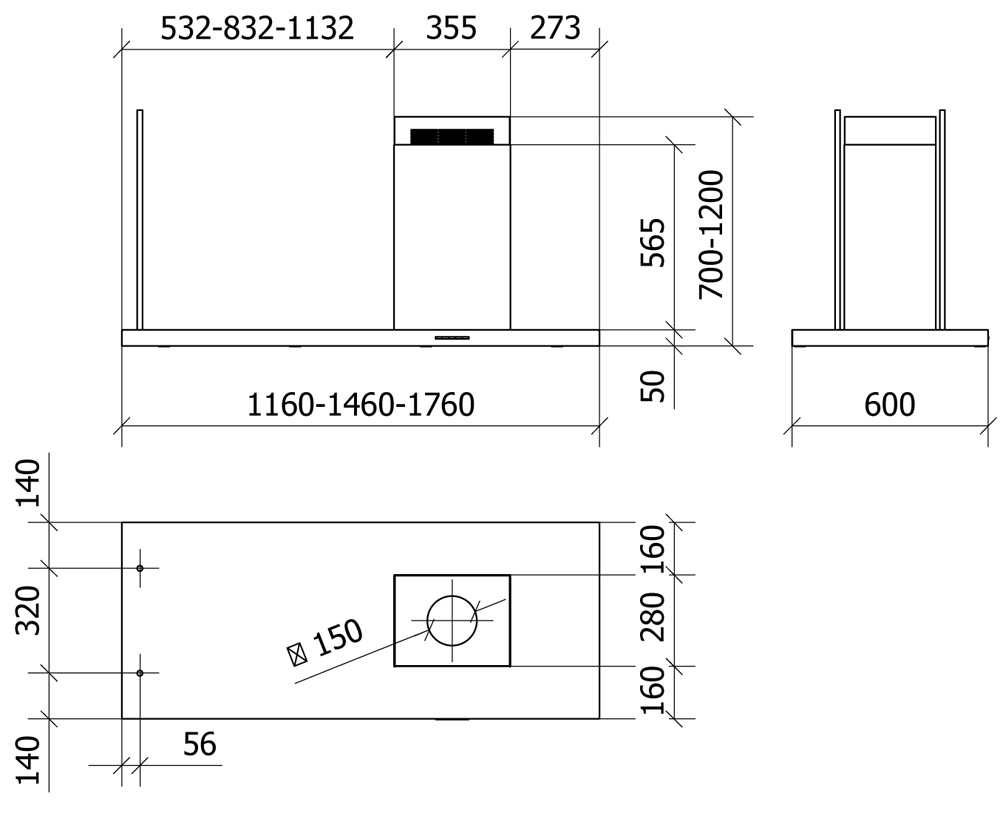

TECHNICAL DRAWING

Baraldi Elea Isola Hood

FUNCTIONS

4 speeds with int., timer, automatic switch-off, filter washing and replacement indication

MATERIAL

Structure and chimney in satin stainless steel or scratch-resistant black

MOTOR FLOW RATE

Up To 900 M3/h

MINIMUM DISTANCE FROM THE HOB

65 cm

Baraldi Elea Isola Hood

ENGINE EFFICIENCY

A

ENERGY EFFICIENCY CLASS

A

SUCTION

Extended perimeter with opening panel high-power led lights

OUTLET HOLE DIAMETER

120 – 150 mm with non-return valve

GREASE FILTER

In Washable Multilayer Aluminium

ANNUAL CONSUMPTION

58 Kw/year

PRESSURE

430 Pa

LED LIGHTS

4x4W - 6x4W

VERSION

Suction - Filter

Baraldi Elea Isola Hood

EXTRACTION

Extended Perimeter Extraction

CONTROLS

Multifunction Electronic Button Panel

ACCESSORIES ON REQUEST

-Hi-Filter : washable and regenerable anti-odor filter
-Remote motor on request for inside or outside
-DRY DROP - Anti-condensation kit recommended for induction hobs (optional to be requested when ordering)
-Total grease filter : additional 95% grease filter Anti-odor filter: 2 on the sides of the motor with activated carbon
