TECLA STOVE

TECLA STOVE

6 kW pellet stove, ventilated, airtight, ideal for small spaces or well-insulated houses

Mcz Tecla Stove

FEATURES

Mcz Tecla Stove

6 KW PELLET STOVE, VENTILATED, AIRTIGHT, IDEAL FOR SMALL SPACES OR WELL-INSULATED HOUSES

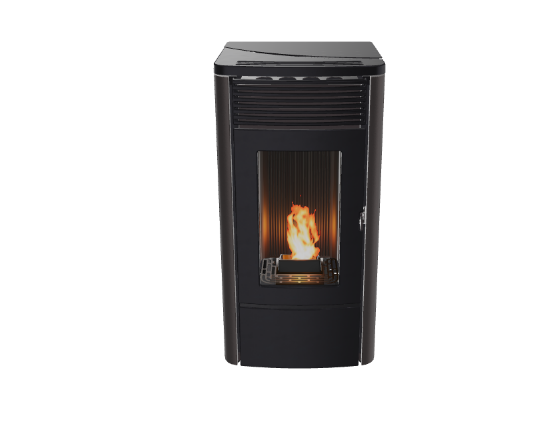

Low-powered stove (6 kW) with forced ventilation. It has a cast iron top and painted steel sides (Bordeaux, White, Dark, Silver). Intelligent combustion management with Maestro+.

Mcz Tecla Stove

IGNITION SPEED

Thanks to a new ceramic spark plug, the flame appears in less than three minutes, with a 40% reduction in ignition times and a significant cut in electrical consumption.

Mcz Tecla Stove

TOTAL SILENCE, WHEN YOU WANT

The No-Air function allows you to completely exclude the forced ventilation in this stove, ensuring maximum silence and all of the advantages of heat diffused throughout the room by natural convection.

SEALED STRUCTURE AS STANDARD

Thanks to a perfectly sealed combustion chamber, this product uses up the oxygen taken exclusively from the outside, ensuring reduced consumption and perfect thermal comfort in modern homes, even those with class A energy rating, with no risk of smoke emissions in the room.

Mcz Tecla Stove

ADVANCED CONTROL VIA WI-FI WITH DIGITAL PANEL INCLUDED AS STANDARD

Thanks to Maestro+ technology, the stove can be controlled directly from a smartphone, via a specific App, which provides full control either at home or away, by connecting via the home internet network (router) or directly via Bluetooth. An innovative retractable digital control panel fitted on the top is also available as standard.

Mcz Tecla Stove

THE RIGHT LEVEL OF COMFORT FOR A ROOM OR OPEN SPACE

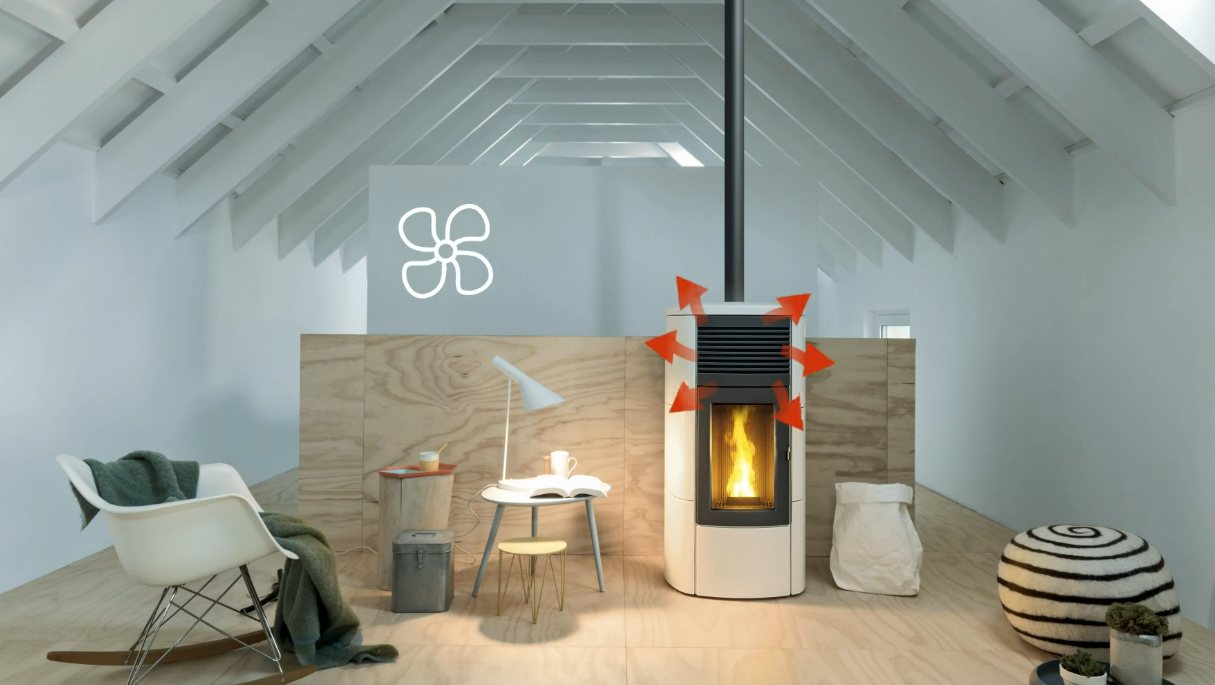

This is an air stove, the most classic model of pellet stove. A single fan, powerful yet quiet, efficiently distributes the warm air in the room where the stove is installed, making it warm and cosy within minutes.

Depending on how well insulated your home is and how it is laid out, this stove can also heat very large rooms. You can choose the fan power according to your needs. A warm, powerful breeze to heat up your home quickly or a barely perceptible whispering sound if you just need to keep the same temperature.

Mcz Tecla Stove

INFORMATION

BRAND

MCZ

PRODUCT TYPE

Stove

ENERGY EFFICIENCY CLASS (SCALE A++/G)

A+

TEMPERATURE OF EXHAUST SMOKE

165.00 °C

MODEL

Model: Mako Comfort Airmatic 8r M1 Core (7124031)

SEASONAL SPACE HEATING ENERGY EFFICIENCY (ΗS)

81.00 %

NET WEIGHT

90.00 kg

MASS OF SMOKE

3.70 g/s

HEATABLE VOLUME

- 20W/m³ : 315.00 m3 (*)
- 35W/m³ : 180.00 m3 (*)
- 55W/m³ : 115.00 m3 (*)

AVAILABLE COLORS

4

HOPPER CAPACITY

24.00 lt

DIMENSIONS

- Pitch : 49.2 cm
- Length : 45.6 cm
- Height : 90 cm

COLORS

Mcz Tecla Stove

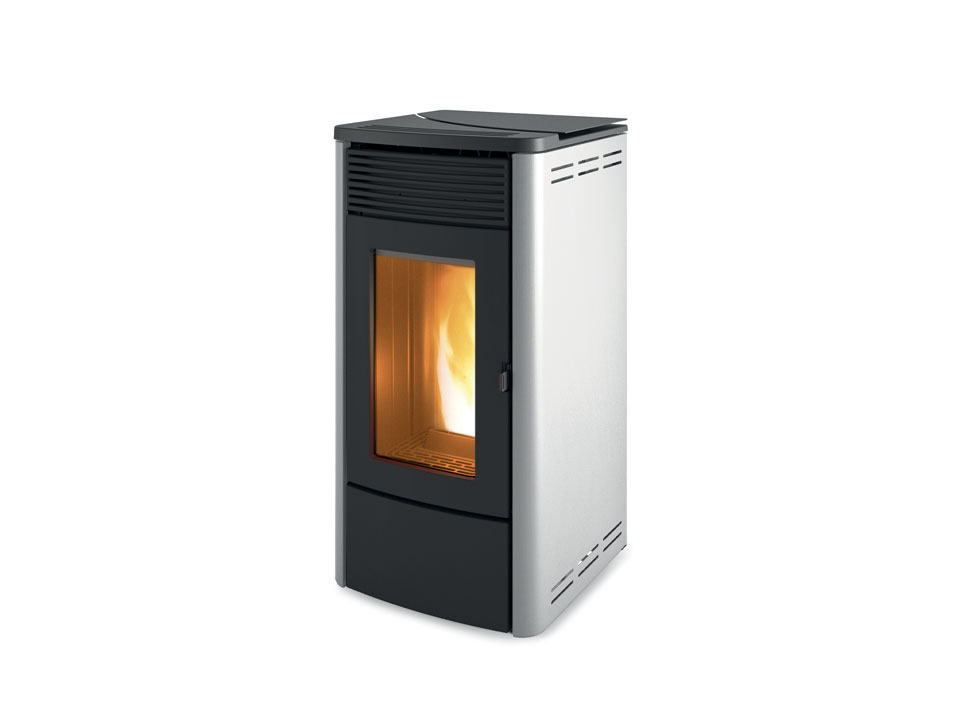

Metal White
Mcz Tecla Stove
Metal Black
Mcz Tecla Stove
Metal Silver
Mcz Tecla Stove
Bord

EFFICIENCY

- Max : 91.50 %
- Min : 92.00 %

HOURLY CONSUMPTION

- Max : 1.45 kg/h (**)
- Min : 0.60 kg/h (**)

USE

Heating

SMOKE OUTLET

80 mm

PRODUCTION

Made in Italy

COLLECTION

Tecla

AUTONOMY

- Max : 15.00 h (**)
- Min : 48.00 h (**)

HEAT OUTPUT

- Nominal Heat Output : 6.30 kW
- Minimum Heat Output : 2.50 kW

CERTIFICATIONS

Mcz Tecla Stove

CERTIFIED

This stove has been certified 7 stars Flamme Verte.

Mcz Tecla Stove

ENERGY EFFICIENCY

This stove is in the A+ energy efficiency class.

Mcz Tecla Stove

CONTO TERMICO

This product is eligible for a contribution from the Conto Termico, if installed to replace certain types of existing heating systems.

Mcz Tecla Stove

ECODESIGN

This product is already compatible with EU Regulation Ecodesign 2022.

Mcz Tecla Stove

TEST STANDARDS

Test standards: EN 14785, BimSchV 2nd stage, Regensburger/ Aachener/ Münchener BStV (Germany), Art 15a B-VG (Austria), LRV (Switzerland).

Mcz Tecla Stove

PULITA SCHEME

This product guarantees high environmental performance, certified 4-star according to the emission and efficiency parameters of the Aria Pulita scheme.
