Galvamet Theorema Hood
THEOREMA HOOD
THEOREMA HOOD

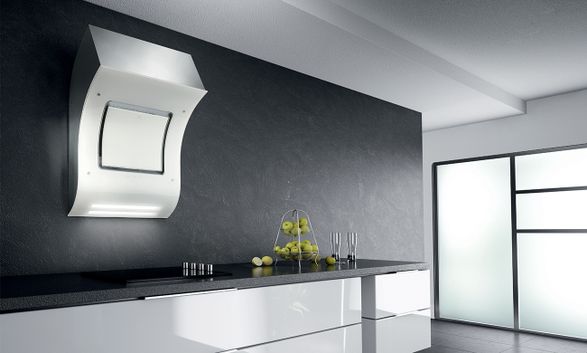

Wall hood with an absolutely innovative, exclusive, characterizing line.
INFORMATION
BRAND
Galvamet
PRODUCT TYPE
Hood
VERSION
Recycling With Long Life Filter (*)
COLORS
- Theorema 65/f/ix-white
- Theorema 65/f/ix-black
PRODUCTION
Made in Italy
COLLECTION
Theorema
FINISHING
Inox + Black Or White Hardened Glass
CONTROLS
Touch Screen 3s + B
REDUCTION FROM
150 to 125 mm
INSTALLATION
Ceiling
DOWNLOADS
↓ Instructions
↓ Energy label Theorema
DIMENSION
65 cm
SOUND POWER
63 dB(A)
MAX AIRFLOW
917 m3/h (duct out version)
LIGHTS
LED STRIP 2×3,9W – 3000K
ENERGY CLASS
A
MINIMUM DISTANCE FROM GAS HOB
55 cm.
DETAILS
To change the configuration of the hood in the duct out version you need the optional Chimney kit cod. 007THR200
TECHNICAL DRAWINGS
FEATURES
LIGHT INDICATOR FOR GREASE FILTER MAINTENANCE
The cooker hood automatically informs you when the metal grease filter designed for trapping grease in the air requires cleaning. It is of utmost importance to clean these filters to ensure cooker hood components are protected and to prevent bad odours caused by a build-up of grease.
PERIMETER EXTRACTION
This consists of a mechanical system that literally forces, pushes, the cooking fumes extracted along a slit that runs along the perimeter of the cooker hood. This system increases extraction performance whilst reducing cooker hood noise emission. Design and appearance are also improved as the grease filters are no longer visible.
ADJUSTABLE AND DELAYED SELF-SWITCHING OFF
This function allows you to programme delayed cooker hood shutdown which, in the shortest time possible, provides the right level of air purity in your kitchen.
HT INDICATOR FOR THE REGENERATION OF LONG LIFE FILTERS
The long life odor filter captures all the smells present in the cooking fumes, guaranteeing pure air in your kitchen. It does not need to be replaced as frequently as a normal activated carbon filter, it can be regenerated every 3-4 months, and in any case according to the frequency of use of the hood, with a usual washing in the dishwasher at about 70 ° c without any type of detergent, followed by drying in the oven for 30 minutes at 70 ° c. To keep its efficiency high, it is recommended to replace the long life filter after 6/8 regeneration cycles.
24H COMFORT
This function allows for cleaning the air in your kitchen when the hob and cooker hood are not being used. Air extraction cycles are activated at programmed time intervals: 5 min ON – 25 min OFF. These timed cycles clean the air of any lingering odours as cigarette smoke, detergents and stagnant and stuffy smells. This function is easy to activate and deactivate when required or can be left on for a full 24 hour cycle after which it is automatically turned off.
