BACK STOVE
BACK STOVE

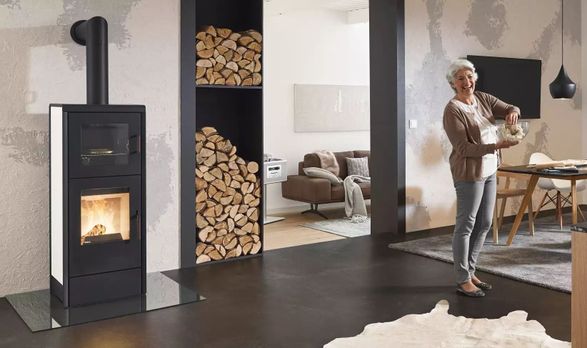

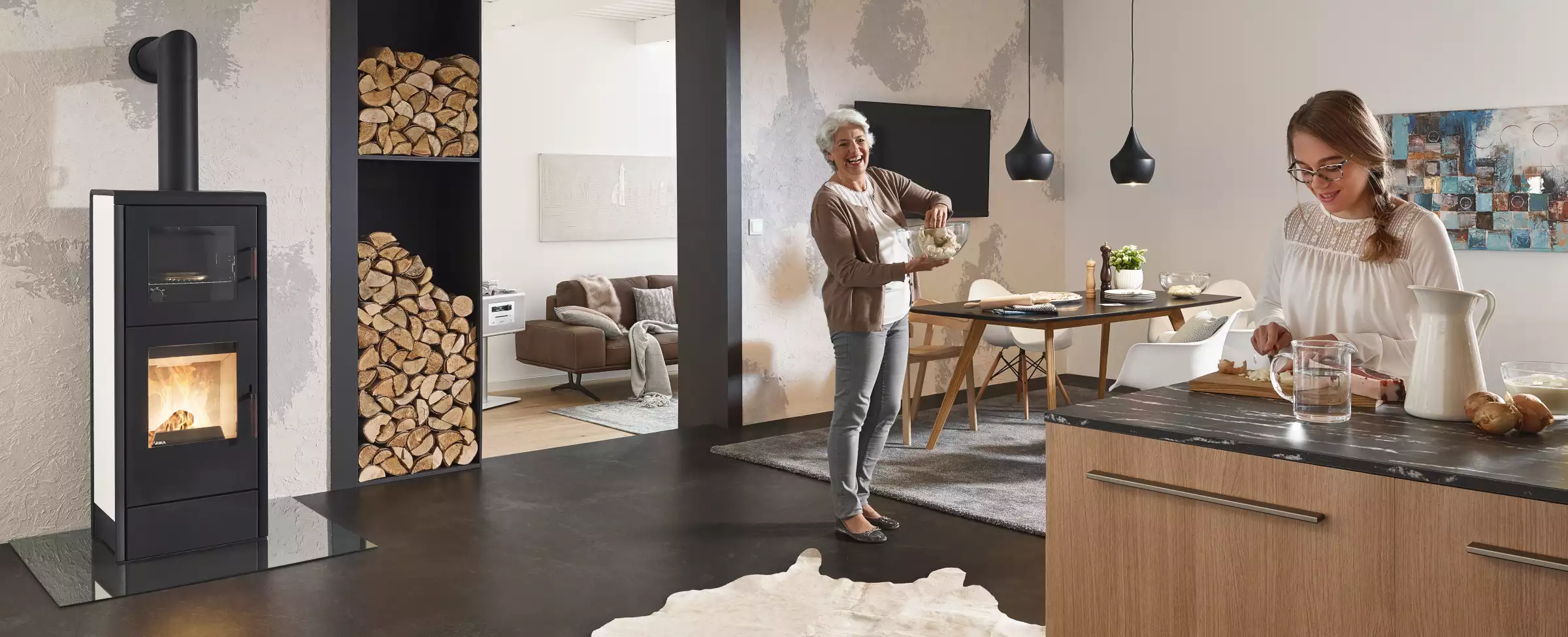

Freshly baked bread. A bake that gets its golden yellow crust in the oven. The BACK turns not only heating, but also baking into enjoyment. The stove for all who have a passion for baking! The RIKA BACK wood stove has an integrated baking compartment and thereby allows you to use the heat additionally for the preparation of tasty dishes or for baking.
FEATURES
ROOM AIR INDEPENDENT
Combustion air can be supplied from outside.
BAKING COMPARTMENT
Use the integral baking compartment for preparing tasty meals or simply for baking!
ENERGY EFFICIENCY CLASS A+
The European Union energy labelling informs about energy efficiency and power consumption.
INFORMATION
BRAND
Rika
PRODUCT TYPE
Stove
COLLECTION
Back
PRODUCTION
Made in Austria
FLOOR CONNECTION SIDE DISTANCE
253 mm
DETAIL
The additional view area also provides you with the requisite continuous control of your creations. The steel body can be adapted to your living space by various different decor side panels. The stove, independent of room air, is available within a performance range of 4.0 - 8.0 kW and is equipped with a RIKA air control system (RACS). Using a simple single-hand operation, this provides for the control and optimization of air supply and air distribution in the stove.
NOMINAL HEAT OUTPUT
8 kw
PARTIAL HEAT OUTPUT
4 kw
FRESH AIR DEMAND
21 [m³/h]
FLOOR CONNECTION DEPTH
114 mm
WEIGHT
Weight With Steelpanel Or Ceramic Deco : ~180 kg
ROOM HEATING CAPACITY (DEPENDING ON HOUSE INSULATION)
90 - 210 [m³]
RATED HEATING OUTPUT (8 KW)
This is the "normal heating capacity" determined according to DIN 18891. The stove is checked and the room heating capacity is determined according to this rating. The nominal heating capacity is particularly crucial for a safe heating procedure ant the functionality of the chimney. The combustion of a defind quantity of fuel is necessary to achieve the nominal heating capacity. This quantity of fuel is specified in the instruction manuals provided with RIKA stoves. The actual heating capacity of a stove is determined by the amount of fuel actually applied. The following applies as a "rule of thumb". 1 kg of wood generates a heating capacitt of around 3 kw in a stove.
FIRING CHAMBER DIMENSIONS
- Width : 340 mm
- Height : 300 mm
- Depth : 350 mm
FRESH AIR CONNECTION
- Diameter : 125 mm
- Side Distance : 253 mm
- Connection Height : 156 mm
TECHNICAL DRAWINGS
EFFICIENCY
83.9%
USE
Heating
COLOR
Black
FUEL CONSUMPTION
1.1 - 2.2 kg/h
FLUE PIPE CONNECTION
- Flue pipe outlet : 130 mm
- Rear connection height : 1245 mm
- Original angle pipe total depth : 593 mm
- Rear connection side distance : 253 mm
- Original angle pipe side distance : 253 m
- Original angle pipe connection height : 1943 mm
- Original angle pipe distance to rear wall : 158 mm
- Depth from rear wall to middle of flue pipe : 225 mm
ENERGY EFFICIENCY CLASS
A+
CHIMNEY DRAFT REQUIREMENT
12 [Pa]
BAKING TRAY
- Depth : 336 mm
- Width : 308 mm
COOKING TRAY
- Depth : 302 mm
- Width : 316 mm
DIMENSIONS(OVEN)
- Height : 300 mm
- Depth : 340 mm
- Width : 330 mm
DIMENSIONS
- Height : 1336 mm
- Depth : 435 mm
- Width : 505 mm
STOVE(FLUE PIPE CONNECTION(BACK /TOP)
A safe stove connection. The original RIKA flue pipes are reliable, resistant, durable and precisely matched to the requirements of the RIKA stove models. The company places the same high quality demands on the pipes as it does on its stoves.
STOVE(DECOR (WHITE/BLACK)
The Bback is available in our range with the side trim variants white, black, decorative glass black, decorative rust effect, decorative cream and decorative rust effect metallic.
BACK(WOODBURNING STOVE)
The BACK not only makes heating a pleasure, but also baking. It has an integrated baking compartment, which allows you to use the heat for preparing delicious dishes and for baking. The additional viewing area also means that you always have control over your creations and can always keep an eye on them. In addition, the BACK is equipped with the RIKA air guidance system (RLS), which allows you to control and optimise the air supply and distribution in the stove via a simple one-handed operation. A rack and baking tray are included with the stove. (Baking compartment: 330/300/360 mm.) The stove is operated independently of the room air, but without a self-locking door.
