Novy Ceiling Unit Novy Cloud 230 Hood
CEILING UNIT NOVY CLOUD 230 HOOD
CEILING UNIT NOVY CLOUD 230 HOOD
Novy Cloud 110 cm White
FEATURES
INTOUCH
InTouch offers the option to control your Novy cooker hood from your Novy induction hob.
ECOSMART
Ecosmart: extra quiet, super-efficient, sustainable, energy-friendly products.
REMOTE CONTROL
Remote control: Cooker hoods with this icon comes with a remote control, other cooker hoods can also be fitted with them, by ordering an extra kit.

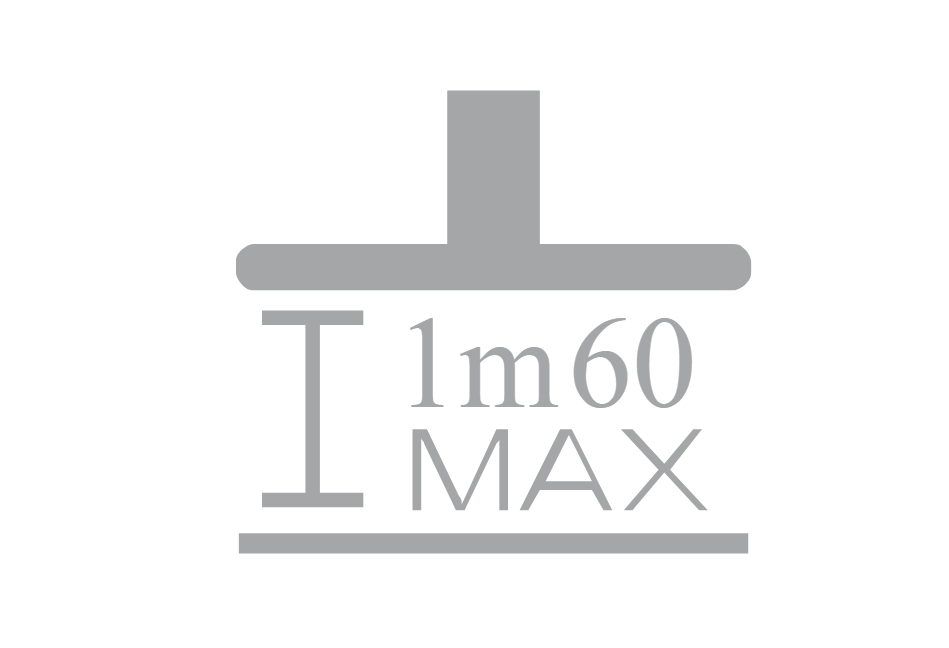

INSTALLATION HEIGHT 1M60
The installation height is the distance between the hob and the cooker hood. The installation height is very important for optimal functioning of the cooker hood. Maximum installation heights are indicated for each model.
PERIPHERAL EXTRACTION
By placing a bottom plate at the bottom of the cooker hood, extraction is concentrated at the edges. In this narrowed opening there is also an acceleration in the extraction rate. The smaller the area, the faster the air moves. This acceleration improves the efficiency of the extraction system.
RECIRCULATION
In a lot of homes, a cooker hood with an external air outlet is not possible or not allowed for architectural or economical reasons. A recirculation cooker hood is one that returns filtered cooking fumes back into the space.
Particles of grease are filtered out of the cooking fumes by the grease filter and odours are absorbed by the carbon filter with active carbon (monoblock filter). The cooker hood does not take away the moist air, but it can be removed from the space by means of the ventilation system. Most Novy cooker hoods can be equipped with an extra accessory for recirculation.
INFORMATION
BRAND
Novy
PRODUCT TYPE
Hood
PRODUCTION
Made in Belgium
CONTROL METHOD
Remote Control
LIGHTING EFFICIENCY CLASS (LEHOOD)
Not applicable
ENVIRONMENT
Indoor
PRODUCT NO.
230
LIGHTING
- Soft-ON/OFF : Yes
- Functional light dimmable : Yes
- External light connector : Not Applicable
- Number of functional lights/Ambient Lights : 1
- Functional lighting type/Ambient lighting : Led Strip
- Color functional light/mbient lighting (K) : 2700-5000
- Total energy consumption functional light/mbient lighting (W) :28
NUMBER OF SPEEDS
3 + Power
AUTOMATIC POWER REVERT (MINUTES)
6
TECHNICAL DRAWING
DIAMETER OUTLET
Not Applicable
POSITION EXHAUST
Right / Left
ADVISED MOUNTING HEIGHT GAS HOBS (HMIN-HMAX) (MM)
650 - 1600 mm
ADVISED MOUNTING HEIGHT INDUCTION HOBS/CERAMIC HOBS (HMIN-HMAX) (MM)
600 - 1600 mm
PRODUCT DIMENSIONS
- Width : 1100 mm
- Depth : 600 mm
- Height : 176 mm
MOTOR
Integrated
SOUND ABSORBER
Integrated
AIRFLOW AND NOISE LEVEL
- Airflow duct out speed 1 (m³/h) : 187
- Airflow duct out speed 2 (m³/h) : 272
- Airflow duct out speed 3 (m³/h) : 343
- Sound pressure duct out speed 1 (dB(A)) : 37
- Sound pressure duct out speed 2 (dB(A)) : 42
- Sound pressure duct out speed 3 (dB(A)) : 48
VOLTAGE APPLIANCE (V)
230
INTOUCH FUNCTION
Standard
NET WEIGHT
36 kg
FREQUENCY (HZ)
50
LENGTH POWER SUPPLY CABLE (M)
0.55
DETAIL
-Carbon filter with a lifespan up to 900 cooking hours -Integrated recirculation solution for optimal energy efficiency -Width and layout adjustable to individual needs thanks to to its modular structure -Panelling material NOT included but to be provided by your professional kitchen builder -Dimmable LED lighting warm white (2,700 K), adaptable to neutral white (4,000 K)
MAXIMUM POWER (W)
174.5
RECIRCULATION
Standard, Monoblock
DELAYED SWITCH OFF (MINUTES)
30
GREASE FILTER CLEANING INDICATION
Yes
RECIRCULATION FILTER CLEANING INDICATION
Yes
GREASE FILTER
230020
NOVY CONNECT
Standard
ADJUSTABLE LIGHT
Adjustable light intensity and colour temperature from 2,700 K to 5,000 K
NUMBER OF GREASE FILTERS
2
AUTO STOP
Yes
