Reference audio systems deserve reference audio equipment. Rotel’s RC-1590MKII reference preamplifier renders audio with natural expression, an open sound stage and dynamic clarity.

Analog, Digital, Bluetooth and Turntable sources are supported by a bespoke acoustic tuning process inviting you to bring your favorite music allowing the RC-1590MKII to immerse you.

Reference audio systems deserve reference audio equipment. The Rotel RC-1590MKII is exactly that -- a reference preamplifier rendering analog and digital sources with natural expression in a wide and open sound stage in stunning clarity.

Rotal RC-1590MKII Stereo Preamplifier

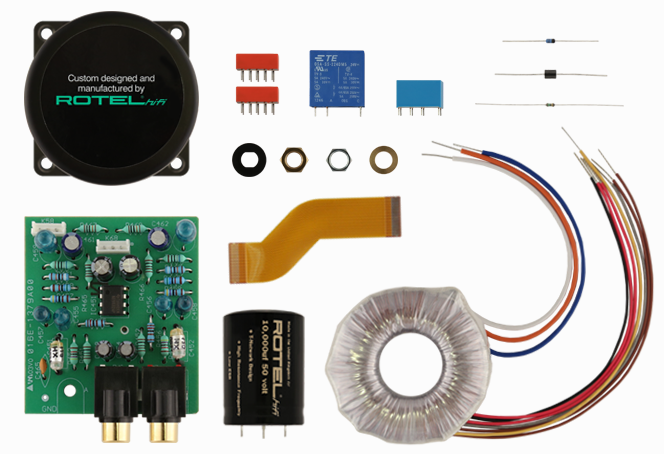

The heart of the RC-1590MKII begins with the power supply featuring dual in-house manufacture toroidal transformers.

The transformers are physically and electrically isolated supplying dedicated analog and digital supply voltages to all critical circuits through low ESR slit-foil capacitors eliminating unwanted distortion and an extremely low noise floor.

Digital source inputs are processed utilizing an audiophile grade Texas Instruments 32-bit/384kHz Digital to Audio Converter (DAC) with custom engineered, proprietary acoustically tuned external output filter circuits rendering even the finest details with exceptional clarity and exact positioning.

Analog signal paths feature DIRECT-PATH bypass modes eliminating unnecessary circuits maintaining signal integrity and further eliminating unwanted noise and distortion drawing you even closer and immersing you in the music.

The RC-1590MKII supports a full array of inputs ensuring connection to your favorite sources including a Moving Magnet Phono input for vinyl lovers, Analog, Digital, XLR Balanced, high quality aptXTM and AAC wireless Bluetooth, and PC-USB (32-bit/384kHz) supporting MQA unfolding and rendering as well as certified Roon Tested. Dual RCA and XLR output connection provide the ultimate flexibility including bi-amplification installations. A subwoofer output is also included.

The RC-1590MKII proudly continues Rotel’s 60-year legacy and heritage with our ongoing promises of performance, value, and unwavering commitment to quality. Authentic, engaging, and spacious – the RC-1590MKII proudly represents this iconic brand.

INFORMATION

BRAND

Rotel

ENVIRONMENT

Indoor

PRODUCTION

Made in Japan

COLLECTION

Rc-1590mkii

Rotal RC-1590MKII Stereo Preamplifier

INPUT IMPEDANCE

- Line Level Inputs (RCA) : 100kΩ
- Line Level Inputs (XLR) : 100kΩ
- Digital Inputs : 75Ω
- Phono Input (MM) : 47kΩ

PREOUT LEVEL

1.65 V (at - 20 dB)

FINISH

Silver and Black

FRONT PANEL HEIGHT

3U / 132.6mm / 5 1/4 in

POWER REQUIREMENTS

120V, 60Hz (230 V, 50 Hz)

INTERMODULATION DISTORTION (60 Hz : 7k Hz, 4:1)

< 0.002%

DIMENSIONS

- Width : 431 mm (17")
- Height : 144 mm (5 11/16")
- Depth : 348 mm (13 7/9")

FEATURES

- Certified Roon Tested
- Supports MQA and MQA Studio
- 2 x 200 Watts of robust Class AB power, 4 ohms
- Moving magnet phono input for turntable connection
- Wireless aptX™ and AAC Bluetooth

PRODUCT TYPE

Amplifier

PREAMPLIFIER OUTPUT LEVEL

1.65 V (at - 20 dB)

PC-USB

- USB Audio Class 1.0 (up to 24-bit / 96k Hz )
- USB Audio Class 2.0 (up to 32-bit / 384k Hz )* *Driver installation required
- MQA and MQA Studio (up to 24-bit / 384k Hz )
- Roon Tested

Rotal RC-1590MKII Stereo Preamplifier

POWER CONSUMPTION

45 watts

NET WEIGHT

10.1 kg (22.27 lbs.)

CODE

RC-1590MKII

BTU

78 BTU/h

INPUT SENSITIVITY/IMPEDANCE

- Line Level Inputs (RCA) : 150 mV / 100k ohms
- Line Level Inputs (XLR) : 250 mV / 100k ohms
- Phono Input (MM) : 2.5 mV / 47k ohms

TONE CONTROLS

- Bass : ±10 dB at 100 Hz
- Treble : ±10 dB at 10k Hz

OUTPUT LEVEL

- Balance (XLR) : 2 V
- Line Level (RCA) : 1 V

SIGNAL TO NOISE RATIO (IHF “A” WEIGHTED)

108 dB

STANDBY POWER CONSUMPTION

<0.5W

Rotal RC-1590MKII Stereo Preamplifier
Black
Rotal RC-1590MKII Stereo Preamplifier
Silver

COLORS

- Silver
- Black

FREQUENCY RESPONSE

- Line Level Inputs (RCA) : 10 Hz-100k Hz (+0 dB, -0.1 dB)
- Line Level Inputs (XLR) : 10 Hz-100k Hz (+0 dB, -0.1 dB)
- Phono Input : 20 Hz-20k Hz (+0.3 dB, -0.2 dB)

AVAILABLE COLORS

2

USE

Entertainment

SIGNAL TO NOISE RATIO (IHF "A" WEIGHTED)

- Line Level Inputs(RCA): 117 dB
- Line Level Inputs(XLR): 115 dB
- Phono Input : 80dB

TOTAL HARMONIC DISTORTION (THD) (20 Hz-20k Hz)

< 0.002%

COAXIAL/OPTICAL DIGITAL SIGNALS

SPDIF LPCM (up to 24-bit / 192k Hz)

INPUT OVERLOAD

- Line Level Inputs (RCA) : 4V
- Line Level Inputs (XLR) : 5.5V
- Phono Input : 64mV

FREQUENCY RESPONSE

20 Hz - 20k Hz (0 ± 0.5 dB, Max)

INPUT SENSITIVITY/IMPEDANCE

0 dBFs / 75 ohms

CHANNEL SEPARATION

- Phono Input : > 85 dB
- Line Level Inputs (RCA) : > 85 dB
- Line Level Inputs (XLR) : > 75 dB
