Rotel S14 S14 Integrated Streaming Amplifier
S14 Integrated Streaming Amplifier
S14 INTEGRATED STREAMING AMPLIFIER
The Rotel S14 Integrated Network Streamer is an all-in-one solution providing the ultimate in convenience to the near limitless catalog of music delivering 150 Watts of Class AB power.
INFORMATION
INPUT SENSITIVITY
- Digital Inputs: -20dBfs
- Line Level Inputs: 200mV
BRAND
Rotel
PRODUCT TYPE
Amplifier
PC-USB
USB Audio Class 2.0 (up to 24-bit/384kHz)*
MAXIMUM POWER OUTPUT
150W/Ch (4Ω)
POWER CONSUMPTION
280W
POWER REQUIREMENTS
120V, 60Hz
FREQUENCY RESPONSE
- Digital Inputs: 10Hz - 90kHz, ±2.0dB, Max
- Line Level Inputs: 10Hz - 100kHz, ±0.5dB
STANDBY POWER CONSUMPTION
<0.5W
NET WEIGHT
9.15kg (20.17lbs.)
DIMENSIONS
- Width : 430 mm (17")
- Height : 93 mm (3 5/8")
- Depth : 345 mm (13 1/2")
INTERMODULATION DISTORTION
<0.03% (60Hz:7kHz, 4:1)
CONTINUOUS POWER OUTPUT
80W/Ch (8Ω)
BTU RATING (4Ω, 1/8TH POWER)
733 BTU/h
DAMPING FACTOR
400
DISPLAY

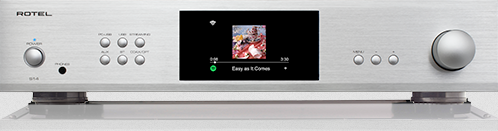

Album artwork on the front display, included remote, simple operation and intuitive setup ensures the S14 becomes the heart of your music system.
PRODUCTION
Made in Japan
FRONT PANEL HEIGHT
80mm (3.15")
COAX/OPTICAL DIGITAL INPUT SIGNALS
Spdif Lpcm (Up To 24-bit/192khz)
IINPUT IMPEDANCE
- Digital Inputs: 75Ω
- Line Level Inputs: 47kΩ
INPUT OVERLOAD
Line Level Inputs: 4.5V
AVAILABLE COLORS
2
COLORS
- Silver
- Black
DETAIL
Pc-usbthe rotel s14 integrated network streamer is an all-in-one solution providing convenient, intuitive access to the near limitless catalog of online music. High resolution audio including mqa from tidal and qobuz is rendered with detailed precision through a 32-bit ess dac delivering 150 watts of class ab power into 4 ohms. The front panel color display presents album artwork, track, and title information and simplifies the setup and configuration process using the included remote control. The s14 connects to both hard wired and dual-band wi-fi networks for installation flexibility.
Stream using your favorite music app or use the s14 ios and android apps to access thousands of internet radio stations, podcasts, and high-resolution music from tidal and qobuz. The s14 is fully certified roon ready and also supports spotify connect, airplay2 , and google cast for the ultimate ease of streaming your music.The s14 also includes coaxial, optical, analog, pc-usb and aptxtm hd bluetooth source inputs for legacy devices and even plays mp3, wma and aac files from flash drives.This just-add-speakers solution continues to deliver on the promise of quality, performance, and value synonymous with rotel.
