Alpine HDZ-W12 Subwoofer
HDZ-W12 SUBWOOFER
HDZ-W12 SUBWOOFER

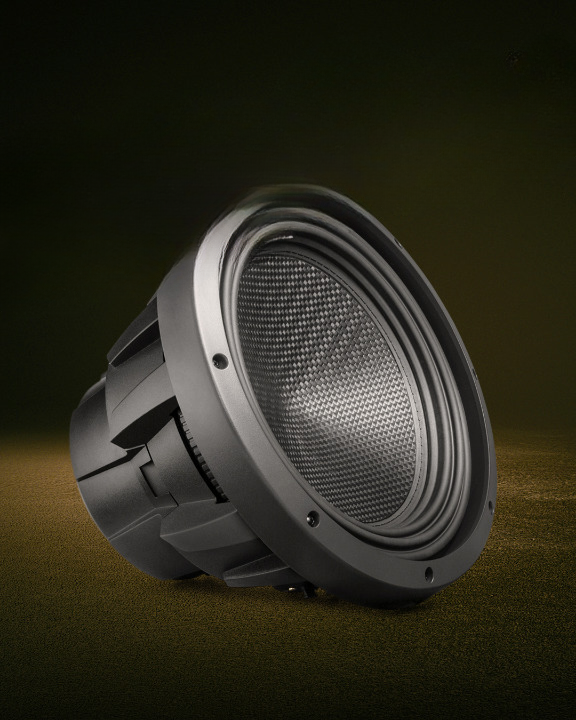

Alpine Status 12" Subwoofer
Experience superior bass with the Alpine Status 12” Subwoofer.
Expertly engineered for unparalleled sound quality that transforms every drive into a live concert performance.
FEATURES
SUPERIOR BASS PERFORMANCE
Featuring the revolutionary Alpine HAMR (High Amplitude Multi-Roll) Surround technology, this subwoofer ensures maximum excursion (20mm Linear Excursion) and performance without compromising on sound quality. The carbon fiber dust cap and pulp-mica cone body are meticulously crafted to deliver durability and crystal-clear bass, even at high volumes.
POWER & PRECISION
Power through your tracks with the robust 800W RMS (2400W peak) power handling. Coupled with triple-stacked high power strontium ferrite magnets, this subwoofer ensures impeccable control and responsiveness, delivering deep, resonating bass for a truly immersive listening experience.
SLEEK DESIGN, LASTING DURABILITY

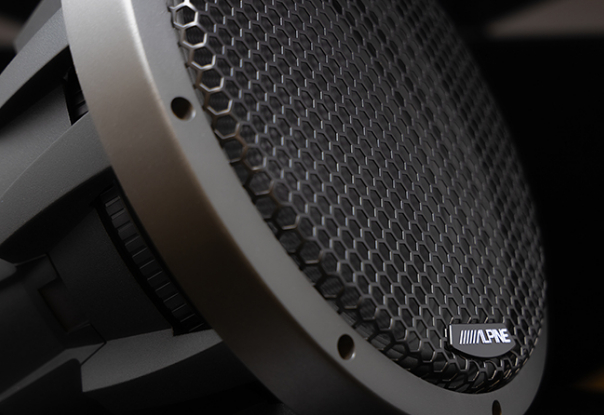

Engineered with a cast aluminum frame and premium aluminum trim ring, every detail is crafted to merge style with endurance. The addition of an open mesh style protective grille not only enhances its durability but also ensures your subwoofer remains safeguarded without compromising appearance.
THE ALPINE STATUS DIFFERENCE
Join the elite group of audio enthusiasts who settle for nothing but the best. Whether it's the advanced engineering ensuring consistent, reliable performance, or the sleek design that enhances your car's interior, the Alpine Status subwoofer allows your passion for pure sound to be fulfilled.
INFORMATION
BRAND
Alpine
PRODUCT TYPE
Subwoofer
CARBON
Carbon Fiber Dust Cap w/Pulp-Mica Cone Body
DIMENSIONS
12-7/8" X 12-7/8" X 9-2/8"
MAGNET WEIGHT
174oz (x3)
PRODUCTION
Made in England
USE
Entertainment
FREQUENCY RESPONSE
24hz-200hz
ENVIRONMENT
- Indoor
- Outdoor
VOICE COIL
65.5mm (2.6")
MOUNTING DEPTH
7-3/8"
HIGH AMPLITUDE
High Amplitude Multi-roll (Hamr) Surround
MAGNETS
Triple-Stacked High Power Strontium Ferrite Magnets
DUAL PROGRESSIVE
Dual progressive spiders w/integrated tinsel leads
LINEAR EXCURSION
20mm
POWER RANGE
400w-800w rms
FRAME
Cast aluminum frame w/premium aluminum trim ring
COMPOUND
Compound radius curve extended pole geometry
POWER HANDLING
800w Rms / 2400w Peak
DOWNLOAD
↓ Owner's Manual

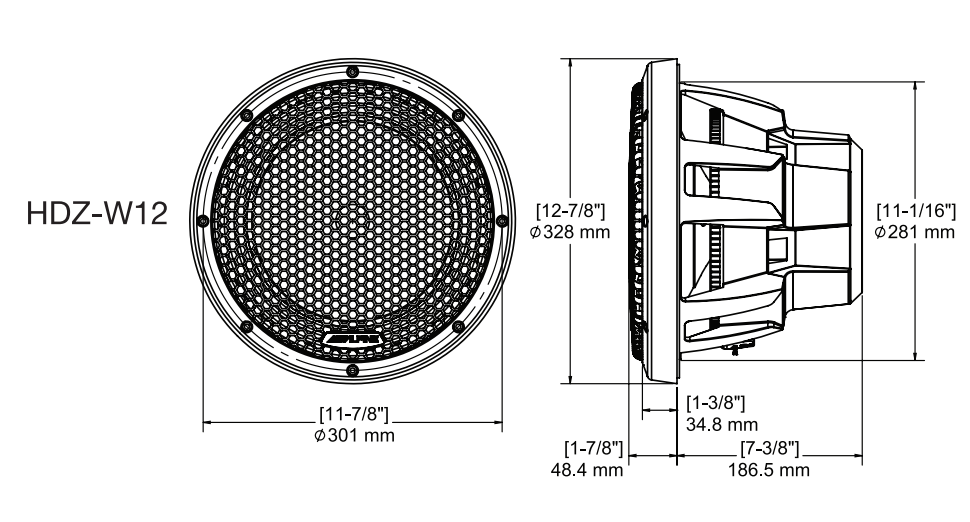

TECHNICAL DRAWING
