Gaggenau 400 series Vario gas cooktop 38 cm Liquid gas 50 mbar
400 SERIES VARIO GAS COOKTOP 38 CM LIQUID GAS 50 MBAR
400 SERIES VARIO GAS COOKTOP 38 CM LIQUID GAS 50 MBAR
Model no. : VG415115
information
BRAND
Gaggenau
PRODUCT TYPE
Induction
COLLECTION
400 Series
PRODUCTION
Made in Africa
ALTERNATIVE GAS TYPE
Liquid gas G30,31 28-30/37mbar, Nat gas L/LL G25/20mbar(DE)
BASIC SURFACE MATERIAL
Brushed Stainless Steel
MAIN COLOUR OF PRODUCT
Stainless Steel
MATERIAL OF PAN SUPPORTS
Cast Iron
GAS TYPE
Liquid gas 50 mbar
TYPE OF APPLIANCE WIDTH
38 cm
LENGTH OF CONNECTION CABLE
140.0 cm
TOTAL NUMBER OF POSITIONS THAT CAN BE USED AT THE SAME TIME
1
MINIMUM WORKTOP THICKNESS
30 mm
CONNECTION
With Plug
TYPE COOKING ZONE
WOK Burner
GAS CONNECTION RATING
5.800 W
LOCATION OF CONTROL PANEL
External
9 PRECISE POWER LEVELS
Yes
SAFETY FUNCTIONS
Automatic Reignition, Electronic Flame Control, Safety Valve
RESIDUAL HEAT INDICATOR
Yes
MAIN ON/OFF SWITCH
No
DISHWASHER SUITABLE PAN SUPPORT
No
FEATURES
- Multi-ring burner with up to 5.8 KW
- Precise and reproducible flame size
- Precision crafted 3 mm stainless steel
- Full electronic power level regulation on 12 levels
- For surface mounting with a visible edge or for flush mounting

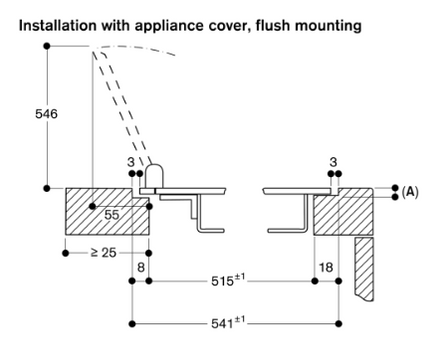

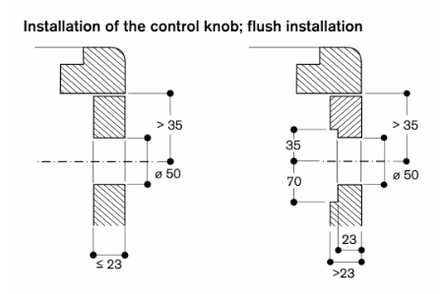

TECHNICAL DRAWINGS
TECHNICAL DRAWINGS
