Rotel P5 Stereo Amplifier

P5 STEREO AMPLIFIER

Rotel P5 Stereo Amplifier

P5 STEREO AMPLIFIER

The Michi P5 Control Amplifier delivers the ultimate culmination of audio performance with a full complement of source inputs. The meticulous circuit design, critical component selection and over 3 years in the making ensures the P5 meets the highest of standards allowing this preamplifier to proudly wear the Michi logo.

INFORMATION

PC-USB

-USB Audio Class 1 (up to 24-bit/96kHz) -USB Audio Class 2 (up to 32-bit/384kHz)*

BRAND

Rotel

PRODUCT TYPE

Amplifier

STANDBY POWER CONSUMPTION

- Normal: <0.5W
- Network Wakeup: <2W

TOTAL HARMONIC DISTORTION (THD)

(20Hz–20kHz) <0.002%

NET WEIGHT

22.9kg (50.5lbs.)

FREQUENCY RESPONSE

-Line Level Inputs: 10Hz  100kHz (±0.3dB)  -Digital Inputs: 20Hz - 20kHz (±0.3dB)  -Phono Input: 20Hz - 20kHz (±0.3dB)

Rotel P5 Stereo Amplifier

OUTPUT IMPEDANCE

- Balanced (XLR): 100Ω
- Unbalanced (RCA): 470Ω

CHANNEL SEPARATION

- Phono Input: >55dB
- Line Level Inputs: >85dB

POWER CONSUMPTION

40W

BTU RATING (4Ω, 1/8TH POWER)

87 BTU/h

Rotel P5 Stereo Amplifier

PRODUCTION

Made in Japan

FRONT PANEL HEIGHT

132mm (5.25")

INPUT OVERLOAD

- Phono Input (MC): 22mV
- Phono Input (MM): 199mV
- Line Level Inputs (RCA): 12V
- Line Level Inputs (XLR): 12V

DIMENSIONS

- Width : 485 mm (19")
- Height : 150mm (6”)
- Depth : 452 mm (17.75")

S/N RATIO (IHF "A" WEIGHTED)

- Phono Input: 80dB
- Digital Inputs: 100dB
- Line Level Inputs: 116dB

INTERMODULATION DISTORTION (60HZ:7KHZ, 4:1)

<0.002%

TONE CONTROLS

±10dB at 100Hz / 10kHz

COAX/OPTICAL DIGITAL INPUT SIGNALS

LPCM (Up to 24-bit/192kHz)

OUTPUT LEVEL

- Balanced (XLR): 2V
- Unbalanced (RCA): 1V

INPUT SENSITIVITY

- Digital Inputs: 0dBFs
- Phono Input (MM): 2.5mV
- Phono Input (MC): 250uV
- Line Level Inputs (RCA): 160mV - Line Level Inputs (XLR): 250mV

INPUT IMPEDANCE

- Digital Inputs: 75Ω
- Phono Input (MC): 100Ω
- Phono Input (MM): 47kΩ
- Line Level Inputs (RCA): 47kΩ
- Line Level Inputs (XLR): 100kΩ

DETAIL

The Michi P5 Control Amplifier delivers the ultimate performance in audio processing with a full complement of analog and digital source inputs. Over 3 years in the making, every aspect of the P5 has been carefully crafted including the power supply, circuit design and critical component selection to ensure the highest integrity of the audio signal eliminating unwanted noise and distortion.

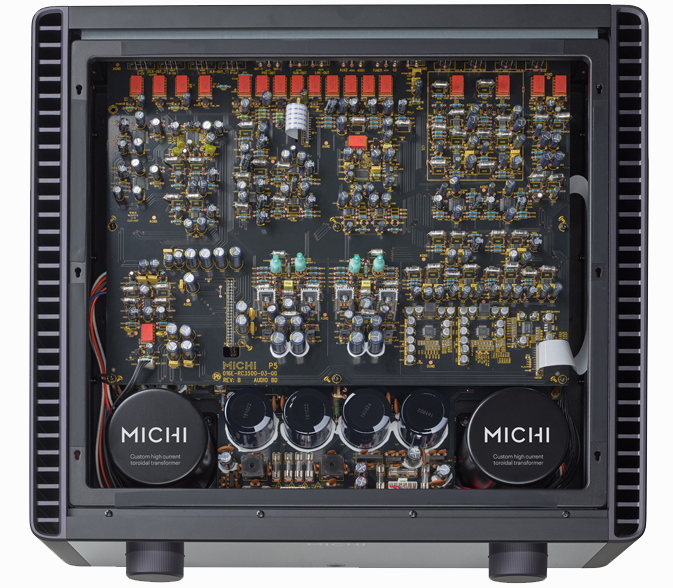

The Dual AKM 32-bit DACs feed the Class-A preamplifier circuit ensuring detail, accuracy and the highest musical fidelity while maintaining crucial rhythm and timing for all musical genre regardless of your listening style. These circuits are supported by an array of 17 independent voltage regulators driven from 2 custom designed and factory built toroidal transformers with low ESR smoothing capacitors to deliver ripple free current to all critical circuits.

Accuracy and detail are essential in reproducing audio and equally important is delivering music that is enjoyable and entertaining. The P5 excels in all aspects building on over 55 years of audio design experience.

The bespoke in-house manufacturing facility ensures this preamplifier is built to highest of quality standards allowing it to proudly wear the Michi logo. Automation and control system integration is easily supported with RS232 and Ethernet connections. The Michi P5 includes MQA (Master Quality Authenticated) technology, which enables you to play back MQA audio files and streams, delivering the sound of the original master recording.
