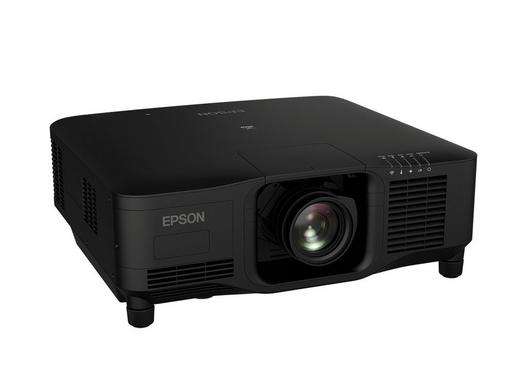

Epson The Eb-pu2220b Ultra Cortated Projectors

THE EB-PU2220B ULTRA CORTATED PROJECTORS

Epson The Eb-pu2220b Ultra Cortated Projectors

THE EB-PU2220B ULTRA CORTATED PROJECTORS

SKU: V11HA66840

INFORMATION

BRAND

Epson

PRODUCT TYPE

Projector

COUNTRY OF ORIGIN

Philippines

COLLECTION

The Eb-pu2220b

Epson The Eb-pu2220b Ultra Cortated Projectors

PROJECTION SYSTEM

3LCD technology

LCD PANEL

1.03 inches with C2 Fine

RESOLUTION

WUXGA

PROPORTIONS

16:10

NATIVE CONTRAST

2,000 : 1

LIGHT SOURCE

Laser and laser

EMITTING OF WHITE LIGHT

20,000 lumens - 14,000 lumens (in energy saving mode) accordig to ISO 21118:2020

EMISSION OF COLOURED LIGHT

20,000 lumens – 14,000 lumens (in Energy Saving mode) in accordance with IDMS15.4 standard

Epson The Eb-pu2220b Ultra Cortated Projectors

ON-SCREEN PIXEL COUNT

4,608,000 (1920x1200 x2)

CONTRAST RATIO

Over 5,000,000 : 1

LIGHT SOURCE

- 20,000 Hours of Durability High
- 30,000 Hours of Durability Eco

THE FOCAL RATIO (F)

varies by lens

FOCAL DISTANCE

varies by lens

WIDE-ANGLE PROJECTION DISTANCE

)varies by lens

TELEPHOTO LENS PROJECTION DISTANCE

)varies by lens

SEALED LIGHT SOURCE MODULE(SEALED OPTICAL ENGINE)

Yes, IP5X rated

REPRODUCTION OF THE COLORS

up to 1.07 billion colors

ZOOM

Motorized, Factor: 1 - 1,6

HDR SUPPORT

HDR10, HLG

PROJECTION REPORT

0.35 - 7.41:1

VIDEO PROCESSING

10 Bits

OPTIONS AND THE OPTIONS

Camera module, Ceiling mount, Wireless LAN unit

DIMENSIONS

- Width : 586 mm
- Depth : 492 mm
- Height : 218 mm

Epson The Eb-pu2220b Ultra Cortated Projectors

INTERFACE

- RS-232C
- VGA Input
- USB 2.0-A (2x)
- NFC (Near Field)
- USB 2.0 type B (assistance only)
- Ethernet interface (1000Base-T/100Base-TX/10Base-T)

- DVI Input
- HDMI Input
- HDBaseT
- Output jack
- 3G-SDI Input
- Output 3G-SDI output
- IEEE 802.11a/b/b/g/n wireless LAN wireless LAN (optional)

MECHANICAL SHUTTER

Yes

STANDARD LENS

Not included

COLOR

Black

TEMPERATURE

Storage -10o C - 60o C

COLOR MODE

- BT709
- Natural
- Cinema
- Dynamic
- Presentation
- DICOM SIM
- Multi Projection

SECURITY AND SECURITY

Security Bar
Kensington Lock
Wireless LAN Block
Password Protection
Wireless LAN Security

Epson The Eb-pu2220b Ultra Cortated Projectors

LENS POSITION MEMORY

10 positions

LENS AND THE LIONS

varies by lens

LENS SHIFT

- Horizontal ? 18 %
- Varies by lens
- Engine - Vertical ? 60 %

CHARACTERISTICS OF THE

- Edge Blending
- Freeze image
- Point correction
- Super resolution
- Power on button
- 4K enhancement
- Automatic ignition
- Split function Screen

- Vertical and horizontal trapezoidal correction

- Appalite
- Web control
- Quick Corner
- Direct Power on/off
- OSD copy function
- Programming function
- Remote web function
- 21:9 aspect ratio support
- Automatic source search
- Long-lasting light source
- Ability to store lens position

IMAGE SIZE

60 inches - 1,000 inches, varies by lens

PROJECTOR CONTROL

via: AMX, Crestron (network), Extron

WEIGHT

24.4 kg

HEAT DISSIPATION

4.423 BTU/hour (max)

THE VOLTAGGIO

- AC 200 V - 240 V
- 50 Hz - 60 Hz

IMPROVEMENT OF THE RESOLUTION

4K enhancement

NETWORK PROTOCOL

- HTTPS
- IPv6
- SNMP
- PJLink
- ESC/VP.net

FIRE BURNING

Motorized

INTERCHANGEABLE LENSES

Yes

Epson The Eb-pu2220b Ultra Cortated Projectors

20,000 LUMEN LASER PROJECTOR

-No maintenance : Optimized Dustproof Design, IP5X Certification
-Ultra light and compact : The world’s 20,000 lumen smallest projector1
-Simplicity of use : Simple installation, stacking, flexibility and control of optics
-Beautiful images : 20,000 lumens, WUXGA resolution with 4K Enhancement technology
-Environmental benefits : More energy consumption, reduced packaging, lower weight

NOISE LEVEL

- Mod. Normal : 45 dB (A)
- Mod. Economy : 37 dB (A)

HUMIDITY

- Operation 20% - 80%
- Storage 10% - 90%

SOFTWARE INCLUDED

-Epson Creative Projection -Epson Projector Config Tool -Epson Projector Content Manager -Epson Projector Management -Epson Projector Professional Tool

TYPE OF ROOM / APPLICATION

-Meeting room -Large Meeting Rooms(Auditorium) -Meeting Room  (Classroom) -Mapping -Rental ( Live Eventi) -Signage(Retail) -Points of Attraction

Epson The Eb-pu2220b Ultra Cortated Projectors

ENERGY CONSUMPTION

- 1.143 Watts (Normal On-Mode)
- 1,301 Watt (Normal Peak-mode)
- 899 Watt (Eco Peak-Mode)
- 0.4 Watt (Energy saving standby)

POSITIONING

- Desktop
- Ceiling Mount
- Flying Frame

WARRANTY

36 months On-center assistance (at an authorized center)

FEATURES

FLEXIBILITY

The EB-PU2220B simplifies installation and stacking, as well as ensuring control and flexibility in optical use. Thanks to the built-in processing for PC-free stacking, two projectors can be stacked to double the brightness without using external hardware components.

COMPACT AND LIGHT

The EB-PU2220B is about 60% smaller and 50% lighter than the previous model, EB-L20000U. Thanks to its low weight and small size, the projector is easier to store, transport and install, resulting in savings in storage and labor and delivery costs.

IMAGES OF EXTRAORDINARY QUALITY

This high brightness 3LCD projector delivers WUXGA resolution with 4K Enhancement and HDR technology for rich textures and sharper images.

RELIABILITY

It offers extraordinary resistance to dust, as the hermetically sealed optical engine and the laser light source unit guarantee a stable brightness for long periods, even in very dusty environments.
