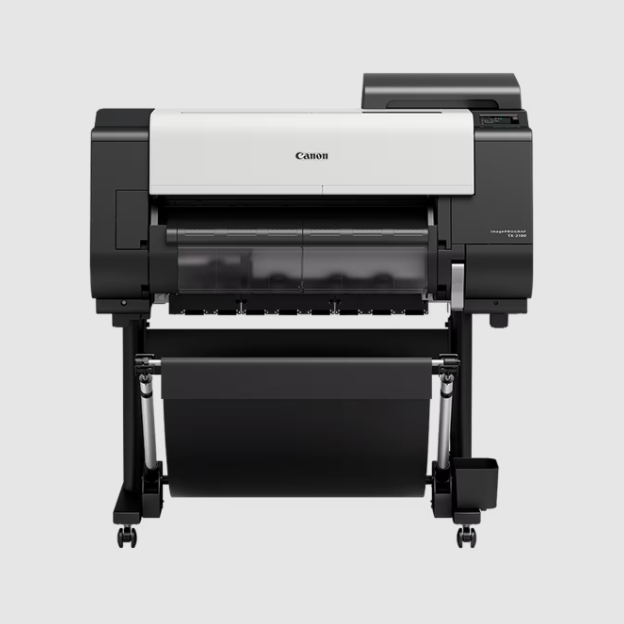

Canon Image PROGRAF TX-2100
IMAGE PROGRAF TX-2100
IMAGE PROGRAF TX-2100
Fast, continuous printing from a 24-inch multipurpose printer, with smart software and flexible borderless printing features.
INFORMATION
BRAND
Canon
COLLECTION
PRODUCTION
Made in Europe
PRODUCT TYPE
printer
NOZZLE PITCH
1,200 dpi x 2 includes Non-firing nozzle detection and compensation system
PERFORMANCE
Enhanced performance and flexibility across multiple media
Boost print productivity with fast print speeds, improved media handling and high-volume support from a large format printer designed for streamlined usability.
LINE ACCURACY
±0.1% or less
- User adjustments necessary. Printing environment and media must match those used for the adjustments.
- CAD paper required: Plain paper, CAD tracing paper, coated paper, CAD translucent matte film only
UNIQUE IN 24 INCH RANGE

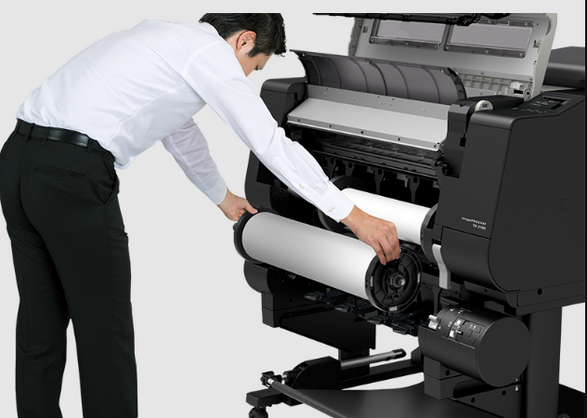

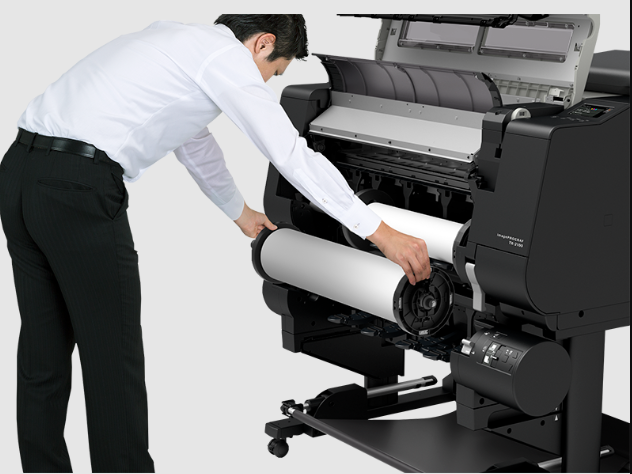

2nd roll
PRINT RESOLUTION
2,400 x 1,200 dpi
MEDIA FEED CAPACITY
Roll Paper: Two rolls. Automatic switching is possible.
Cut Sheet: 1 sheet
PRINT SPEED
2.8ppm (A1)
INK TYPE
5-colour pigment ink
NUMBER OF NOZZLES
Total : 15,360 nozzles MBK : 5,120 nozzles BK, C, M, Y : 2,560 nozzles each
PRINT TECHNOLOGY
Canon Bubblejet on Demand 6 colours integrated type (6 chips per print head x 1 print head)
MAXIMUM PRINT RESOLUTION
1200 dpi
DOWNLOAD
↓ Technical Datasheet
OS COMPATIBILITY
- Microsoft Windows 32 Bit: 7, 8.1, 10
- Apple Macintosh: macOS 10.12.6～macOS 10.15
- 64 Bit: Windows 7, Windows 8.1, Windows 10, Windows Server 2008R2, 2012, 2012R2, 2016, 2019
STANDARD INTERFACES

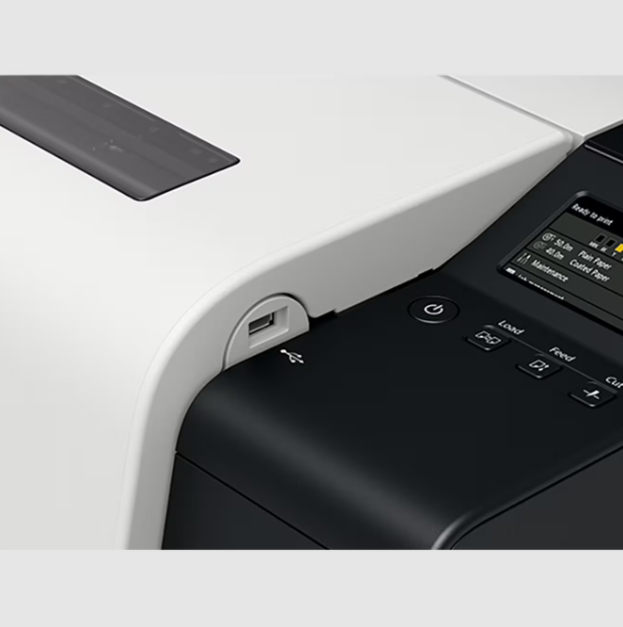

- USB A Port: USB Memory Direct Print for JPEG/PDF files
- USB B Port: Built-in Hi-Speed USB
- : 10/100/1000 base-T
- LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b
USER REPLACEABLE ITEMS
- Print Head: PF-06
- Cutter Blade: CT-07
- Maintenance Cartridge: MC-30
- Ink Tank: PFl-110 (160ml), PFl-310 (330ml), PFl-710 (700ml)
POWER CONSUMPTION
- Operation: 87 W or less
- Power off: 0.3 W or less
- Sleep mode: 2.0 W or less
- Default setting for the time to enter the Sleep mode: Approx. 5 Minutes
OPTIONAL ITEMS
- Roll Unit : RU-22
- Stacker : SS-21
- Printer Stand : SD-21
- 2/3" Roll Holder: RH2-29
STANDARD MEMORY
- 128GB (Physical memory 2GB)
- Expansion slot : No
REGULATIONS
- Europe: CE mark
- Other countries: CB certification
APPLICTIONS
- Fast printing : Increased print speeds and continuous printing for high-quality posters and CAD drawings.
- Superb quality : Canon’s legacy inkjet technology achieves bold, vivid colours even on economical paper.
- High productivity : Innovative features such as hot swap ink tanks and an automatic media detecting system facilitate production workflows.
DIMENSIONS 1 (BASKET OPEN)
- Width : 1110 mm
- Depth : 984 mm
- Height : 1168 mm
DIMENSIONS 2 (BASKET CLOSE)
- Width : 1110 mm
- Depth : 766 mm
- Height : 1168 mm
DIMENSIONS 3 (PACKAGING PRINTER)
- Width : 1324 mm
- Depth : 902 mm
- Height : 1055 mm
DIMENSIONS 4 (PACKAGING ROLL UNIT)
- Width : 1244 mm
- Depth : 562 mm
- Height : 461 mm
WEIGHT
- Physical : 91 kg
- Roll Unit Packaged : 110 kg
- Printer Packaged : 22 kg
CAD DRAWING
Plain Paper (A1):
0:21 (Fast Economy Mode)
0:22 (Fast)
0:35 (Standard)
OPERATING ENVIRONMENT
Temperature: 15~30℃,
Humidity: 10~80% RH (no dew condensation)
POWER SUPPLY
AC 100-240V (50-60Hz)
HARD DRIVE
500GB (Encrypted)
INK DROPLET SIZE
Minimum 5 pl per colour
ENVIRONMENT CERTIFICATES
TUV, CB
INK CAPACITY
- Sales Ink: 160ml/330ml/700ml
- Bundled Starter Ink: 330ml (MBK)/160ml (BK, C, M, Y)
ACOUSTIC NOISE (POWER/PRESSURE)
- Standby: 35 dB (A) or less
- Operation: 50 dB (A) (Plain paper, Standard mode, Line Drawing/Text mode) (Measured on ISO 7779 standard)
- Operation: 6.8 Bels or less (Plain paper, Standard mode, Line Drawing/Text mode) (Measured on ISO 7779 standard)
PRINTER TYPE
5 Colour 24
MEDIA CORE SIZE
Internal diameter of roll core: 2"/3"
MARGINS RECOMMENDED AREA
- Roll paper : Top : 20 mm, Bottom: 3 mm, Side: 3 mm
- Cut sheet : Top : 20 mm, Bottom: 20 mm, Side: 3 mm
MARGINS PRINTABLE AREA
- Roll paper : Top: 3 mm, Bottom: 3 mm, Side: 3 mm
- Roll paper (borderless) : Top: 0 mm, Bottom: 0 mm, Side: 0 mm
- Cut sheet : Top: 3 mm, Bottom: 20 mm, Side: 3 mm
MAXIMUM PRINTABLE LENGTH
- Cut sheet : 1.6 m
- Roll paper : 18 m (Varies according to the OS and application)
BORDERLESS PRINTING WIDTH (ROLL ONLY)
- [Recommended] 515mm(JIS B2), 594mm(ISO A1), 10", 14", 17", 24"
- [Printable] 257mm(JIS B4), 297mm(ISO A3), 329mm(ISO A3+), 420mm(ISO A2), 6", 8", 12", 15", 16", 18", 20", 22", 300mm, 500mm, 600mm and custom roll width (152.4 - 610mm)
MINIMUM PRINTABLE LENGTH
- Cut sheet : 203.2 mm
- Roll paper : 101.6mm (Excluding Cloth, Canvas, Tracing Paper and Translucent Matte Film media. These media are 200mm.)
MEDIA THICKNESS
Roll/Cut : 0.07mm - 0.8mm
MAXIMUM MEDIA ROLL DIAMETER
170 mm
POSTER
- Plain Paper (A1): 0:24 (Fast),
0:43 (Standard), 0:22 (Fast Economy Mode)
- Heavy coated Paper (A1): 0:53 (Fast), 1:20 (Standard)
MAXIMUM NUMBER OF DELIVERED PRINTS
- Multi-position basket
- Standard position: 1 sheet
- Flat position : A2 landscape, glossy paper 10 sheets, Coated paper 20 sheets, Plain paper 20 sheets (excludes strong curled condition)
[Stacker]
- Basket position : 1 sheet (excludes curled condition)
- Folding position : A1 portrait, CAD drawing, Plain paper 20 sheets, Uncoated paper 100 sheets (excludes curled condition)
- Stacking position : A2 landscape, CAD drawing, Plain paper 100 sheets (excludes curled condition)
MEDIA TAKE-UP ROLL UNIT
Dual direction roll take up unit allowing print surface to be wound inside or outside of the roll
MEDIA FEED AND OUTPUT
- Roll Paper : One Roll, Front-loading, Front Output
- Cut Sheet : Front-loading, Front Output (Manual feed using media locking lever)
PRINTER LANGUAGES
HP-GL/2, HP RTL, PDF (Ver.1.7), JPEG (Ver. JFIF 1.02)
MEDIA WIDTH
- Roll paper : 152.4mm - 610mm
- Cut sheet 152.4mm - 610mm
CLASS-LEADING QUALITY
LUCIA TD full pigment ink for precise, bold CAD, GIS and posters
SOFTWARE SOLUTION
New PosterArtist Lite aids high-quality poster creation.
WATER RESISTANT
Full pigment ink, with a water resistant media option.
SMART ROLL SET
Enhanced media type detection with easy media handling.
QUICK START-UP
Faster time to first print and return from sleep mode.

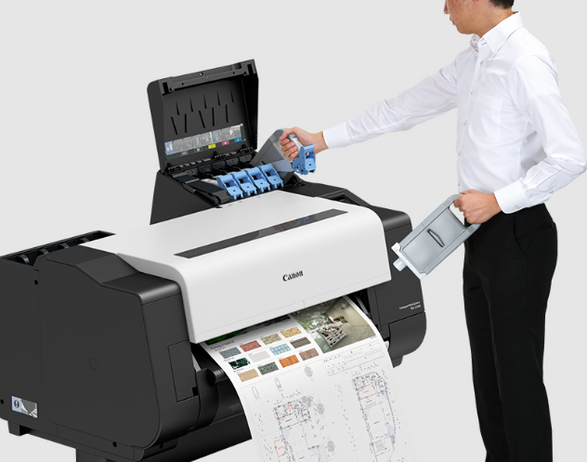

HIGH-VOLUME PRODUCTION
Fast speed and continuous printing with hot swap ink tanks. Fast speed and continuous printing with hot swap ink tanks.
