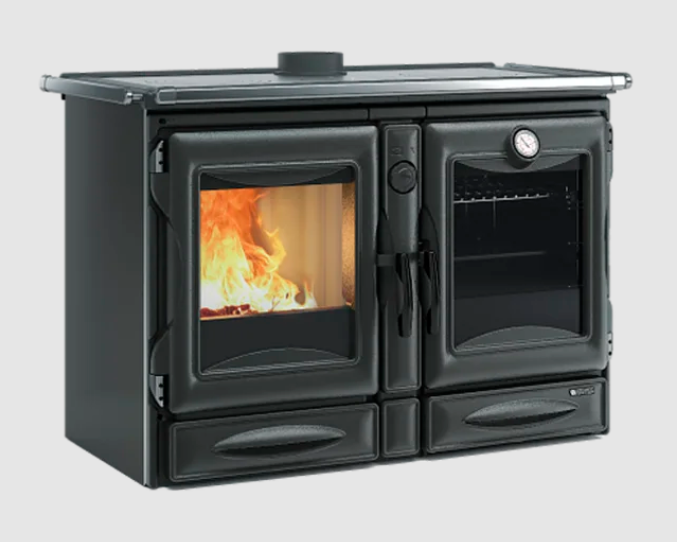

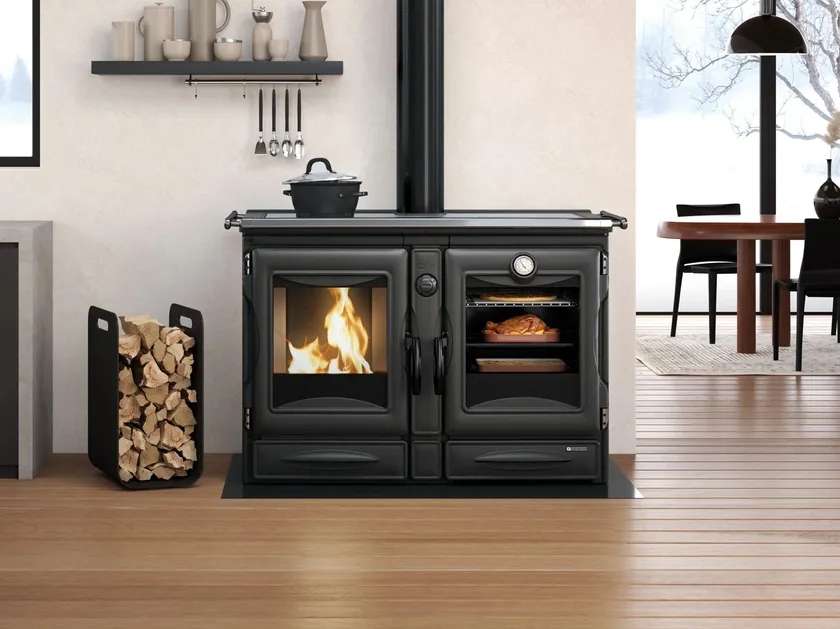

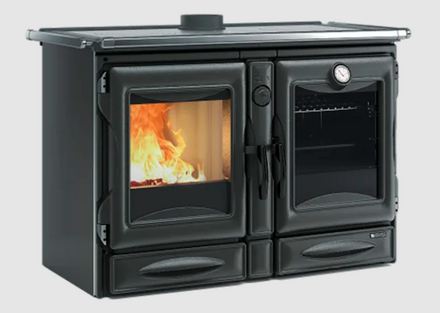

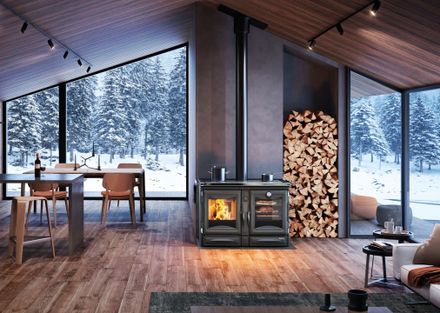

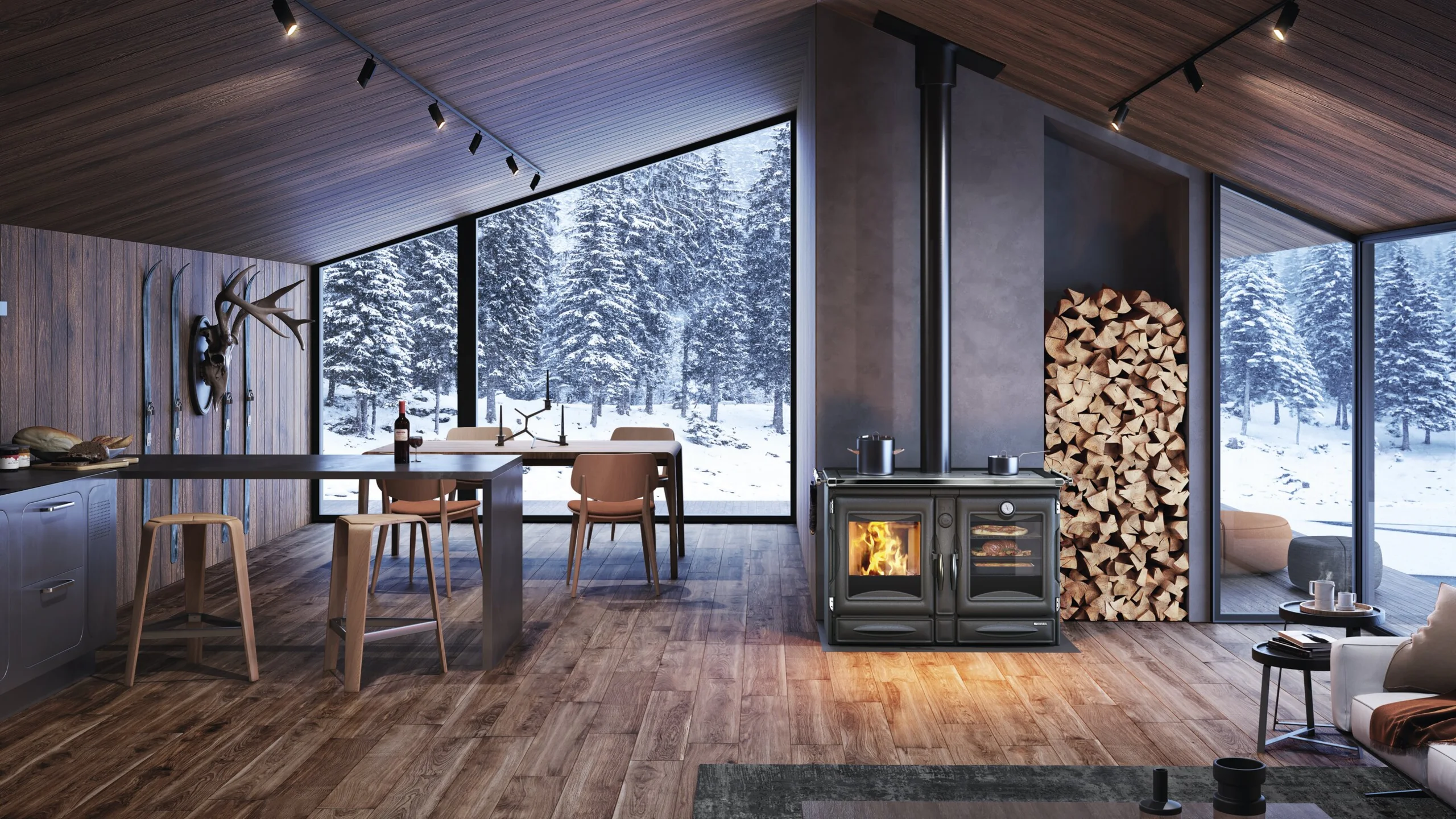

Lanordica Alaska.16 Wood-burning Cooker Stove
ALASKA.16 WOOD-BURNING COOKER STOVE
ALASKA.16 WOOD-BURNING COOKER STOVE
The Alaska wood-burning stove is the result of meticulous attention to detail, boasting a unique, recognizable, and functional design, and a thoughtful selection of materials for a build quality synonymous with longevity.
Great care and attention to detail for a unique, recognisable and functional design. A large 78 litre enamelled oven, a thick plate and cast iron rims. The outer cladding, doors and frame are in enamelled cast iron, the sides are in enamelled steel, while the chrome-plated handrails and convenient wood drawers enhance the aesthetics and usability of this model, one of the largest in its category.
INFORMATION
BRAND
Lanordica
PRODUCT TYPE
Stove
DESIGN
The timeless elegance that captures every gaze
MATERIAL
Cast iron and enamelled steel cladding
CERTIFICATION
EN 16510-2-3:2022
FLUE GAS MASS FLOW
8.4 g/s
FUMES OUTLET DIAMETER (Ø)
150 mm B/T
MINIMUM FLUE DRAUGHT
12 Pa
PRODUCT CODE
L0709
HEATABLE M³
344 m³
COLOR
Glazed Black
EFFICIENCY
86 %
FIRE BOX
The large firebox with adjustable grate and Nordiker® refractory lining enhances the beauty of the fire.
DIMENSIONS
- Width : 1307 mm
- Height : 860 mm
- Depth : 705 mm
NET WEIGHT
350 kg
ENERGY CLASS
A+
LOGS
Wood
FUNCTION
Heating
NOMINAL THERMAL POWER
12.0 kW
HOURLY CONSUMPTION
3.3 kg/h
MEAN FLUE GAS TEMPERATURE
179 °C
DOWNLOADS
↓ Declaration of Performance
↓ Energy labelling - Labelling
↓ User Manual
↓ Data sheet
↓ Declaration of conformity
↓ Energy labelling - product sheet
↓ Ecodesign
CARBON DIOXIDE EMISSION
11.5 %
NITROGEN OXIDES EMISSION
100 mg/m³
CARBON MONOXIDE EMISSION
650 mg/m³
PARTICULATE MATTER EMISSIONS
15 mg/m³
FLUE GAS OUTLET TEMPERATURE
215 °C
ADVANTAGES
- Extractable ash drawer
- Extractable drawer for wood (or objects)
- Height-adjustable cast iron fire grate
- Enamelled cast iron doors, facade and frame
- Adjustable primary and secondary air, pre-calibrated tertiary air
- Easily inspectable and replaceable Nordiker combustion chamber
- Large (78 l) enamelled oven with anti-steam valve and removable rails

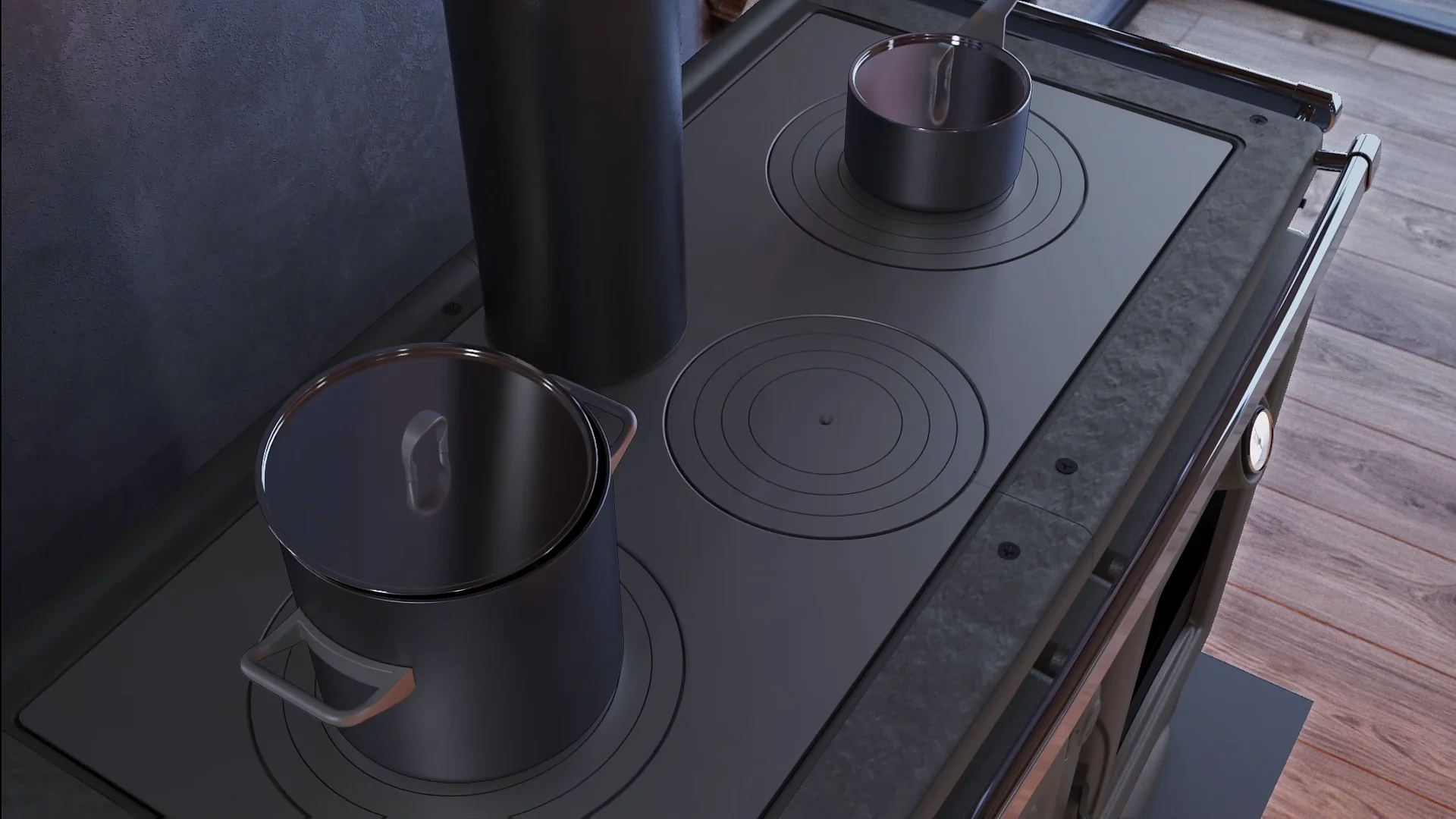

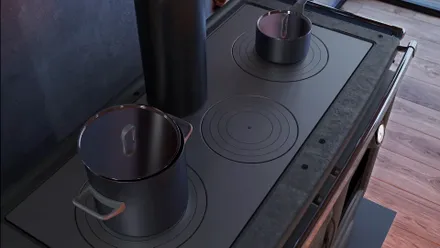

- Large cooking plate (~100 cm) for simultaneous cooking of several foods

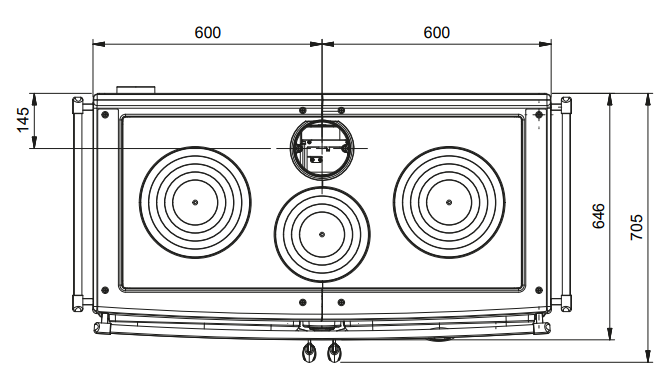

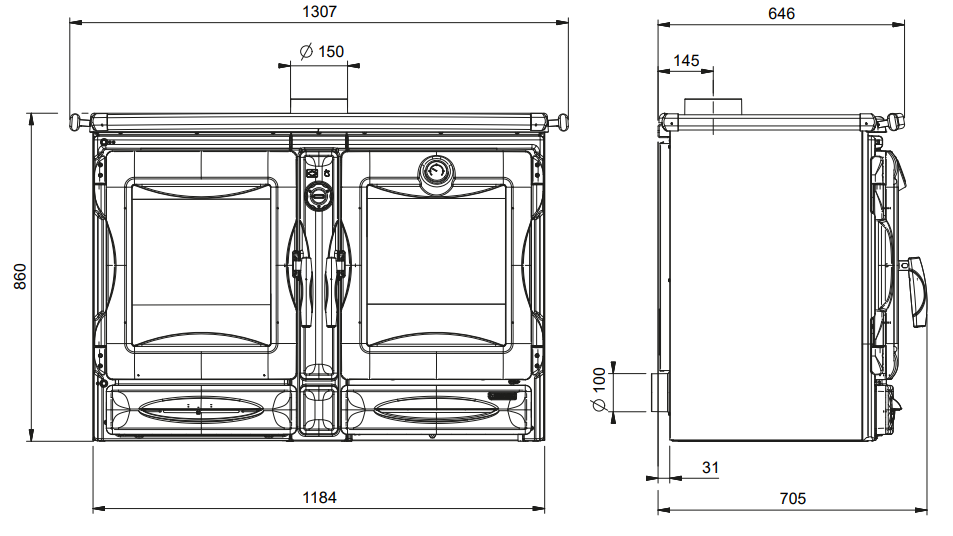

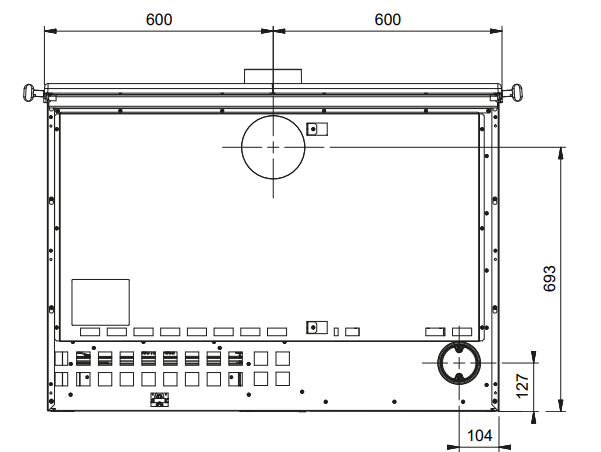

TECHNICAL DRAWINGS
TECHNOLOGY
GLASS CLEANING SYSTEM
A system of pre-heated air which removes any deposit from the fire-door glass.
DOORS IN CAST IRON
The high-quality cast-iron doors are made to last and ensure perfect sealing at all times.
NORDIKER HEARTH
La Nordica-Extraflame uses a special material called Nordiker for the production of hearth walls refractories.
DIRECT OUTDOOR AIR INTAKE (BBC)
Air intake system which draws fresh air from outside directly into the adjust system combustion regulation of the firebox of the appliance.
POST COMBUSTION
The combustion system developed by La Nordica-Extraflame allows, due to a secondary/tertiary air system, a post combustion which significantly reduces emissions.
