Olimpia Splendid DOLCECLIMA Compact 10 M Air Conditioner
DOLCECLIMA COMPACT 10 M AIR CONDITIONER
DOLCECLIMA COMPACT 10 M AIR CONDITIONER
Olimpia Splendid's ultracompact portable air conditioner stands out for its ability to offer high performance in an extremely small footprint (-19% compared to the previous Compact range).
FEATURES
COMPACT TECHNOLOGY
Overall size reduced by 19% compared to the previous Dolceclima Compact range, without foregoing maximum functionality.

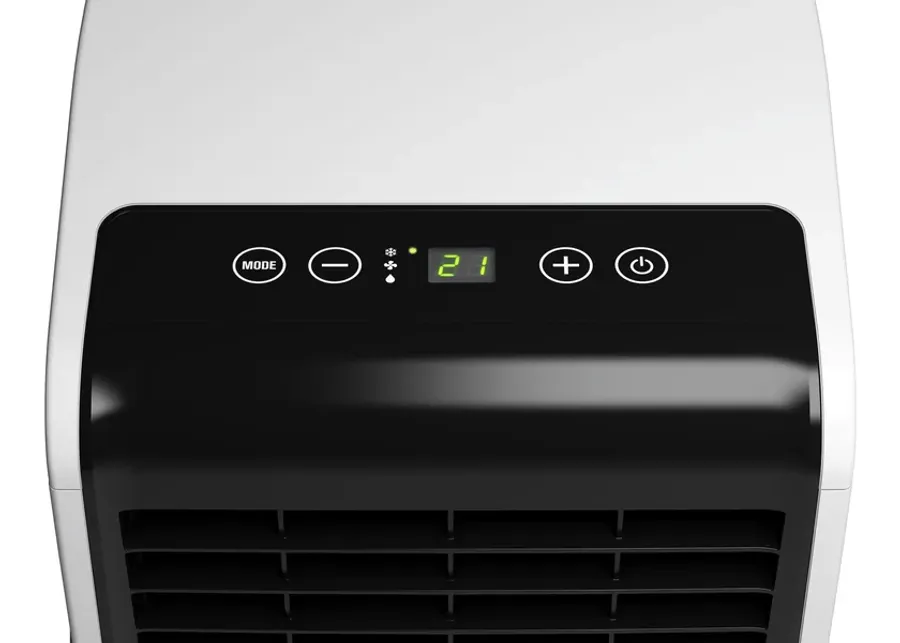

DIGITAL COMMANDS
Latest generation panel, for precise control over all the functions.
FOLLOW ME
The remote control acts as a remote thermostat to ensure correct temperature control in the point where the occupants are present in the room.
ROTATING CASTORS
It can be easily transported and moved in any direction, thanks to its 360 degree rotation.
INTEGRATED WI-FI
Also available in a WiFi version (02473). By downloading the OS Comfort app, you can manage all its functions from your smartphone, even on the move.
INFORMATION
BRAND
Olimpia Splendid
PRODUCT TYPE
Air Conditioner
PRODUCTION
Made in Italy
REFRIGERANT GAS
R290
HOURLY ELECTRICITY CONSUMPTION FOR SINGLE DUCT (1) COOLING MODE
1.00 kWh/h
DETAIL
The desired temperature can be easily set from the digital control panel or remote control, which is equipped with a remote thermostat, and the room is effectively cooled thanks to the 10,000 BTU/h (2.6 kW) of cooling power. With its 360-degree swivel wheels, Dolceclima Compact 10 M can also be easily transported and moved in any direction. Thanks to the integrated Wi-Fi (only in the Dolceclima Compact 10 MBB WIFI version), it is also possible to manage all its functions from outside the home, via smartphone.
MAXIMUM ABSORPTION IN COOLING MODE (1)
6.1
FLEXIBLE PIPE (LENGHT X DIAMETER)
1500 x 150 mm
PRODUCT CODE
02473
NO TANK
Automatic Condensation Disposal
DEHUMIDIFICATION CAPACITY
1.8 l/h
RATED ENERGY EFFICIENCY INDEX
EER 2.6**
NOMINAL ENERGY EFFICIENCY INDEX
2.6
AIR FLOW RATE (MAX/MED/MIN)
280 / - / 230m³/h
SOUND POWER LEVEL
dB(A) 64
MULTIFUNCTION
Remote Control & LCD Display
FAN SPEED
2
NOMINAL COOLING CAPACITY
2.6 kW *
TIMER
24h
SUPPLY VOLTAGE (MIN/MAX)
198 / 264 v
PURE SYSTEM
Electrostatic Filter With Anti-dust Function And Activated Carbon Filter Against Odor
FUNCTIONS
-Auto Function : optimises energy consumption by regulating cooling in relation to room temperature.
-Sleep Function : gradually increases the set temperature for greater thermal comfort.
- Follow Me Function : precise temperature detection at the remote control location.
- Auto-Restart Function : after a black-out, it restarts at the last function set.
MAXIMUM OPERATING PRESSURE (LOW PRESSURE SIDE)
1.0 MPa
ENERGY CONSUMPTION IN “STANDBY” MODE (EN 62301)
0.5 w
WEIGHT (WITH PACKAGING)
25.8 kg
WEIGHT (WITHOUT PACKAGING)
23.3 kg
DIMENSIONS 1 (WITH PACKAGING)
- Width : 383 mm
- Depth : 361 mm
- Height : 840 mm
DIMENSIONS 2 (WITHOUT PACKAGING)
- Width : 320 mm
- Depth : 330 mm
- Height : 661 mm
MAXIMUM POWER CONSUMPTION IN COOLING MODE (1)
1200 w
ENERGY CLASS
A*
COOLING CAPACITY
10.000 BTU/h**
MAXIMUM OPERATING PRESSURE
3.8 MPa
LOWER FLAMMABLE LIMIT
0.038 kg/m³
MINIMUM FLOR AREA FOR INSTALLATION, USE AND STORAGE
9 m²
GLOBAL WARMING POTENTIAL
3
REFRIGERANT GAS CHARGE
0.17 kg
NOMINAL POWER CONSUMPTION FOR COOLING
1.00
EAN CODE
8021183024739
SUPPLY VOLTAGE
220/240-1-50 V-F-Hz
NOMINAL ABSORPTION FOR COOLING
4.5
SOUND PRESSURE LEVEL (MIN-MAX)
51 / 54 dB(A)
MAXIMUN REMOTE CONTROL RANGE (DISTANCE/ANGLE)
8 / ±80° m / °
DEGREE OF PROTECTION PROVIDED BY COVERS
IP X0
POWER CABLE (N° POLE X SECTION MM²)
3 x 1,0 mm²
FUSE
3,15 A
CONFORMITY MARK
CE
LIMITS OF OPERATING CONDITIONS
- Maximum temperature in cooling : DB 35°C
- Minimum temperature in cooling : DB 17°C
