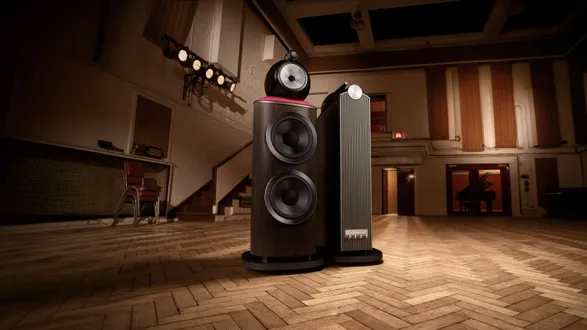

Bowers & Wilkins 801 Abbey Road Limited Edition Speaker
801 ABBEY ROAD LIMITED EDITION SPEAKER
801 ABBEY ROAD LIMITED EDITION SPEAKER
Celebrating the unique 45-year relationship between Bowers & Wilkins and Abbey Road, the 801 Abbey Road Limited Edition takes the 801 D4 Signature and reframes it in homage to the home of music making.
INFORMATION
BRAND
Bowers & Wilkins
PRODUCT TYPE
Speaker
SENSITIVITY (ON AXIS AT 2.83VRMS AT 1M)
90dB
DIMENSIONS
- Height : 1221mm (48.1in)
- Width : 451mm (17.8 in)
- Depth : 600mm (23.6 in)
PRODUCTION
Made in United States
DOWNLOAD
↓ Data Sheet
NET WEIGHT
100.60kg (221.8 lb)
NOMINAL IMPEDANCE
8Ω (minimum 3.0Ω)
RECOMMENDED AMPLIFIER POWER
50W - 1,000W into 8Ω on unclipped programme
HARMONIC DISTORTION
2nd and 3rd harmonics (90dB, 1m on axis)
- <1% 30Hz – 20kHz
- <0.3% 100Hz – 20kHz
NET WEIGHT
100.60kg (221.8 lb)
NOMINAL IMPEDANCE
8Ω (minimum 3.0Ω)
SOUND
Register to attend an exclusive listening event featuring the new Bowers & Wilkins 801 Abbey Road Limited Edition loudspeakers. Experience True Sound in a studio-inspired setting, enjoy light bites and drinks, and leave with co-branded gifts.
BASS
2 x 250mm (10 in) Aerofoil profile bass
FREQUENCY RESPONSE (+/-3DB FROM REFERENCE AXIS)
15Hz - 28kHz ±3dB
MAX RECOMMENDED CABLE IMPEDANCE
0.1Ω
DRIVE UNITS
- 2x ø250mm (10in) Aerofoil™ Profile bass
- 1x ø25mm (1in) Diamond Dome high-frequency
- 1x ø150mm (6in) Continuum™ cone FST™ midrange
FREQUENCY RANGE
-6dB 13Hz - 35kHz
ENCLOSURE DESIGN
3-way Vented-box System
TWEETERS
1 x 25mm (1 in) Diamond dome high-frequency
MIDRANGE
1 x 150mm (6 in) Continuum cone FST midrange
TECHNICAL FEATURES
- Matrix™
- Flowport™"
- Turbine Head
- Diamond tweeter
- Anti-Resonance plug
- Biomimetic Suspension
- Aerofoil™ Profile bass cones
- Solid Body Tweeter-on-Top
- Continuum™ cone FST™ midrange
WHERE MUSIC HISTORY IS MADE
For almost a century, Abbey Road has witnessed the creation of some of the world’s most celebrated songs, albums, films and game scores by the most revered artists and composers.
CABINET FINISHES
Vintage Walnut
GRILLE FINISHES
Black
DETAIL
THE START OF SOMETHING SPECIAL

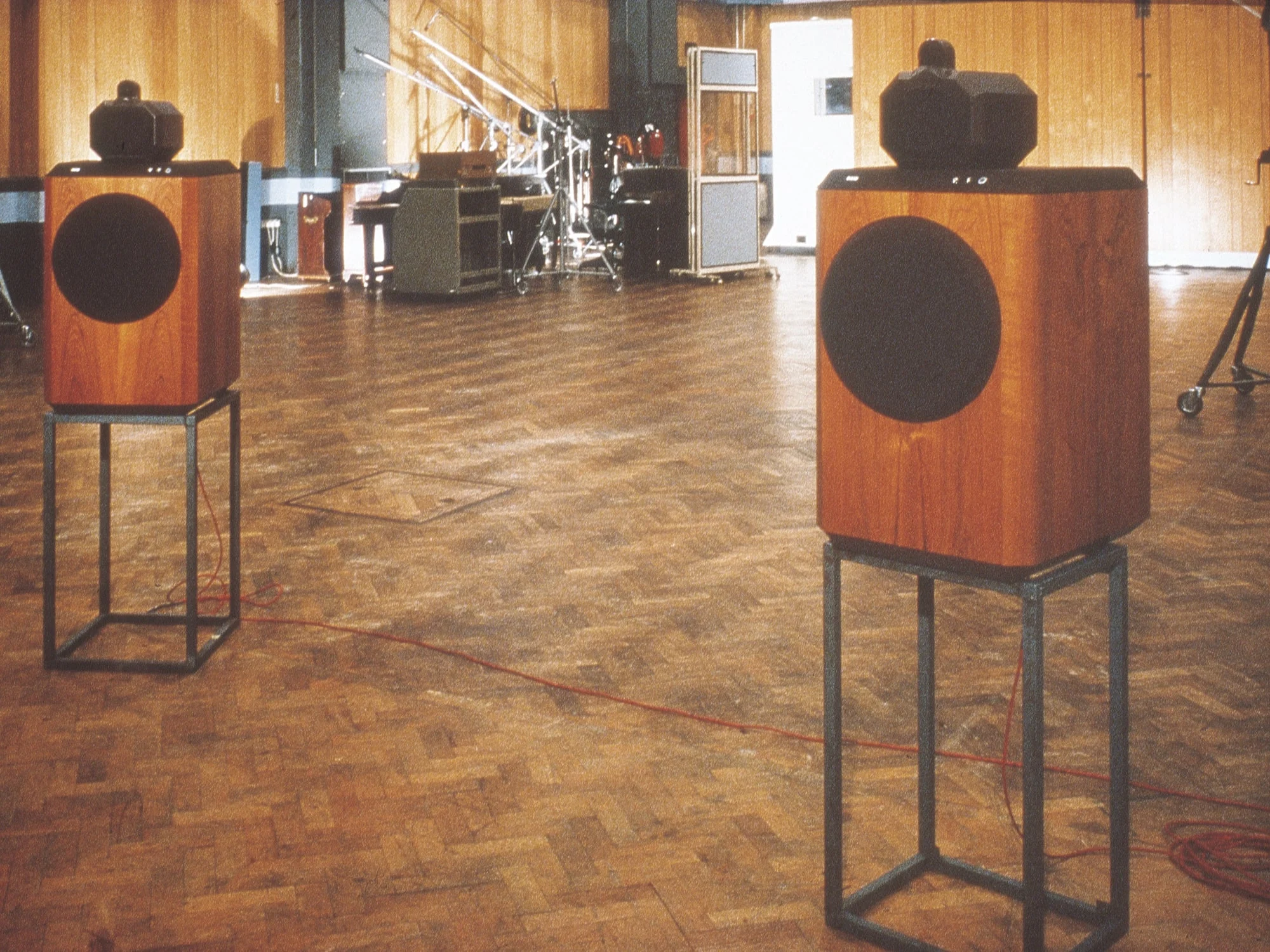

In 1979, John Bowers and his team developed the first 801 – a loudspeaker crafted for unrivalled accuracy. The engineers at Abbey Road immediately understood its value and adopted it as their monitor of choice full-time.
45 YEARS OF ICONIC SOUND

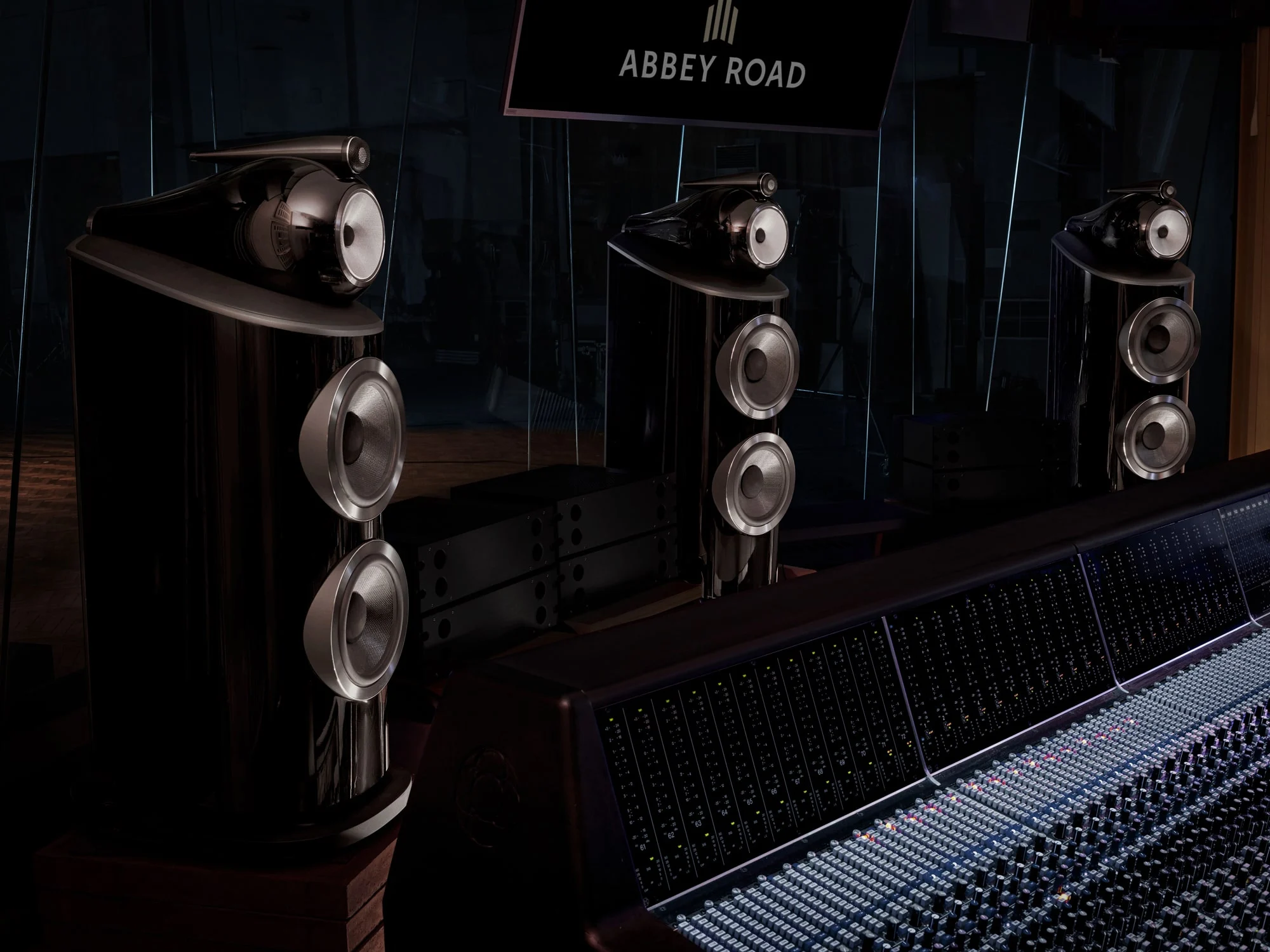

Over the last 45 years, successive generations of 800 Series loudspeakers have graced Abbey Road’s control rooms and contributed to the endlessly iconic music and film scores recorded there.
CELEBRATING A TIMELESS LEGACY

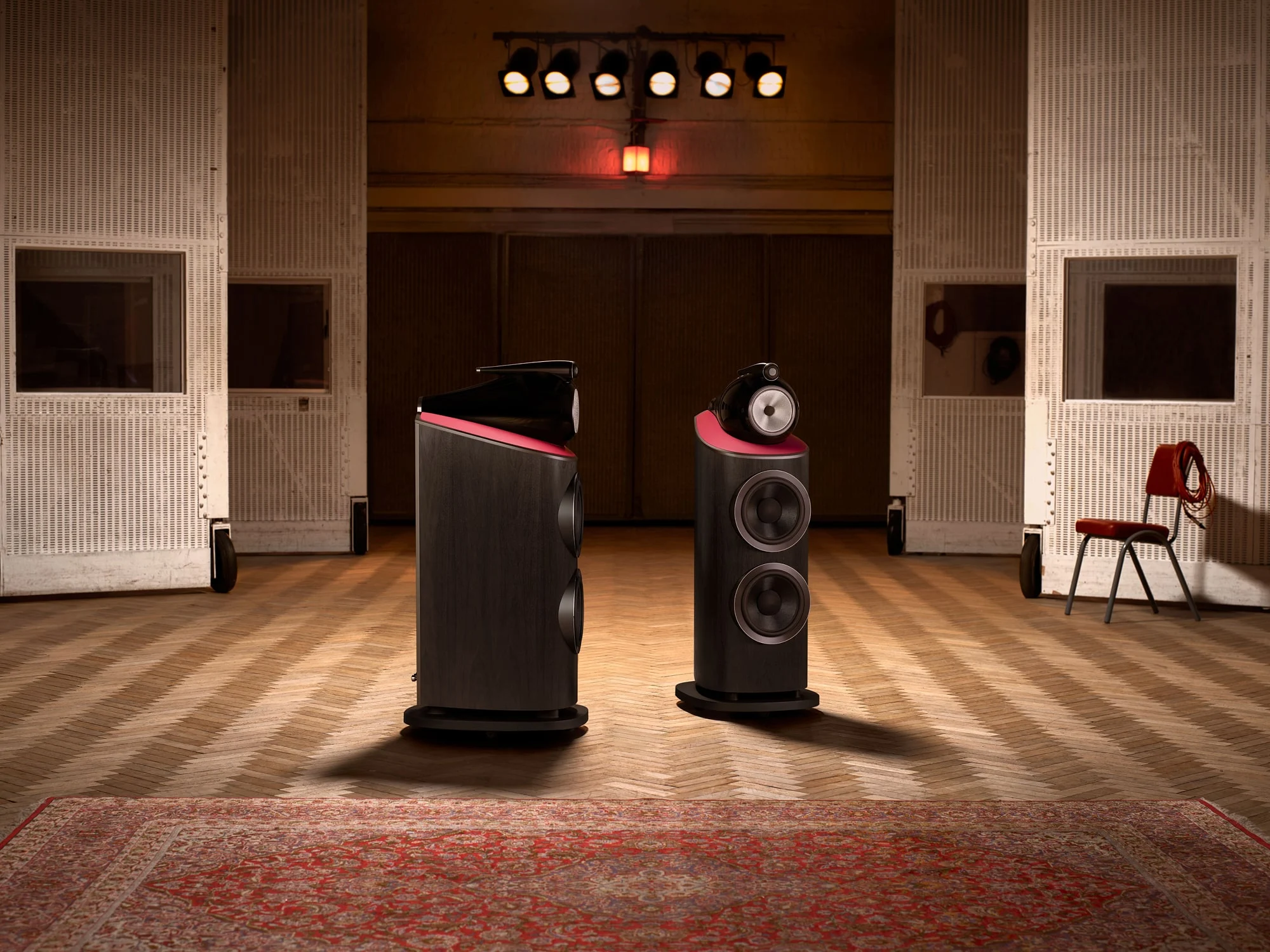

The 801 Abbey Road Limited Edition is a celebration of the unique 45-year relationship between Bowers & Wilkins and Abbey Road. It takes the best loudspeaker Bowers & Wilkins currently manufactures and reframes it in homage to the home of music making.
ABBEY ROAD-INSPIRED FINISH

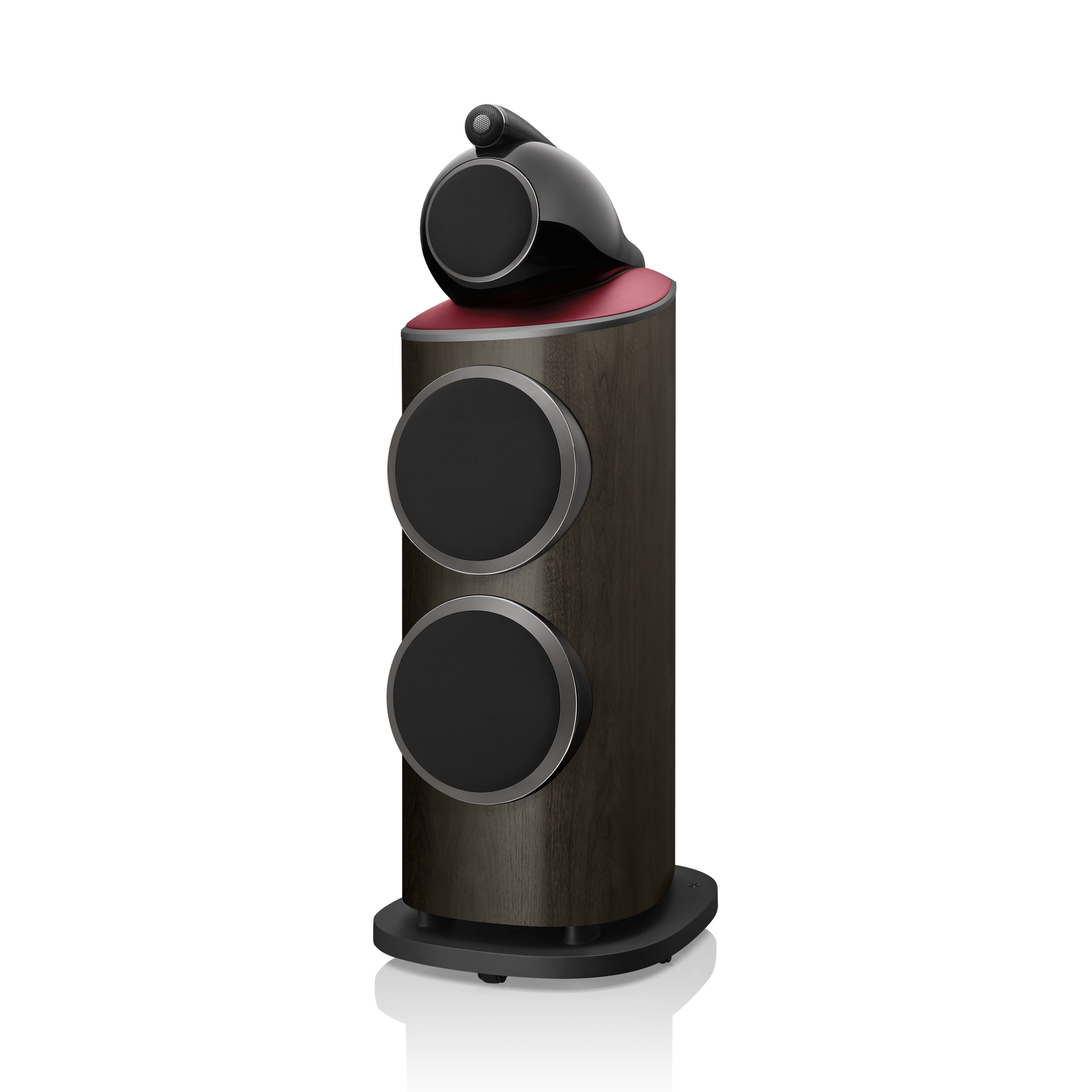

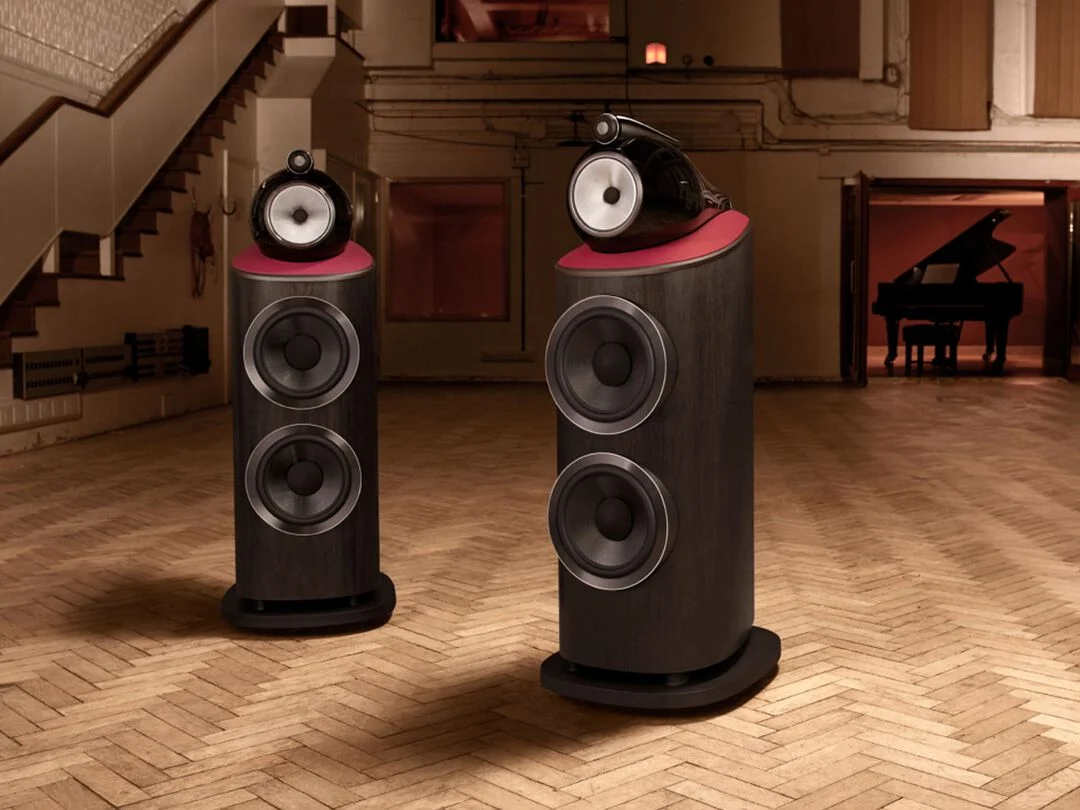

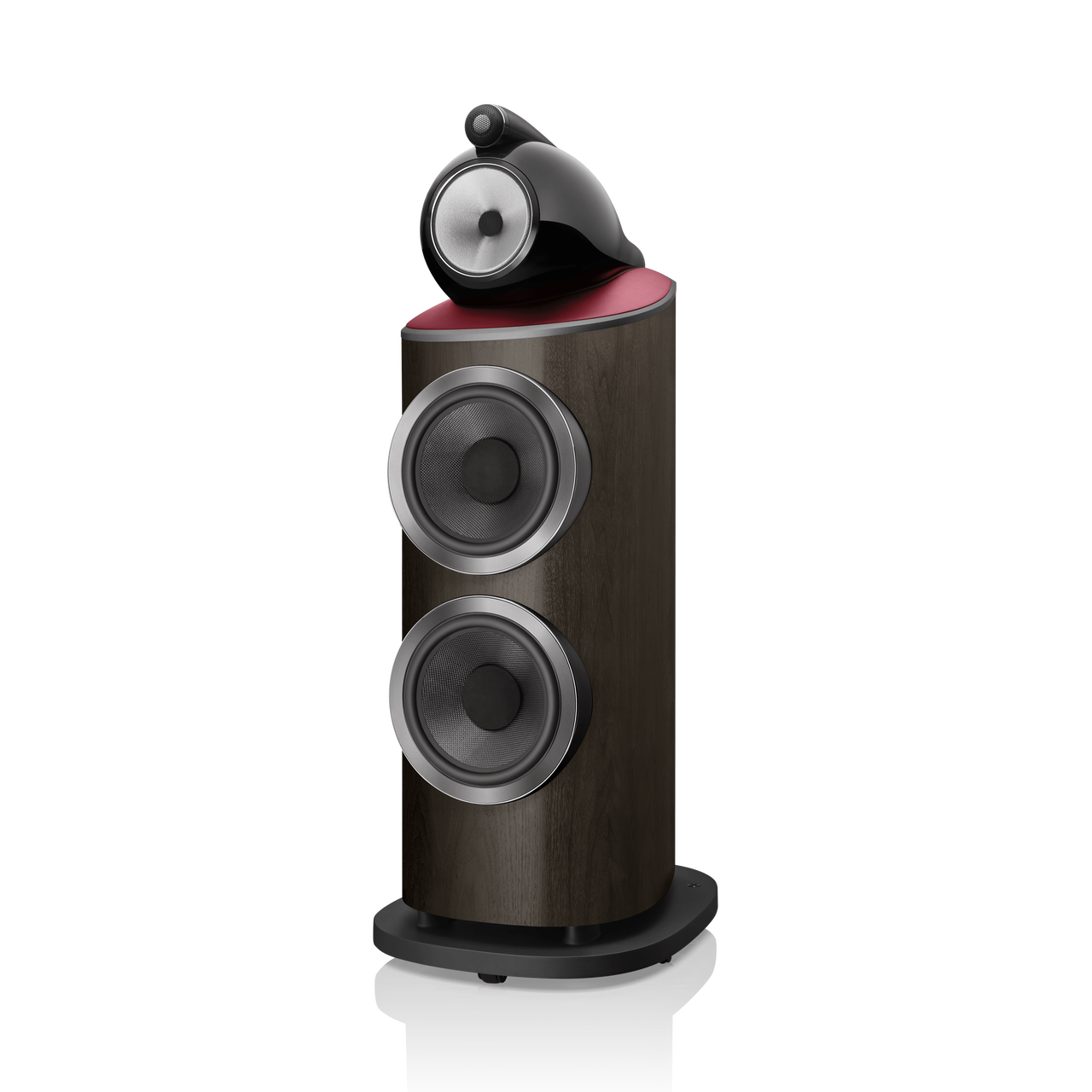

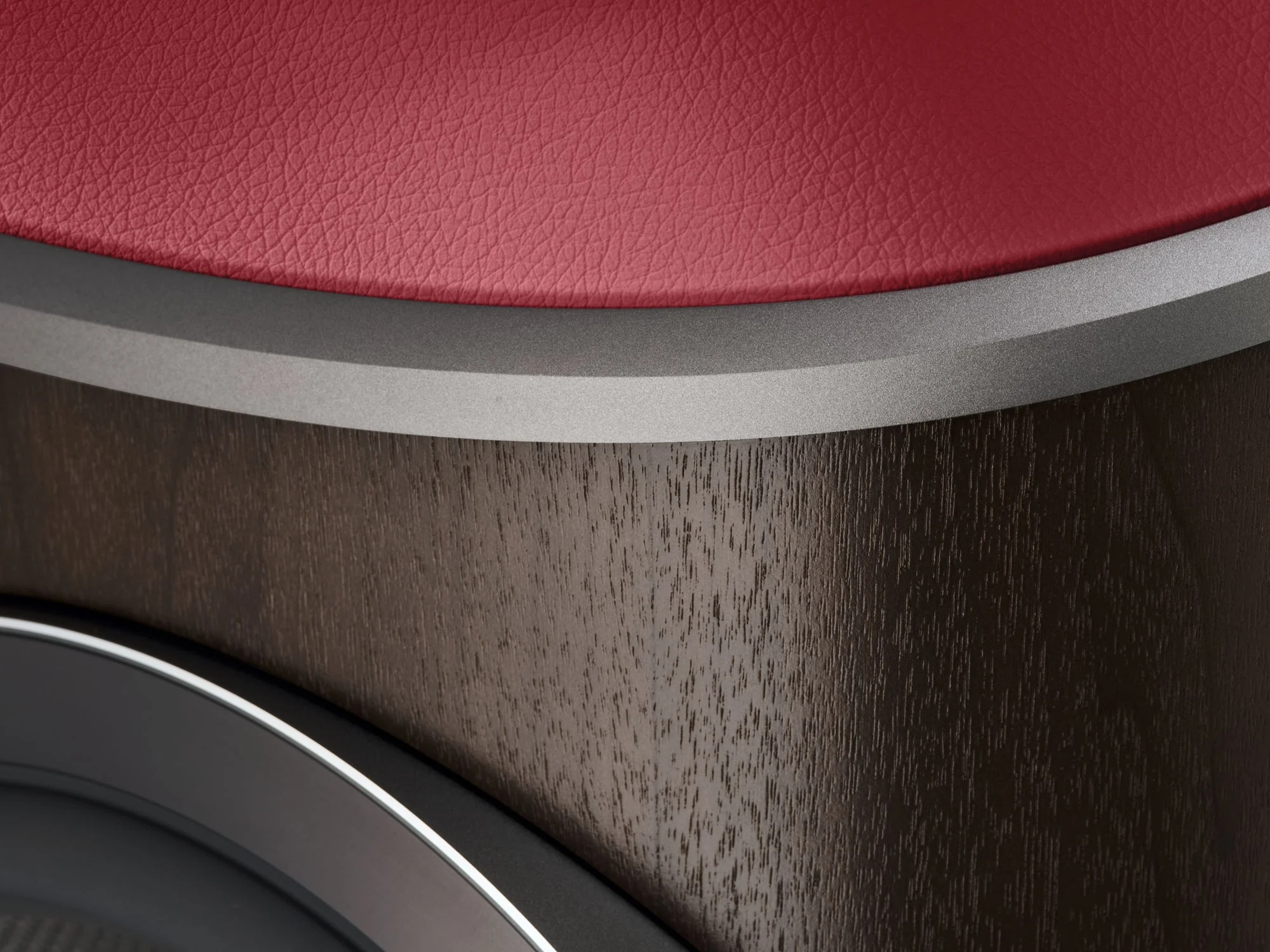

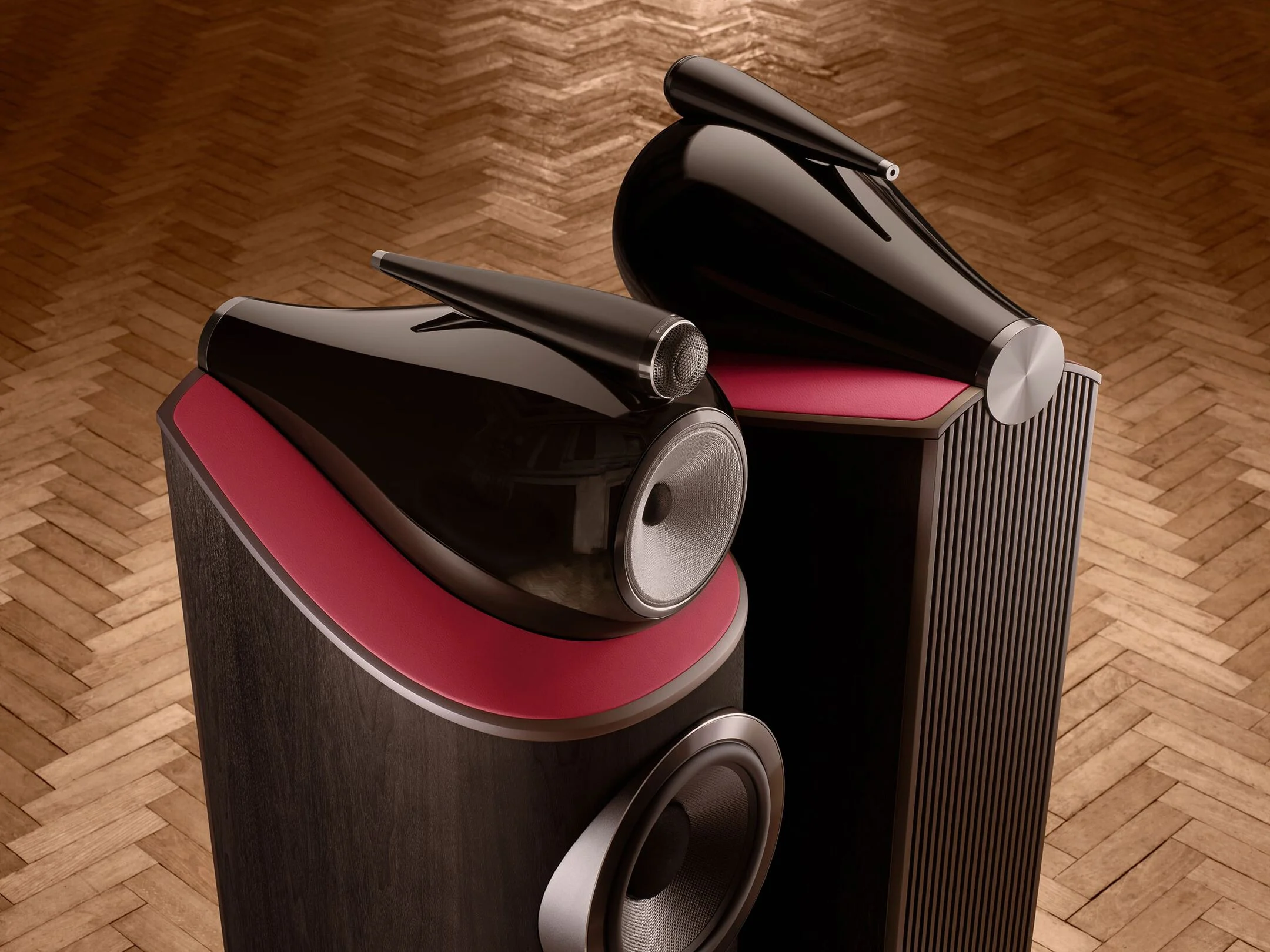

Directly inspired by the famous studio, the 801 Abbey Road Limited Edition boasts a carefully crafted Vintage Walnut cabinet, complemented by a bespoke red Leather by Connolly trim.
A BENCHMARK IN PERFORMANCE
Today, the latest incarnation of the 801, the 801 D4, remains the benchmark by which other high-performance loudspeakers are judged. It’s the ultimate expression of True Sound, and ideally suited to its role as the loudspeaker of choice for Abbey Road.
