Olimpiasplendid Unico Next-F Air Conditioner

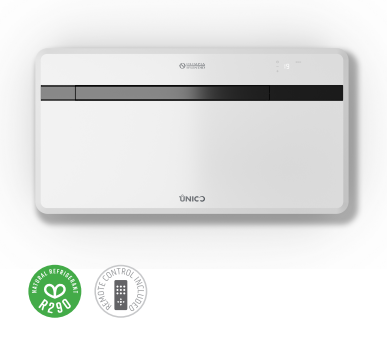

UNICO NEXT-F AIR CONDITIONER
UNICO NEXT-F AIR CONDITIONER
The heat pump air conditioner without an external unit that redefines the standards of its category, bringing maximum comfort into the home with minimal architectural and environmental impact .
On the outside: just two vents, to respect – as always – the beauty of homes and cities.
On the inside: innovative technology with natural R290 refrigerant that encloses, in a rational and easy-to-maintain design, a mix of components whose perfect synchronization defines its strength.
Unico Next-F has a front fascia made of 100% recycled black plastic. A material identical to the original, but recovered from post-consumer products. For an increasingly circular economy.
FEATURES
ECO-FRIENDLY PACKAGING
100% recyclable packaging, in FSC certified cardboard, and 98% plastic free.
NATURAL COOLANT
It uses R290 refrigerant, with a GWP close to zero, for a reduced environmental impact.
HEAT PUMP
Also available in the HP version, with heat pump function, to replace or enhance traditional heating in the intermediate seasons.
SYNC POWER SYSTEM
The new Twin Rotary compressor and latest-generation electronics are synchronized to achieve the best acoustic comfort, in all operating conditions.
INFORMATION
BRAND
Olimpiasplendid
PRODUCT TYPE
Air Conditioner
COOLING (HEATING) POWER
- Min. : 1.0 kw
- Max. : 2.1 kw
PRODUCTION
Made in Italy
COLLECTION
Unico Next
ENERGY CONSUMPTION FOR DOUBLE DUCT APPLIANCES (1) - HEATING
0.5 kWh/h
ENERGY CONSUMPTION FOR DOUBLE DUCT EQUIPMENT (1) - COOLING
0.6 kWh/h
EAN
8021183025231
PRODUCT CODE
02523
RATED POWER CONSUMPTION FOR COOLING (1)
0.6 kw
NOMINAL POWER CONSUMPTION FOR COOLING (1)
6.1 A
NOMINAL ENERGY EFFICIENCY INDEX (1)
2.6
FUNCTIONS
Cooling, heating, dehumidification and ventilation

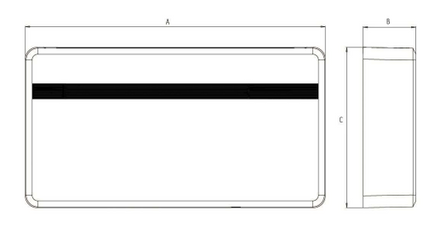

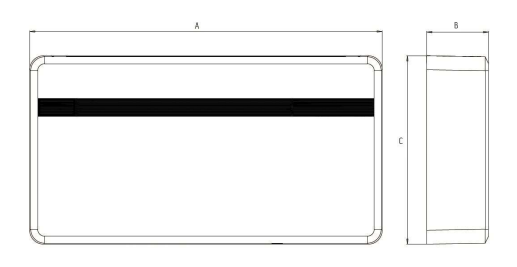

DIMENSIONS UNPACKAING
- Width : 1014 mm
- Height : 540 mm
- Depth : 180 mm
WEIGHT
With Packaging : 43 kg
WEIGHT
Without Packaging : 41 kg
CARICA GAS SODA
0.15 kg
WALL HOLE DIAMETER**
162/202 mm
DIMENSIONS WITH PACKAGING
- Width : 1100 mm
- Height : 605 mm
- Depth : 290 mm
MAX OPERATING PRESSURE
3.10 MPa
NOMINAL COOLING CAPACITY (1)
1.6 kw
POWER CONSUMPTION IN STANDBY MODE (EN 62301)
0.5 w
ENERGY EFFICIENCY CLASS IN COOLING (1)
A
SUPPLY VOLTAGE
230-1-50 V-F-Hz
SUPPLY VOLTAGE
- Min : 198 v
- Max : 264 v
ENERGY EFFICIENCY CLASS IN HEATING (1)
A
ENERGY CONSUMPTION IN “THERMOSTAT OFF” MODE
14.0 w
NOMINAL EFFICIENCY COEFFICIENT (1)
3.3
POWER CONSUMPTION IN COOLING MODE
- Min : 2.5 A
- Max : 7.4 A
POWER CONSUMPTION IN COOLING MODE
- Min : 0.3 kW
- Max : 1.1 kW
NOMINAL HEATING CAPACITY (1)
1.5 kw
DEHUMIDIFICATION CAPACITY
0.7 l/h
EXTERNAL VENTILATION SPEED NUMBER
6
INTERNAL VENTILATION SPEED NUMBER
3
ROOM AIR FLOW RATE IN HEATING MODE
- Max : 380 m³/h
- Med : 270 m³/h
- Min : 195 m³/h
AMBIENT AIR FLOW RATE IN COOLING
- Max : 380 m³/h
- Med : 270 m³/h
- Min : 195 m³/h
ABSORPTION IN HEATING MODE
- Min : 2.1 A
- Max : 6.2 A
POWER CONSUMPTION IN HEATING MODE
- Min : 0.3 kW
- Max : 1.1 kW
EXTERNAL AIR FLOW IN COOLING/HEATING
- Max : 650 m³/h
- Min : 350 m³/h
SPECIFICATIONS
- Front panel made of 100% recycled plastic.
- On/off contact for enabling or energy boost.
- Backlit display with on-board touch controls.
- With external BMS in Modbus RTU language.
- Large flap for even air distribution throughout the room.
- An RS485 port is available for controlling the air conditioner
- Equipped with an electrostatic filter and activated carbon filter .
- Available only in the HP (heat pump) version. Condensate drain is always mandatory.
MAXIMUM REMOTE CONTROL RANGE (DISTANCE/ANGLE)
8 / ±80° m / °
DEGREE OF PROTECTION OF ENCLOSURES
IP20
POWER CABLE (NO. OF POLES X SECTION MMQ)
3 x 1.5
REFRIGERANT GAS*
R290
GLOBAL WARMING POTENTIAL
3
INTERNAL SOUND PRESSURE (2)
- Min : 27 dB(A)
- Max : 42 dB(A)
EXTERNAL AMBIENT TEMPERATURE
- Maximum operating temperatures in cooling mode : DB 43°C - WB 32°C
- Maximum operating temperatures in heating mode : DB 24°C - WB 18°C
- Minimum operating temperatures in heating mode : DB -15°C
INTERNAL AMBIENT TEMPERATURE
- Maximum operating temperatures in cooling mode : DB 35°C - WB 24°C
- Minimum operating temperatures in cooling mode : DB 18°C
- Maximum operating temperatures in heating mode : DB 27°C
