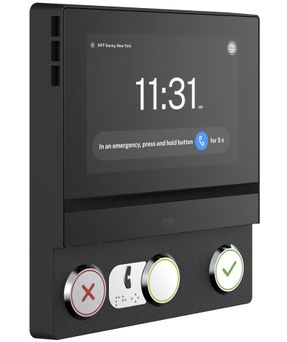

2N Sentrio Elevator
2N SENTRIO ELEVATOR
2N SENTRIO ELEVATOR

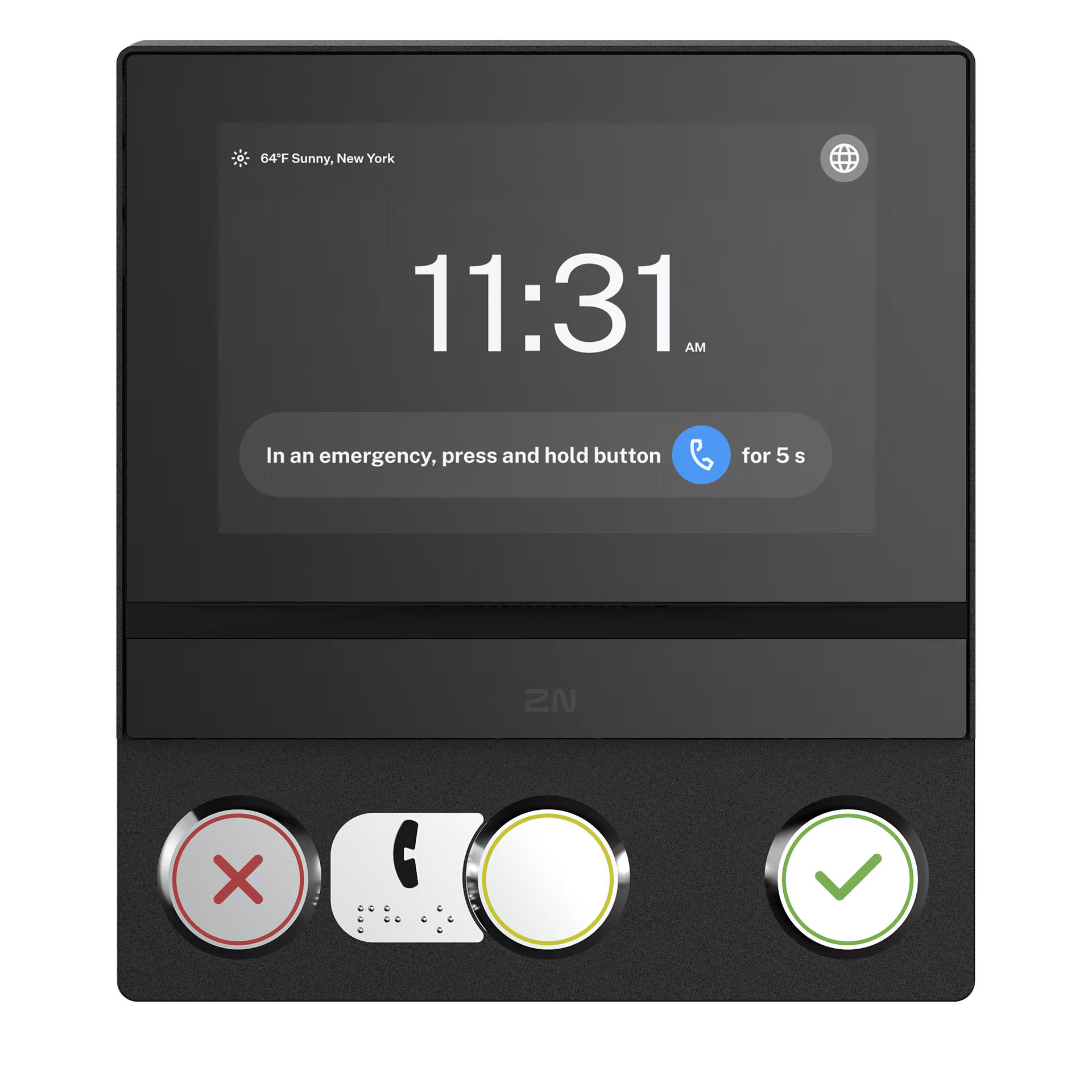

A guardian in elevator emergencies. For all! Ensure fully accessible elevator safety with 2N Sentrio, an advanced IP-based emergency communicator with a 7” display.
FEATURES & BENEFITS

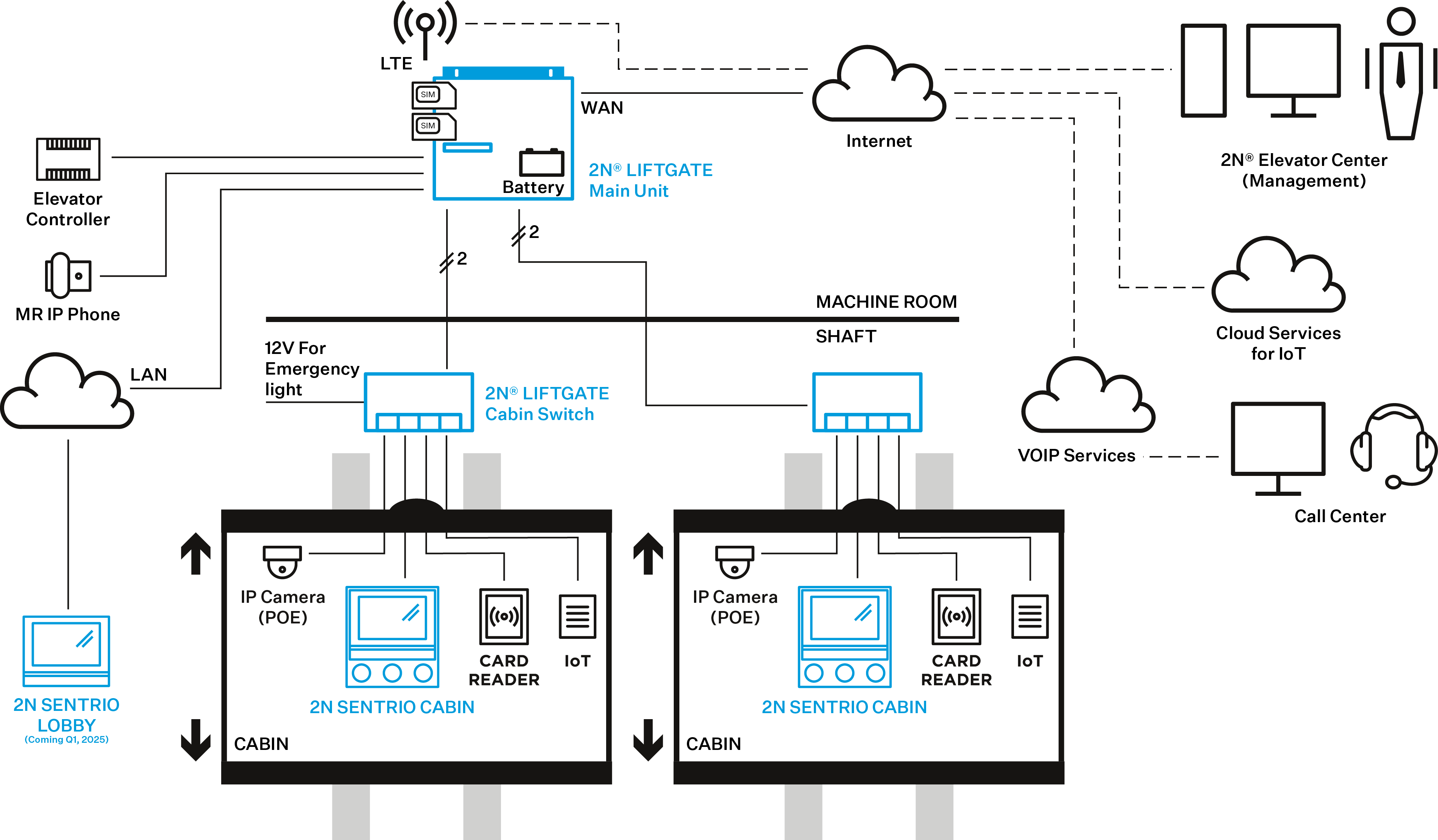

EFFORTLESS CONNECTIVITY VIA IOT GATEWAY
Use the 2N Sentrio with 2N LiftGate and Cabin Switch to deliver backed-up PoE power, external communication with the call centre, and broadband connectivity to the cabin – all with only two wires in the travelling cable.
MULTILINGUAL, CUSTOMIZABLE CHAT
2N Elevator Center offers predefined questions in multiple languages for text communication with the hearing-impaired. They can select their preferred language at the start of the interaction, ensuring clear communication with the operator.
ENHANCE SAFETY WITH LIVE VIDEO
Provide operators with real-time visuals during an emergency. 2N Sentrio activates live video streaming from an external IP camera when something happens - but protects privacy by making the video stream unavailable day-to-day.
COMPLIANT WITH SAFETY CODES
Fully compliant with ASME A17.1-2022, 2N Sentrio meets the highest safety regulations and provides passengers with reliable emergency communication. It also meets IEC 62443-4-1 and 62443-4-2 cybersecurity standards when used with 2N LiftGate.
INTUITIVE ALARM CALL HANDLING
The 2N Elevator Center allows operators to manage alarm calls with full control via an intuitive interface that features live video streaming, real-time chat, and access to chat history supplemented by video recordings.
MORE INCLUSIVE COMMUNICATION
2N Sentrio caters to diverse user needs by supporting both VoIP audio calls and text communication, making it accessible for hearing-impaired passengers.
INSTANT CONTROL VIA THE CLOUD
Allow operators to start remote configuration and monitoring instantly by connecting the emergency communicator to the 2N Elevator Center cloud. It automatically configures from a pre-loaded template!
SCALABLE SOLUTIONS FOR EVERY BUILDING
The Cabin unit is available with or without buttons and can be enhanced with top and bottom shaft audio units. For high-rise buildings, add a Lobby unit to ensure on-site communication with trapped passengers.
INFORMATION
BRAND
2N
PRODUCTION
Made in Czech Republic
USER INTERFACE
- Display size : 7″
- Resolution : 1024x600px
- Controls : Capacitive touch panel
2N SENTRIO CABIN INTERFACE
- LAN : 10/100BaseT, RJ-45
- Contact Outputs : Induction Loop
- Recommended cabling : Cat5e or higher
- Contact Inputs : Alarm 2 (Alarm 1 without 2N Sentrio Switch)
FUNCTION
Elecrticity
WARRANTY
5 Years
RECOMMENDED ALTITUDE
0 to 6,500ft
WEIGHT (2N SENTRIO SWITCH)
160g
WEIGHT (WITH FRAME AND BUTTONS)
950g
WEIGHT (WITH FRAME, WITHOUT BUTTONS)
830g
AUDIO
- Microphone : Integrated or external
- Speaker : Integrated (2W), or external
- Induction loop output : 600mV RMS
- Codecs : G.711, G.722, G.729, L16/16 kHz
DISPLAY
7” Display
VIDEO WAYS
Live two-way video feeds
RELATIVE OPERATING HUMIDITY
10 to 90% (non-condensing)
2N SENTRIO SWITCH INTERFACE
- External Speaker : 1xExternal Microphone : 1x
- Contact Inputs : 4x (Yes, No, Alarm 2, Cancel)
- Voice Alarm Station : 2x (top and bottom shaft audio units)
- Relay Outputs : 2x NO/NC (1x blocking, 1x user-programmable)
OPERATING TEMPERATURE
–4 to 122 °F
STORAGE TEMPERATURE
-4°F to 158°F

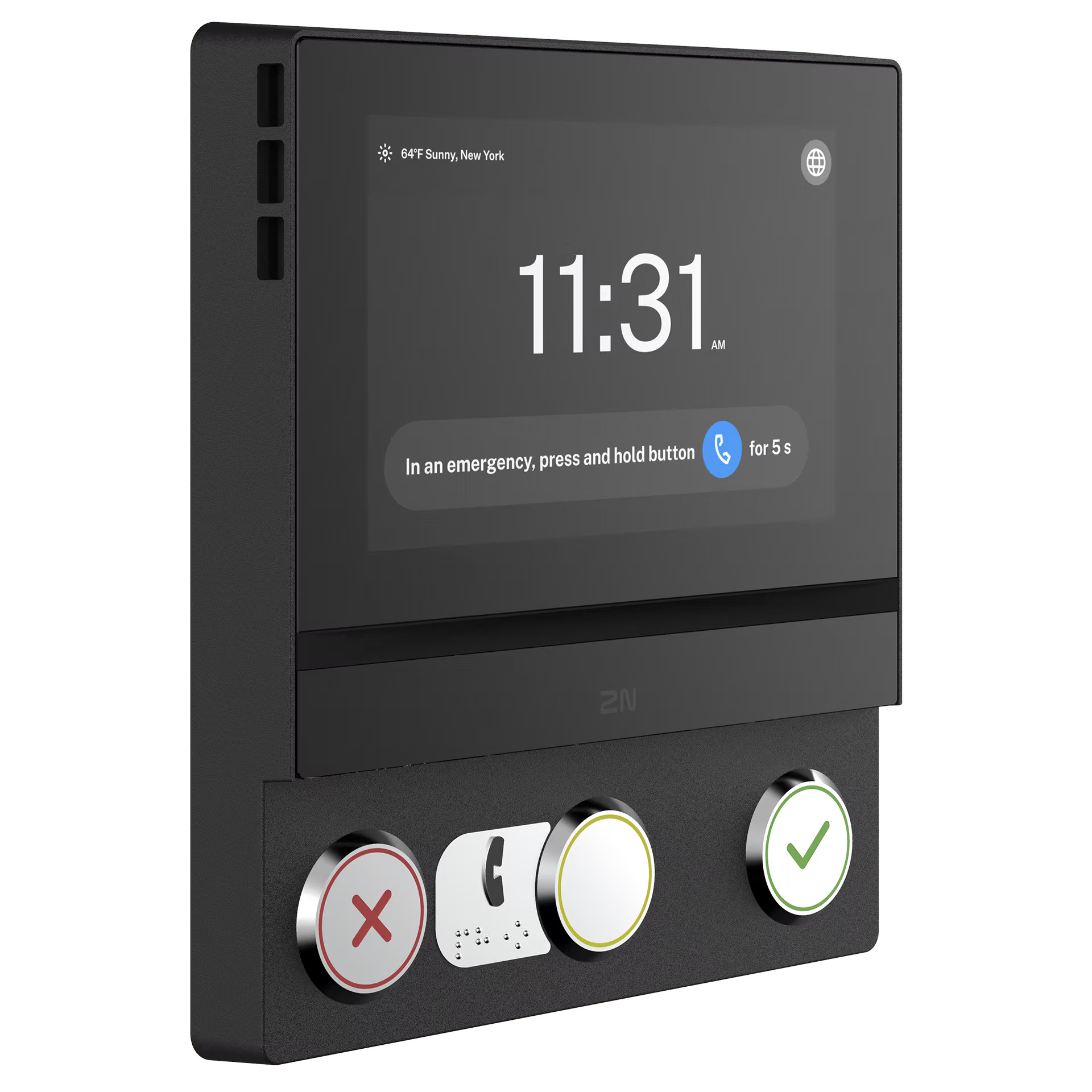

DIMENSIONS 1 - 2N SENTRIO (WITH FRAME AND BUTTONS)
- Width : 7.99 in
- Height : 8.90 in
- Depth : 2.48 in

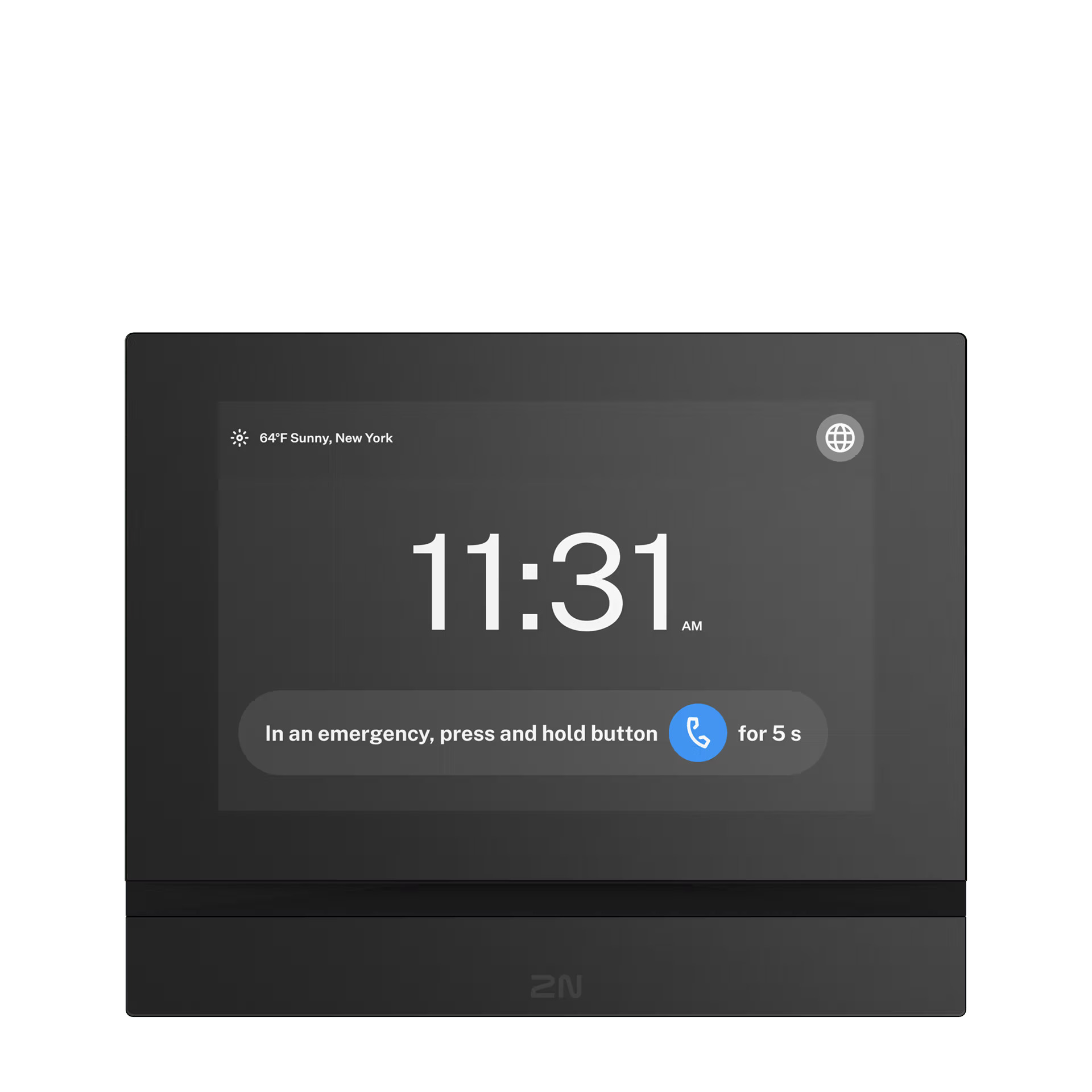

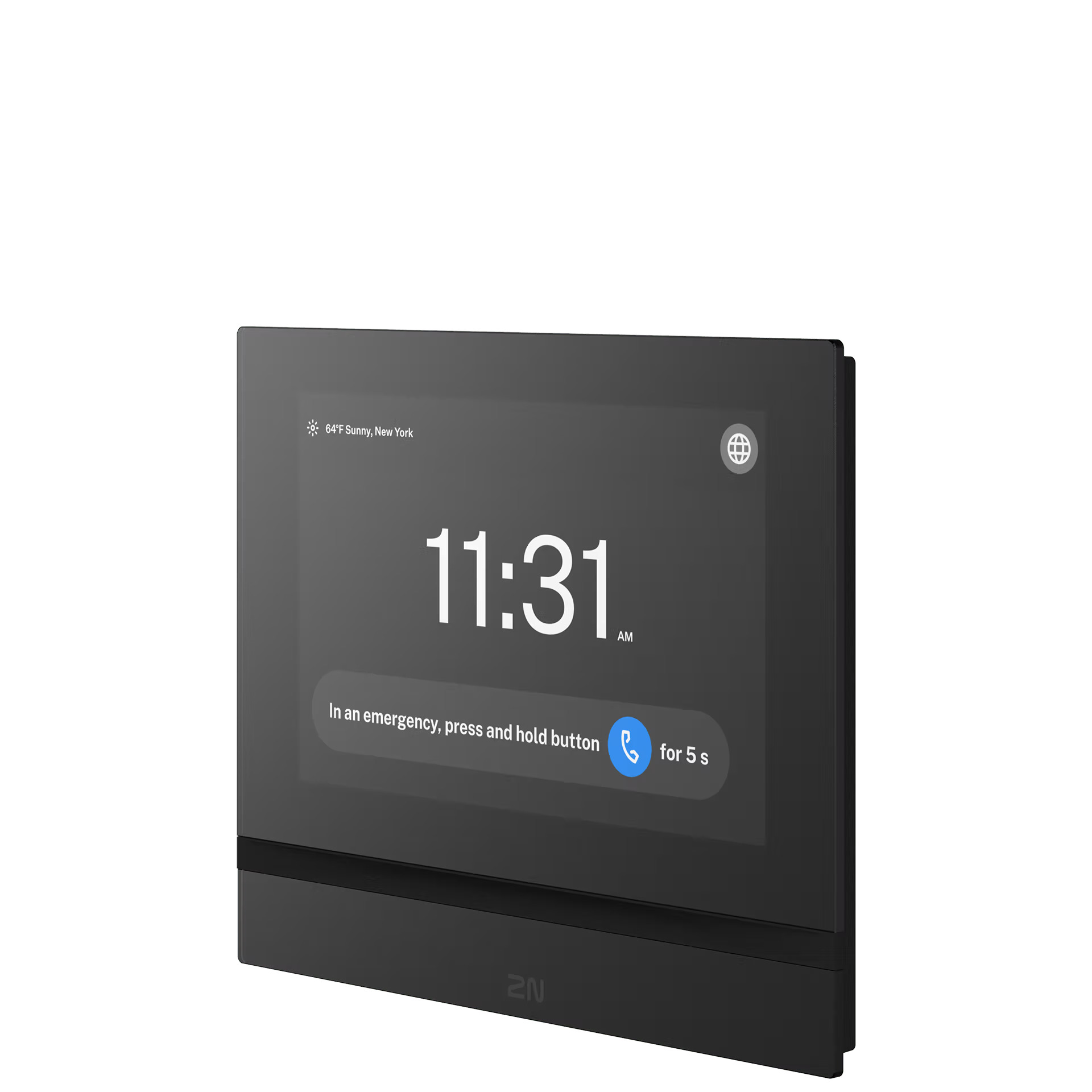

DIMENSIONS 2 - 2N SENTRIO (WITH FRAME, WITHOUT BUTTONS)
- Width : 7.83 in
- Height : 6.38 in
- Depth : 2.48 in

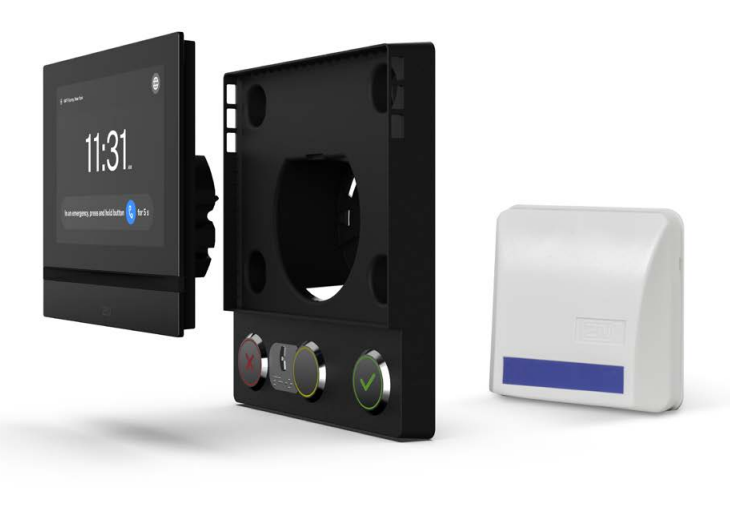

DIMENSIONS 3 - 2N SENTRIO SWITCH
- Width : 3.23 in
- Height : 3.23 in
- Depth : 1.18 in
REMOTE
Remote configuration via 2N Elevator Center
VIDEO
Codecs : H.264 (Main or Baseline profile), MJPEG
COMPLIANT
Fully compliant with ASME A17.1-2022
COMMUNICATION
VoIP audio and text communication
VERSIONS
- 2N Sentrio Cabin - 91378901US
- 2N Sentrio Lobby - 91378903
AUDIO CALLS
It offers reliable VoIP audio calls, multi-lingual text communication for the hearing impaired, live two-way video for real-time cabin visuals, and more.
DETAIL
This product is not sold through the Axis distribution network, please contact our representative by completing the form.
POWER SUPPLY
- Type : 12V DC adapter or PoE 802.3af
- Recommended power supply : 12V, 1A
- Reverse polarity protection : Yes
TECHNICAL DRAWING
DOWNLOADS
FIRMWARE
↓ Firmware 2.49.1.75 - 2N Sentrio Cabin
↓ Firmware 2.48.1 - 2N Sentrio Cabin
↓ Firmware 2.48.1 - 2N Sentrio Lobby
↓ Firmware 2.49.1.75 - 2N Sentrio Lobby
↓ Firmware 2.45.0 - 2N Sentrio Cabin
DATA SHEET/CAD & BIM/PRESENTATIONS
↓ Data Sheet
↓ AutoCAD - 2N Sentrio (EN)
↓ Product Presentation (EN) - 2N Elevator emergency communication
