Wharfedale DX-3 HCP Subwoofer
DX-3 HCP SUBWOOFER
DX-3 HCP SUBWOOFER
The Wharfedale DX-2 is the standard bearer for entry-level home cinema solutions – the crowned champion of ‘Best Speaker Packages under £500’ in the annual What Hi-Fi? awards, for FIVE consecutive years!
INFORMATION
BRAND
Wharfedale
PRODUCT TYPE
Subwoofers
INPUT IMPEDANCE
- Line In 10kΩ
- LFE 5kΩ
BASS DRIVER DX-3 SUBWOOFER
8"(200mm)Woven Polypropylene cone
MODEL
- DX-3 Satellite
- DX-3 Centre
- DX-3 Subwoofer
AMPLIFIER POWER OUTPUT
70W
PEAK POWER OUTPUT
150W
SYSTEM
Now updated for 2023, with a clean-new aesthetic and inheriting performance and styling tweaks, based upon the Wharfedale Diamond 12 series, the new DX-3 is the blockbuster sequel and the new system of choice for those yearning for a home cinema experience but limited on space or budget.
CROSSOVER RANGE
40Hz - 150Hz
INE INPUT SENSITIVITY
10omv for maximum output
NET WEIGHT
7.8kg
FINISH DX-3 SUBWOOFER
Black oak / Walnut
DIMENSIONS DX-3 SUBWOOFER
- Height (on plinth) : 298(+30) mm
- Width : 268 mm
- Depth (with terminals/grille): 300(+22)mm
DOWNLOAD
↓ Manual

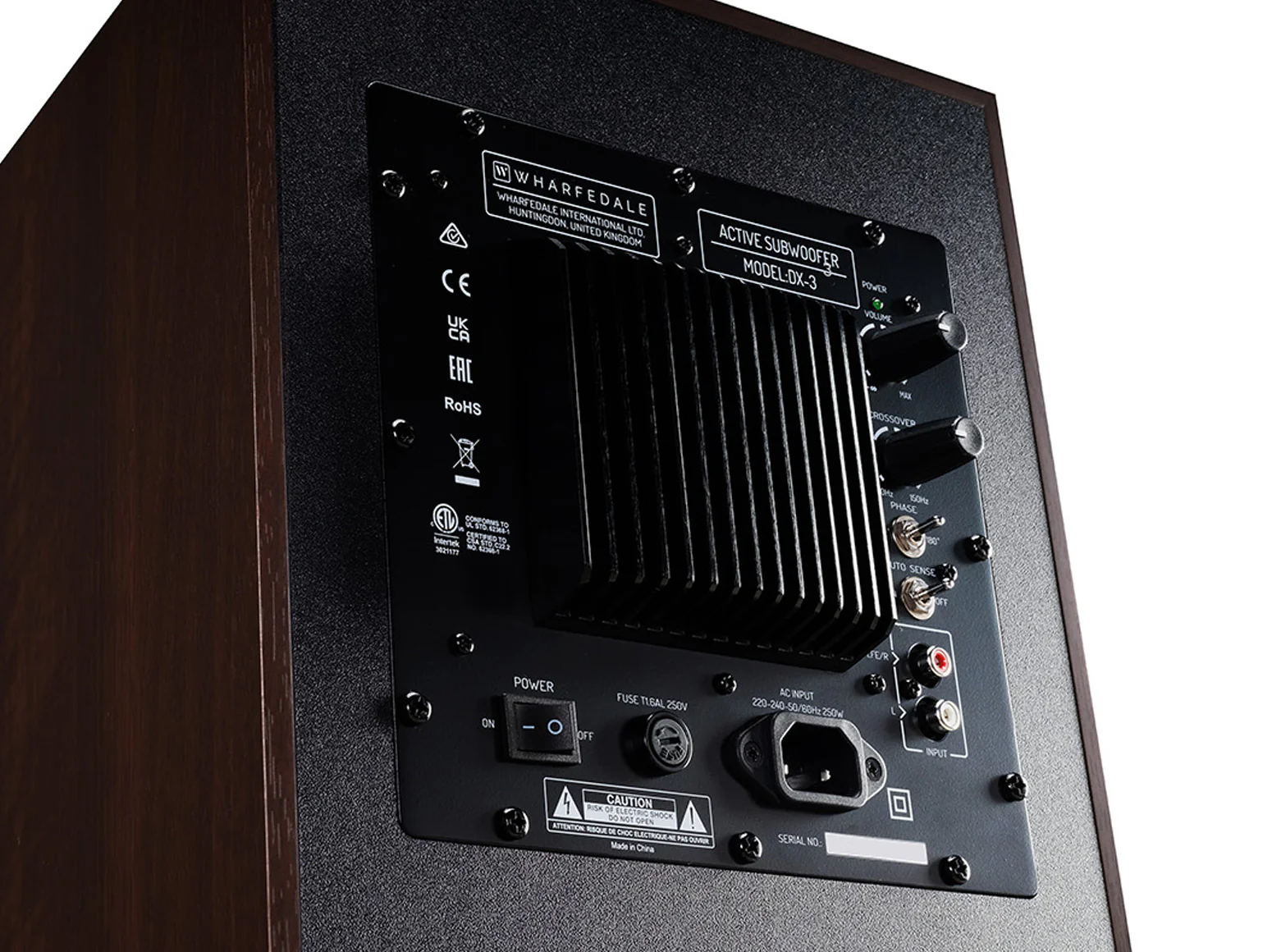

INPUTS
2 X RCA Phono,LFE Line-in RCA
DRIVER DX-3 SUBWOOFER FEATURES
-Auto on-off
-Phase inversion
-Low pass filter slope adjustment
LOW-FREQUENCY
Whole system tuning means the subwoofers rapid and controlled low-frequency extension has also evolved to match the satellite speaker’s new appearance and enhanced dynamics.
AVG. MAX OUTPUT @1M
105dB
SIGNAL-TO-NOISE RATIO (S/N)
285dB
COLORS
- Walnut
- Black Oak
LONG-THROW DRIVER
For bass extension and impact, the DX-3 system relies on the 200mm long-throw driver in the powered DX-3 subwoofer, modelled upon the best-selling Wharfedale WH-D8.
STRUCTURE
The Wharfedale DX-3 is compact, stylish and offers incredible value for money. Marking the 3rd iteration of the acclaimed system, the satellite speakers bring in new heritage and are now styled closer to the award-winning Diamond 12 series, making for a more contemporary solution. The cabinets have also been revised in looks but also with a new structure, not only to enhance the aesthetic but also to aid with the resonant control and dynamic performance, resulting in an even more impressive mini loudspeaker cabinet. Handling dialogue, sound effects and music with ease, solidity and detail, the DX-3 is extremely versatile.
details
DETAILS
| Model | DX-3 Satellite | DX-3 Centre |
|---|---|---|
| Bass driver | 3"(75mm)Woven Polypropylene cone | 3"(75mm)Woven PP Polypropylene cone x2 |
| Treble driver | 3/4"(19mm) High frequency silk dome | 3/4"(19mm)High frequency silk dome |
| Sensitivity (2.83V @ 1m) | 86dB | 87dB |
| Recommended amplifier power | 25-100W | 30-100W |
| Nominal impedance | 4Ω | 4Ω |
| Minimum impedance | 3.6Ω | 3.6Ω |
| Frequency response (+/-3dB) | 100Hz - 22kHz | 80Hz - 22kHz |
| Bass extension (-6dB) | 100Hz | 70Hz |
| Crossover frequency | 2.8kHz | 2.6kHz |
| Height | 190mm | 120mm |
| Width | 120mm | 310mm |
| Depth (with terminals/grille) | 122mm | 122mm |
| Net weight | 2kg | 2.7kg |
| Finish | Black oak / Walnut | Black oak / Walnut |
FEATURES
BASS RACE
The included WH-D8 is an active subwoofer that offers lively, deep bass, perfect for AV and music applications.
AWARDS SEASON
The DX-2 is arguably the most award-laden speaker system in recent history, so you can be sure that the DX-3 is more than just a B-movie and more of a blockbuster sequel!
SURROUND SOUND

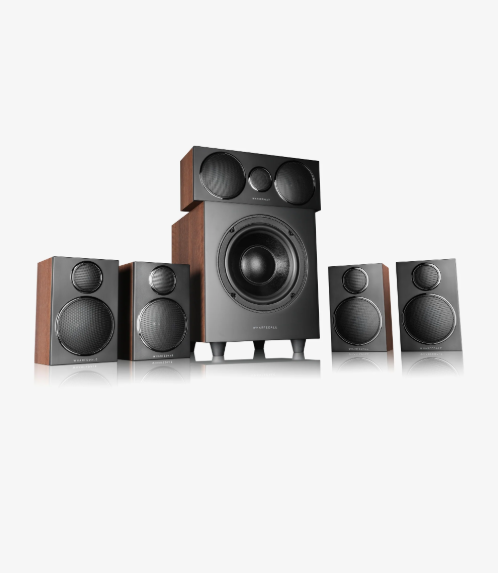

The DX-3 5.0 system includes 4 x satellites and 1 x Centre speakers. The satellite speakers are also available in 2.0 and 5.0 configurations, allowing for expansion beyond 5.1
TRAITS OF MORE THAN ONE LEGEND
Cabinets, drivers, structure and performance are closer to the Diamond 12 series – an award-winning home theatre system of its own right!
PERFORMANCE
Overall, home cinema systems are subject to high demands in terms of audio performance. Despite being compact and affordable, the DX-3 is feature-rich and built upon a strong foundation to provide a space-saving, budget-friendly system without sacrificing a thrilling home cinema experience.

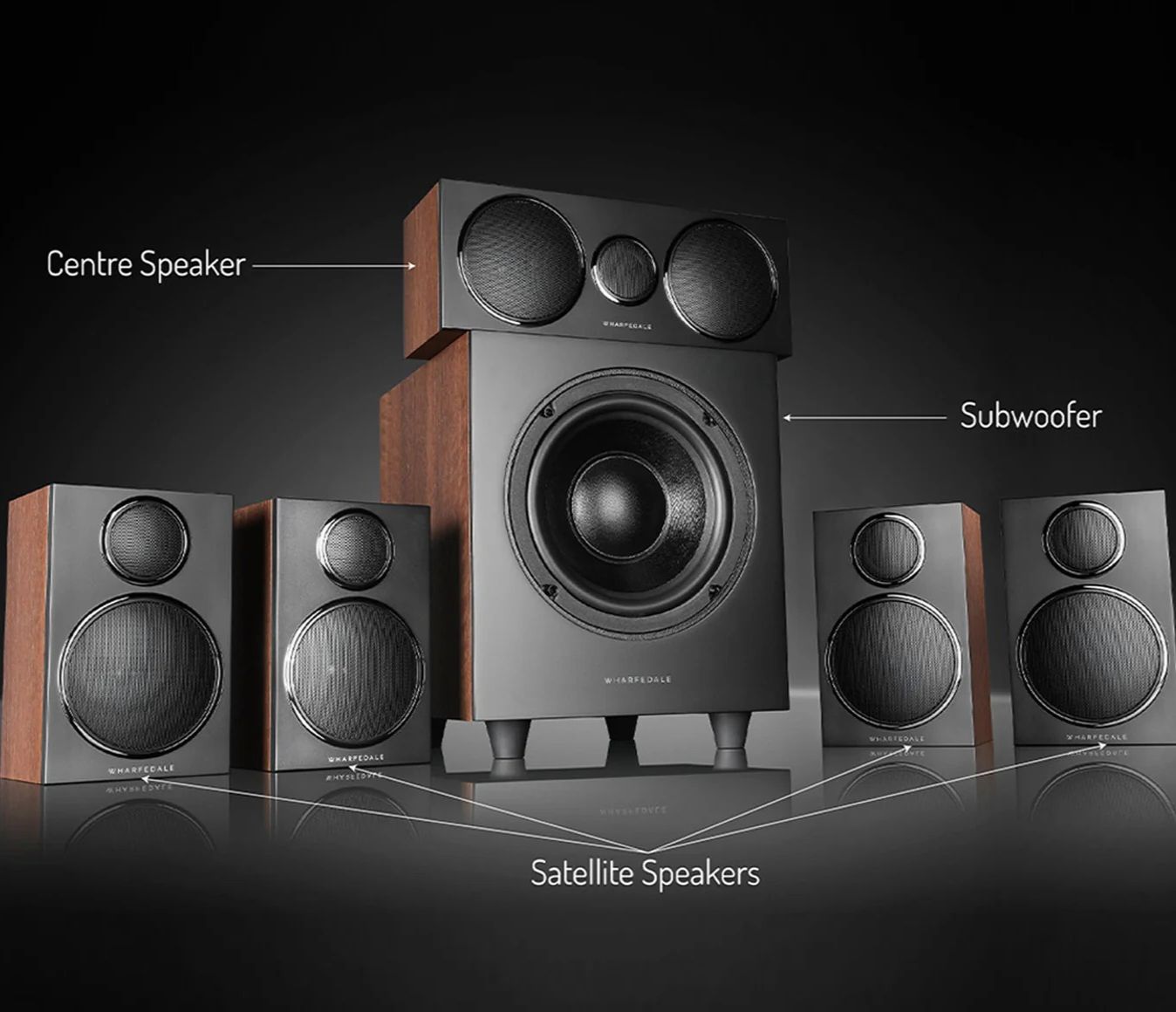

SATELLITE SPEAKERS
As with the preceding DX-2, the DX-3 includes four satellite speakers for the front and rear, a compact centre speaker, and an powered subwoofer that has also been tweaked in conjunction with the satellite speakers. Offering a more sophisticated performance, each of the satellite speakers employs a silk dome HF unit and 75mm bass driver engineered from a polypropylene base, which offers a performance akin to the PP cones featured in the Wharfedale Diamond 12 series.
