Elica Como Wallmount Hood
COMO WALLMOUNT HOOD
COMO WALLMOUNT HOOD
Elica Design Center

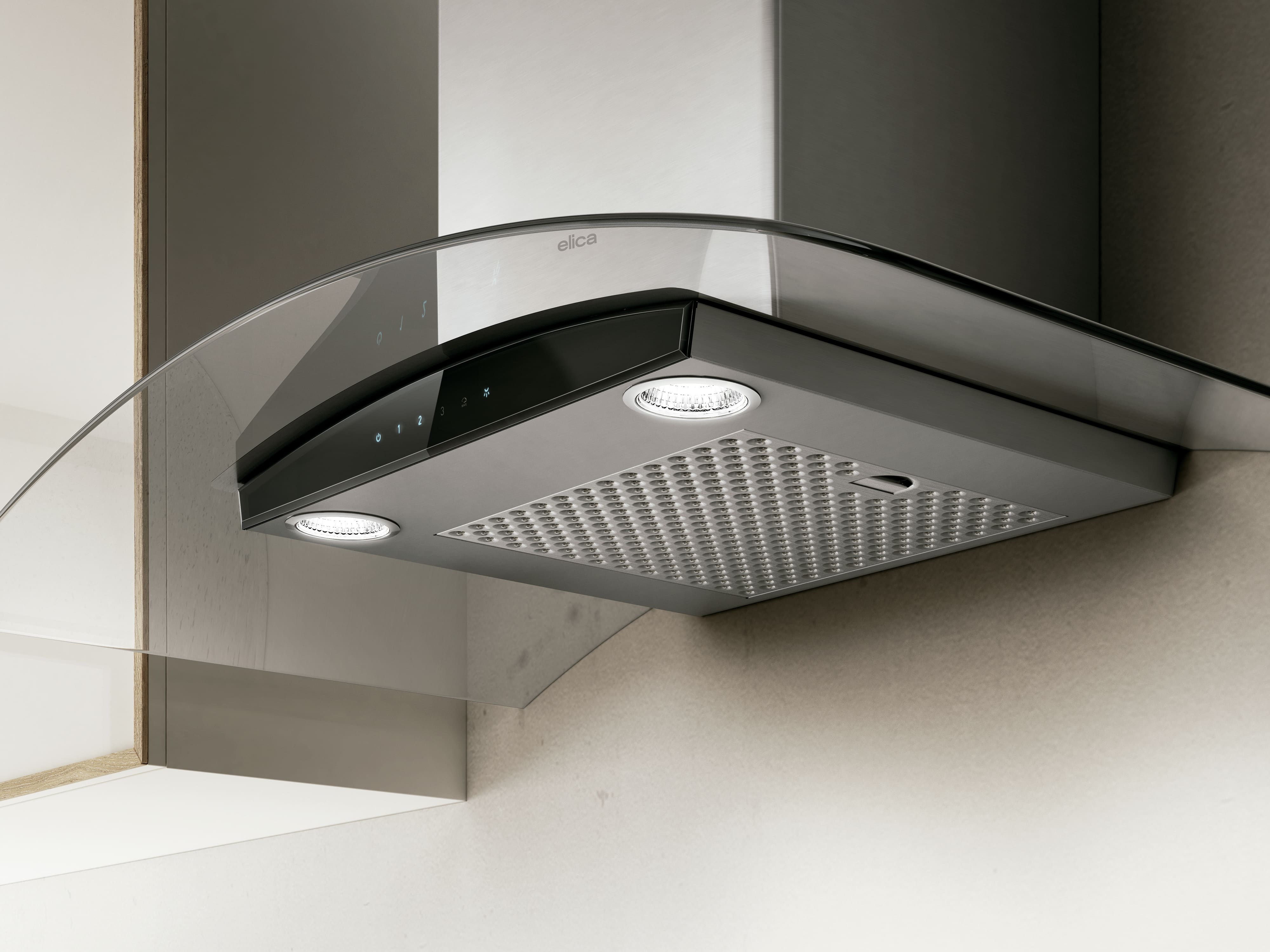

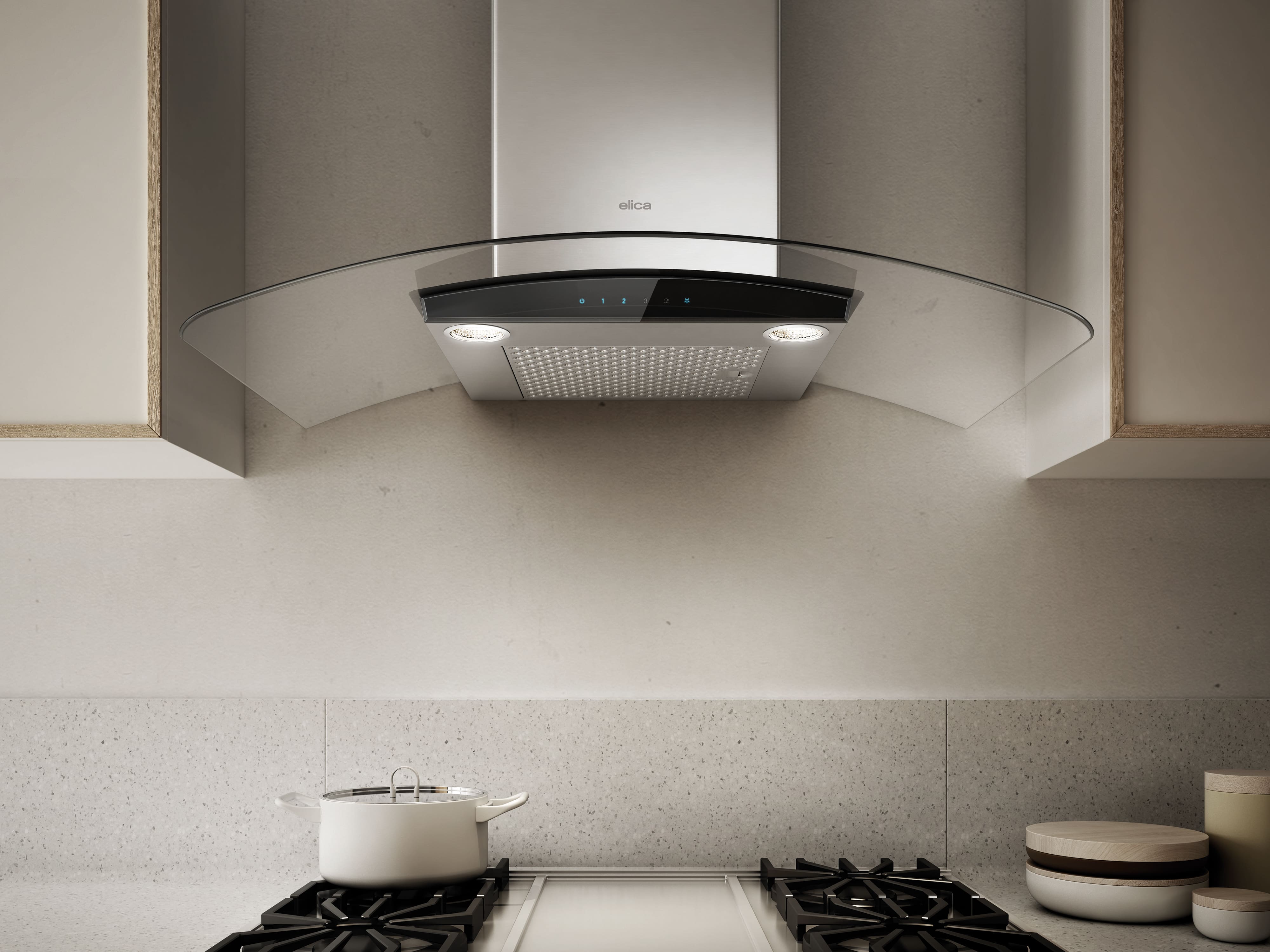

Como combines arched glass wings and stainless steel to create a light and airy environment, making it the perfect centerpiece for any contemporary kitchen.
FEATURES
LED LIGHT
Illuminate your culinary journey with LED brilliance. An expected lifetime of over 20,000 hours represents the most remarkable advantage of LED light bulbs.
HUSH SYSTEM
Silent innovation, redefine tranquility. An exclusive sound-deadening technology that effectively reduces sound levels by over 35%
TOUCH CONTROL HOOD
Experience the power behind the touch with soft blue illumination.
Multifunction electronic touch control behind sleek black glass illuminates soft blue when activated.
DIM LIGHT
Lighting: as much and however you want it. With this feature, you can adjust the lighting of your hood: bright light or dim light, as you prefer.
CFM REDUCTION SYSTEM
Customize CFM with ease. Enables users to reduce directly the maximum blower CFM to meet local code requirements.
TOP PERFORMANCE
High fume capture, low noise – the perfect balance. Excellent performance for models equipped with this plus. High fume capturing capacity with an average aspiration range of 600 CFM’s with low noise levels, 1.2 - 1.7 sones at working speed.
INFORMATION
BRAND
Elica
PRODUCT TYPE
Hood
MODELS
- ECM630S3
- ECM636S3
AIRFLOW
600CFM
SONES
1.7 - 6.8
LIGHTING
Premium Dimmable LED 2 x 2.1 ww 4000 KK
COLLECTION
Como
PRODUCTION
Made in Italy
FILTERS
- Dishwasher-Safe
- Stainless Steel Microhole Filter

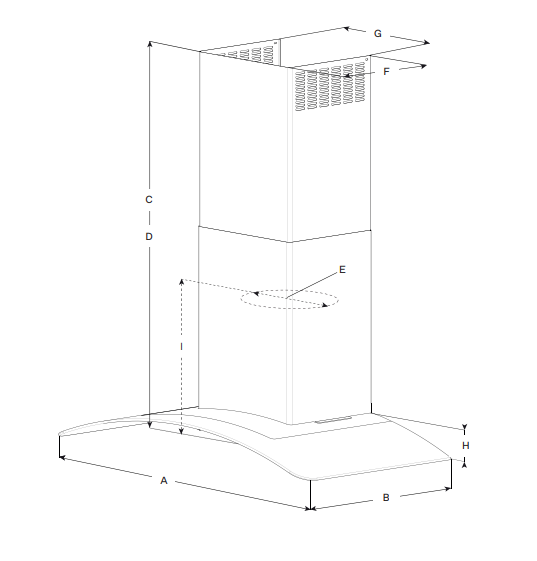

DIMENSIONS
- A : 30” (76.2 cm), 36” (91.4 cm)
- B : 19 5/₈” (50.6 cm)
- C : Max: 54 1/₆” (137.6 cm) Min: 33 5/₈” (84.7 cm
- D : Max: 50 5/₁₆” (127.8 cm) Min: 29 11/₁₆” (75.4 cm)
- E : 6” (15.24 cm)
- F : 10 3/₄” (27.3 cm)
- G : 13” (33.1 cm)
- H : 3 7/₁₆” (9.4 cm)
- I : 12 ⁷/₈” (30.9cm)
USE
Kitchen
FINISHING
Stainless Steel + Black Glass
SIZE
- 30" x 9 11/16” x 29 11/16"
- 36" x 9 11/16” x 29 11/16"
WEIGHT
- EMG636S1 (30”) : 33.07lb
- EMG642S1 (36”) : 37.92lb
KITS
KIT02721 (Contains 6" Deflector and 2 Round Carbon Filters)
CONTROLS
Multi-function Electronic with black glass touch display
DUCT TRANSITION
Round 6"
SERIES
Techne
ELECTRICAL
120 V/60 Hz
ILLUMINATION
2 premium dimmable LED, 2.1W, 4000K
VENTING TYPE
Convertible with Kit
BLOWER TYPE
Interior Unit
TELESCOPIC CHIMNEY
Can reach ceiling heights of min 7’6”, max 10’2” (ducted out) & min 7’10”, max 10’5” (recirculating)
WARRANTY
Two (2) Years Parts & In-Home Labor. Earn an additional One (1) Year of Parts & In-Home Labor by registering on elica.com
DETAIL
This gently flowing design is powered by a 600 CFM blower that can handle the demands generated by today's cooktops. Como is equipped with glass touch controls, LED dimmable lighting, and a dishwasher-safe stainless steel microhole filter. Designed for standard ducted installation, Como can also be installed as a recirculating system using the Recirculating Kit, available as an accessory.
COLOR
Stainless steel
INSTALLATION TYPE
Ducted or recirculating with kit (sold separately)
