Siemens Iq700 Built-in Oven With Added Steam And Microwave Function 60 X 60 Cm Black
IQ700 BUILT-IN OVEN WITH ADDED STEAM AND MICROWAVE FUNCTION
IQ700 BUILT-IN OVEN WITH ADDED STEAM AND MICROWAVE FUNCTION 60 X 60 CM BLACK
HN978GQB1B
INFORNMATION
BRAND
Siemens
PRODUCT TYPE
Microwave Oven
DIMENSIONS
595x594x548 mm
INTEGRATED CLEANING SYSTEM
Pyrolytic+Hydrolytic
MAXIMUM MICRO-WAVE POWER
800 W
HEATING TYPES
- Fermentation
- Microwave
- Regeneration
- Dehydrate
- Full width grill
- Hotair gentle
- 4D hot air & Air fry
- Intensive heat & Half width grill
- Pizza setting
- CoolStart
- Bottom heat
- Hot air grilling
- Conventional heat
- Conventional heat gentle
- Pre-heating & Warming
- Low temperature cooking
PLUG TYPE
no plug (electrical connection by electrician)
TIMER
Electronic oven clock timer
INDICATOR
Heating-up indicator
SAFETY DEVICE
- Door lock
- Child-proof lock
MODEL
HN978GQB1B
CAVITY CAPACITY
67 l
MICROWAVE POWER LEVELS
- 90 W
- 180 W
- 360 W
- 600 W
- boost W
DOWNLOADS
DISPLAY CONTROL
TFT touchdisplay
NUMBER OF POWER LEVELS
5
WEIGHT
47.1 kg
RANGE OF TEMPERATURE
30-300 °C

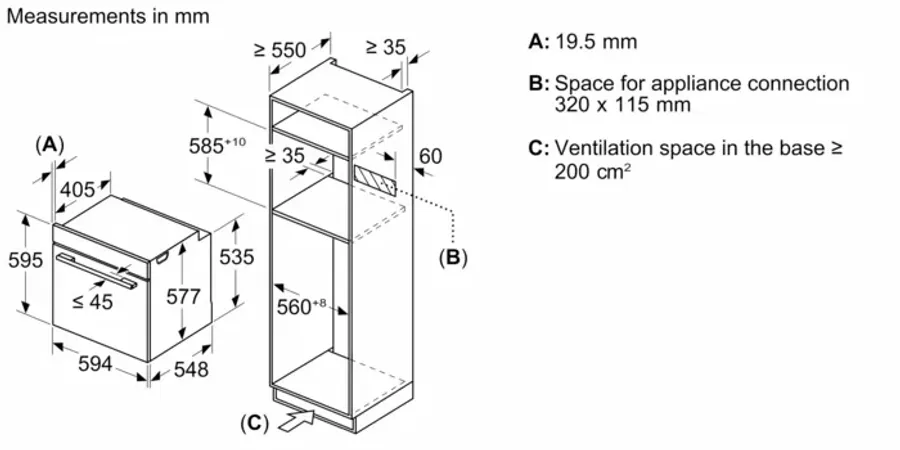

MINIMUM INSTALLATION DIMENSIONS
- Height : 585 mm
- Width : 560 mm
- Depth : 550 mm
DIMENSIONS PACKING
- Height : 670 mm
- Width : 670 mm
- Depth : 680 mm
WATER TANK VOLUME
1.0 l
LENGTH ELECTRICAL SUPPLY CORD
120 cm
MAXIMUM INSTALLATION DIMENSIONS
- Height : 595 mm
- Width : 568 mm
FEATURES
- Start button
- Door contact switch
- Electronic door lock
- Control panel lock
- Residual heat indicator
- Automatic safety switch off
- Maximum door temperature 30 °C
NUMBER OF HEATING & COMBINATION MODES
28
HEATING METHODS ONLY VIA HOME CONNECT APP
Let rest, pre-heating
HOME CONNECT
Yes
COLOUR OF APPLIANCE
Black
FUSE PROTECTION
16 A
CONNECTION RATING
3600 W
NOMINAL POWER
220-240 V
WATER INTAKE
Yes
COMFORT
- Pizza Setting : Yes
- Cool start/Quick Start : Yes
- Less time needed for preheating : Yes
- Hotair : 4D (even heat distribution on any level )
- Oven assistant with voice control : yes (available with connected Home Connect account & third party, e.g. Alexa, is required)
- Crisp function : Yes
- Supporting systems : Dishes
- Memory for individual settings (1 setting) : No
- Air Fry function : Yes (Special accessory available separately)
- Sensors : Baking sensor with time prediction, roastingSensor Plus with time prediction, Individual browning with camera
INCLUDED ACCESSORIES
- 2 x combination grid,
- 1 x universal pan
STEAM TECHNOLOGY
AddedSteam - for baking and roasting
SUBSTRUCTURE
If the appliance will be installed underneath a hob, the following worktop thicknesses (including substructure if necessary) must be taken into account.
| HOB TYPE | MIN. WORKTOP THICKNESS FITTED | MIN. WORKTOP THICKNESS FLUSH |
|---|---|---|
| Induction Hob | 37 mm | 38 mm |
| Full Surface Induction Hob | 47 mm | 48 mm |
| Gas Hob | 30 mm | 38 mm |
| Electric Hob | 27 mm | 30 mm |

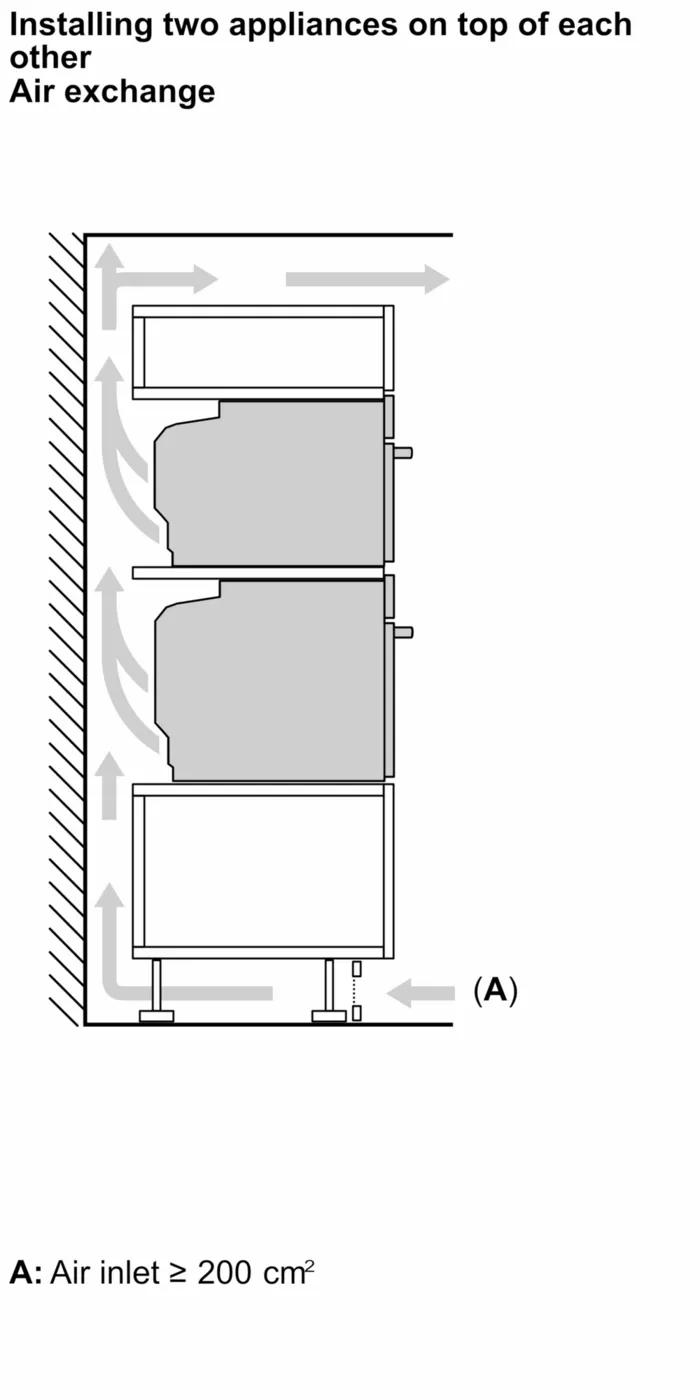

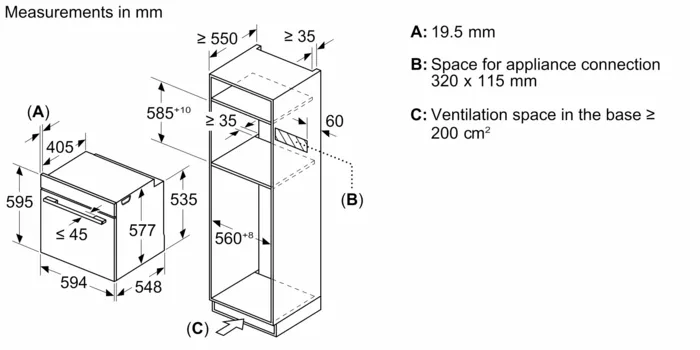

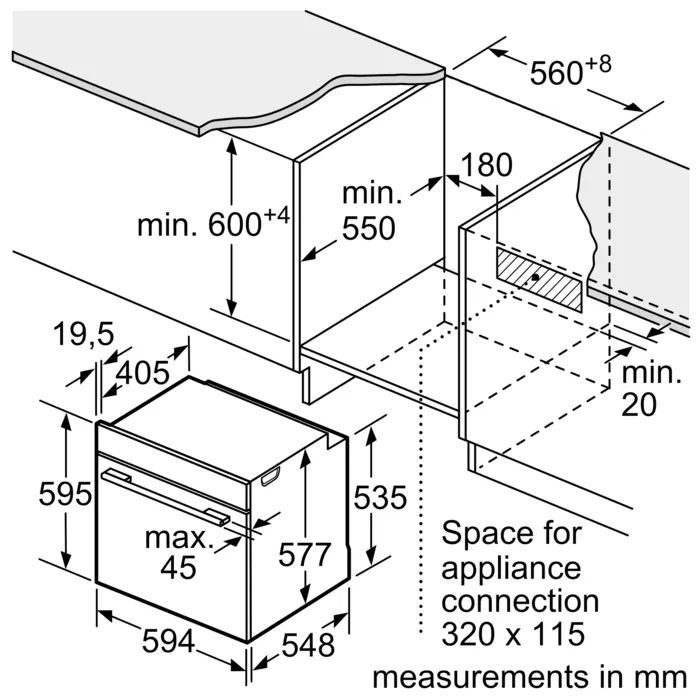

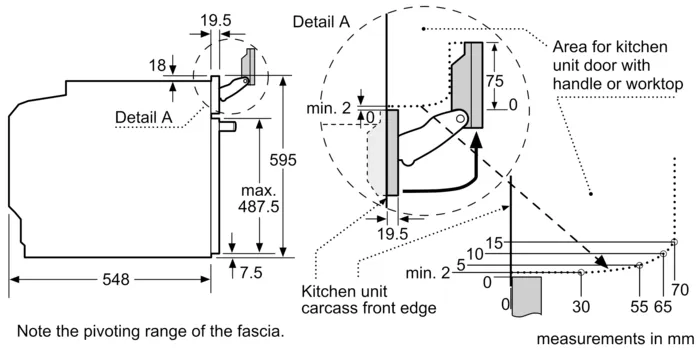

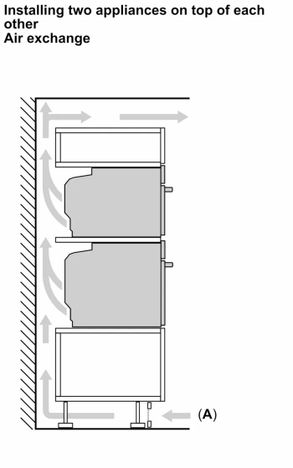

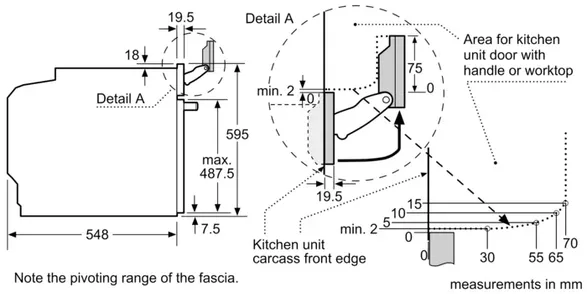

TECHNICAL DRAWINGS
TECHNICAL DRAWINGS
DETAIL
PERFECT COOKING RESULTS IN LESS TIME.
Have more time to let your culinary creativity shine. varioSpeed intelligently combines heating and microwave functions to reduce your cooking time by up to 50%, without sacrificing the quality or flavour of your food. Perfect cooking just got a whole lot quicker.
SPEED UP COOKING TIMES.

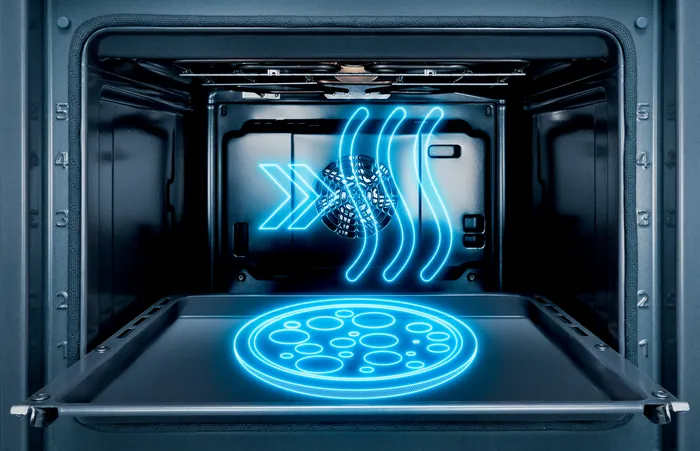

The fastPreheat function heats the oven rapidly. With coolStart you can speed up the cooking of frozen food as there’s no preheating needed – your dish will be done in the same number of minutes you see on the packaging. Both intelligent functions save you precious time when you need fast results.

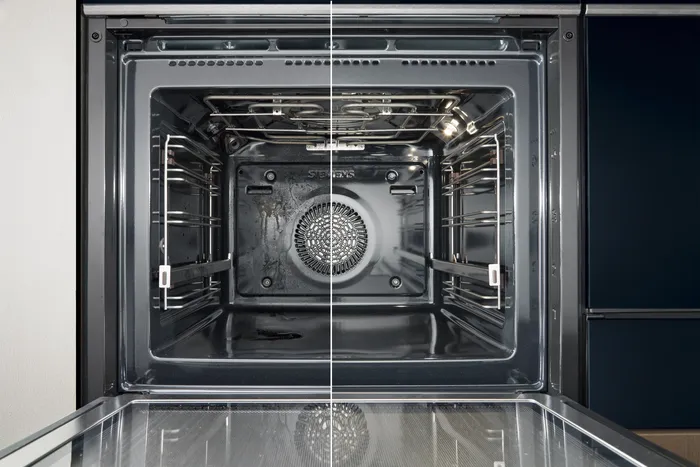

ACTIVECLEAN®: THE AUTOMATIC, SELF-CLEANING OVEN SYSTEM.
Hang up your oven-cleaning gloves for good. Thanks to the activeClean® function, your oven now cleans itself. Just remove any loose remnants, and let the oven do the rest. At the touch of a button, any leftovers from baking, roasting and grilling are turned to ash at a high temperature. Simply use a damp cloth to wipe surfaces clean, and you are done.
PULSESTEAM: FOR CRISPY CRUSTS AND JUICY ROASTS.
The addition of water vapour to classic heating types allows you to cook numerous dishes to perfection. This feature is useful, for example, for a perfect crust on bread or a juicy roast, as the moisture on the surface of the food evaporates and thereby makes the food crispy or keeps it juicy. It’s also no problem to heat up food, as the moisture is retained.

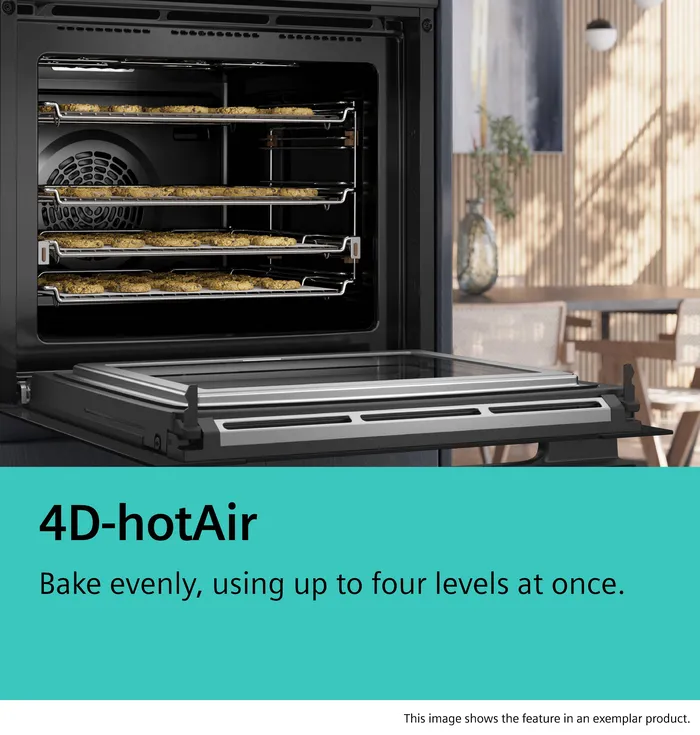

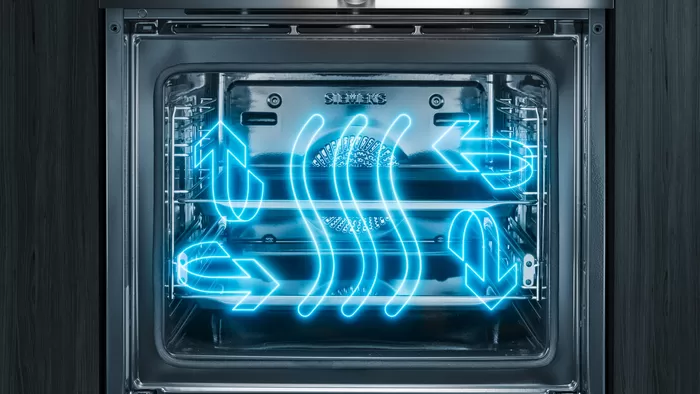

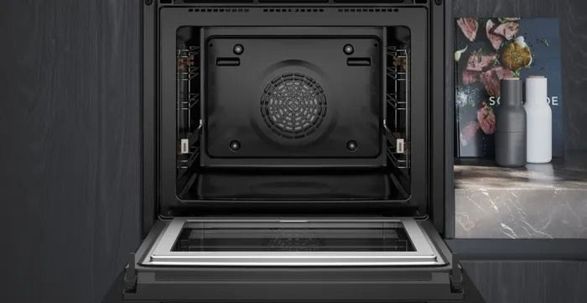

BAKE EVENLY, USING UP TO FOUR LEVELS AT ONCE.
Getting even baking results used to be tricky, but not any more. With 4D hotAir, an innovative fan moves heat fast and powerfully through the oven’s interior. Place your trays on any rack, from one to four, and your dishes will come out perfectly baked and evenly browned. Or bake pastries on four levels at the same time, and enjoy excellent results.
SOFTENS DIRT FOR FASTER CLEANING. READY TO BE EASILY WIPED AWAY.
Welcome to quick cleaning. With humidClean Plus, cleaning your oven is easier than ever before. Simply add a drop of detergent to 400 ml of water.
Pour this rinsing solution onto the centre of the bottom of your oven, once completely cooled. Just set the humidClean Plus cleaning programme and let the oven do the rest. Once the programme is finished, you can easily remove the dirt soaked up by the vapour with a cloth or a soft brush.
PERFECT BAKING AND ROASTING, EVERY TIME.
Get the best results whenever you bake or roast. Cooking meat, poultry or fish is now easier than ever. The baking Sensor Plus measures the moisture level in the oven during the fully-automatic baking process, ensuring perfect results.

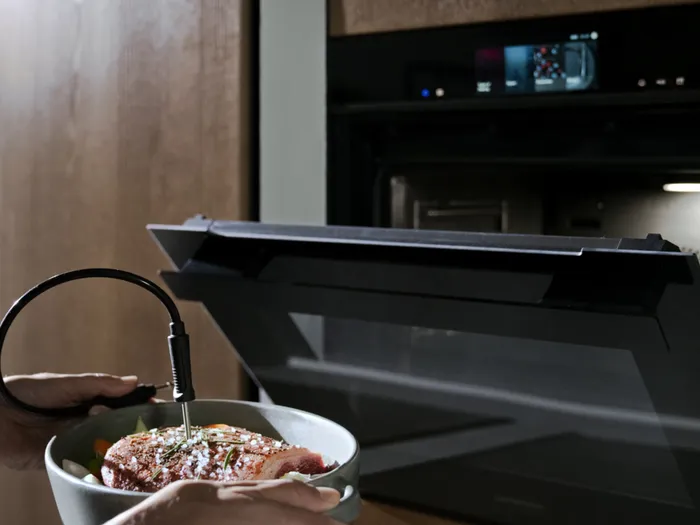

roastingSensor Plus measures the temperature at three different points in the meat, for highest accuracy. And Home Connect keeps you updated on estimated cooking time. To enjoy time prediction with bakingSensor Plus and roastingSensor plus, just sync your oven with your registered Home Connect account.
INDIVIDUAL BROWNING WITH CAMERA: FOR CONSISTENTLY PERFECT BROWNING RESULTS.
No more constant checking to see if your dish is ready. Simply set the desired browning level for the selected dish, and start Individual Browning. Artificial Intelligence evaluates the browning level based on images taken by the integrated camera.
The oven switches off as soon as the selected level is reached. The camera also lets you check your dish from anywhere, on your smartphone. Your dishes will always turn out just as you love them. To enjoy this feature, just sync your oven with your registered Home Connect account.

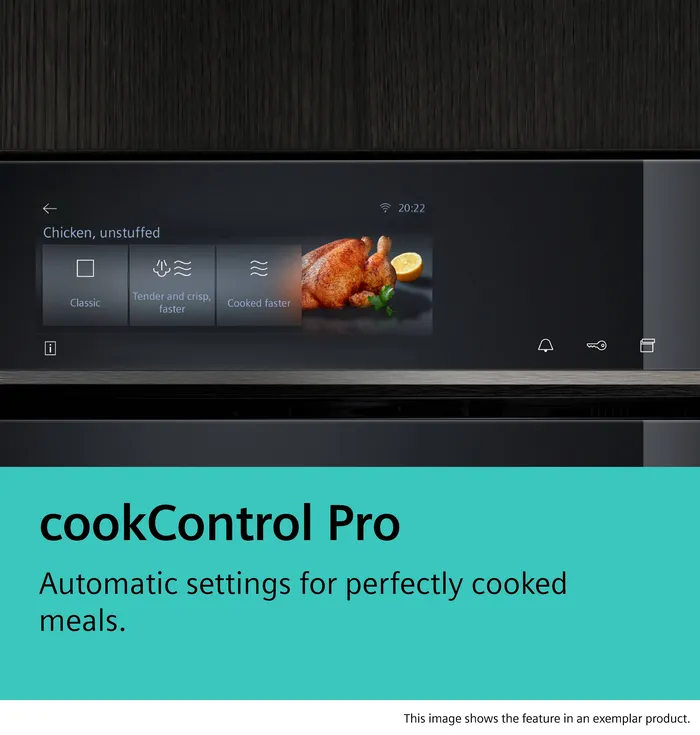

COOKCONTROL PRO: EXCELLENT RESULTS, WHATEVER THE RECIPE.

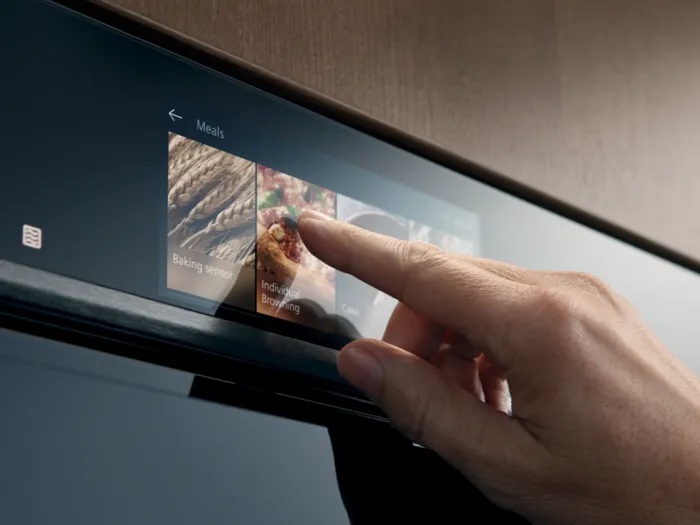

Overcooked food is a thing of the past. Your oven's pre-installed, automated baking and roasting programmes ensure ideal results. Simply select your dish via the intuitive TFT-Touchdisplay and let the oven's sensors control the process.
Simply select the suggestion that best suits your preferences and time. The oven automatically applies the correct settings and functions, and turns off when your dish is ready, so you can relax while your food cooks. Even more programmes can be downloaded by syncing your oven with your registered Home Connect account.
HOME CONNECT WITH REMOTE CONTROL: UNLOCK THE FULL POTENTIAL OF YOUR SMART OVEN.
Unlock your oven's full potential. Simply sync your oven with your registered Home Connect account (www.home-connect.com) to control it from anywhere, and enjoy digital services – even with Amazon Alexa or Google Assistant voice control.
Start and stop cooking programmes, change settings and manage favourites – all without being in the kitchen. Settings are synced between the app and oven, and you get push notifications when the programme is done. Software downloads keep your oven up to date. Enjoy cooking on your own terms.
