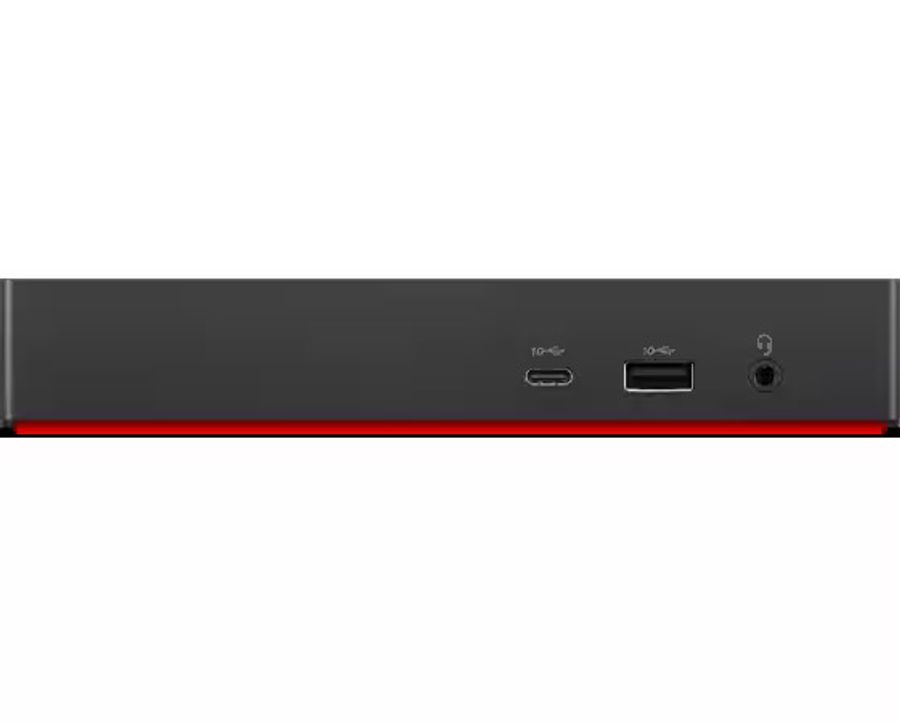

Lenovo ThinkPad Universal USB-C Docking Station
THINKPAD UNIVERSAL USB-C DOCKING STATION
THINKPAD UNIVERSAL USB-C DOCKING STATION
The smarter way to work, Introducing the ThinkPad Universal USB-C Dock.
This advanced, universally compatible one-cable docking solution lets you work smarter, not harder. It comes with a vast array of ports, next-gen plug and play functionality, and rapid charging capabilities (up to 100W for most USB-C notebooks*).
Smart enough to install critical firmware updates automatically, it’s ideal for any mixed-PC environment and home-based working, and gives you the freedom and power to do more.
FEATURES
ONE CABLE, NO HASSLE
Simplify your laptop with 11+ ports, including DisplayPort and HDMI, for ultimate flexibility. Enjoy fast data transfers, rapid charging for USB-C laptops, and effortless plug-and-play functionality. This advanced docking solution maximizes your desk space and keeps it uncluttered, too.
ONE DOCK, INFINITE POSSIBILITIES
Enhance your productivity with the ThinkPad Universal USB-C Dock’s broad compatibility and powerful features. Enjoy a range of ports, rapid charging up to 100W, and intelligent plug-and-play setup for a streamlined, efficient workspace experience.
THE SMARTER WAY TO DO MORE
Elevate your connectivity with the Lenovo ThinkPad Universal USB-C Dock. This cutting-edge dock offers universal compatibility and one-cable simplicity, enhancing your setup with more than 11 ports and rapid charging up to 100W. With its smart firmware update capabilities and seamless plug-and-play functionality, it’s perfect for mixed-PC environments and home offices, empowering you to work more efficiently and effectively.
Lenovo USB-C & Thunderbolt™ Docks function with laptops that support industry standard USB-C Alt-Mode, DisplayLink or Thunderbolt™ protocols through their Type C™ port. Lenovo USB-C and Thunderbolt™ Docks support additional features, such as MAC address passthrough, WOL and mirrored power button, on most Lenovo ThinkPad laptops, but such features may not be available on certain other Lenovo laptops or non-Lenovo branded laptop systems
INFORMATION
BRAND
Lenovo
PRODUCT TYPE
Docking Station
VIDEO PORTS
- 2 x Display Port
- 1x HDMI Port
WEIGHT
- Product Weight : 340g
- Packed Weight : 955g
DIMENSIONS
- Length : 210 mm
- Width : 158 mm
- Height : 75 mm
- Depth : 80 mm
COLOR
Black
AC PLUG
Slim-tip
OS REQUIREMENTS
- Windows 11
- Windows 10
- Windows 7
INPUT POWER
90W
PART NUMBER
40AY0090US
USB PORTS
- 1 x USB-C
- 2 x USB 2.0
- 3 x USB 3.2 Gen 2
AGENCY APPROVALS
- CB
- CE
- KCC
- RCM
- EAC
- LoA
- NOM
- BSMI
- VCCI
- cULus
- FCC/ICES
- Israel SII
- TUV- Mark
- Ukraine DoC
- Serbia Kvalitet
CHARGING PORT
DC-IN
DRIVER NEEDED
Yes
PACKAGE TYPE
Brown Box
ETHERNET
1 x Gigabit Ethernet
REFRESH RATE
- 2x 3840x2160 @60Hz
- 1x 3840x2160 @30Hz
DOWNLOADS
↓ Dock Compatibility
↓ Product Brochure
↓ Dock Technical Support
↓ Docks- Reference Guide
↓ Compatible add-on accessories
↓ Display and Video Output Configurations
POWER DELIVERY
Yes
POWER BUTTON
Yes
WARRANTY TYPE
CRU
WARRANTY PERIOD
3 Years
OUTPUT POWER
-65W with 90W power adapter connected -100W with 135W power adapter connected
MAXIMUM OPERATING TEMPERATURE
35℃
MAX NUMBER OF EXTERNAL MONITORS
3
AUDIO PORTS
1 x Combo Audio Jack
PHYSICAL SECURITY FEATURE
2 x Security lock slot

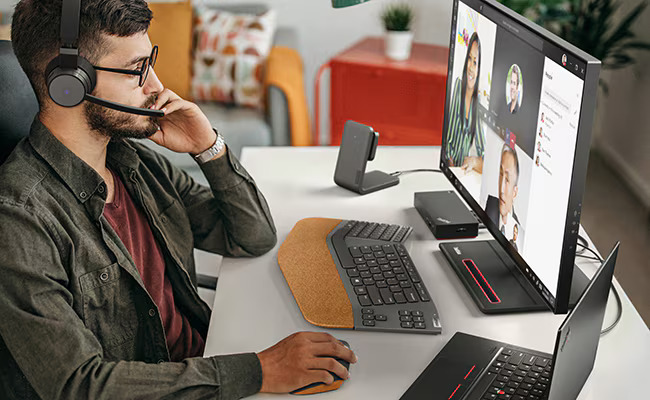

ONE REMOTE WORKFORCE, NO PROBLEM
With Dock Manager and this universal USB-C dock, managing your docking stations is almost effortless. Firmware updates are applied automatically without disrupting user productivity, ensuring smooth operation and minimal downtime for your remote workforce.
ONE DOCK, NO LIMITS
Transform any workspace with the Lenovo ThinkPad Universal USB-C Dock. Seamlessly compatible with most USB-C laptops* running Windows 10 and above, it supports both office and remote work environments. Automatic firmware updates and IT tools like PXE boot, WOL, and MAC address pass-through make it an essential solution for IT managers.
MINIMUM RELATIVE HUMIDITY
20%
MAXIMUM RELATIVE HUMIDITY
95% ( no Condensation)

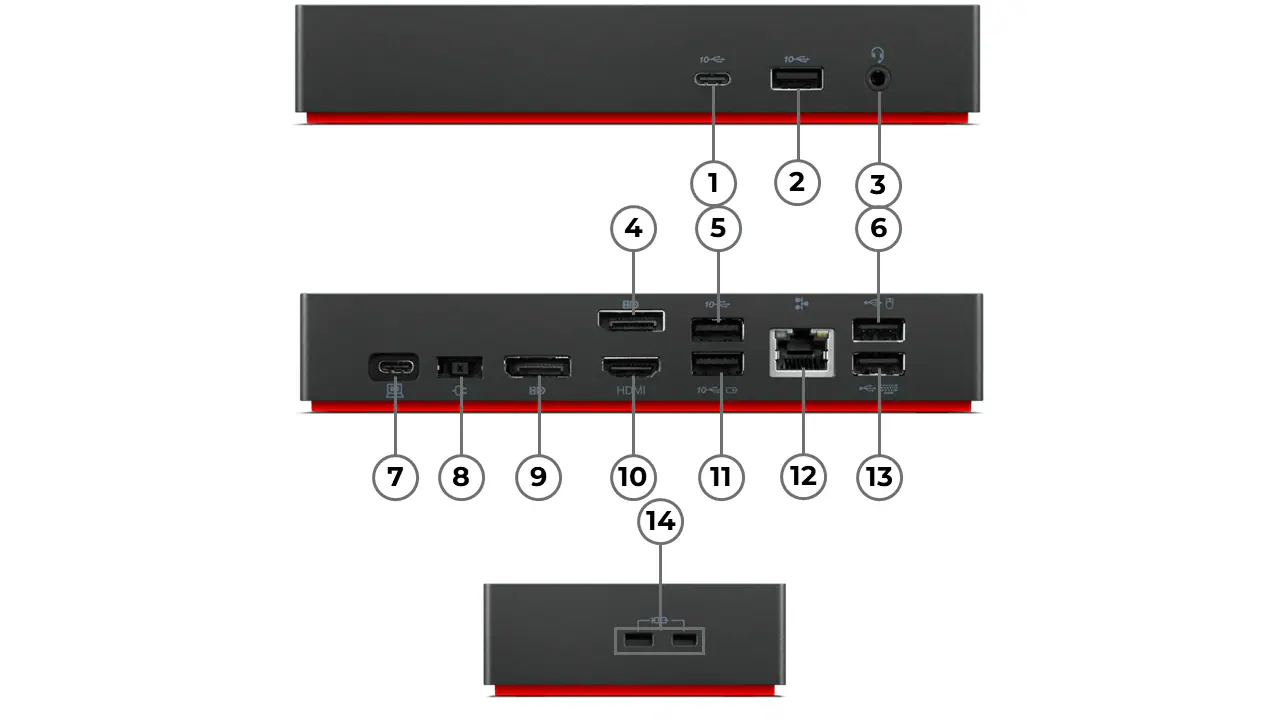

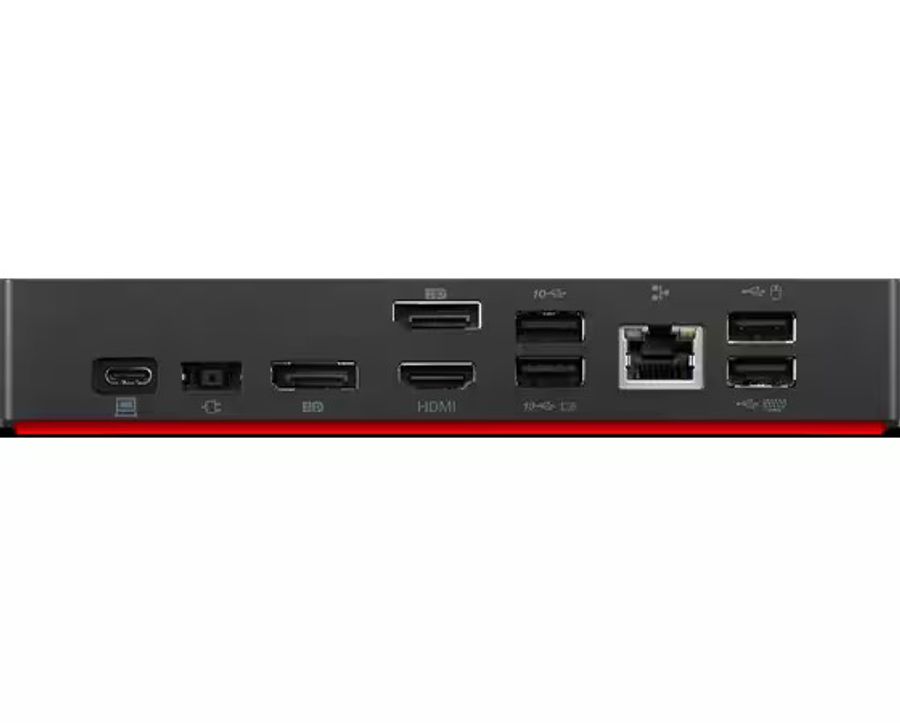

PORTS & SLOTS
- USB-C
- USB 3.2 Gen 2
- Combo Audio Jack
- DisplayPort
- USB 3.2 Gen 2
- USB 2.0
- USB-C (for connecting computer)
- Power Connector
- DisplayPort
- HDMI
- USB 2.0
- USB 3.2 Gen 2
- Gigabit Ethernet
- 2x Security lock slot
