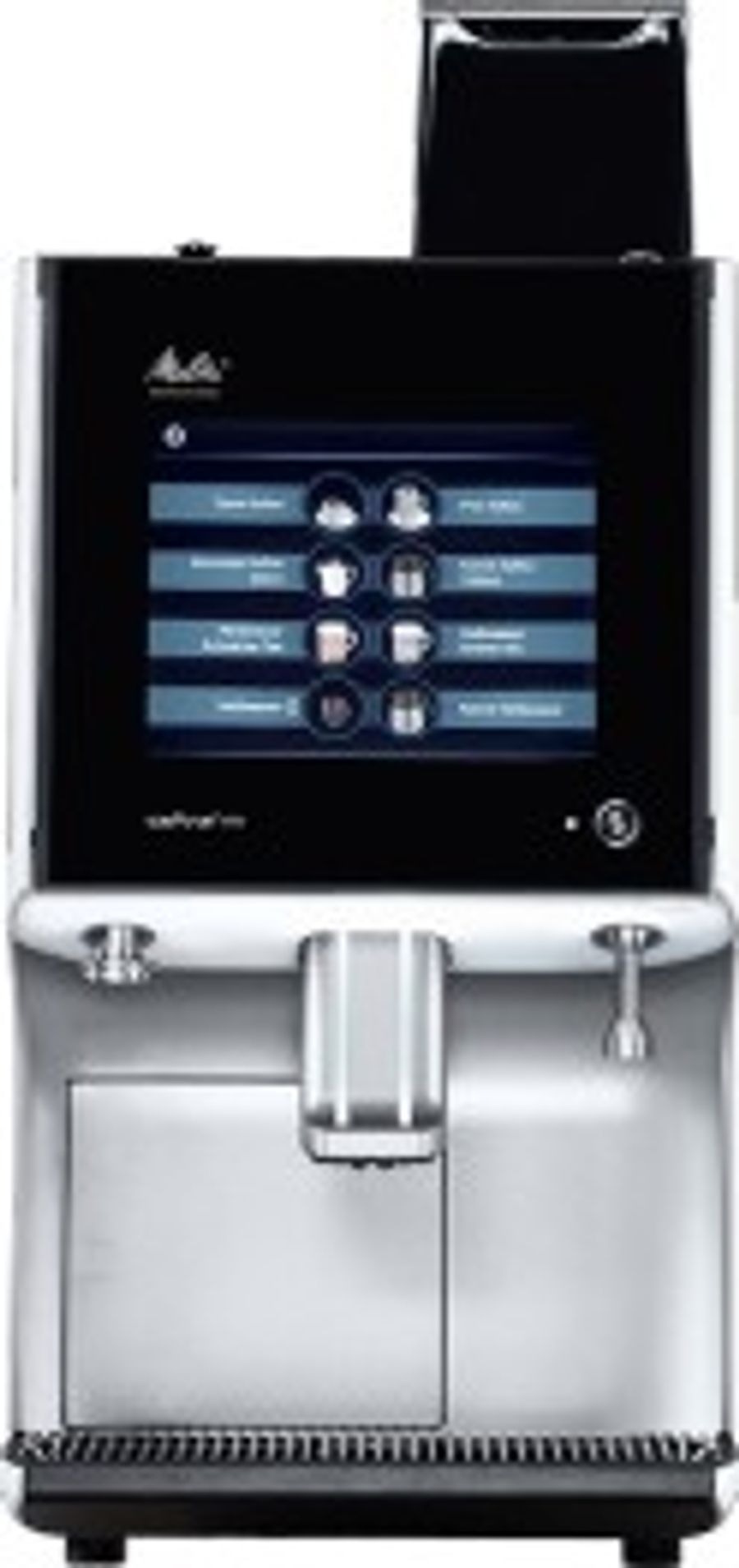

MELITTA® CAFINA® XT8-F COFFEE MACHINE
MELITTA® CAFINA® XT8-F COFFEE MACHINE
Always freshly filtered - convenient and whenever required: the Melitta® Cafina® XT8-F brews up to 500 cups of filter coffee an hour. Thanks to the weekly planner, you define the times and quantities so coffee is not left to stand for a long time.
FEATURES

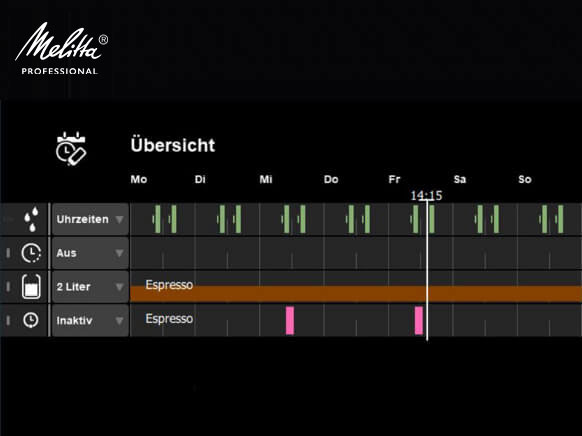

PRACTICAL WEEKLY PLANNER
Ready for any situation: the weekly planner regulates fresh filtering in line with demand, ensures coffee is not left to stand
in the urn for long and schedules cleaning.
ALWAYS FRESH, ALWAYS FLEXIBLE: COFFEE, TEA OR MILK
Cup or mug? Pot or jug? Tea, coffee or milk? At the same time as freshly brewed filter coffee, you will always have water on offer for tea as well as up to two types of milk for milk and coffee combinations or a delicious glass of milk on its own.
LARGE SUPPLY OF COFFEE

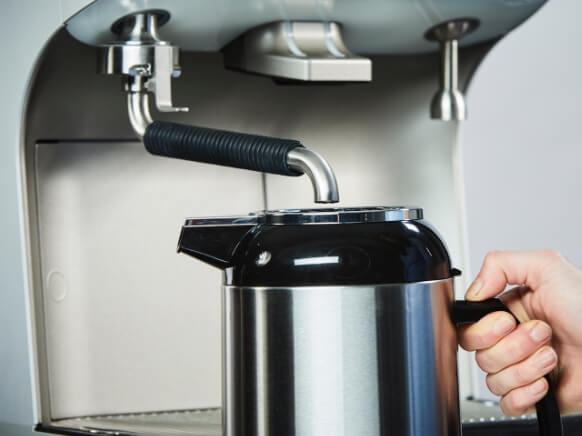

The large container holds 3 kg of ground coffee and the practical urn means you can keep a few cupfuls ready. The separate dispenser with a swivelling arm makes it very easy to fill large pots too.

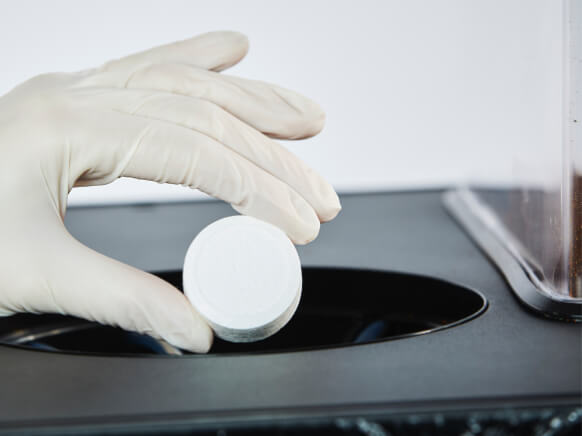

CLEAN IN PLACE (CIP®)
It couldn't be easier: fully automatic cleaning of the brewing and milk system directly in the machine. Nothing has to be removed or taken apart. It’s as simple as that: quick, safe and certified hygienic.
INFORMATION
BRAND
Melitta Professional
PRODUCT TYPE
Coffee Machine
CONNECTED LOADS
- 400V
- 9.5 kW
GROUND COFFEE CAPACITY
- 7.2 l
- Aapprox. 2500 g

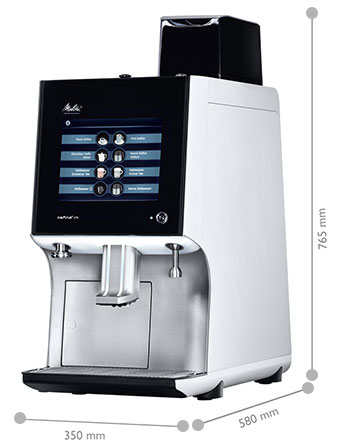

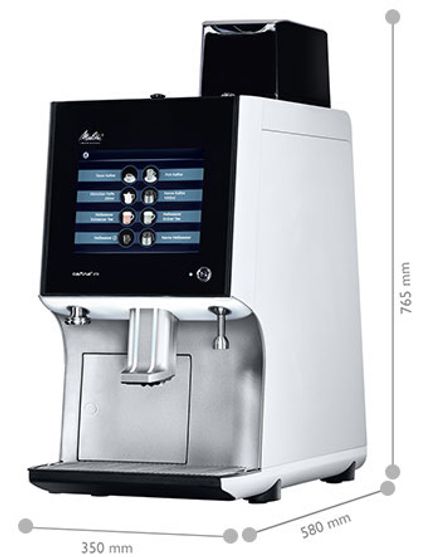

DIMENSIONS
- Width : 350 mm
- Depth : 580 mm
- Height : 765 mm
COLLECTION
Melitta®
FILTER COFFEE
500
PERMISSIBLE AMBIENT TEMPERATURE
+ 5-30 °C
USE
Cooking
PRODUCTION
Made in Australia
STEAM/HOT WATER
80 l
COFFEE URN CAPACITY
Max. 4 l Coffee
MAINS CONNECTION
400 V-3N, 50-60 Hz – via 1.8 m mains cable (e.g., with CEE 16 A mains plug)
FRESH WATER CARBONATE HARDNESS
- 1 °dKH - 3 °dKH: no action required
- 4 °dKH - 9 °dKH: provide Everpure filter
- 10 °dKH and above: decarbonization system required (e.g., BRITA Purity) less than 1 °dKH: consult Melitta®
INSTALLATION WEIGHT
Approx. 70 kg
PERMISSIBLE AIR HUMIDITY
< 80 % non-condensing

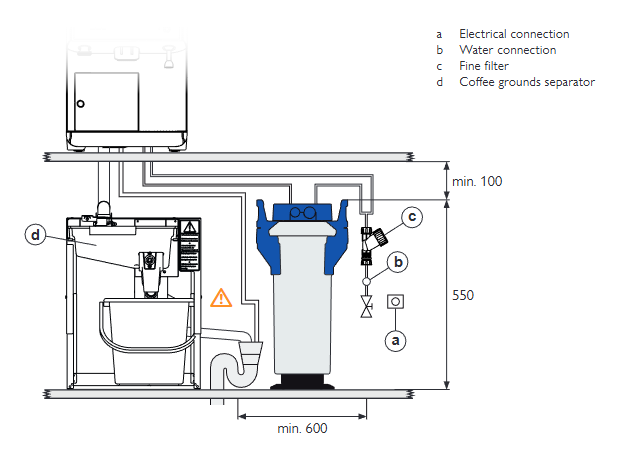

FRESH WATER PRESSURE
-Min. 0.25 MPa (2.5 bar) at approx. 5 l/min -A pressure reducer is required for static pressures above 0.6 MPa (6 bar) -If the water pressure is too low, a booster pump must be used (operator responsibility). The supply line for the booster pump must be fuse-protected separately at the site. Required space in the cabinet approx. (W x D x H): 210 x 400 x 460 mm. Electrical connection: 230 V, 0.6 kW, > 6 A with shock-proof mains plug.
SOCKETS
The connections must be established using easily accessible sockets
CURCUIT CURRENT
These must be protected with a residual current circuit breaker (max. 30 mA).
WASTE WATER CONNECTION
-At least DN 50 - NW 2" – a ventilated odor trap is to be provided -The Melitta ® Cafina® XT8-F is fitted with two nozzles for the drain of waste water. These must be connected to a water drain on site using the hoses supplied.
FRESH WATER CONNECTION
-G ¾" outer thread -A shut-off valve, which makes it possible to connect this machine in accordance with national regulations, such as EN 61770, must be installed in an easily accessible place. The machine is supplied with the corresponding connection hoses. An easily accessible fine filter (c) must be provided at the water connection
POWER CONSUMPTION
Max. 9.4 kW
FILTER
Fresh filter coffee on demand
FUNCTIONS
- 2 types of milk
- Clean in place
- Weekly planner
- Urn to keep coffee ready
- Swivelling arm for filling pots
- Water for tea at same time
OUR HIGH-END FULLY AUTOMATIC FILTER COFFEE MACHINE
Programmed for fresh filter coffee
Whether it is time for breakfast or coffee and cake: filter coffee can successfully assert itself in the out-of-home market alongside other coffee specialities. As long as it is freshly prepared. You will be on the safe side with the Melitta®Cafina® XT8-F fully automatic filter coffee machine. It always brews fresh filter coffee when you need it - up to 500 cups an hour.
IMMEDIATE DISPENSING QUANTITY
Approx. 6 l coffee
FUSE PROTECTION PROVIDED BY CUSTOMER
3 x 16 A (required)

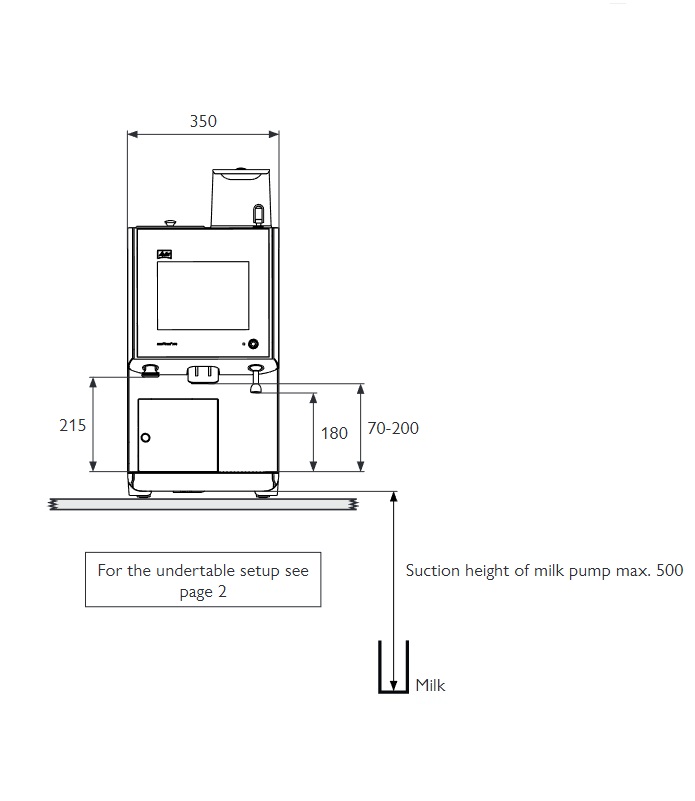

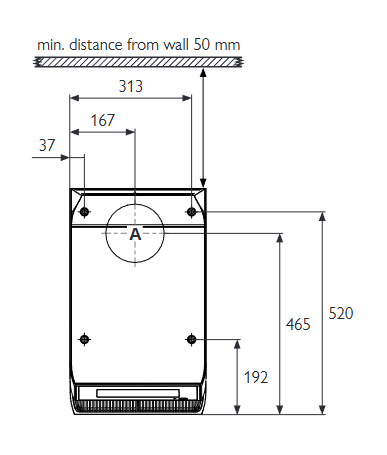

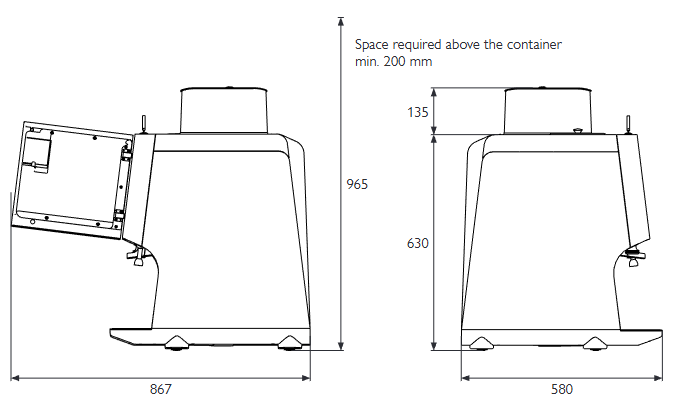

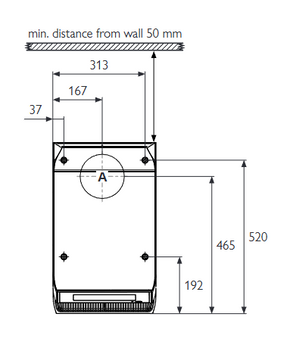

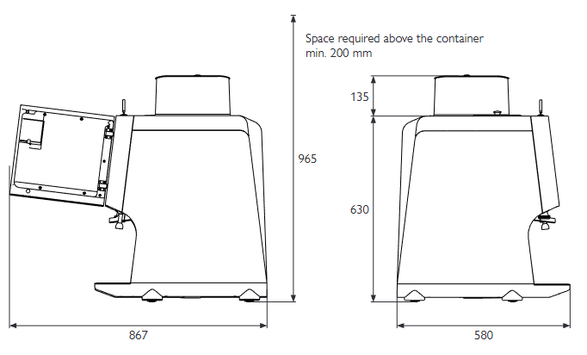

TECHNICAL DRAWINGS
ALL TECHNICAL DRAWINGS
BENEFITS
THE STRENGTHS OF THE XT8-F
Elegant design, top performance, planning capability, portioning as required.
COST SAVINGS
Save costs through precise dosing and forward planning in the digital weekly planner. With a milk system for two types of fresh milk from the refrigerator for coffee and milk combinations or a delicious glass of milk on its own.
STRONG PERFORMANCE FOR LARGE VOLUMES
A sudden rush? With a storage container for 3 kg of ground coffee, a practical urn and pot filling option you will be ready for anything. Up to 80 l of hot water can be drawn at the same time for tea.
LESS EFFORT
Plan once for freshly brewed coffee all week: you define the times and quantities in the digital weekly planner so the XT8-F filters fresh coffee when required and coffee is not left to stand in the urn for long.
