Gaggenau 400 Series Vario Freezer 24''
400 Series Vario Freezer 24''
400 SERIES VARIO FREEZER 24''
RF463707
Stainless steel interior with solid anthracite aluminium elements.
information
BRAND
Gaggenau
PRODUCT TYPE
Freezer
ELECTRICAL LOCATION
Electrical location 6" above ground in lower left corner of unit.
INTEGRATED AUTOMATIC
Flat stainless steel inner door, full-length Integrated automatic ice maker with fixed water connection
PROXIMITY SENSOR
Proximity sensor for ice and water dispenser Illuminated dispenser for ice cubes, crushed ice and chilled water
CERTIFIED
Energy Star certified
DISPLAY
TFT touch display
TOTAL RATING
1.079 kWh/24 h.
DOOR
Flat stainless steel inner door, full-length
DIMENSIONS
- Width : 606 mm
- Height : 132 mm
- Depth : 480 mm
ICE AND WATER DISPENSER
- Warm white LED lighting.
- Saturation indicator shown in TFT touch display.
- Ice maker can be switched off independently.
- Proximity sensor for automatic activation of light and touch keys for ice and water dispenser.
- Integrated, with fixed inlet water connection. Particle filter for water inlet, integrated in ventilation grille area.
WATER PRESSURE
29 to 116 psi.
LED LIGHT SPOTS
Warm white and glare-free LED light spots
NET VOLUME
11.2 cu.ft. (318 litres)
CHILLED WATER
Water supply approx. 1.3 litres.
OPERATION
- TFT touch display operation.
- Clear text display in 44 languages.
- Touch key operation for ice and water dispenser.
MAX. DOOR PANEL WEIGHT
147 lbs. (67kg).
TEMPERATURE
Temperature adjustable from 3 °F to -11 °F.
SUPPLY HOSE
Supply hose 47,2 INCH (1.2 m) with 1/4" male compression fitting (standard icemaker connector).
TOTAL AMPS
10 A.
ICE CUBE PRODUCTION
Approx. 2.9 lb (1.1 kg)/24 h. Ice cubes and crushed ice.
TECHNICAL FEATURES
- Open-door and malfunction warning system.
- Automatic defrosting with defrost water evaporation.
- Dynamic cold air distribution with Multi-Flow Air System.
- When rest mode is active, the appliance can only be opened using a handle
- Home network integration for digital services (Home Connect) wireless via WiFi.
CONNECTING CABLE
118" (3.0 m), detachable.
WATER CONNECTION
Cold water connection required.
PLANNING NOTES
- Shut-off valve for water connection must be planned next to the appliance and always be accessible.
- If the water pressure exceeds 116 psi, connect pressure relief valve between water tap and hose set.

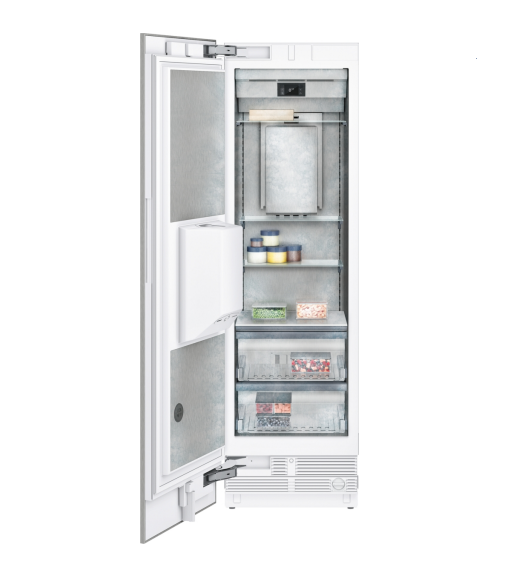

FREEZER COMPARTMENT
-4-star freezer compartment.
- Freezing capacity 8.7 kg/24 h.
- 4 safety glass shelves, white glass, 2 of which are individually height adjustable.
- 2 fully extendable drawers with transparent front.
GLASS SHELVES
The drawers in the RC and RF models are positioned at the same height. With side-by-side installation, the glass shelves and door racks can be aligned on the same level.
HOME CONNECT SERVICES
The use of the Home Connect functionality depends on the Home Connect services, which are not available in every country. For further information please check: home-connect.com.
FAST FREEZING
No-frost technology with fast freezing at -22 °F.
DOOR OPENING ANGLE
Door opening angle of 115°, fixable at 90°.

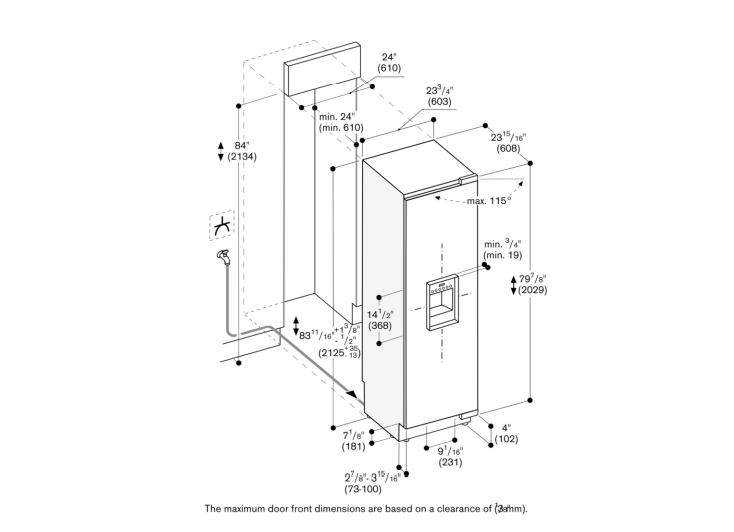

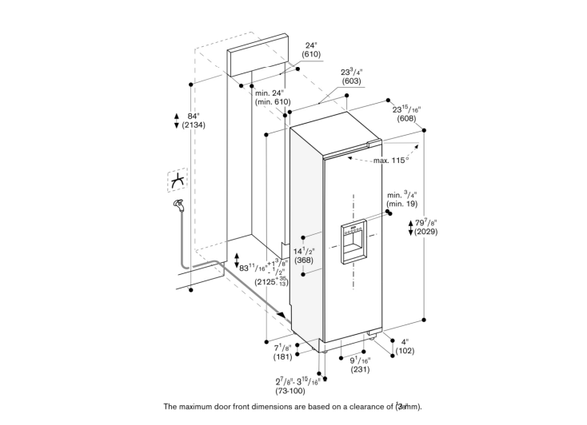

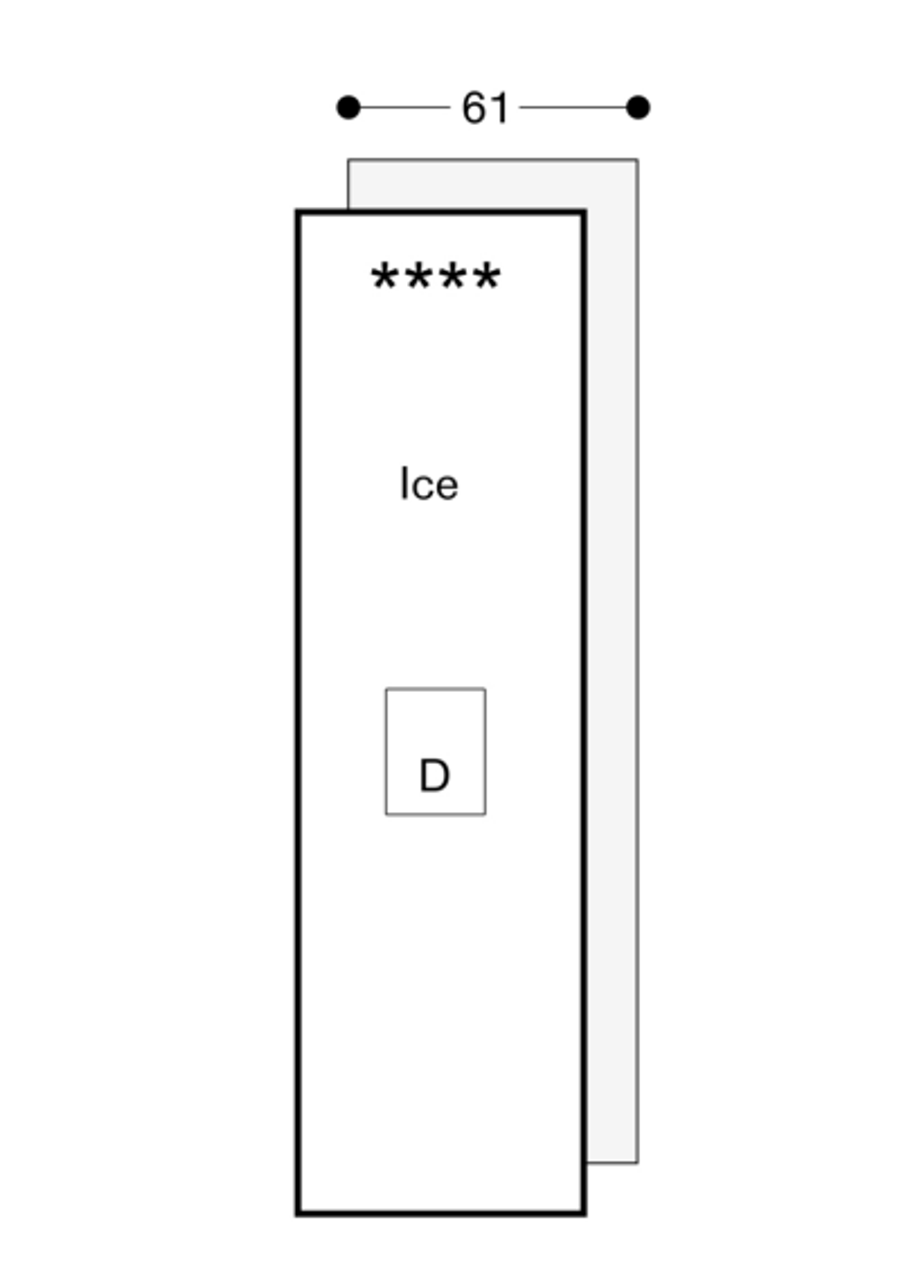

TECHNICAL DRAWING
