Codelocks CL5020 NetCode Door Lock
CL5020 NETCODE DOOR LOCK
CL5020 NETCODE DOOR LOCK
Heavy duty locks for high traffic applications.
The CL5020 NetCode® provides time-sensitive access codes, an evolution of a time-tested classic CL5000. Euro profile mortice sash lock with deadlock and latchbolt.
Codelocks proudly presents the CL5000 NetCode® Range. With the original CL5000 having stood strong since its launch in 2004, the CL5020 NetCode® is an evolution of a time-tested classic.
Enjoy the flexibility and convenience of remote access, granting entry from afar via the Codelocks Connect Portal.
INFORMATION
BRAND
Codelocks
PRODUCT TYPE
Door Lock
HANDED
Non Handed - Locks will fit doors hung on the left or right
FINISH
PVD (Physical Vapour Deposition), low maintenance
ACCESS METHODS
- Via Code
- NetCode®
- Override Key
KEYED ALIKE
Available
LOCK MATERIAL
Zinc Alloy
USE
Outdoor
GUARANTEE
2 Years
BUTTONS
3 x 4
ORIENTATION
Vertical
MEMORY
Stores up to 80 User Codes
NETCODE® TYPES
- Rental Multi-Use
- Standard Single-Use/Multi-Use
FINISHES COLORS
- Black
- Brushed Steel
POWER
4x AA
USER TYPES
Code
KEY FEATURES
- NetCode® technology
- Up to 80 User Codes
- Easy to install and operate
- Heavy duty suited to high traffic
- 8 digit Master and Sub-Master Code
- Battery level check
- 3 types of NetCodes
- Fire rated to BS EN 1634-12
- 4, 5 or 6 digit User Codes
- Code Free Mode (Passage Function)
DOOR THICKNESS
35mm - 60mm (13 /8” - 23 /8”)
SUITABLE FOR
Internal & External
KEY OVERRIDE
As Standard
KEYPAD
Individual stainless steel buttons
LAUNCH YEAR
2004
ACCESS
Remote Access
FIRE RATED
Codelocks Fire Kits can be fitted to latch models for 30 or 60 minute fire doors. Tested in accordance with BS EN 1634-12 .
LATCH TYPE
Mortice Lock (Sash)
CODE CHANGE METHOD
Keypad (On Door)
WHAT IS CODELOCKS NETCODE® TECHNOLOGY?
Since it's launch in 2014, Codelocks NetCode® Technology has grown rapidly in functionality and versatility, developing a global reputation for bringing control and convenience to many applications.
Working in harmony with our Codelocks and KitLock locking solutions, using NetCodes for flexible, temporary access enables business owners to reduce overhead costs and facilitate consumer self-service whilst simultaneoustly increasing staff productivity and profits.
DETAIL

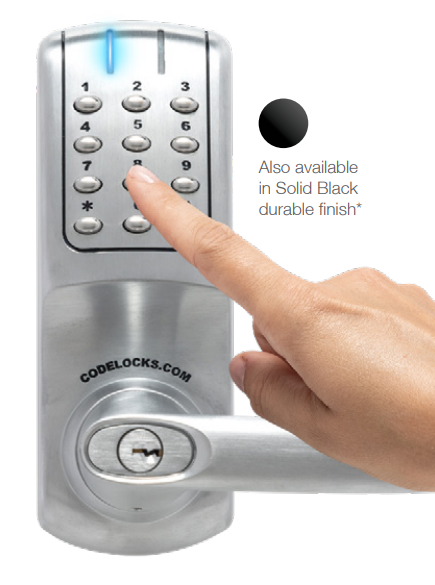

Beyond the technology, the lock's core strengths - its solid build, ease of installation and operation, key override and low maintanence - remain steadfast. Powered by batteries, its operation is hassle-free, eliminating complex wiring. Customers can be confident that whilst offering enhanced NetCode® capabilities, the reliability and durability of the well-known CL5000 that made it a bestseller is retained. Now available in Solid Black finish.
LOCK
Mortice Sash Lock
PRODUCTION
Made in United Kingdom
DOWNLOADS
↓ Data Sheet
↓ NetCode Brochure
↓ Getting Started Guide
↓ Installation Template
↓ Installation Instructions
↓ CL5000 NetCode® Brochure
OPERATIONS
Up to 200.000 per set of 4 x AA batteries
SPINDLE
Two part 8mm (5⁄16") spring loaded spindle
LOW BATTERY WARNING
Red LED will flash on opening to indicate low battery
CLEAN
-Clean by Codelocks is an optional finish which can be applied to any of our Codelocks products. Clean by Codelocks features an ISO certified* photocatalytic coating which, when applied to our locks, offers enhanced protection against viruses, bacteria, germs and other environmental toxins.
-The coating utilises a process called photocatalytic oxidation, which means that the coating converts harmful bacteria and germs into a non-toxic compound, resulting in a clean and hygienic surface. The clear coating combats SARS-CoV-2 coronavirus (COVID-19) and can reduce bacterial growth by 99.96%2, providing an additional measure of protection over sanitisation.
