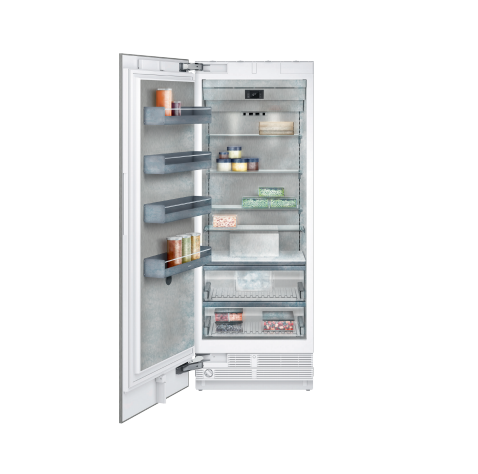

Gaggenau 400 Series Vario Freezer 30''
400 SERIES VARIO FREEZER 30''
400 SERIES VARIO FREEZER 30''
RF471705
Stainless steel interior with solid anthracite aluminium elements.
information
BRAND
Gaggenau
PRODUCT TYPE
Freezer
ELEMENTS
Stainless steel interior with solid anthracite aluminum elements
AUTOMATIC ICE MAKER
Integrated automatic ice maker with fixed water connection.
DIGITAL SERVICES
Home network integration for digital services (Home Connect) wireless via WiFi.
SUPPLY HOSE
Supply hose 47" (1.2 m) with ¼" male compression fitting (standard icemaker connector).
CERTIFIED
Energy Star certified
DISPLAY
TFT touch display
TOTAL RATING
1.300 W/24 h.
WARM WHITE
Warm white and glare-free LED light spots.
OVERALLDIMENSIONS
- Width : 83 3/4 in
- Height : 29 3/ in
- Depth : 24 in
ICE MAKER
- Ice maker can be switched off independently.
- Saturation indicator shown in TFT touch display
- Particle filter for water inlet, integrated in ventilation grille area.
- Removable ice storage container with approx. 6.6 lbs. (2.5 kg) capacity
- Integrated automatic ice maker in the freezer compartment, with fixed water connection.
WATER PRESSURE
29 to 116 psi
DOOR
Flat stainless steel inner door, full-length.
OPERATION
TFT touch display operation. Clear text display in 52 languages.
NET VOLUME
15.8 cu.ft.
ENERGY CONSUMPTION
479 kWh/year
INVISIBLE RAIL SYSTEM
Almost invisible rail system for shelves and door bins for flexible positioning
TECHNICAL FEATURES
- Open-door and malfunction warning system.
- Automatic defrosting with defrost water evaporation.
- Dynamic cold air distribution with Multi-Flow Air System.
- Cushioned door closing system. When rest mode is active, the appliance can only be opened using a handle.
- The use of the Home Connect functionality depends on the Home Connect services, which are not available in every country.
FREEZING
- No-frost technology with fast freezing at -22 °F.
- Temperature adjustable from 3 °F to -11 °F.
- Storage time after a malfunction (14) h
- 2 fully extendable drawers with transparent front.
- Freezing capacity 11.7 kg/24 h.
- 4 safety glass shelves, white glass, 3 of which are individually height adjustable.
- Brilliant LED light spots with warm white, glare-free light.
- Flat door rail system with fully flexible positioning of door bins.
HEIGHT ADJUSTABLE
4 height-adjustable door bins.

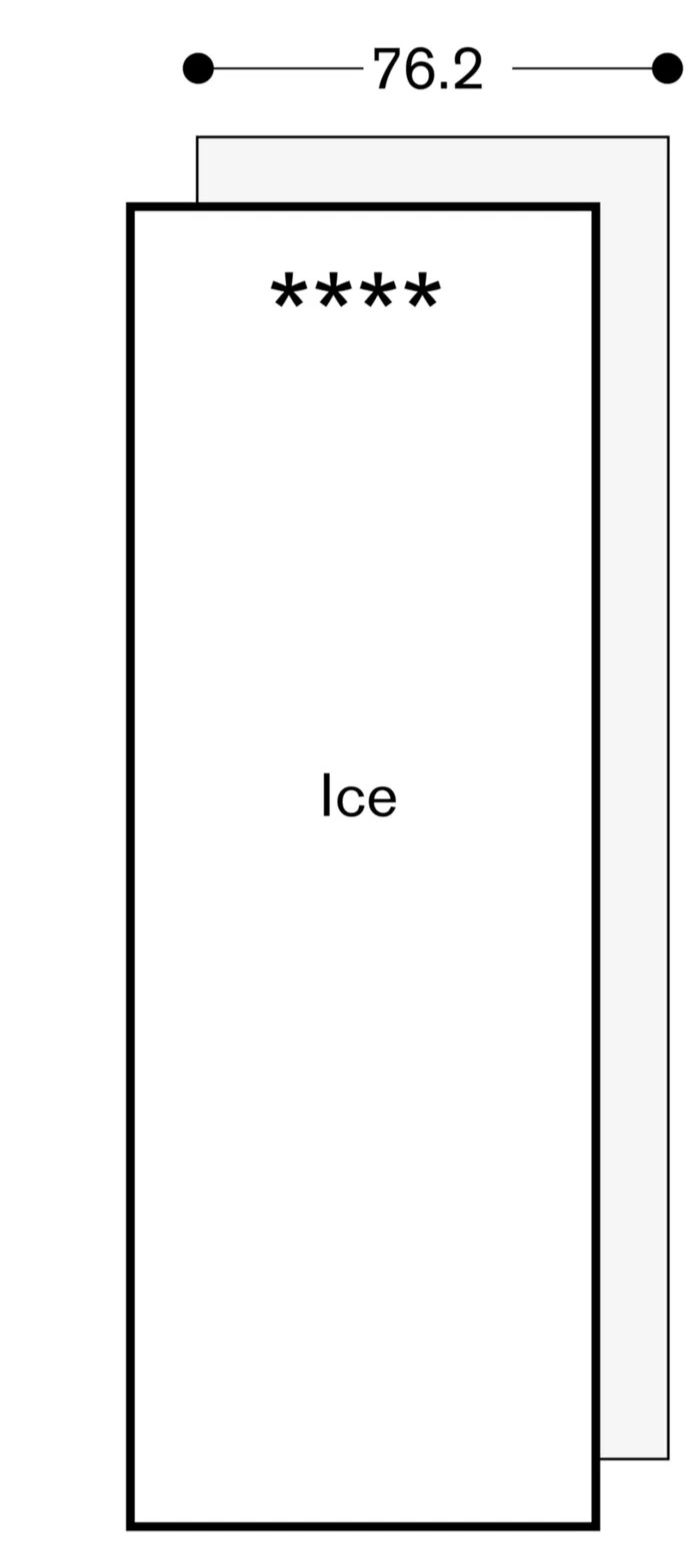

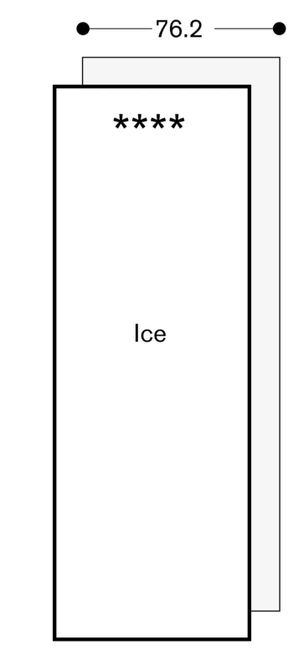

RF 471 705
Fully integrated. Width 30" (76.2 cm).
ICE STORAGE CONTAINER
A small ice storage container (RA 448 220) is available to ensure access. This change must be done prior to fixing the door.
TOTAL AMPS
10 A.
ICE CUBE PRODUCTION
Approx 2.9 lb (1.5 kg)/24 h.
MATERIAL
Material and aesthetics of interior as for RC model
- Glass shelves
- Solid anthracite aluminum door bins.
OPENING ASSIST FOR DOOR WITH TWO OPTIONS
Opening assist for door with two options: Push-to-open function for integration into handleless furniture front - or Pull-to-open function to facilitate opening the door using a handle
CONNECTING CABLE
118" (3.0 m), detachable
COLD WATER
Cold water connection required.
DRAWER
The drawers in the RC and RF models are positioned at the same height. With side-by-side installation, the glass shelves and door bins can be aligned on the same level.
PLANNING NOTES
- Push-to-open function for integration into handleless cabinet front.
- Pull-to-open function to facilitate opening the door using a handle.
PLANNING NOTES
- Flat Hinge
- Door opening angle of 115°, fixable at 90°.
- In case of door opening angle of 90° the standard ice storage container cannot be removed.
- Stainless steel grill is an optional accessory. No toe kick provided.
- Door hinge left, reversible.
- For an installation with a door opening angle of 90°, the drawers have a restricted access.
- A small ice storage container (RA 448 220) is available to ensure access. This change must be done prior to fixing the door
PRESSURE
Shut-off valve for water connection must be planned next to the appliance and always be accessible. If the water pressure exceeds 116 psi, connect PRESSURErelief valve between water tap and hose set
INCLUDED ACCESSORIES
- 1 ice cube scoop.
- 1 ice storage container, large.
- 1 Accessory for side-by-side installation (RA 460 000).
- 1 supply hose, 47" (1.2 m) with ¼" male compression fitting (standard icemaker connector).
PANEL WEIGHT
Max. door panel weight 55 lbs. (25 kg).
ELECTRICAL LOCATION
Electrical location 6" above ground in lower left corner of unit

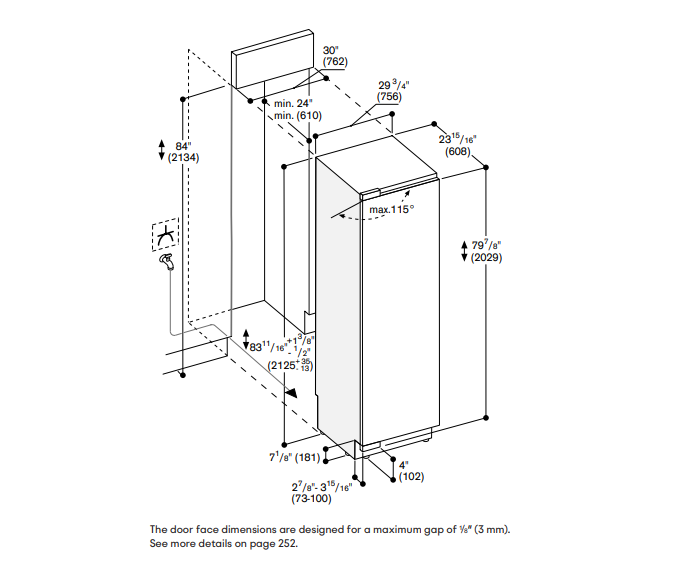

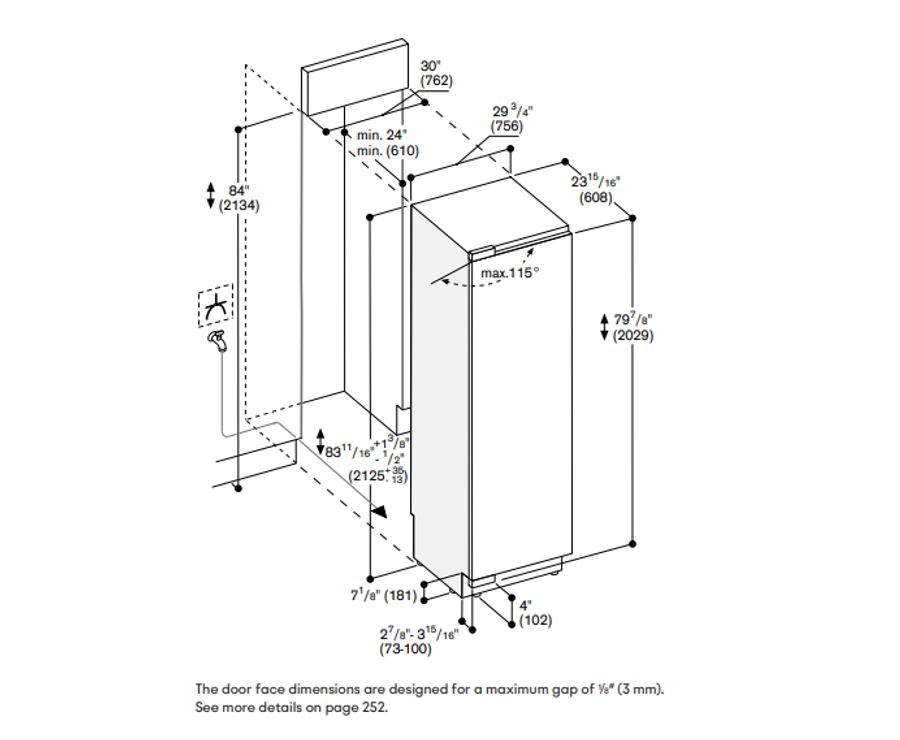

TECHNICAL DRAWING
