Codelocks Kitlockflex Keypad Door Lock
KITLOCKFLEX KEYPAD DOOR LOCK
KITLOCKFLEX KEYPAD DOOR LOCK
Formerly known as the KL1100 KeyPad
The KitLockFlex KeyPad (KL1100) is a stylish, standalone digital lock designed for modern locker and cabinet application.
INFORMATION
BRAND
Codelocks
PRODUCT TYPE
Door Lock
POWER
4 x 1.5 volt AA batteries (supplied)
KEY FEATURES
- Powered latch
- 20 User Codes
- Auto-Unlock at a set time
- Maximum locked period
- 8 digit Master Code and Sub Master Code
- Battery override
- Anti-bacterial wipe clean
- IP55 when fitted with gasket
- On the door battery change
- Supports Private and Public Functions
BUTTONS
2 x 5 + Programming
DIGIT TECHNICIAN CODE
6 digit Technician Code
USER TYPES
Code
IP55 RATED
When used with gasket supplied
OPERATIONS
Up to 100,000 operations per 4 x AA batteries
BATTERY OVERRIDE
Connect to 5V micro USB power source for temporary power

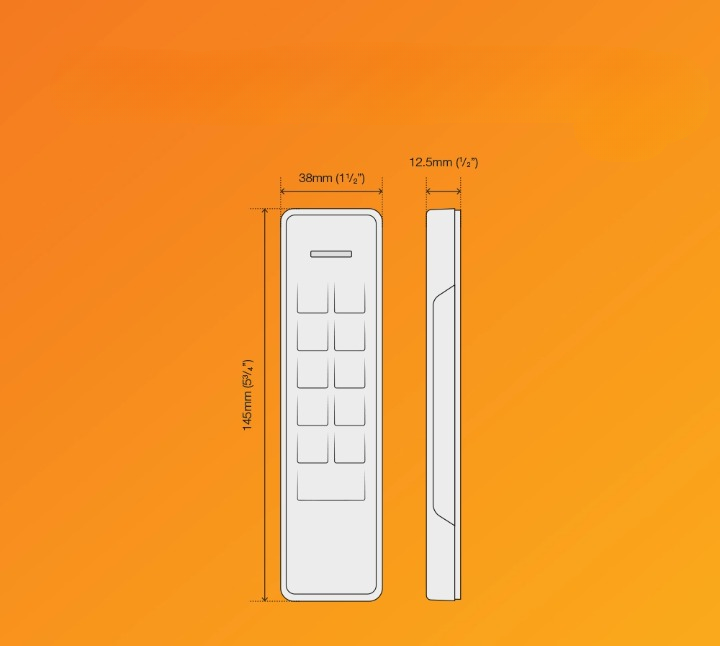

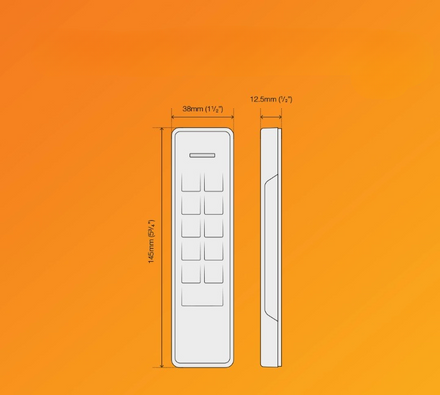

DIMENSIONS
- Height : 145 mm (53 /4”)
- Width : 38 mm (11 /2”)
- Depth : 12.5 mm ( 1 /2”
SUITABLE FOR
Internal
ORIENTATION
Vertical
MEMORY
Non-volatile memory - programming will be retained
CODES
Up to 20 user codes
CODE CHANGE METHOD
Keypad (On Door)
LOW BATTERY WARNING
Red LED will flash 3 times before unlocking
TRADITIONAL KEYPAD
Sharing the same slimline profile and powered latch mechanism as the KitLockFlex RFID (formerly KL1100 RFID), this model retains the traditional keypad interface and familiar features found in classic KitLock by Codelocks products—now enhanced for improved performance and usability.
KEYPAD
11 individual buttons
LOCK MATERIAL
Mixed Plastic and Alloy
USER LEVELS
- Master
- Sub Master
- Technician
- Standard User
FUNCTION
Private, Public
DOOR THICKNESS
Ready to fit doors up to 25mm (1")
BENEFITS
- Auto-Unlock at a Set Time (Public) : Configure the lock to automatically unlock at a predefined time.
- Maximum Locked Period (Public) : Configure the lock to automatically unlock after a predefined period.
- Easy Installation : KitLock products are designed for easy install and the KitLockFlex KeyPad is no different, sharing the same fixing holes as the KitLockClassic (KL1000 Classic), retrofit is an option for many applications.
DETAIL
Codelocks KitLock products are designed for easy install and the KitLockFlex KeyPad is no different, sharing the same fixing holes as the KitLockClassic (formerly KL1000), retrofit is an option for many applications.With up to 100,000 operations, 20 User Codes, Auto-Unlock at a set time or predefined period, this lock is an easy first choice for anybody looking for an upgrade to their lockers.
Suitable for a wide range of applications where the same code will be repeatedly used or where a single one-time user code can be entered and then erased ready for the next user, for example, hot desking in an office or a locker in a gym.

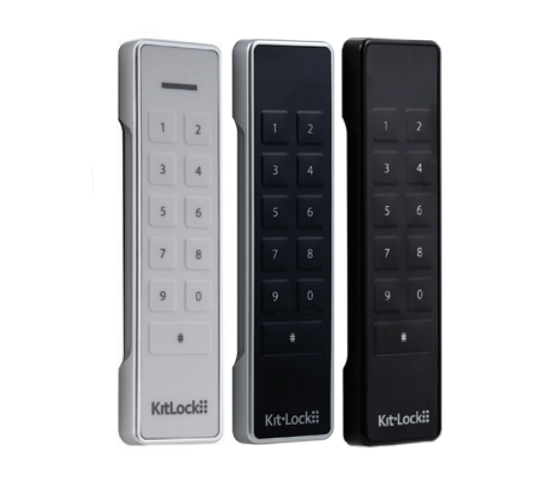

Available in Metallic Silver, Gloss Black finish or Stone, the lock is easy to wipe clean with anti-bacterial wipes and sprays.
CLEAN BY CODELOCKS
-Clean by Codelocks provides an optional finish which can be applied to selected Codelocks products, the clear coating combats SARS-CoV-2 coronavirus (COVID-19) and can reduce bacterial growth by 99.96%*, providing an additional measure of protection over sanitisation.
-Clean by Codelocks features an ISO certified* photocatalytic coating which, when applied to our locks, offers enhanced protection against viruses, bacteria, germs and other environmental toxins. The coating utilises a process called photocatalytic oxidation, which means that the coating converts harmful bacteria and germs into a non-toxic compound, resulting in a clean and hygienic surface.
- Improve your protection against COVID-19 for your staff and visitors by using a Clean by Codelocks lock for your access. During testing*, the coating has shown to be highly effective at eliminating the SARS-CoV-2 coronavirus (COVID-19) within minutes. Clean by Codelocks products would suit environments looking to improve their overall hygiene through additional measures. Sectors requiring enhanced protection against the spread of viruses, bacteria and germs would benefit from the photocatalytic coating, these industries could include education, health and social care, retail, offices and hospitality.
