Lenovo ThinkPad Hybrid USB-C
THINKPAD HYBRID USB-C
THINKPAD HYBRID USB-C

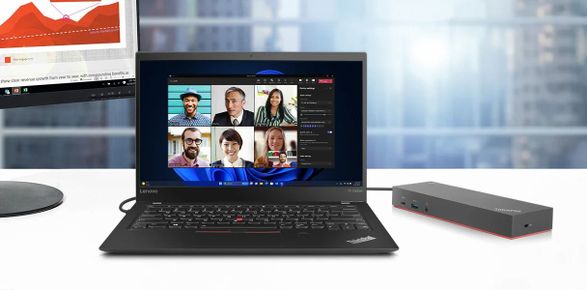

The ThinkPad Hybrid USB-C with USB-A dock is a productivity solution for any USB-C or USB-A laptop, including non-Lenovo laptops from Dell, HP, and Apple, providing power, display, and port expansion in any mixed OS environment (Win10, Win 11, macOS 13.0, macOS 14.0, ubuntu 22.04, ChromeOS).

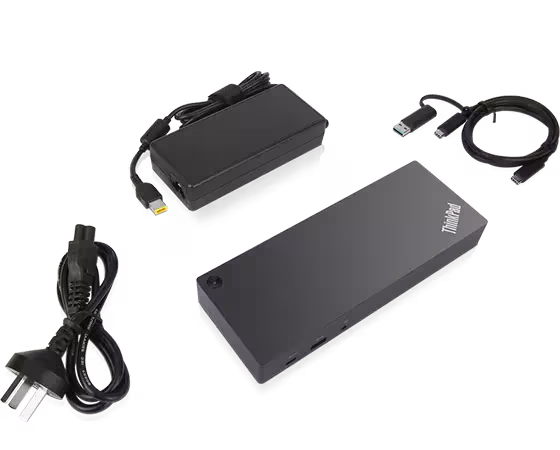

Featuring enterprise-class manageability, like PXE boot and MAC address pass-through on select ThinkPad notebooks, the ThinkPad Hybrid USB-C with USB-A docking station offers USB port expansion and includes a USB-C to USB-A adapter to provide port replication to non USB-C notebooks.
FEATURES
ONE DOCK, NO LIMITS
Boost your productivity with the Lenovo ThinkPad Hybrid USB-C with USB-A Dock. Compatible with most USB-C and USB-A laptops and tablets, it delivers power, display, and port expansion across various operating systems. Supporting dual UHD 4K monitors, rapid charging, and enterprise-class manageability like PXE boot and MAC address pass-through, it enhances workspace efficiency and connectivity effortlessly.
UNIVERSAL COMPATIBILITY
Seamlessly connect any USB-C or USB-A laptop, including non-Lenovo brands like Dell, HP, and Apple, with the included USB-C to USB-A adapter. Enhance connectivity and performance across all your devices, even in mixed OS environments.

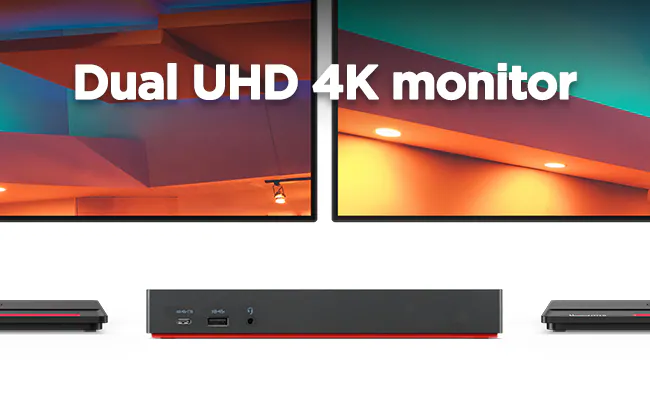

DUAL UHD 4K DISPLAY SUPPORT
Elevate your visual experience with dual UHD 4K monitor support via the dock’s DisplayPort and HDMI ports. Enjoy crisp, high-resolution displays for both work and entertainment, enhancing productivity and clarity.
RAPID CHARGING AND HIGH-SPEED DATA TRANSFER
Achieve rapid charging for most ThinkPad laptops and up to 10 Gbps data transfer speeds on three USB 3.2 Gen 2* ports. The Lenovo ThinkPad Hybrid USB-C with USB-A Dock ensures your devices stay powered and your data moves quickly, all while maintaining a sleek, efficient workspace.
ENTERPRISE-GRADE MANAGEABILITY
Leverage key management features such as network booting, remote wake-up, secure device identification, and automatic firmware updates. Ideal for enterprise environments, the Lenovo ThinkPad Hybrid USB-C with USB-A Dock simplifies IT management and enhances network security.
INFORMATION
BRAND
ThinkPad
PRODUCT TYPE
Docking Station
MAXIMUM OPERATING TEMPERATURE
35 degrees Celsius (95 degrees Fahrenheit)
HARDWARE REQUIREMENTS
Machine with full function USB-C port or USB 3.0 Port
WINDOWS
- Gen 2022: HP: Elite Dragonfly G3; Dell: Latitude 7330 XPS 13 9310
- Gen 2023: HP: Elite 840 G10, Elite Dragonfly G4, Elite 640 G10, Pro 440 G10, Elite 845 G10, Dell: Latitude 9330, Latitude 9430, Latitude 7440, Latitude 5440, XPS 13 Plus 9320 Intel®
COLOR
Black
COLLECTION
Thinkpad
THINKPAD
The ThinkPad Hybrid dock also supports dual monitor setups, up to dual UHD 4K resolution, and rapid charging to notebooks.
WARRANTY TYPE
CRU
OUTPUT POWER
90 W
CHROME OS
- Gen 2022: Acer Chromebook Vero 514
- Gen 2019: HP Chromebook x360 14b, ASUS Chromebook Flip C434
- Gen 2023: Dell Latitude 5430 Chromebook, Acer Chromebook Spin 714
- Gen 2020: Samsung Galaxy Chromebook, Acer Chromebook Spin 311, Lenovo Chromebook C340-11
AC PLUG
American Standard Plug Type B
VIDEO PORTS
2 x DisplayPort 1.2, 2 x HDMI
OTHER INFORMATION
- 2 x USB2.0
- 2 x HDMI Port
- 2 x Display Port
- 1 x Gigabit Ethernet
- 1 x USB-C port (Data,5V 3A power)
- 1 x Stereo/Mic Combo Audio Port
- 3 x USB 3.1 gen2 (10Gbps, 1x always-on USB charging)
OS REQUIREMENTS
- Windows 11
- Windows 10
- Windows 7
- macOS 13.
- macOS 14.0
- ubuntu 22.04
- ChromeOS
INPUT POWER
135 W
PRODUCTION
Made in UK
MAX NUMBER OF EXTERNAL MONITORS
2
DETAIL
In addition to Lenovo and ThinkPad systems, The ThinkPad Hybrid USB-C with USB-A dock has been tested to work and support display, power delivery (through USB-C), and port expansion on the below non-Lenovo systems
POWER BUTTON
Yes
WARRANTY PERIOD
3 Years
COMPATIBILITY
- E580
- E480
- E470
- L580
- L480
- L470
- L380
- X280
- X270
- X260
- T580
- T570
- T480
- T480s
- T470
- T470s
- L380 Yoga
- Miix 520-12IKB
- Lenovo Tablet 10
- T460
- ThinkPad 25
- X1 Carbon Gen 6
- X1 Carbon Gen 5
- X1 Yoga Gen 3
- X1 Yoga Gen 2
- X1 Tablet Gen 3
- X1 Tablet Gen 2
- 13 Gen 3 Windows
AGENCY APPROVALS
- CB
- CE
- EAC
- KCC
- NOM
- LoA
- RCM
- VCCI
- BSMI
- cULus
- Israel SII
- Ukraine DoC
- TUV Mark
- FCC/ICES
- Serbia Kvalitet
PART NUMBER
40AF0135US
WEIGHT
480 g (1.05 lbs)
USB PORTS
- 2 x USB 2.0
- 1 x USB-C (Data, 5V/3A power)
- 3 x USB 3.1 Gen2 (10 Gbps, 1 always-on)
MACOS
- Gen 2022: MacBook Air M1
- Gen 2023: MacBook Pro 13'' 2022 M2, MacBook Pro 13'' M1, MacBook Air 13 2022 M2
REFRESH RATE
- HDMI: 3840 x 2160 @ 60 Hz
- DisplayPort: 3840 x 2160 @ 60 Hz
- Bundle DisplayPort 1 & DisplayPort 2 to the monitor: 5120 x 2880 @ 60 Hz,, "Maximum resolution" refers to what can be supported by the dock. Actual resolution will vary by laptop.
CHARGING PORT
ThinkPad Slim-tip Port
PACKAGE TYPE
Brown box

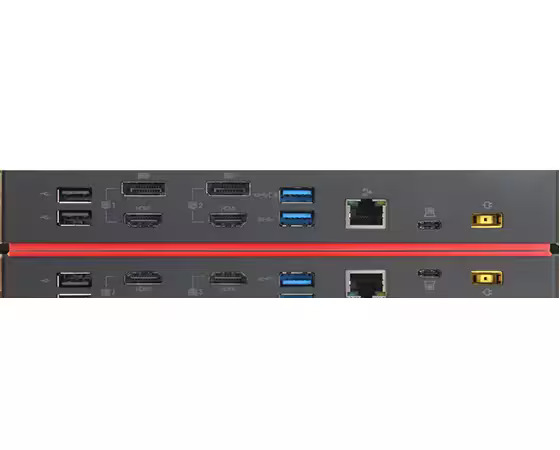

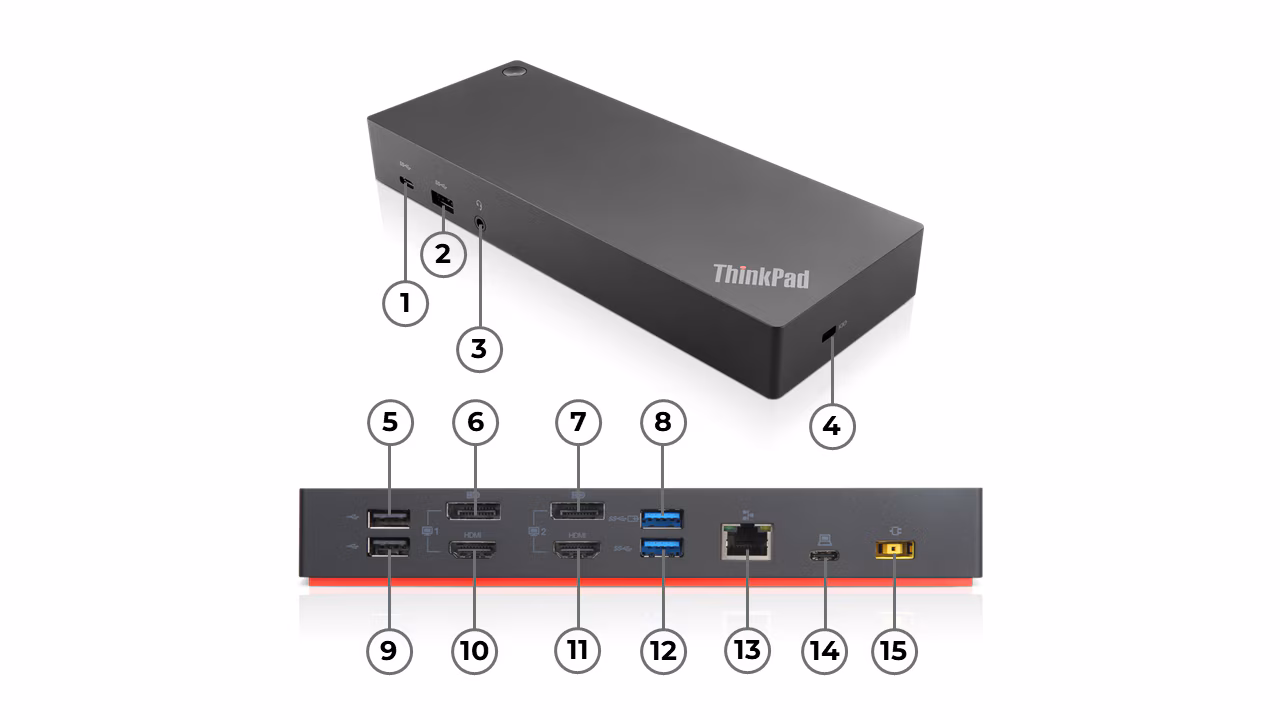

PORTS & SLOTS
- 1. USB-C (Data, 5V/3A power)
- 2. USB 3.1 Gen2 (10 Gbps)
- 3. 3.5 mm Stereo/Mic Combo Port
- 4. Security lock slot
- 5. USB 2.0
- 6. DisplayPort
- 7. DisplayPort
- 8. USB 3.1 Gen2 (10 Gbps, always-on)
- 9. USB 2.0
- 10. HDMI
- 11. HDMI
- 12. USB 3.1 Gen2 (10 Gbps)
- 13. Gigabit Ethernet
- 14. USB-C (for connecting computer)
- 15. Power Connector
KEY DETAILS
- Supports ThinkPad RapidCharge
- Delivers up to 10Gbps data transfer speed on 3 x USB 3.1 ports
- Connects with up to dual UHD 4K display with DP and HDMI ports
- Enterprise-class capabilities with PXE boot, Wake-On-Lan, and MAC address pass-through
AUDIO PORTS
1 x 3.5 mm Stereo/Mic Combo Port
DRIVER NEEDED
Preloaded in select ThinkPad laptops
