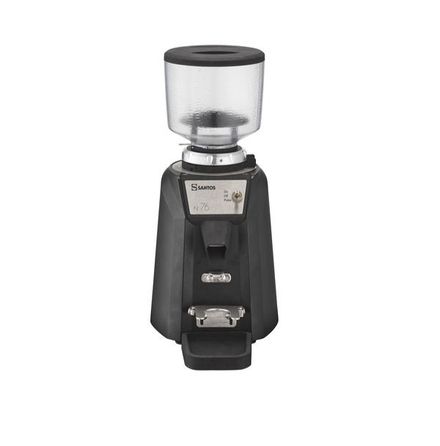

Santos Kawa Coffee Grinder 76
KAWA COFFEE GRINDER 76
KAWA COFFEE GRINDER 76
Kawa » Coffee grinder #76 has been designed for brewing methods or grinding coffee in small quantities.
It is dedicated to coffee lovers, coffee shops, restaurant, and personal use.
INFORMATION
REMOVABLE FORK
Suitable for portafilter and cups
BRAND
Santos
PRODUCT TYPE
Coffee Grinder
POWERFUL
Commercial reliable induction motor.
NET WEIGHT
7.5 kg (16 lbs)
PACKAGING WEIGHT
9 kg (20 lbs)
DIMENSIONS
- Depth : 270 mm (11")
- Width : 180 mm (7")
- Height : 400 mm (16")
PACKING DIMENSIONS
- Depth : 330 mm (13")
- Width : 255 mm (10")
- Height : 510 mm (20")
COLOR
Black
DIAMETER OF THE BURRS
54 mm
DURABILITY
Availability of spare parts more than 10 years after the manufacture of our appliances.
MOTOR SPEED
- 3000 rpm (50 Hz)
- 3600 rpm (60 Hz)
MOTOR SINGLE PHASE
- 100 - 120 V - 50/60 Hz - 700 W
- 220 - 240 V - 50/60 Hz - 800 W
NOISE LEVEL
64 (dBA)
BEAN HOPPER CAPACITY
0.4 kg
AVERAGE FLOW
18 (kg/h)
DOSE SETTING (APPROX.)
From 5.5 to 50
MAINTENANCE & CLEANING
Its quick access to the grinding areas (in less than one minute) makes maintenance & cleaning easy while preserving dose settings.
BASE
The Coffee Grinder unit a base made of aluminium, a bean hopper made of transparent plastic.
NO DISPENSER
Extra fresh ground coffee.
EXTREMELY FAST
7g dose dispensed in 1.5 second.
EASY ADJUSTMENT
Easy Adjustment optimal grinding adjustment nut for easy grip.
PRODUCTION
Made in France
DOWNLOADS
↓ User manual
THE APPLIANCE IS NOT INTENDED FOR CONTINUOUS OPERATION
5 seconds on and 90 seconds off
ADJUSTMENTS
Continuous dose & pulse function available for adjustments
INSTALLATION - HANDLING
Only one person is required for handling the appliance. For ease of use, we recommend placing the appliance on a table or work surface, so as to have the control panel in front of you (recommended height: 90 cm, to be adapted depending on the user).
IT IS ADAPTED TO EVERY TYPE OF COFFEE
From Turkish to brew coffee and it is extremely fast, dispensing 7g of ground coffee in 1.5 second.
EXCLUSIVE Ø 54 MM GRINDING DISCS
Which are designed and manufactured by Santos for a high quality grinding, precise and fine.
AVERAGE OUTPUT
17 kg/h.
HOPPER CAPACITY
400 gr.
WARRANTY
WARRANTY
Since 01.01.95, all our appliances are CE-compliant and CE-marked. Our warranty is twenty-four months from the date of manufacture indicated on the manufacturer's plate, except for asynchronous motors (composed of a rotor and stator) which are warranted for a period of 5 years from the date of manufacture.
The warranty is strictly limited to the free replacement of any genuine part recognized by us which is defective as a result of a defect or defect in construction and identified as belonging to the appliance in question.
It does not apply to damage resulting from installation or use that does not comply with the instructions accompanying each appliance (user manual) or in the event of an obvious lack of maintenance or failure to observe basic electrical safety rules.
The guarantee does not apply in case of natural wear. Any warranty part replacement is performed after the defective part is returned postage prepaid to our workshops, along with a copy of the Declaration of conformity which shows the serial number of the unit.
Every appliance is fitted with a CE-compliant manufacturer's plate, a double of which appears in the Declaration of conformity (serial no., date of manufacture, electrical characteristics, etc.).
In the event of a serious damage which is only found to be repairable in our workshops, and after prior agreement of our services, any appliance under warranty is shipped postage prepaid by the distributor.
In the event of repair or reconditioning of an out-of-warranty appliance, the return transportation is the responsibility of the distributor. Parts and labour are charged at the current rates (spare parts – hourly – labour). A prequote may be provided.
Coffee grinders not equipped with original SANTOS grinders are not taken under warranty. The conditions of guarantee, repair, reconditioning, of the espresso coffee grinders are the subject of a specific notice.
Our warranty does not extend to the payment of penalties, to the repair of direct or indirect damages, and in particular to any loss of profits resulting from the non-conformity or defect of the products, SANTOS’s overall liability being limited to the selling price of the delivered product and the possible repair of defective products.
In the event of a defect being disclosed during the warranty period, the distributor shall, unless otherwise agreed in writing by SANTOS, instruct the customer, to cease all use of the defective product. Such use would release SANTOS from all responsibility.
