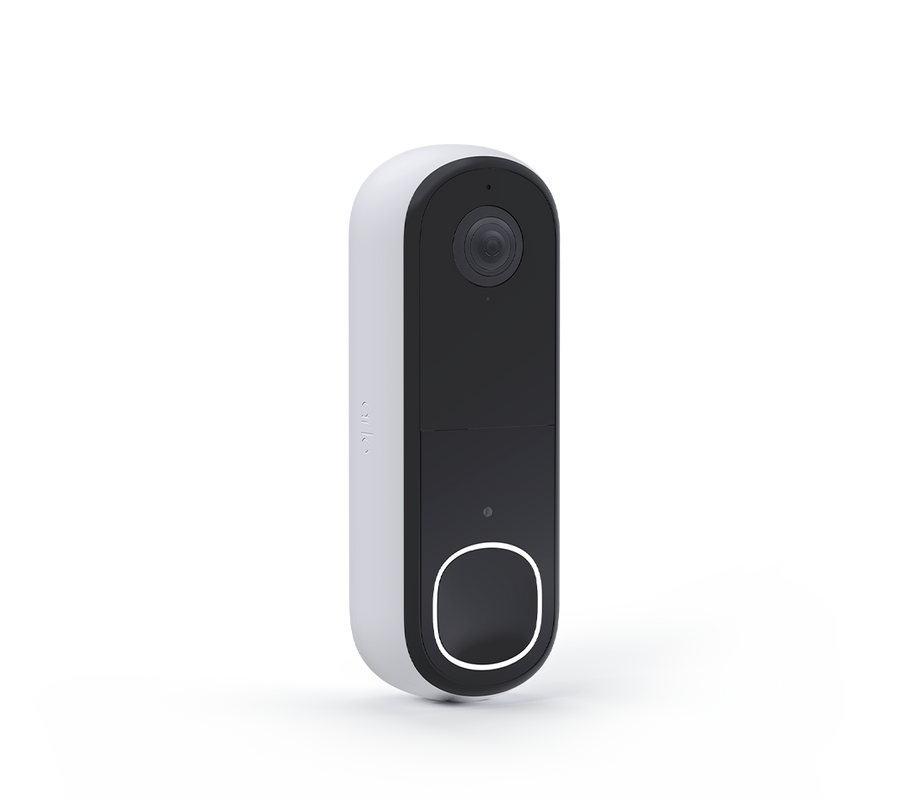

Arlo Video Doorbell 2K Wired/Wireless Setup
VIDEO DOORBELL 2K WIRED/WIRELESS SETUP
VIDEO DOORBELL 2K WIRED/WIRELESS SETUP

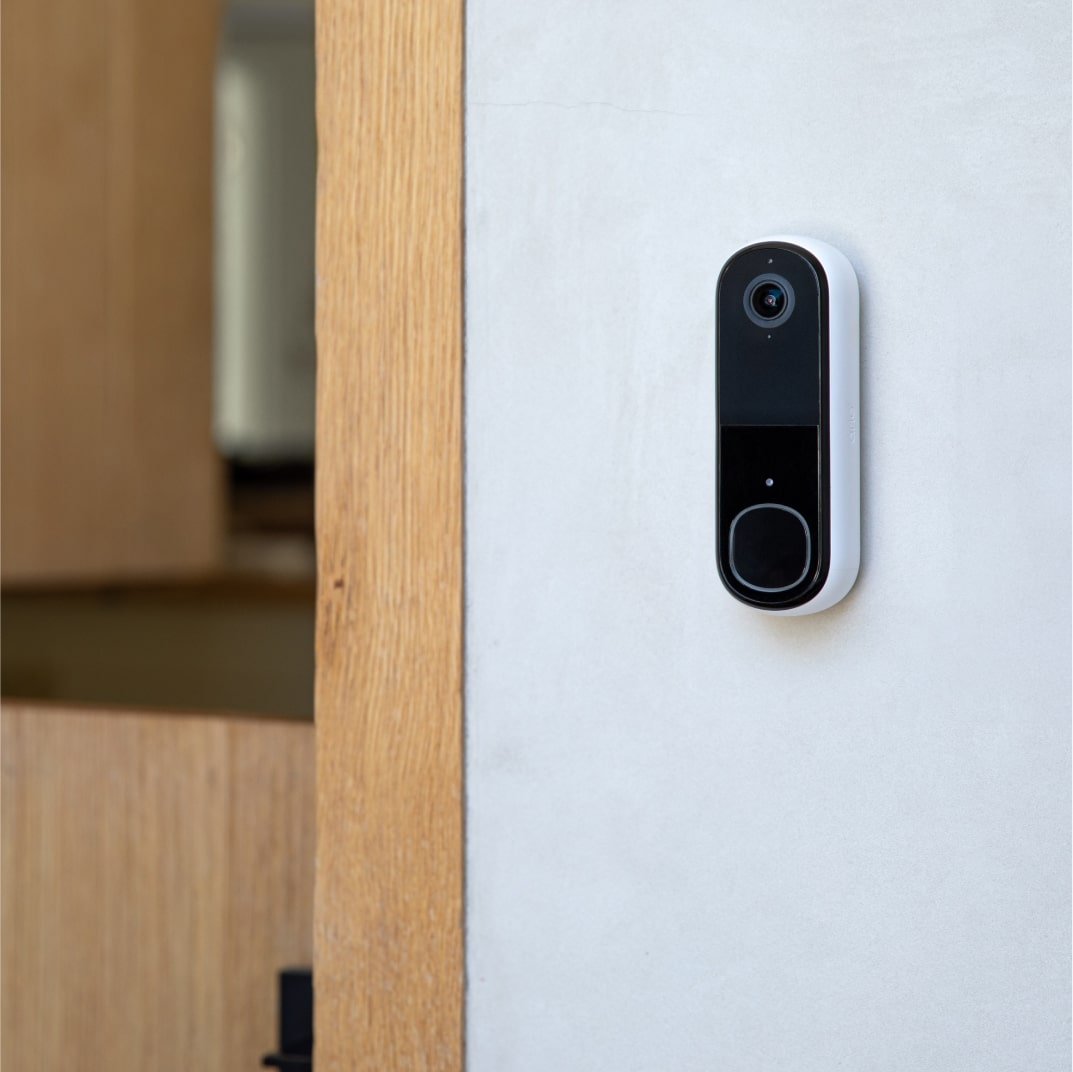

Protect your front door and beyond with Arlo's 2nd Generation Video Doorbells that alerts you when motion is detected.
Get head-to-toe coverage and a wide 180° Field of View ensuring that you see more of what's happening.
Choose either a 2K or HD doorbell to view crystal-clear details right from your phone.
FEATURES
CHAT
Chat With Whoever's There, From Anywhere.
VIEW

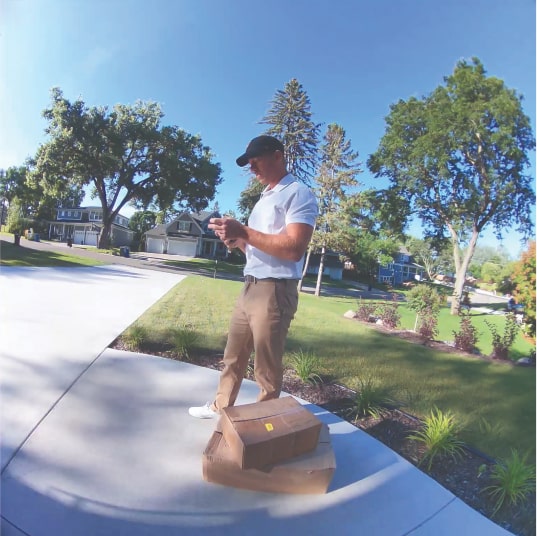

Keep everything in sight with a wide 180° Field of View.
CAPTURE

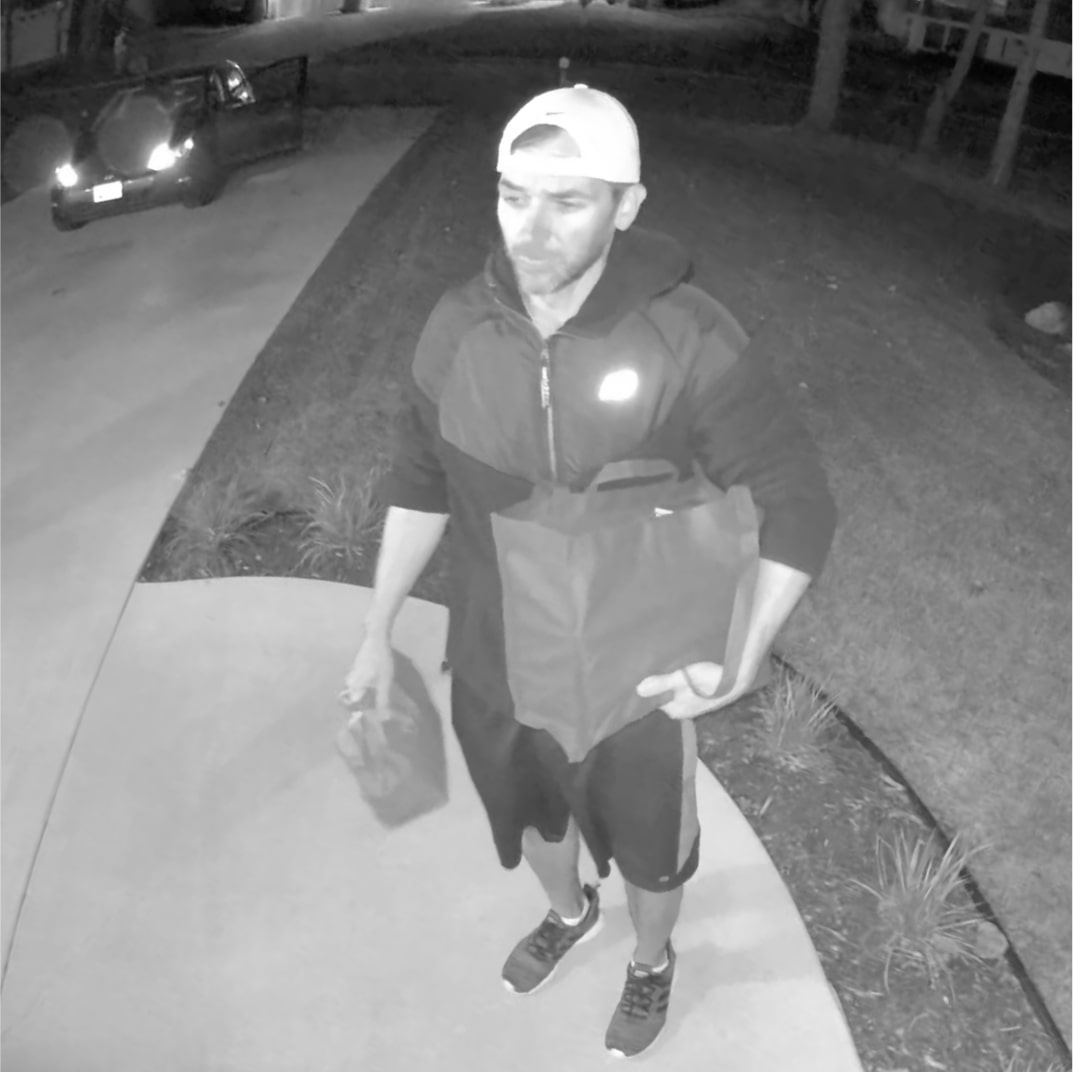

Capture all the details, even when it's dark.
NOTIFICATIONS

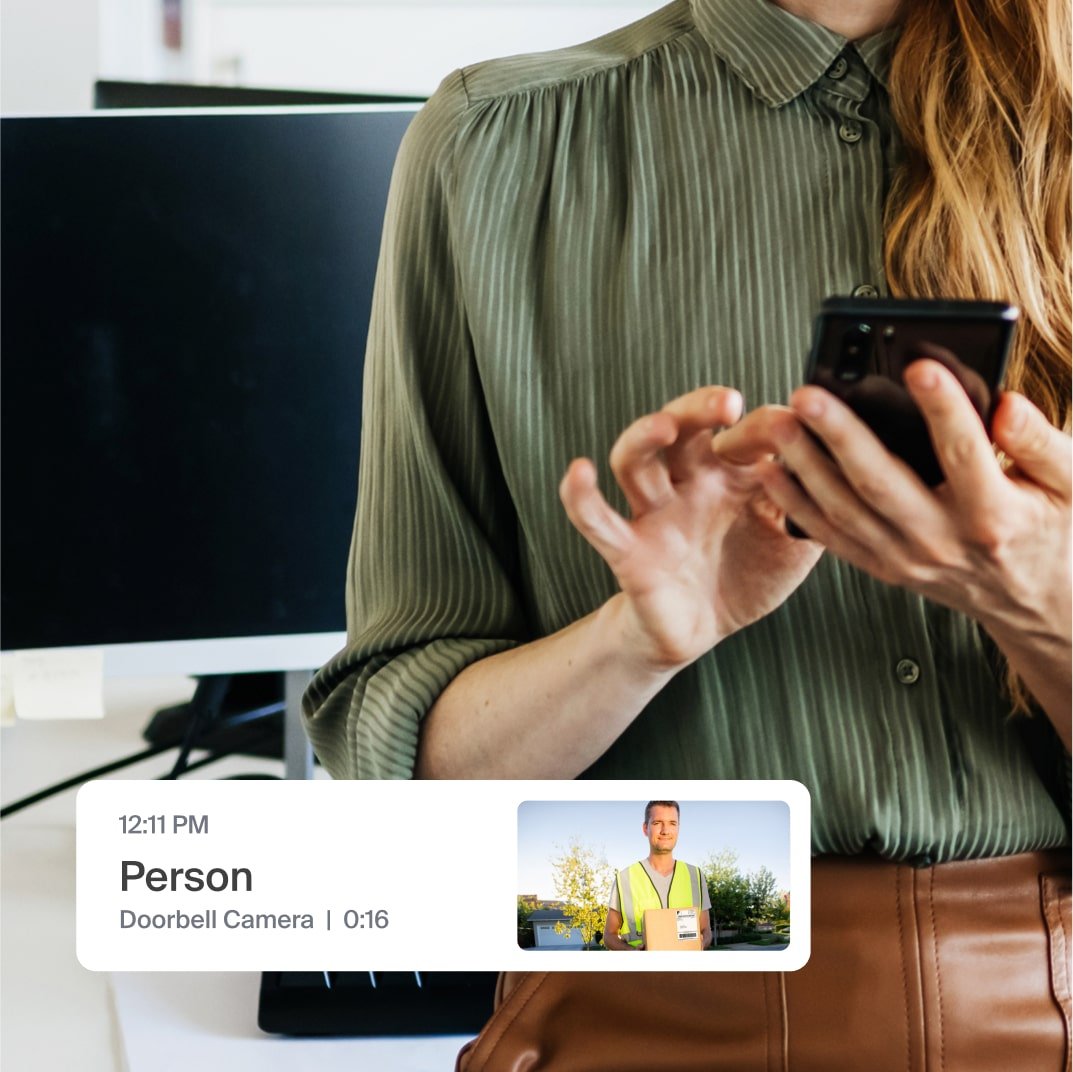

Receive notifications and live stream from your smart device.
SECURE
Certified to withstand heat, cold, rain, or sun.
INSTALL
Install with or without wires.
INFORMATION
BRAND
Arlo
PRODUCT TYPE
Door Bell
COLECTION
Wired
SIREN
Yes, Built-in Siren
MAXIMUM VIDEO RESOLUTION
Up to 1944 x 1944
CAMERA MOVEMENT
Fixed
LENS FIELD OF VIEW
180-degree diagonal
CHIME
Support traditonal chime, or Arlo Chime V2
VIDEO MODES
- 1944 x 1944
- 1536 x 1536
- 1080 x 1080
BATTERY LIFE
4 months**
MOTION DETECTION RANGE
10 feet
INDOOR OR OUTDOOR USE
Outdoor
VIDEO FEATURES
Black & white night vision
MAXIMUM OPERATING TEMPERATURE
113° F (45° C)
FUNCTIONS
- 2-Way Audio
- Integrated Siren
- Easy DIY Install
- 180° Field of View
- 2K Video Resolution
- Connects Directly to Wi-Fi
- Night Vision and Motion Detection
- Arlo Secure Plan Trial included
ITEM NO.
AVD4001-100APS
MOUNT TYPE
Flat or Angled Mounting
MINIMUM OPERATING TEMPERATURE
-4° F (-20° C)
CONNECTIVITY
2.4GHz Wi-Fi
STORAGE TYPE
Cloud
SENSORS
Motion sensor
NIGHT VISION IMAGE
Black & white
MICROPHONE
Yes, Noise reduction and echo cancellation
NIGHT VISION
Yes, Up to 20 feet; single 850nm LED
WHAT'S IN THE BOX?
- Screw Kit
- Quick Start Guide
- Arlo Video Doorbell
- USB Charging Cable
- Wire Extension Kit
- Flat Mounting Plate
- Angled Mounting Plate
- Security Latch Release Pin
STATUS LIGHTS
Yes, RGB LED
AUDIO
Yes, Full Duplex 2-way Audio
DIGITAL ZOOM
12x
MIN HOME UPLOAD SPEED
2Mbps
MORE WAYS TO ANSWER YOUR DOOR.
Level up your front door with a Video Doorbell. See and speak to visitors with clear 2-way audio, or respond with pre-recorded quick reply messages when you’re busy.1 Receive a video call when your doorbell is pressed and never miss a visitor.
DETAIL

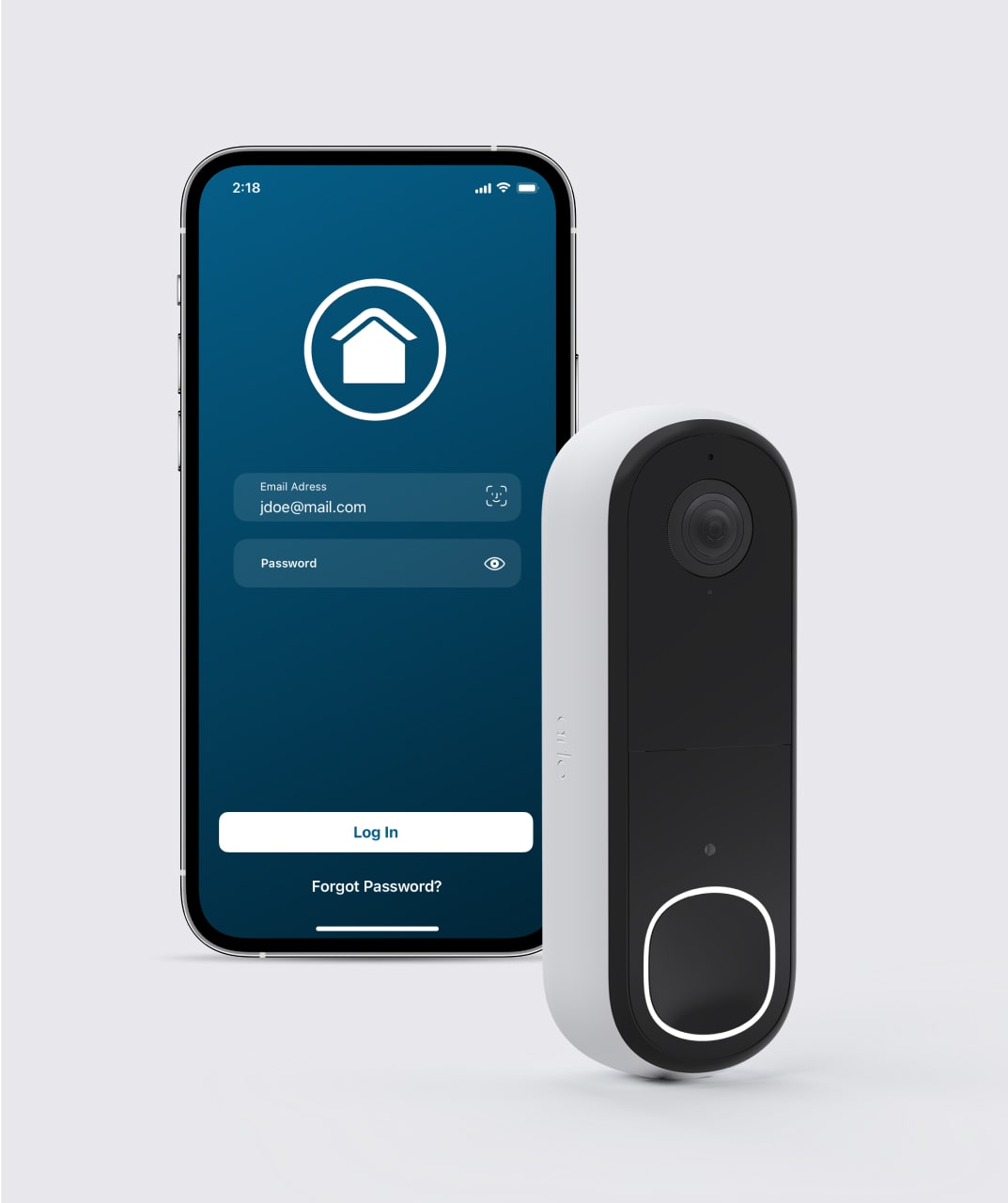

STEP 1
Download the Arlo Secure app and turn off the power to your existing doorbell.

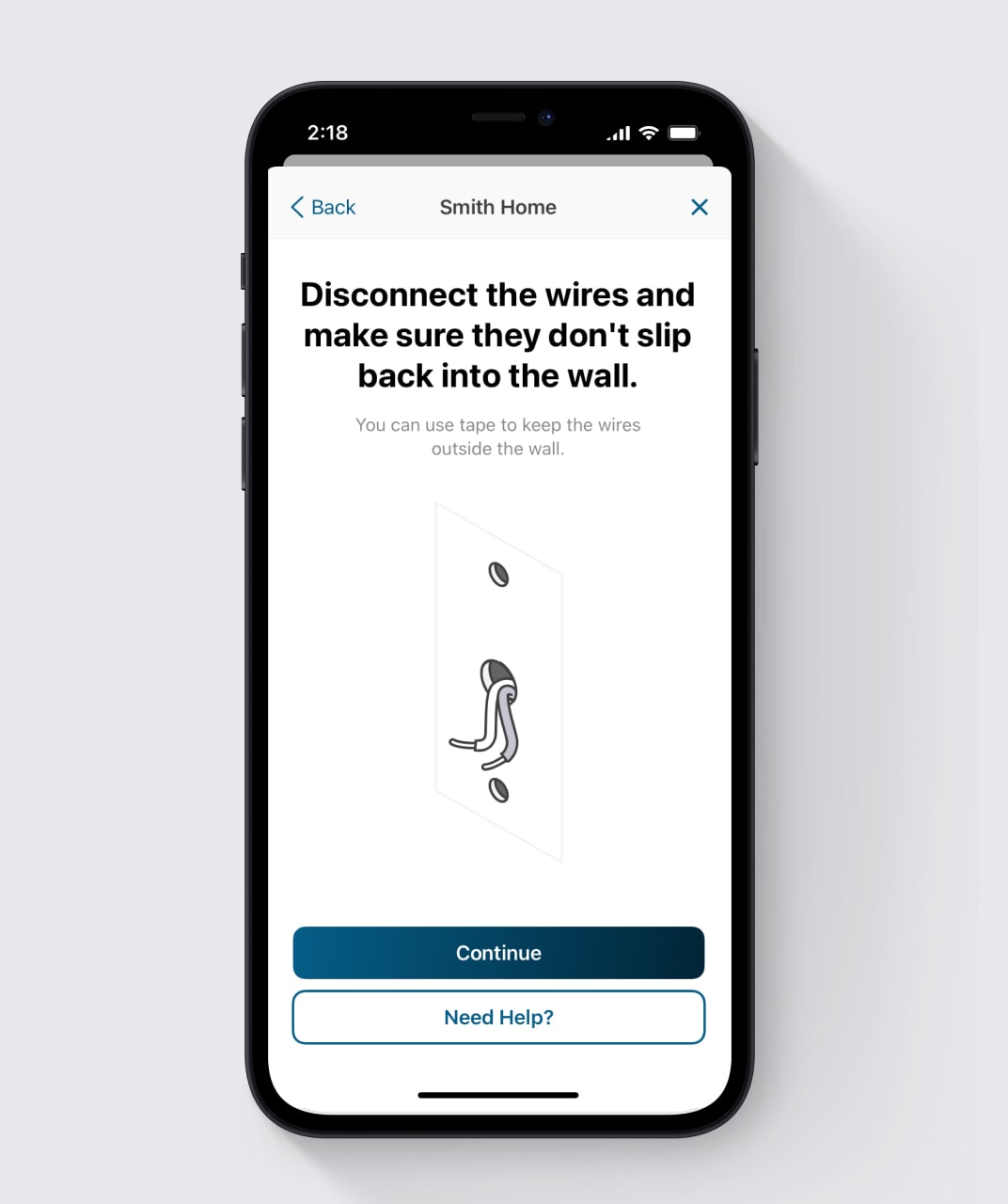

STEP 2
Disconnect the wires of your existing doorbell from the wall and then connect them to the back of your Arlo doorbell.
STEP 3

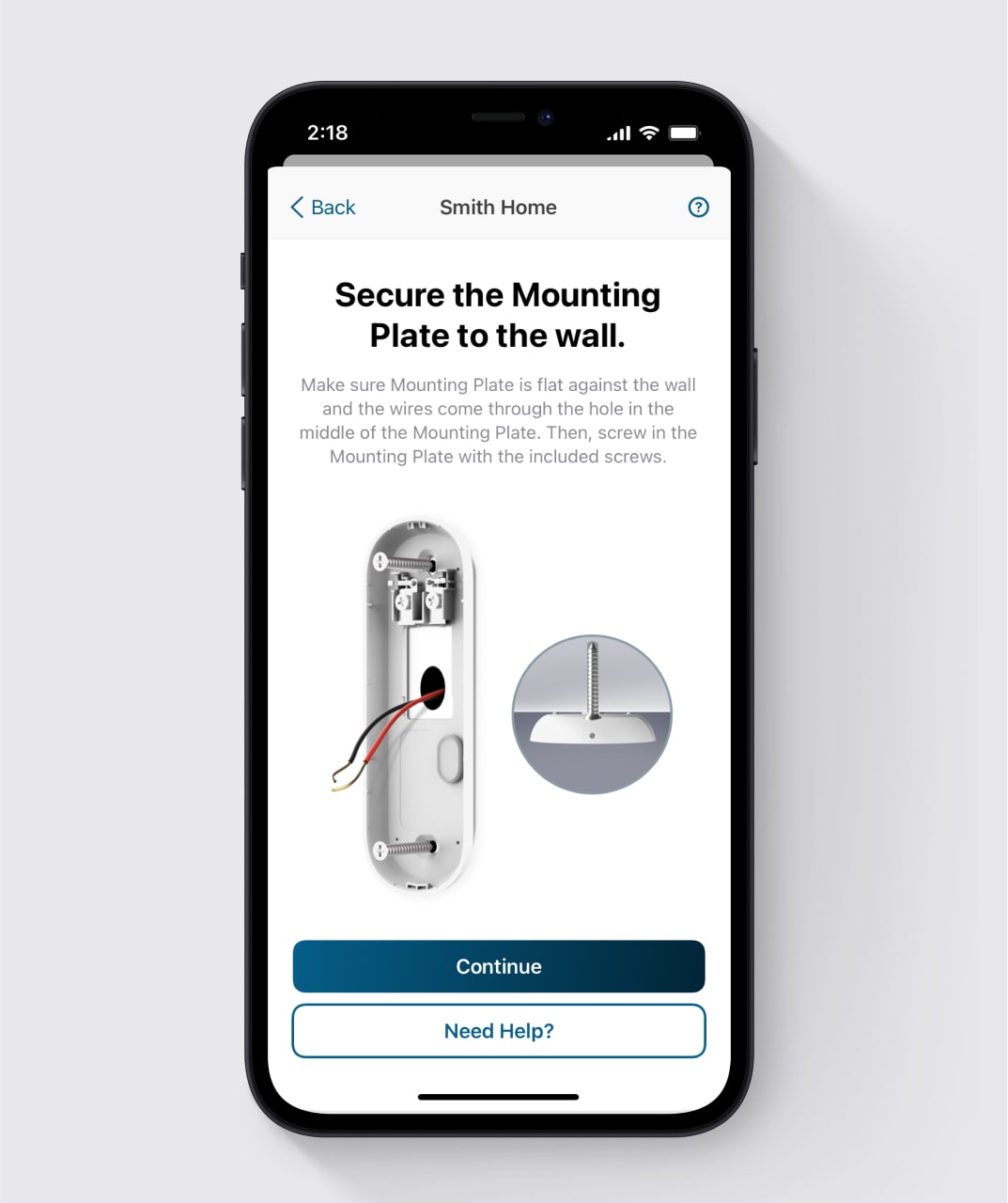

Drill and secure the mounting plate to the wall, then connect the doorbell to the mounted plate.

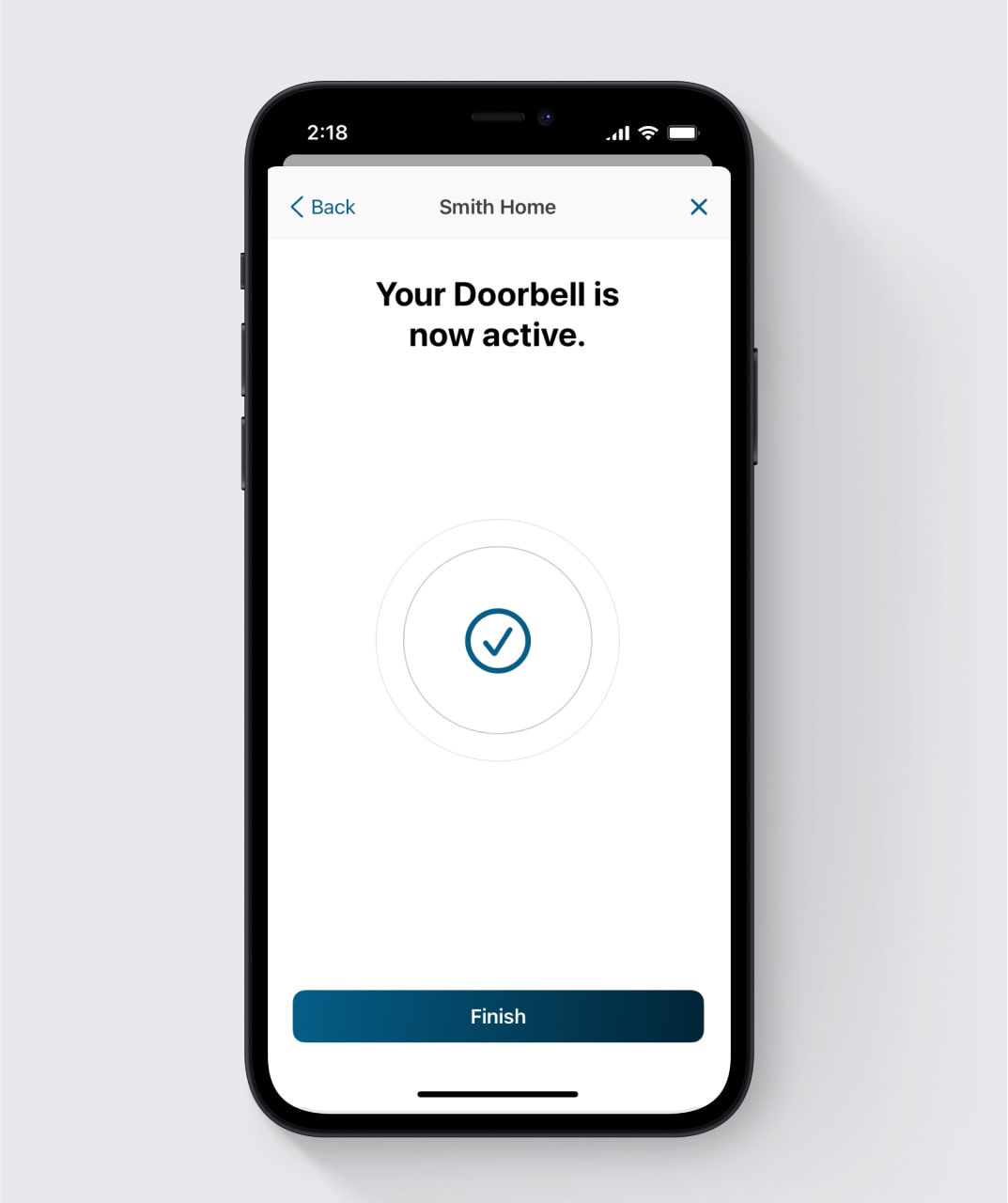

STEP 4
Turn the power back on and connect your doorbell to Wi-Fi to complete the setup.
