Bang-olufsen Cinematic Home Theatre
CINEMATIC HOME THEATRE
CINEMATIC HOME THEATRE
Beovision Theatre Ferrari Edition
Lamellas. Frame. Wings.
All fashioned from dark grey Grigio Corsa aluminium - calling you to gaze. Groundbreaking sound and vision blurs the line between Italian passion and Danish elegance.
INFORMATION
BRAND
Bang Olufsen
PRODUCT TYPE
Home Theatre
SOUND
- MPEG-2 AAC
- MPEG-4 HE-AAC
- PCM 7.1 multichannel
AVAILABLE SCREEN SIZES
- 55"
- 65"
- 77"
CUSTOMIZABLE SOUND EQ
Presets available and fully customisable through the Bang & Olufsen App.
ENERGY EFFICIENCY CLASS
G
DESIGNER
Noto GmbH
FABRIC
Polymer
SMART TV
WebOS
BEOLINK SURROUND
Enjoy a true surround sound experience by connecting additional speakers to your setup through wired or wireless connections.
PERIPHERAL UNIT CONTROL
Integrated Peripheral Unit/Set-top Box Controller for two units, allowing you to control set-top boxes with the Bang & Olufsen remote control.
POWER CONSUMPTION
Typical : 120 W (Soundbar)
POWER
100-240V 50/60Hz mains cable
MATERIAL
- Wood
- Fabric
- Aluminium
SPEAKER CONFIGURATION
- 12 speaker drivers
- 2 x 1" tweeter
- 4 x 2.5" full-range
- 2 x 3" mid-range
- 2 x 6.5" woofer custom made
- 1 x 5.25" mid-range + 1 x 1"" tweeter for custom made coaxial centre speaker
FREQUENCY RANGE
28Hz - 23,000 Hz
USE
Entertainment
BEOLINK MULTIROOM
Seamlessly connect multiple Bang & Olufsen speakers to expand your music experience.
DOWNLOAD
↓ Data Sheet
BLUETOOTH VERSION
Bluetooth 5.1 (BLE and EDR)
ON-DEVICE CONTROLS
Yes
- HGiG mode
- 4k and 2K HFR
PLACEMENT OPTIONS
-Motorised Floor Stand +/- 35° rotation -Motorised Wall Bracket left or right hinged with 60° max opening (55" or 65" screen) Table stand
SOUND FORMAT HDMI
Dolby Atmos supporting:
- Dolby Digital TrueHD
- Dolby Atmos, Dolby MAT
- Dolby Digital plus 7.1 (including DD5.1)
HDR
- HLG
- HDR 10
-,HDR 10 Pro
- Dolby Vision IQ
BLUETOOTH CODECS
- Android : SBC
- IOS : AAC, SBC
WI-FI
- IEEE 802.11 b/g/a/n/ac
- Dual-Band Wi-Fi 5 (2.4 & 5 GHz)
WIRELESS CONNECTIONS
- 8 x Wireless Power Link/WiSA
- 4 x Digital Power Link (Wireless or wired, Mozart Platform-based Bang & Olufsen speakers)
SOUNDBAR OUTPUTS
- 8 x Power Link (RJ45)
- 4 x Digital Power Link (Wireless or wired, Mozart Platform-based Bang & Olufsen speakers)
STREAMING SERVICES
- UPnP
- B&O Radio
- Google Cast
- TIDAL Connect
- Apple AirPlay
- Spotify Connect
- Deezer QPlay 2.0

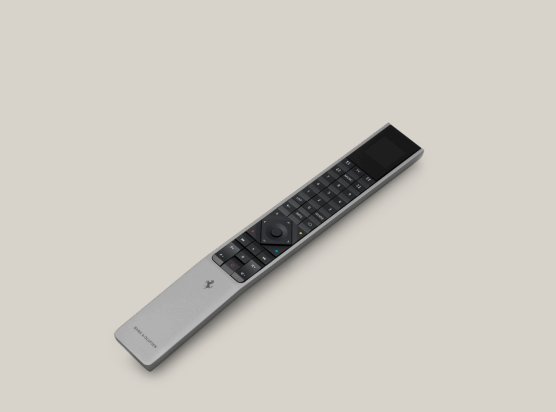

REMOTE CONTROLS
Integrated system control, including LG OLED TV:
- Beoremote One
- BT Beoremote Halo
- Bang & OlufsenApp
GAMING
- ALLM
- VRR
- Input lag 12,8 ms
- < 1 ms response time
- G-sync and FreeSync™ compatible
AMPLIFIER
- Total : 800 W
- 12 power amplifiers
- 2 x 100 watts amplifiers for bass outputs
- 10 x 60 watts amplifiers for center channel, left/right/upfiring/side firing outputs
ADVANCED SOUND FEATURES
- Thermal protection
- Adaptive Bass Linearization
- Advanced Bass management system
- Integrated 7.1.4 Dolby Atmos decoding and custom-tuned post-processing with proprietary True Image up- / downmixing algorithm.
ROOMSENSE
Automated speaker setup with external microphone:
-Speaker role -Speaker level and distance -Room resonance compensation from 30 – 200Hz -Speaker position compensation from 30 – 10.000Hz
PHYSICAL CONNECTIONS
- 1 x USB-C
- 1 x 3.5mm jack
- 3 x HDMI input with CEC input
- 1 x HDMI eARC with passthrough 4K 120FPS / 8K 60FPS / 40Gbit
- 4 x 1Gbit Ethernet (One port assigned for LG OLED TV connection for integrated control via Beoremote One and Bang & Olufsen App)
RECOMMENDED ROOM SIZE
- 10-60 m²
- 100-600 ft²
DISPLAY TYPE & RESOLUTION
- 4K OLED
- 3840 x 2160, over 8M pixels
DIMENSIONS
SIZE - 55"
- Motorised Wall Bracket: 122.2 W x 19.2 D x 95.9 H cm
- Motorised Floor Stand: 122.2 W x 52.8 D x 118.9 H cm
- Table Stand (free Stand/close to wall): 122.2 W x 35.9/26.5 D x 91.9 H cm
SIZE - 65"
- Motorised Wall Bracket: 144.1 W x 19.2 D x 108.3 H cm
- Motorised Floor Stand: 144.1 W x 52.8 D x 131.3 H cm
- Table Stand (free Stand/close to wall): 144.1 W x 35.9/26.5 D x 104.3 H cm
SIZE - 77"
- Motorised Floor Stand: 171.2 W x 52.8 D x 147.4 H c
- Table Stand (free Stand/close to wall): 171.2 W x 35.9/26.5 D x 120.5 H cm
WEIGHT - 77"
- Table Stand incl. LG G3 TV: 66 kg
- Motorised Floor Stand incl. LG G3 TV: 87 kg
WEIGHT - 65"
- Table Stand incl. LG G3 TV: 53 kg
- Motorised Wall Bracket incl. LG G3 TV: 68 kg
- Motorised Floor Stand incl. LG G3 TV: 73 kg
WEIGHT - 55"
- Table Stand incl. LG G3 TV: 49 kg
- Motorised Wall Bracket incl. LG G3 TV: 62 kg
- Motorised Floor Stand incl. LG G3 TV: 69 kg
