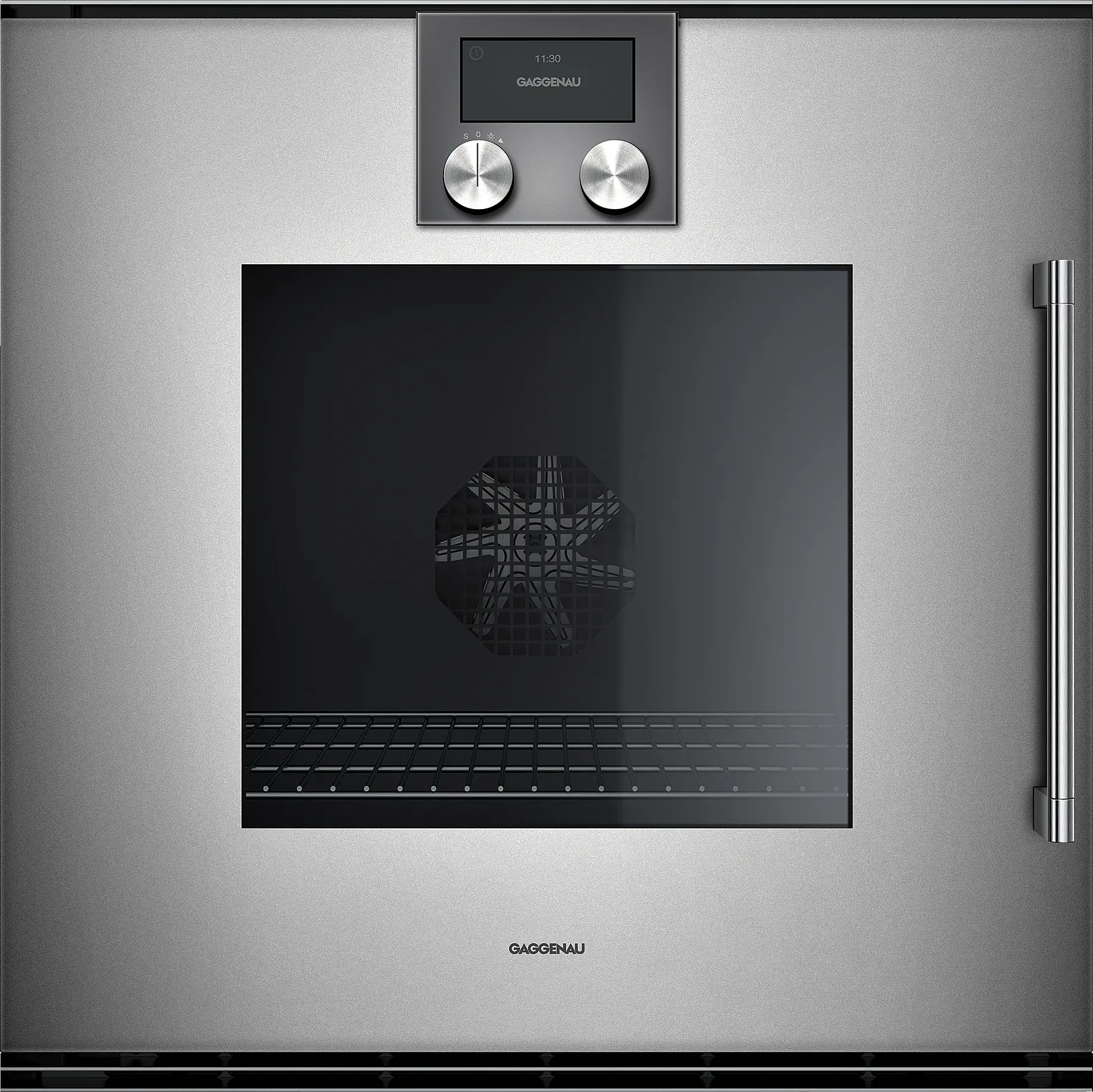

Gaggenau 200 Series Oven 24'' Door Hinge
200 SERIES OVEN 24'' DOOR HINGE
200 SERIES OVEN 24'' DOOR HINGE
Left, Gaggenau Metallic
information
BRAND
Gaggenau
PRODUCT TYPE
Oven
VARIANT
- Left, Top
- Right, Top
TEMPERATURE
Core temperature probe with estimation of cooking time
HEATING SYSTEM
Universal heating system with 13 heating modes, with meat probe and baking stone operation
APPLIANCE
Panel-free appliance with surface control module
PRODUCT CODE
BOP251612
INSTALLATION
Flush installation
CONTROL
Electronic temperature control from 85°F - 550°F
VOLUME
Net volume (76 litres)
CLEANING SYSTEM
Pyrolytic self-cleaning system
PROGRAMS
Automatic programs
DISPLAY
TFT touch display
PROTECTION
Cooled housing with temperature protection
BROILING
- Broiling
- Economy broiling
- Convection broiling
OPERATION
- Roaster operation
- Baking stone operation
- Rotary knob and TFT touch display operation
HALOGEN LIGHT
60 W halogen light on the top
LOCK
Child lock.
HEAT
- Top heat
- Bottom heat
- Fast heating setting
- Top + bottom heat
- Convection + bottom heat
- Heated air cleaning catalyst

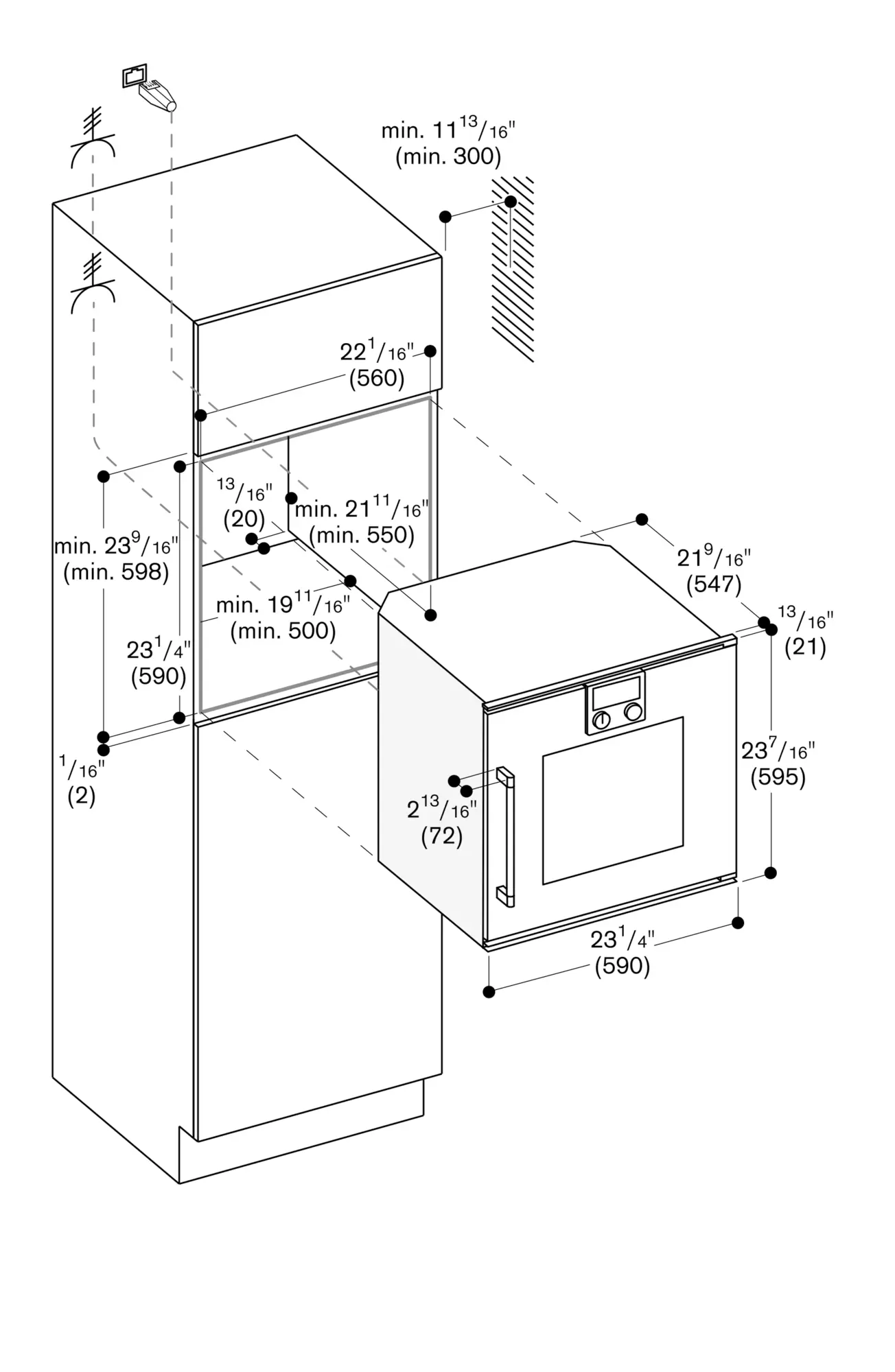

TECHNICAL DRAWING
CONNECT SERVICES
The use of the Home Connect functionality depends on the Home Connect services, which are not available in every country. For further information please check: home-connect.com
USE
Information key with use indicators.
DOOR
Side-opening door opens up to 110° angle.
COOKING TIMEC
Three-point core temperature prove with automatic shut-off and estimation of cooking time.
SUPPORTS
Enamelled side shelf supports with 4 tray levels, pyrolysis-safe
COOKING TOP
For installation underneath cooktops: distance between the underside of the cooktop and the top edge of the oven housing: min. 9/16" (15 mm). The planning notes for the cooktops (particularly regarding ventilation, gas/electric connection) must be taken into
PERSONALIZATION
Personalization of automatic programs
OUTLET
Baking stone outlet
OVERHANG
Consider the overhang, incl. the door handle, when planning to open drawers next to the appliance.
SAFETY
Safety shut-off
REVERSIBLE
Door hinge not reversible
OPENING ANGLE
When planning a corner solution, pay attention to the 110° door opening angle.
CABINET
- The outer edge of the door handle extends 2 13/16" from the cabinet front.
- The door panel front of the appliance extends 13/16" from the cabinet front.
- Necessary lateral gap between appliance door and cabinet front of min. 3/16".
TOTAL RATING
Total rating 4.0 KW.
CORNER
On the corner of the housing
DIGITAL SERVICES
Home network integration for digital services (Home Connect) either via cable connection LAN (recommended) or wireless via WiFi.
PROOFING
Dough proofing
LANGUAGE
Clear text display in 44 languages
ACHIEVE
To achieve the 21 ⅝" (550 mm)
CONNECTION
Installation depth, the connection
CABLE NEEDS
Cable needs to follow the slanted edge
LAN
The LAN port can be found at the back on the upper right side.
WIFI
- Plan for an ethernet / LAN cable or connect via WiFi.
- Please check the user manual for how to switch off the WiFi module.
PLUG
Electrical cable 63" without plug (hardwire required).
TIME
Time auto-standby/network 20 min.
CONSUMPTION
- Power consumption standby/network 1.4 W.
- Power consumption standby/display off 0.5 W.
FEATURES
- Account
- Convection
- Defrosting
- Cut-out niche
- Automatic programs
- Economy convection
- Gaggenau Clean-Enamel.
- Actual temperature display
- Personalization of automatic programs.
- Thermally insulated door with quintuple glazing
- Option to save 50 individual recipes (incl. core temperature probe)
VOLTAGE
208 - 240 V / 60 Hz
TOTAL AMPS
17 A
POWER
Plan a power outlet outside of the
