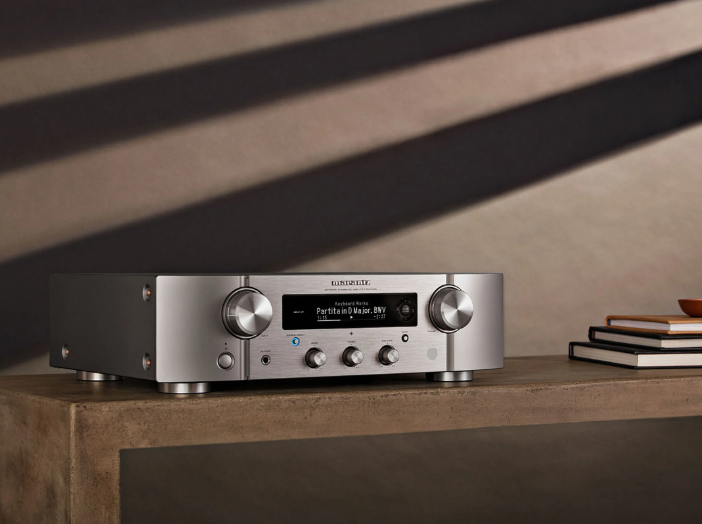

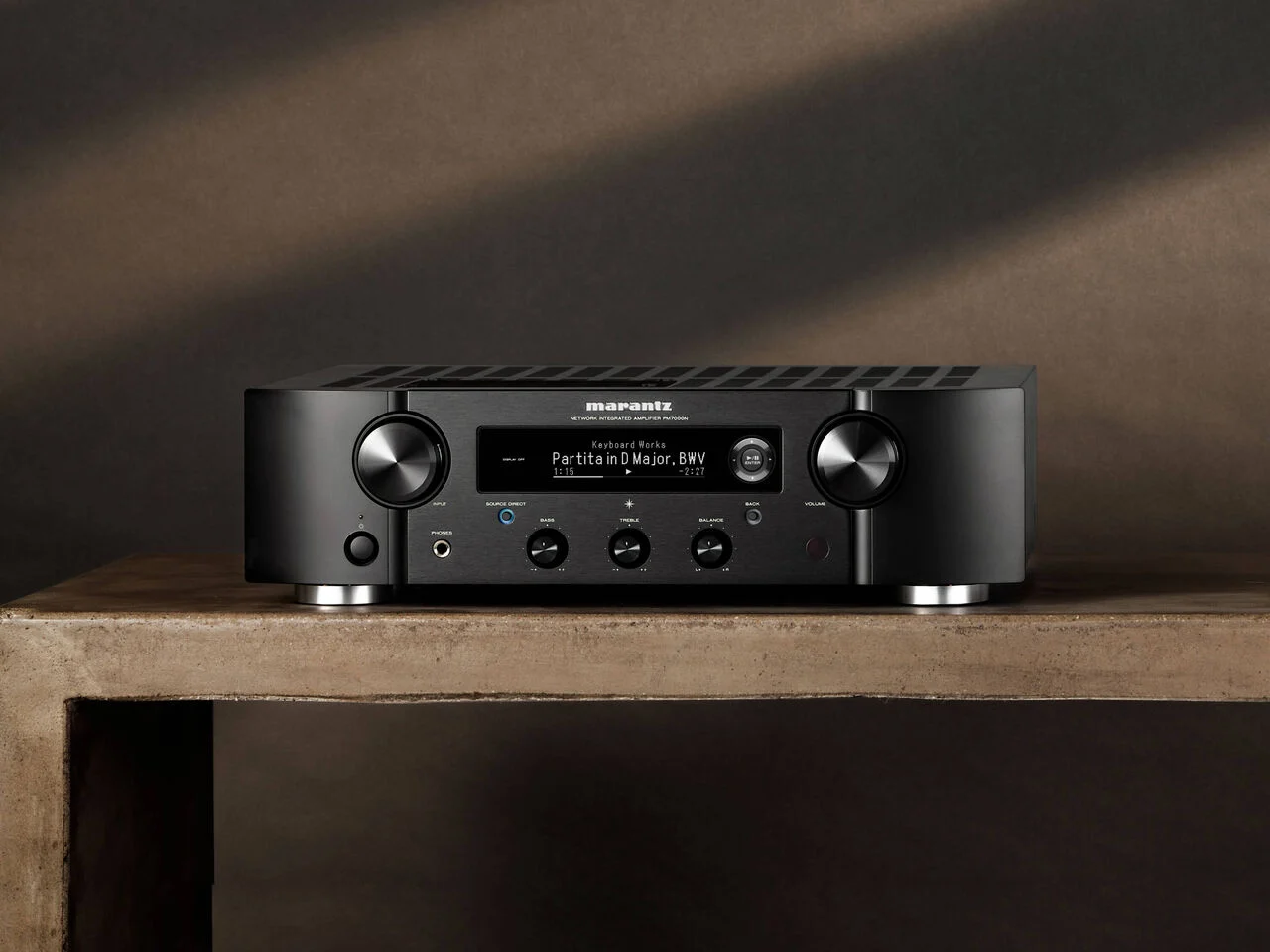

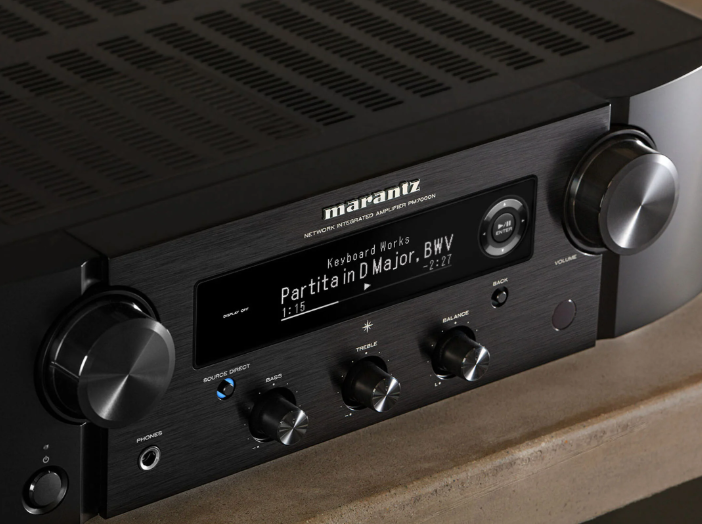

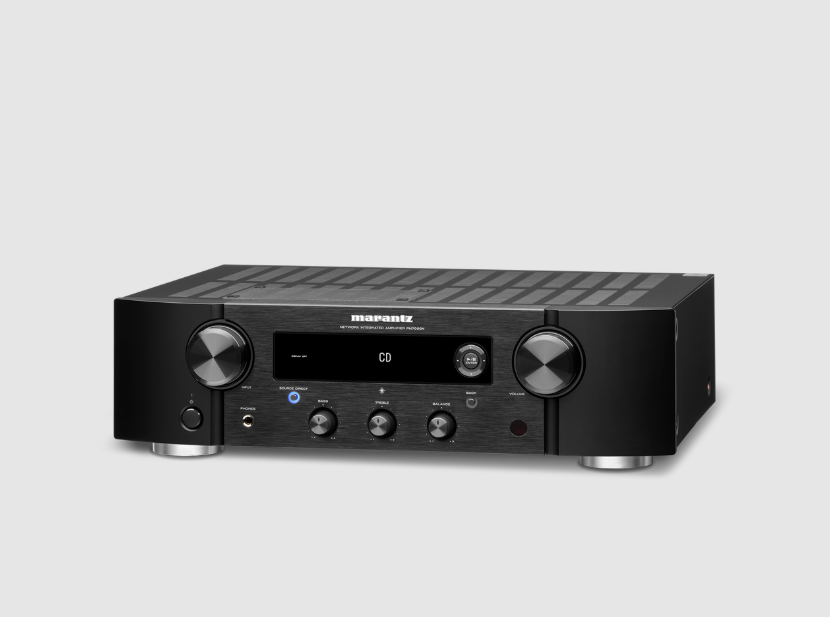

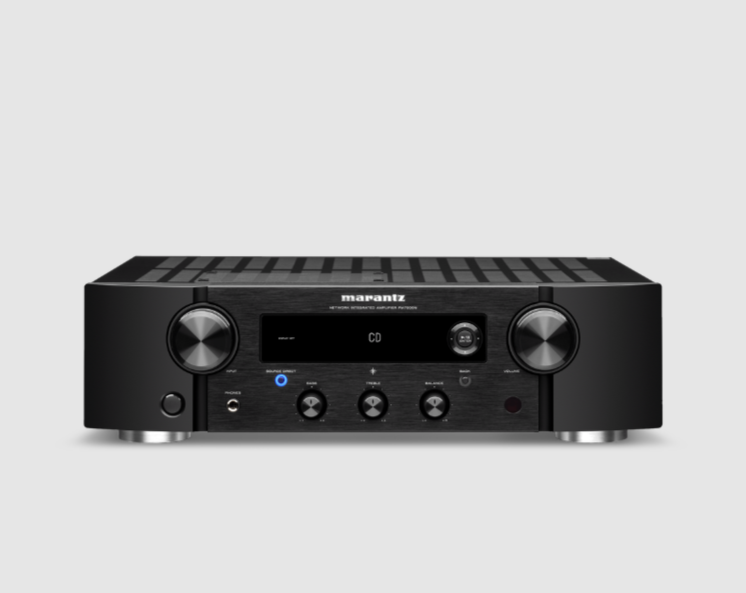

Marantz PM7000N Amplifier
PM7000N AMPLIFIER
PM7000N AMPLIFIER
60W Integrated Stereo Amplifier Powered by HEOS™
Engineered and extensively tuned by a team drawing on decades of Hi-Fi expertise, the PM700\=0N provides exceptional performance for your audio collection. Whether digital or analog, enjoy the most musical sound from any source.
FEATURES
DARKO
Marantz’s PM7000N streaming amplifier is pure Future-Fi.
ECOUSTICS
Users can connect a digital TV or cable/satellite set-top-box and a Blu-ray or DVD player to either of the three digital audio inputs (Optical 1 and 2, Coaxial 1) and enjoy the excitement and dynamic experience of movie soundtracks and TV shows.
HOME THEATER REVIEW
I'm not the kind of person who likes to beat around the bush, so I'll say this up front: the PM7000N is mighty impressive. What's more, the PM7000N delivers excellent soundstage and imaging. If you're an imaging and soundstage junky like I am, the PM7000N won't disappoint. Combine this excellent sound quality with the PM7000N's network capabilities and I think this is one of the most well-rounded integrated amps out there right now near its price point.
THE ABSOULUTE SOUND
The fact is, the PM7000N does a ton. It’s clearly designed to be a one-box solution sans speakers. The PM7000N can be dropped into a highly connected household and easily take control. I can run through a long list of devices that have passed through my house that were more trouble than they were worth. But the Marantz PM7000N wouldn’t be on that list. Far from it. Despite having a foot firmly in just about every camp imaginable, the PM7000N sounded great and worked seamlessly well.
INFORMATION
BRAND
Marantz
PRODUCT TYPE
Amplifier
ALUMINIUM EXTRUSION HEAT SINK
Yes
CURRENT FEEDBACK TOPOLOGY
Yes
PRODUCTION
Made in US
POWER TRANSFORMER
Toroidal
CHANNELS
2
PHONO EQ
OP amp + FET input stage
TONE CONTROL: BASS / TREBLE / BALANCE
Yes /Yes
HIGH GRADE AUDIO COMPONENTS
Yes
DIMENSIONS
- Width : 440 mm
- Depth : 125 mm
- Height : 379 mm
SOURCES
- 2.2 Channels
- Custom HDAM
- HEOS Built-in
- 60 Watts Per Channel
WARRENTY
3 Year
DESIGN
Slimline
GENERAL
- Available Colors : SG / BK
- Metal Front Panel : Yes
- Power Consumption : 220W
- Remote Control : Yes
- System Remote Function : Yes
- Weight : 10.8kg
- Standby Consumption : 0.4W
- Detachable Power Cable : Yes
- Network Standby Consumption in W : 4.7

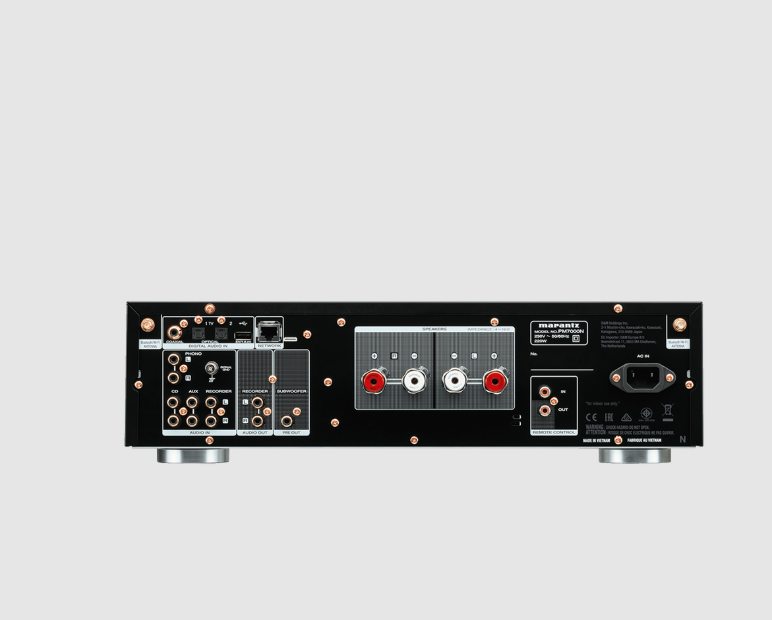

INPUTS OUTPUTS
- Audio Inputs : 4
- Phono Input: MM : Yes
- Power Amp Direct IN : No
- Headphone Out : Yes (Front)
- Digital In: Optical / Coaxial : 2/1
- Speaker Terminals : Marantz SPKT-1+
- USB-A : 1 (rear)
- Recorder Out : Yes
- Pre-out : Subwoofer
- Gold Plated Cinch : Yes
- Speaker A / B : No
- Number of terminals : 1 pair
- Remote Control Bus in / out : Yes
SOURCE DIRECT
Yes
PURE MODES
3
NETWORK
- Lossy formats: MP3 / WMA / AAC : Yes / Yes / Yes
- Lossless formats: FLAC / ALAC / WAV : Yes / Yes / Yes
- HEOS Multi-room and Streaming / Network Audio Streaming : Yes / Yes
- Support for voice control: Alexa / Google assistant / Siri : No / No / Yes
- Compatible with Remote APP for Smart Phones : HEOS
- Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 : Yes / Yes / Yes
- Spotify connect / Deezer / TIDAL / Napster / Pandora / SiriusXM : Yes / Yes / Yes / Yes / Yes / Yes
- Bluetooth : Yes
- Internet radio : Yes (TuneIn)
- DSD Audio Streaming : up to DSD5.6
- AirPlay 2 Audio Streaming : Yes
- Gapless Playback : Yes (FLAC, WAV ,ALAC ,DSD)
- Ethernet / Wi-Fi : Yes / Yes (dual antenna/ dual band)
SPECIFICATIONS
- Power Output (8 / 4 Ohm RMS) : 60 W / 80 W
- Frequency response : 5 Hz – 100 kHz ±3 dB
- Total Harmonic Distortion : 0.02%
- Signal to Noise Ratio: High level : 115 dB (2 V input, rated output)
- Damping Factor : 100 and over
- Input Sensitivity: MM : 2.0 mV / 47 kΩ/kohms
- Signal to Noise Ratio: MM : 87 dB (5 mV input, 1 W output)
- Input Sensitivity: High level : 220 mV/18 kΩ
SYMMETRIC PCB LAYOUT
Yes
CUSTOMISED COMPONENTS
Yes
USE
Entertainment
COLOR
Black
HDAM VERSION
HDAM-SA3, SA2
OTHERS
- FL Display : 3 line OLED
- GUI Languages : English / French / Spanish
- Setup Assistant : Yes
- Firmware Update by Network / USB : Yes
- Sleep / Timer : Yes
- Variable Cross Over : Yes (40/60/80/100/120Hz)
- Shield Case for Digital Circuit : Yes
- IR Learning for TV remote : Yes
- Auto Power On / Off : Optical In 1 / Optical In 2 / Coaxial In (Default: OFF)
DESIGNED TO SUIT YOUR AUDIO PREFERENCE
The ideal choice for audiophiles that requires our exceptional Marantz sound with flexible operation and access to digital streaming music.
KEY TECHNOLOGIES
KEY TECHNOLOGIES
-Amazon Music -Airplay -Tidal -Tune in -Josh.ai -Iheart Radio -Sportify -Powered by Heos -Deezer -Bluetooth -Hi - res Radio -Pandora -Siri -Qobuz
PM7000N
A WORLD OF MARANTZ AWAITS
The PM6007 integrated current feedback amplifier powers 2x 60W (8 ohms RMS, 20Hz – 20kHz) to offer a refined audio experience.
ADVANCED MARANTZ SOUND
Wider dynamic range with lower distortion for the output stage from Marantz's latest HDAM-SA3 technology.
SOUND MASTER TUNED
The Marantz Sound Master meticulously tuned PM7000N for amazing performance with careful parts selection to create the Most Musical Sound in your home.
WIDE RANGE OF CONNECTIVITY
Four analog inputs, one analog output, one coaxial input, two optical digital inputs and one USB-A for high resolution audio files.
SOUNDTRACK
FOR THE SOUNDTRACK OF YOUR LIFE

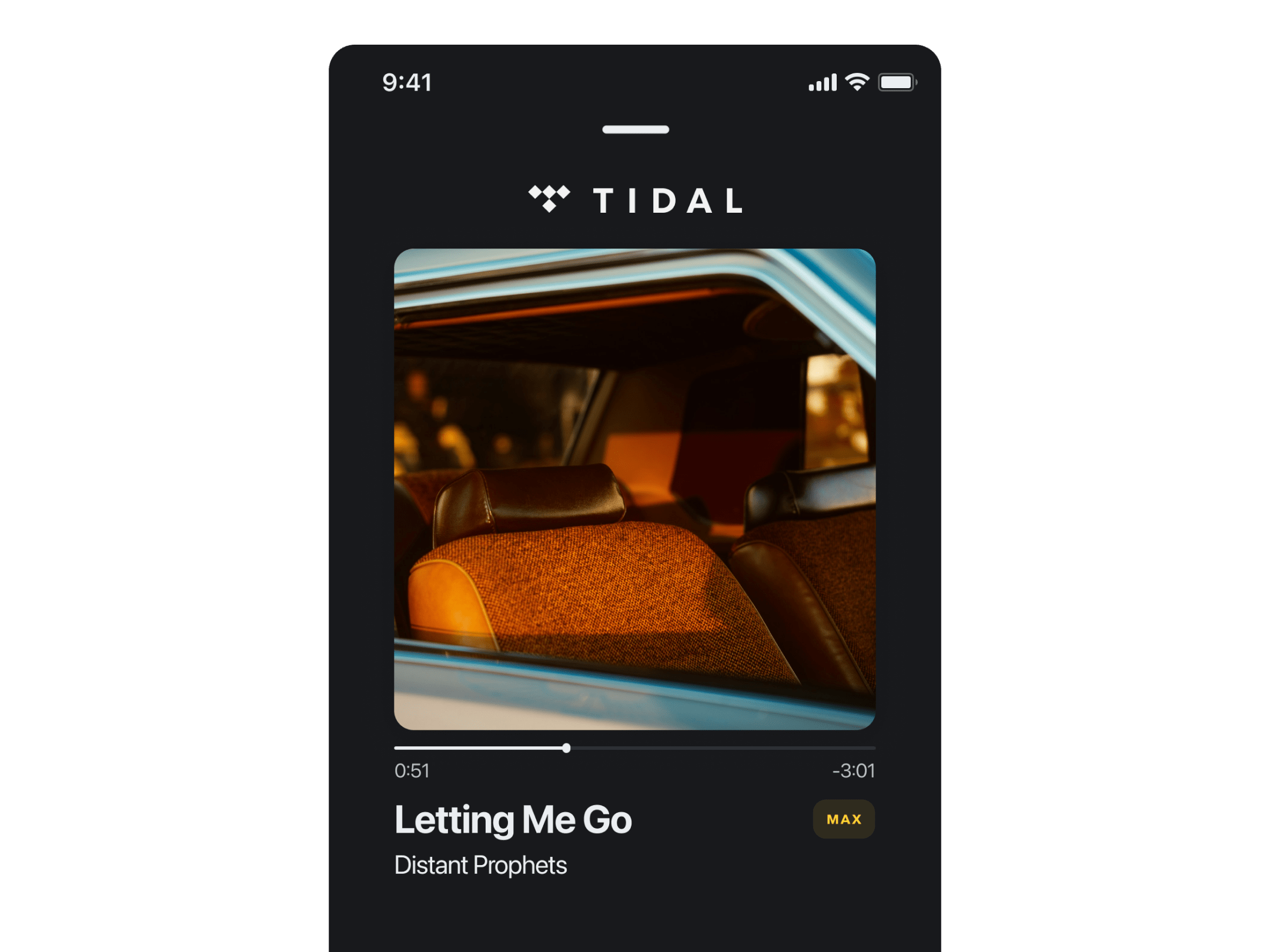

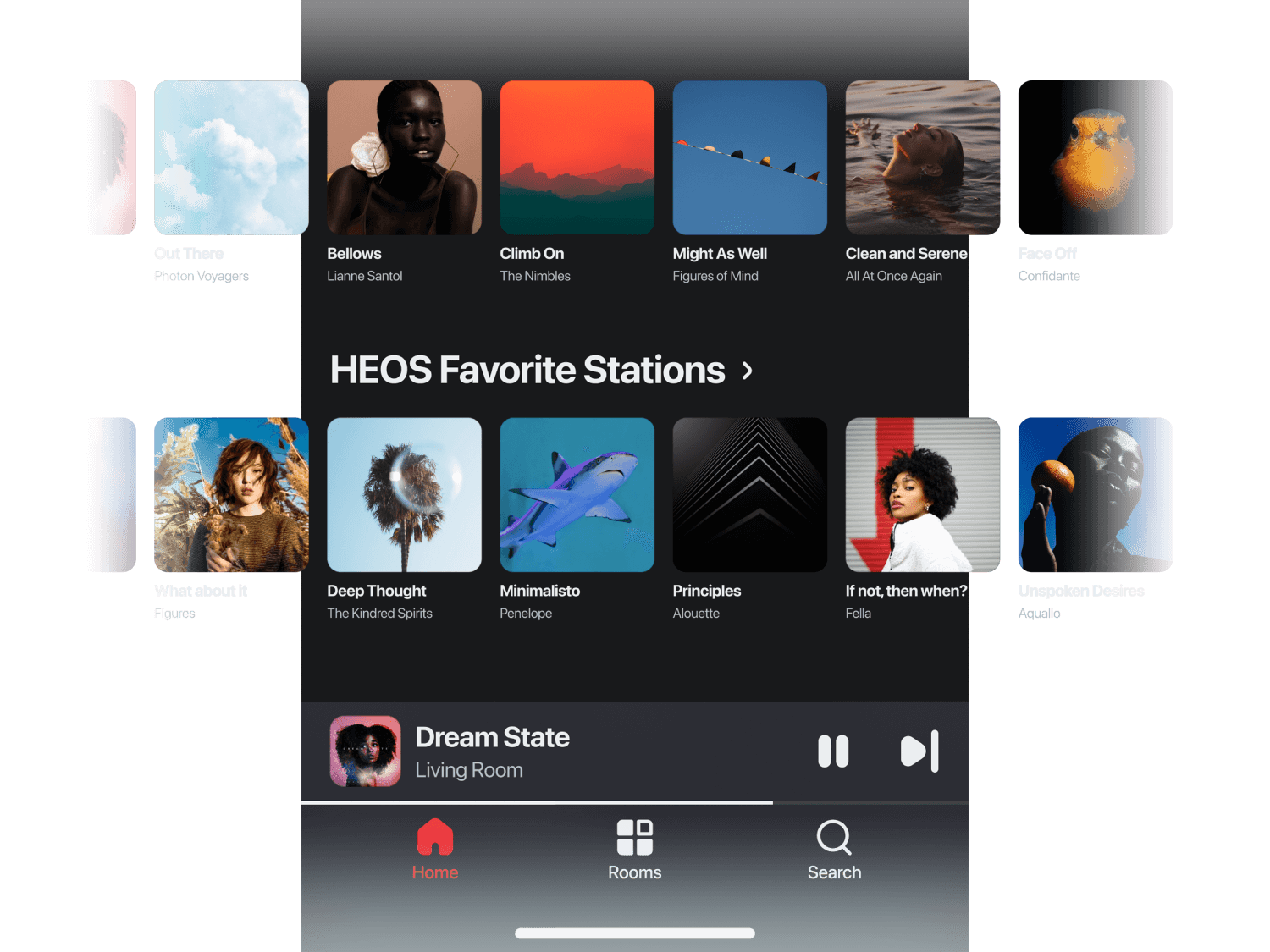

HEOS® has a search feature that lets you find and stream from the world’s leading music platforms, including TIDAL, Pandora, and Amazon Music HD.
SEARCH FOR SONGS ACROSS PLATFORMS
HEOS® has a search feature that lets you find and stream from the world’s leading music platforms, including TIDAL, Pandora, and Amazon Music HD.

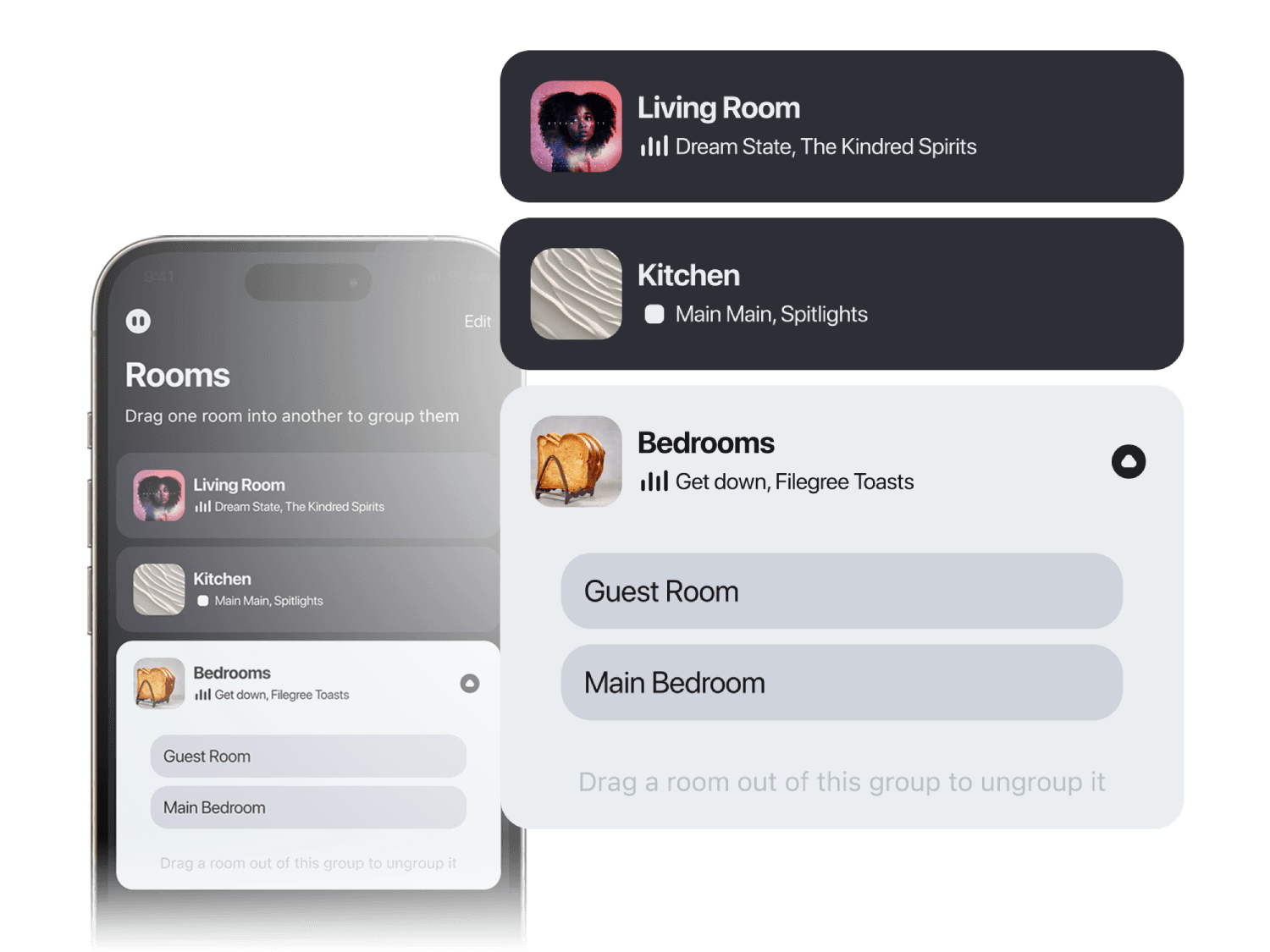

YOUR WHOLE HOME IN ONE PLACE
Devices Powered by HEOS™ allow you to control multiple rooms, all with the HEOS app.
HI-RESOLUTION STREAMING
Use your HEOS-enabled Marantz devices to access high-resolution music streaming and discover a whole new way to love your favorites.
