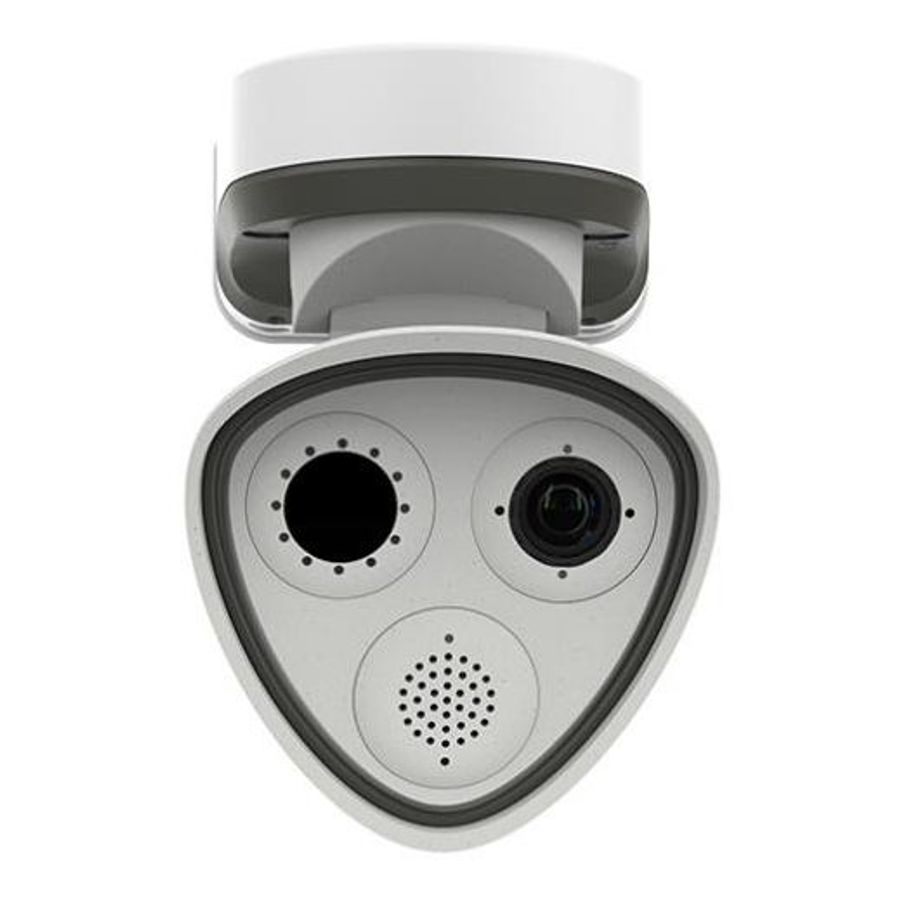

Mobotix M73 Thermal Security Camera
M73 THERMAL SECURITY CAMERA
M73 THERMAL SECURITY CAMERA
The MOBOTIX 7 camera M73 can now be equipped with 50 mK thermal sensor modules – even
retroactively!
Thanks to the increased number of pixels with the VGA thermal modules, even more details can be detected, even larger areas can be covered and temperature differences can be recorded from even greater distances.
INFORMATION
BRAND
Mobotix
PRODUCT TYPE
Security Camera
PRODUCTION
Made in Germany

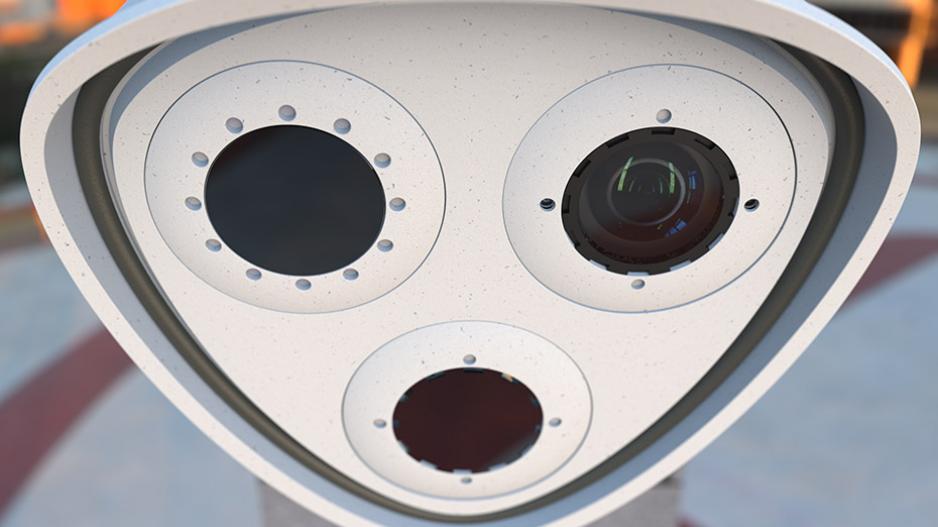

INCREASED MODULARITY
Increased modularity with flexible usage of a combination of up to three sensor or functional modules
THERMAL RESOLUTION
With CIF or VGA thermal resolution, max. 9 fps
USE
Security
RESOLUTION
2 x 4K UHD
TECHNOLOGY
Optional with Thermal Radiometry Technology
ANGLE
17° Tele- to 90° wide angle thermal lens
ENVIRONMENT
Outdoor
COVERED
Large Area
CONNECTED
Permanently
WIDE DYNAMIC RANGE
Up to 120 dB
SENSOR MODULE
Easily retrofittable 50 mK thermal sensor modules
ROBUST IN ANY ENVIRONMENT
–40 to 65 °C/–40 to 149 °F, IP66, NEMA 4X and IK10
PLATFORM WITH THE MOST FLEXIBLE CODEC SUPPORT
- H.264
- H.265
- MxPEG+ and MJPEG
EXCHANGEABLE
Can optionally be used with an exchangeable CIF/VGA thermal sensor module
PLUG
Easy Plug quick-mounting system
PROFILE
ONVIF Profile G, S, T conformity guarantees utmost interoperability
FEATURE
Flexible. Modular. Unique.
Weatherproof and robust, the latest generation of our successful M camera models features increased modularity as well as the latest MOBOTIX 7 system platform with intelligent Plug-In App concept. The result is a system completely unrivaled in terms of performance, functionality and design.
DOWNLOADS
TECHNICAL SPECIFICATION
↓ MOBOTIX M73 Technical Specifications
↓ MOBOTIX M73 EN54 - Technical Specifications
DECLARATIONS OF PERFORMANCE
↓ M73/S74/M16 - Declarations of
Performance
↓ MOBOTIX M73B - Declaration of Conformity
TECHNICAL DRAWING
↓ M73 Audiomodul - Technical Drawing (PDF)
↓ M73 Pole Mount - Technical Drawing (PDF)
↓ P7 ECO Thermal Module - Technical Drawing (PDF)
↓ M73 On-Wall Mount with Camera - Technical Drawing (PDF)
↓ M73 Ceiling Mount w/o Camera - Technical Drawing (PDF)
↓ M73 On-Wall Mount w/o Camera - Technical Drawing (PDF)
CERTIFICATES
↓ Syss Penetration Certificate M73 - 2021
↓ Syss Penetration Certificates - M73, M ONE, c71 NurseAssist – 2025
3D CAD FILES
↓ MOBOTIX M73 - 3D Data (PDF)
↓ MOBOTIX M73 (with dimensions) - 3D Data (PDF)
↓ M73 Pole Mount - 3D Data - CAD Export file (parasolid)
↓ M73 Audiomodul - 3D Data - CAD Export file (Parasolid)
↓ MOBOTIX M73 - 3D Data - CAD Export file (Parasolid)
↓ M73 Ceiling Mount w/o Camera - 3D Data - CAD Export file (parasolid)
↓ M73 On-Wall Mount w/o Camera - 3D Data - CAD Export file (parasolid)
↓ M73 On-Wall Mount with camera - 3D Data - CAD Export file (parasolid)
THERMAL TECHNOLOGY
↓ Thermal Technology – Security Flyer
↓ Thermal Technology – Early Fire Detection Flyer
↓ Thermal Technology – Quality Assurance Flyer
THERMAL SYSTEM & THERMAL SOLUTIONS
↓ MOBOTIX M73 Drilling Template
↓ MOBOTIX Thermal Systems - Johnson Criteria
↓ MOBOTIX Thermal Calculator Interactive File
↓ End User Statement - Thermografic Cameras 9hz
↓ End User Statement - Thermografic Cameras >9hz
↓ M73 Navigator - Summary of important web links
↓ MOBOTIX Features Comparison - MOBOTIX M ONE, M73, M16, M26
↓ Thermal Solutions – Flyer Compact Information on our Thermal Solution
DETAIL

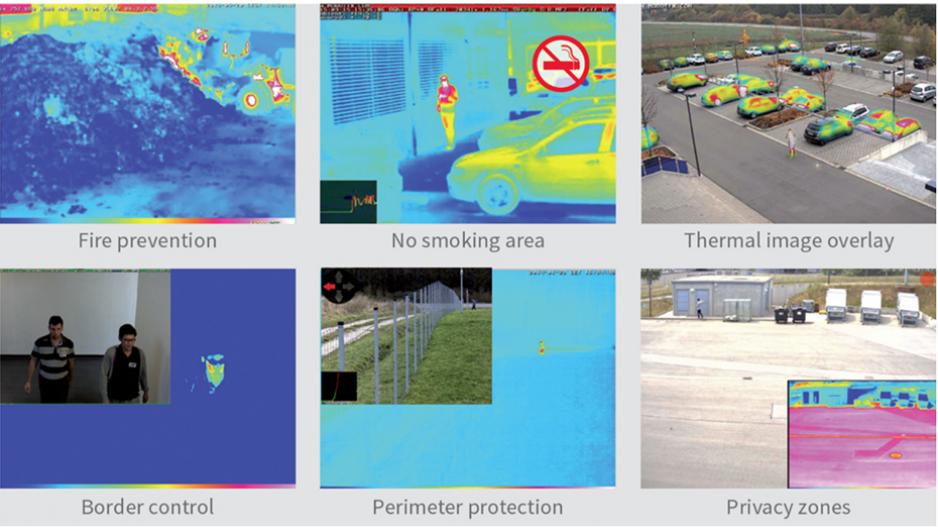

THERMAL RADIOMETRY (TR) TECHNOLOGY
Analyzing critical situations in advance and initiate next steps
- Automatic alarm when the temperature exceeds or falls below defined limits
- Up to 20 different temperature events can be configured simultaneously over a temperature range of -40 to 550 °C

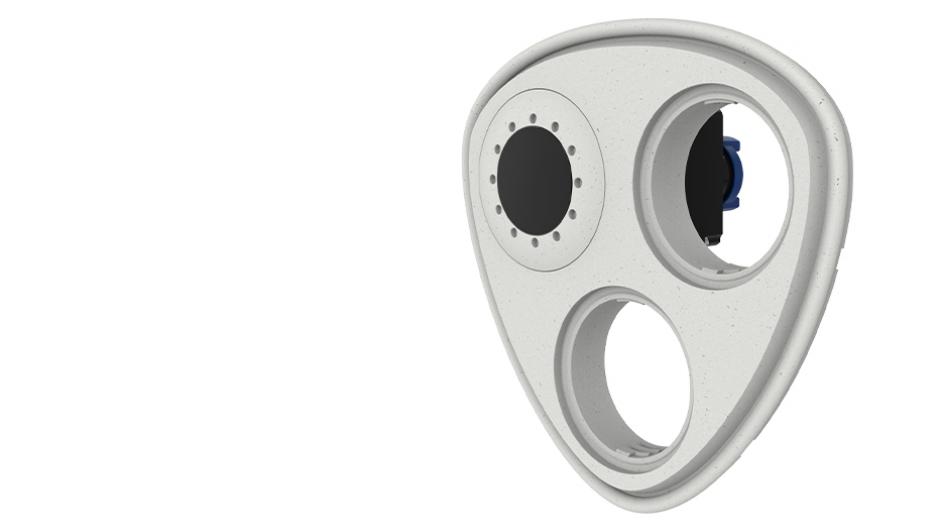

EXCHANGEABLE THERMAL SENSOR MODULES FOR THE M73
Thanks to the modular design of the M73, thermal sensor modules for the M73 that can be ordered separately and are already permanently connected to an M73 camera front panel.

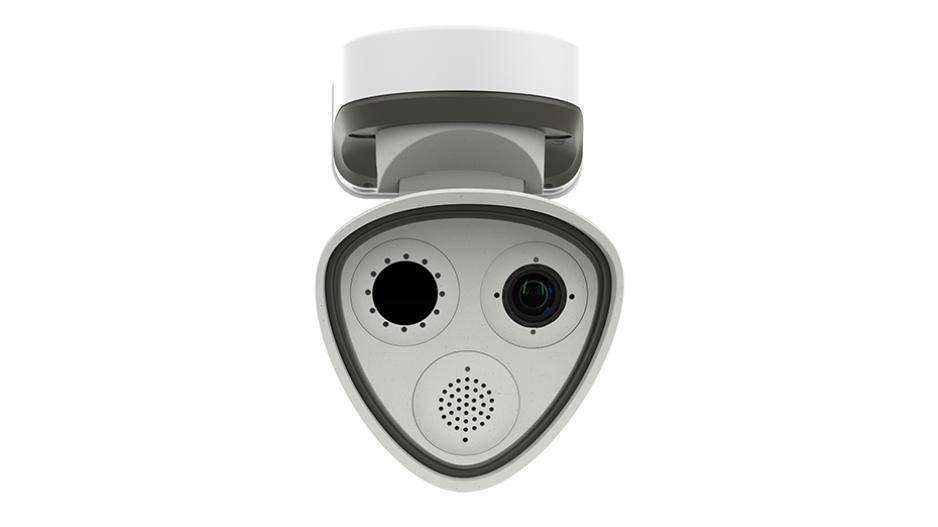

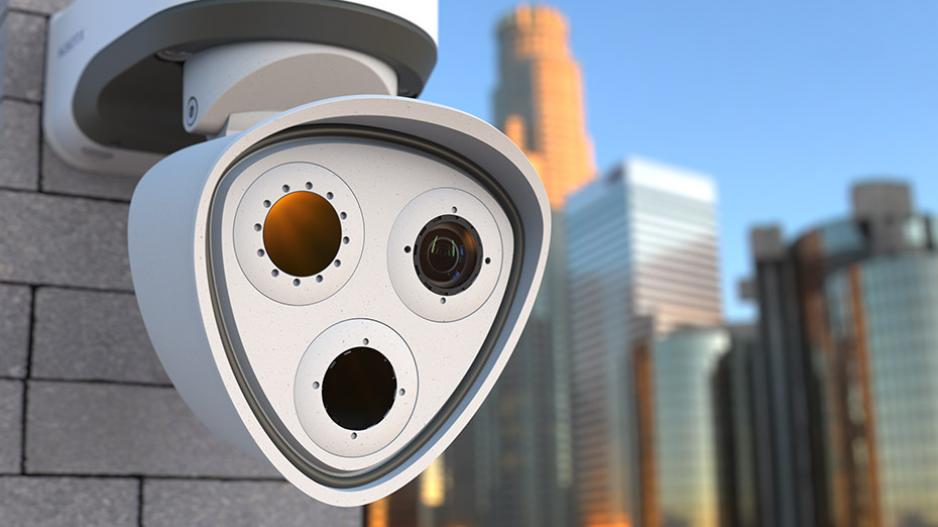

M73 - THE HIGH-END THERMAL IMAGING CAMERA
With professional analysis and thermal imaging technology, with individually activatable apps and specially developed on-top solutions from the worldwide MOBOTIX partner community, the M73 cameras of the innovative MOBOTIX 7 generation are the beginning of a completely new performance and product class. And that's not all: this MOBOTIX camera will retain its added value for years to come.
The hardware and software of the MOBOTIX video systems can be adapted and upgraded at any time for numerous other industry-specific tasks. Always combined with maximum cyber security. Made in Germany.

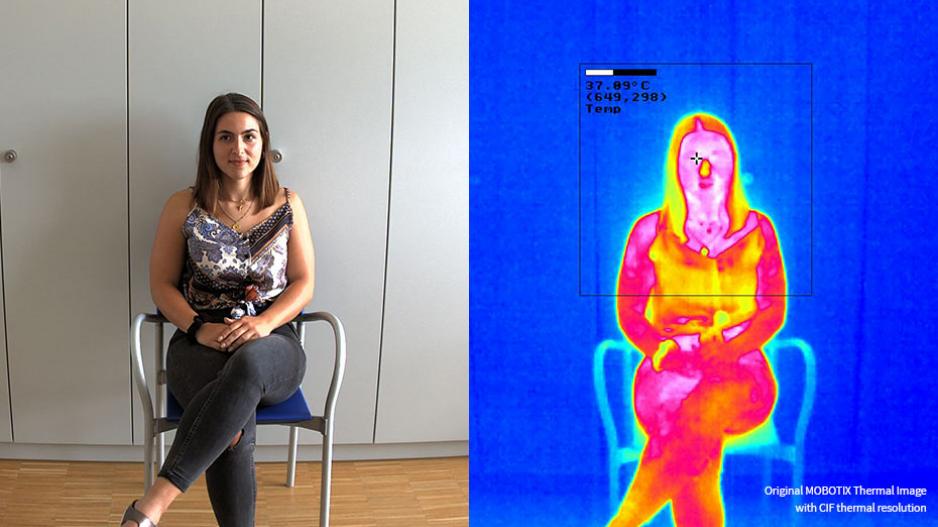

HEALTHCARE: DETECTING TEMPERATURE ABNORMALITIES
Mobotix thermal technology makes it possible to measure heat radiation - even of people. The mobotix solution does not replace medical devices, but can help analyze critical situations to decide on further action.
Taking into account the ambient conditions and using a black body radiator, anomalies can be detected very reliably.Identified persons can then be referred for further examination. A possible risk of infection is reduced.

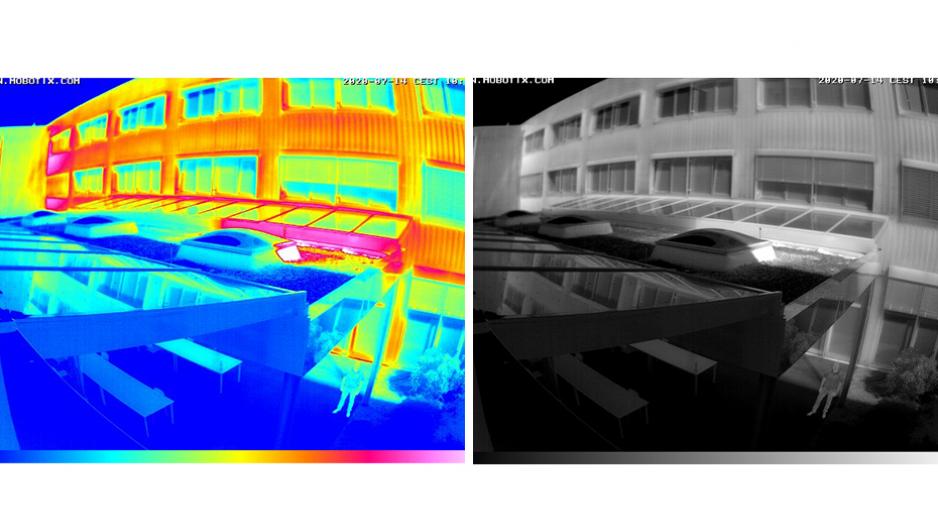

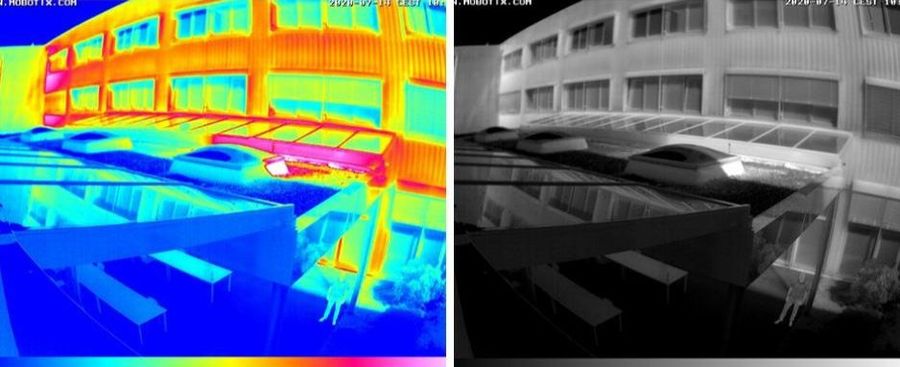

THERMAL SENSOR MODULES WITH VGA RESOLUTION
Thanks to the increased number of pixels and the extended image angles of up to 90° x 69° with the VGA thermal modules, more scene details can be seen, larger areas can be covered (perimeter protection) and temperature differences can be detected from greater distances than with the CIF variants.
