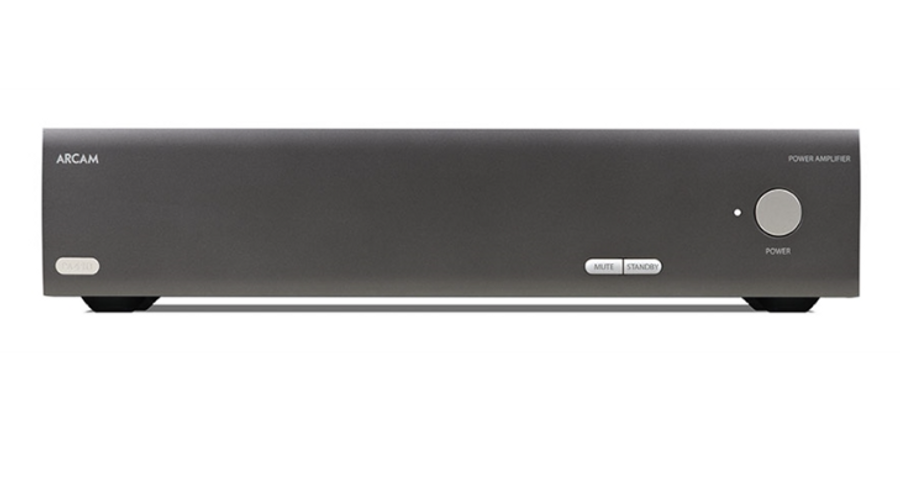

Arcam PA410 Class AB Power Amplifier
PA410 CLASS AB POWER AMPLIFIER
PA410 CLASS AB POWER AMPLIFIER
Exceptional Power, Immersive Sound
The PA410 is a high-performance power amplifier that delivers 4 channels of efficient Class AB amplification.
With an impressive 70W per channel, the PA410 is designed to offer the greatest flexibility and power without compromising on control.
INFORMATION
BRAND
Arcam
PRODUCT TYPE
Amplifier
PRODUCTION
Made in UK
COLLECTION
Pa410
POWER CONSUMPTION (MAXIMUM)
700W
INPUT SENSITIVITY
50W / 8Ω - 600mV RMS
SIGNAL/NOISE RATIO
(A-wtd) 50W / 8Ω - 105dB
DETAIL
Featuring the best-in-class components including a toroidal based power supply, acoustically damped chassis, paralleled transistor output stages and exceptionally low levels of distortion, the PA410 masters the reproduction of music with all its originality and detail for an unmatched level of sound quality and clarity.
INPUT IMPEDANCE
10kΩ
FREQUENCY RESPONSE
20 - 20kHz +/-0.05dB
WEIGHT (NET)
10kg
WEIGHT (PACKED)
11.5kg
MAINS VOLTAGE
- 50–60Hz
- 110–120V or 220–240V
POWER CONSUMPTION (STANDBY)
<0.5W
CHANNEL
4
ENVIRONMENT
Indoor
DIMENSIONS
- Width : 433 mm
- Depth : 105 mm
- Height : 325 mm
CONTINUOUS POWER OUTPUT AT 0.2% THD PER CHANNEL
- Four channels driven, 4Ω / 8Ω, 20Hz – 20kHz - 70W / 50W
- Two channels driven, 4Ω / 8Ω, 20Hz – 20kHz - 90W / 60W
- Harmonic distortion, 80% power, 8Ω at 1kHz - 0.003%
USE
Entertainment
EAN
6925281969195
FEATURES
- RS232 control
- Toroidal transformer
- 4 Channel Power Amplifier
- 4 x 50W Class AB amplification (8ohm, 20Hz-20kHz, 0.2% THD)
