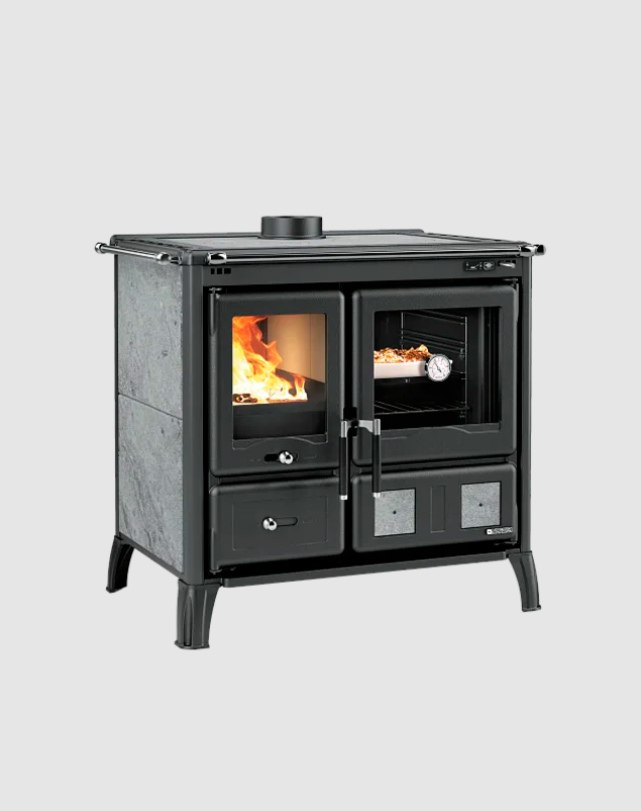

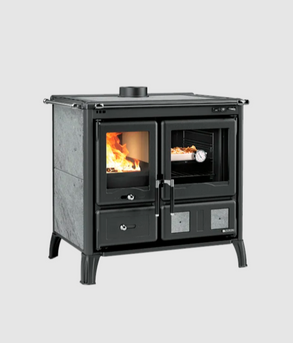

Nordica Extraflame Gardenia.16 Petra Stove
GARDENIA.16 PETRA STOVE
GARDENIA.16 PETRA STOVE
New chrome-plated handrail
INFORMATION
BRAND
Nordica Extraflame
PRODUCT TYPE
Stove
VENTILATED
Ventilated sides in enamelled steel or natural stone
FEET
Ash-collection tank and enamelled cast-iron feet
HEARTH
Hearth with refractory sides and cast iron bottom
FUMES OUTLET DIAMETER (Ø)
150 mm
NET WEIGHT
212 kg
NOMINAL THERMAL POWER
9.5 kW
HEATABLE M³
272 m³ (*)
MATERIAL
Top cooking plate and rings in polished cast-iron
OUTLET
Upper, side or rear rh side smoke discharge outlet
ENERGY CLASS
A+
HOURLY CONSUMPTION
2.5 kg/h
EFFICIENCY
86 %
DOOR
Double glass fire door
ENAMELLED
Enamelled cast iron front, frame and doors
DESIGN
Handles with new design
OVEN
55 l porcelain enamelled steel oven

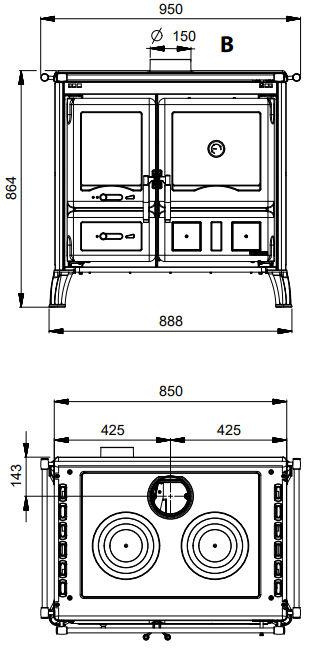

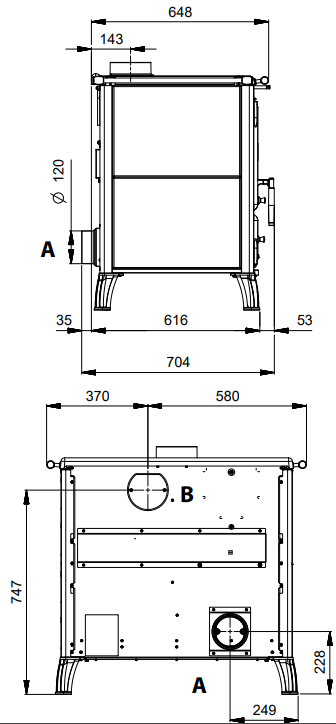

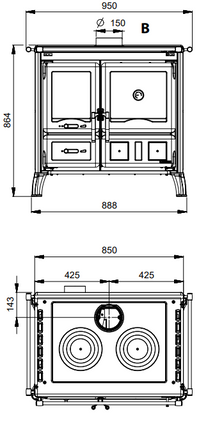

DIMENSIONS
- Appliance size : 950 x 864 x 704 mm
- Hearth opening size : 225 x 210 mm
- Hearth size : 296 x 306 x 460 mm
- Oven size : 307 x 418 x 430 mm
CERTIFICATIONS
CE
The CE marking indicates conformity with EU standards, enabling the free marketing of marked products within the European market.
FLAMME VERTE
French trademark of the ADEME agency for the environmement and the energy. The products “Flamme Verte” approved guarantee the best high energy performances and respect for the environment.
BLMSCHV
German regulations on controlling emissions.
ECODESIGN
European certification defining the ecodesign guidelines for biomass products.
MFB
Only for Germany: The products is ready to be connected to a multiply chimney connection , just when the installation is made in accordance with requirements of the regional and national standards, and when observed the norms DIN EN 13384-2, DIN V 1816-1, DIN 18896 and MFeuV-2007 (Muster- Feuerungsverordnung), and that the district chimney sweeper has checked and approved the correct installation.
TECHNOLOGY
GLASS CLEANING SYSTEM
A system of pre-heated air which removes any deposit from the fire-door glass.
DOORS IN CAST IRON
The high-quality cast-iron doors are made to last and ensure perfect sealing at all times.
OUTDOOR AIR INTAKE (ASC)
A particular connection system which allows to introduce air from the outside into the pre-heated environment around the fire-box.
POST COMBUSTION
The combustion system developed by La Nordica-Extraflame allows, due to a secondary/tertiary air system, a post combustion which significantly reduces emissions.
