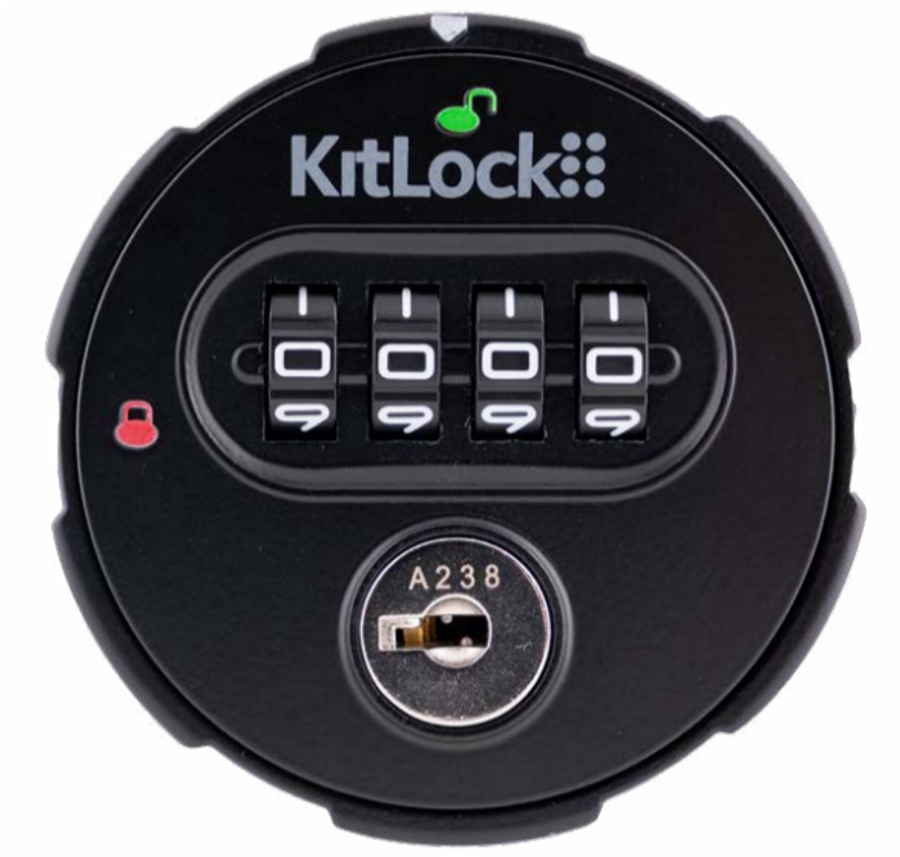

Codelocks KL10 KitLock Mechanical Combination Door Lock
KL10 KITLOCK MECHANICAL COMBINATION DOOR LOCK
KL10 KITLOCK MECHANICAL COMBINATION DOOR LOCK

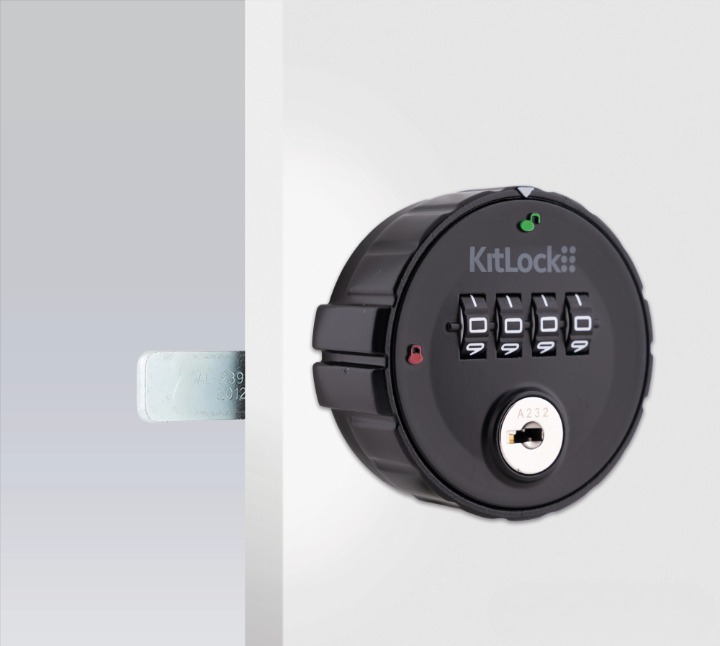

Designed with simplicity in mind, the KL10 offers mechanical keyless access suitable for a variety of lockers, cabinets and cupboards.
A durable, compact, easy to use mechanical lock. Designed to be both retrofitted or installed on new cabinets.
Changing or resetting the code can be completed easily whilst the lock is still on the door, or if the code has been forgotten it can be retrieved using the Code Finding Key (sold separately).
INFORMATION
BRAND
Codelocks
PRODUCT TYPE
Door Lock
CODES
Single code storage - up to 10,000 code combinations
SPINDLE
Fixed spindle suitable up to 11⁄16" (18mm) thick
SCREWS
Suitable for internal use only. The KL10 is provided with a straight cam, hex nut, cranked cam, metal clip, washer and three screws as standard.
SUITABLE FOR
Internal
PRODUCTION
Made in USA

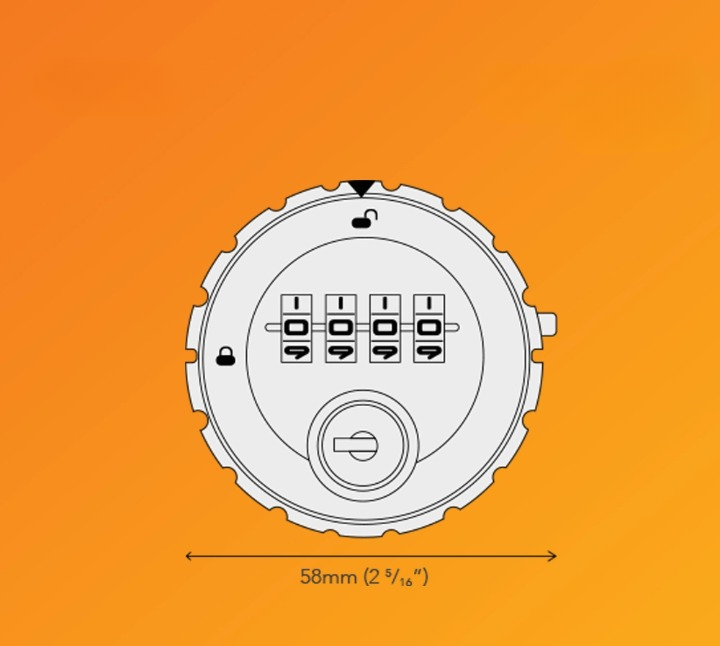

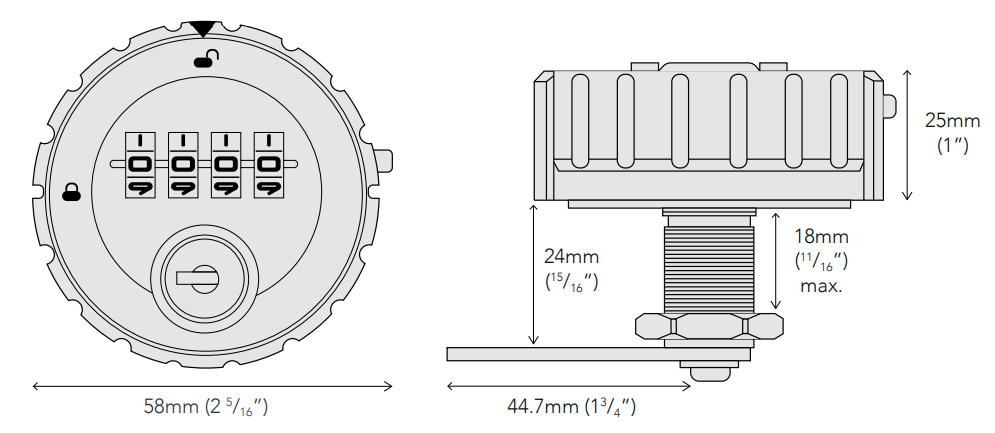

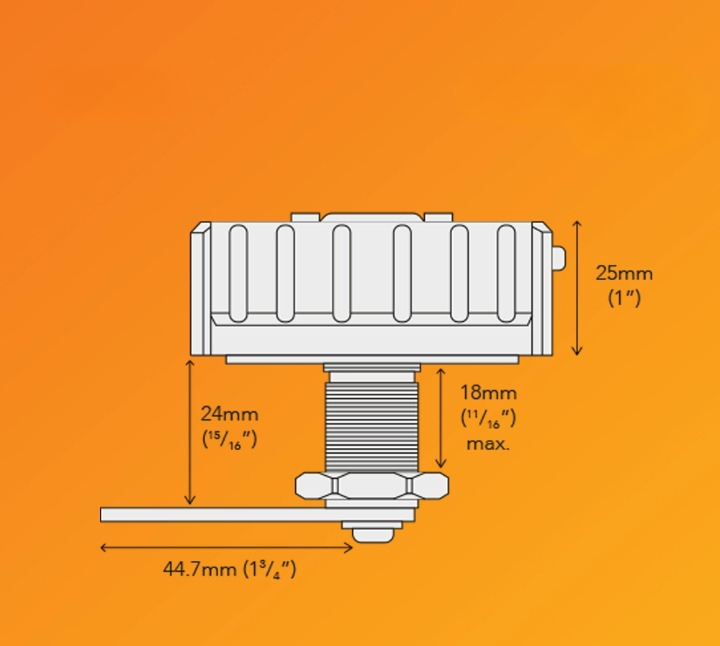

TECHNICAL DRAWING
HANDED
Non Handed
FIT DOORS UP TO
11⁄16" (18mm) thick
ACCESS METHODS
- Via Code
- NetCode®
- Override Key
USER TYPES
Codes
APPLICATION LEAD TIME
3 to 5 working days
FUNCTION
- Public Function : The KL10 Public Function is ideal for short term, multiple occupancy applications. The user enters a personal four digit code, this locks the lock. The same code is entered once only to open the lock, the lock remains open ready for the next user.
- Private Function : The KL10 Private Function is ideal for use where the same, personal four digit code will be repeatedly used, e.g. an employee with the same locker/drawer in the workplace.
OPERATION
Vertical
LATCH TYPE
Cam
INSTALLATION PACK

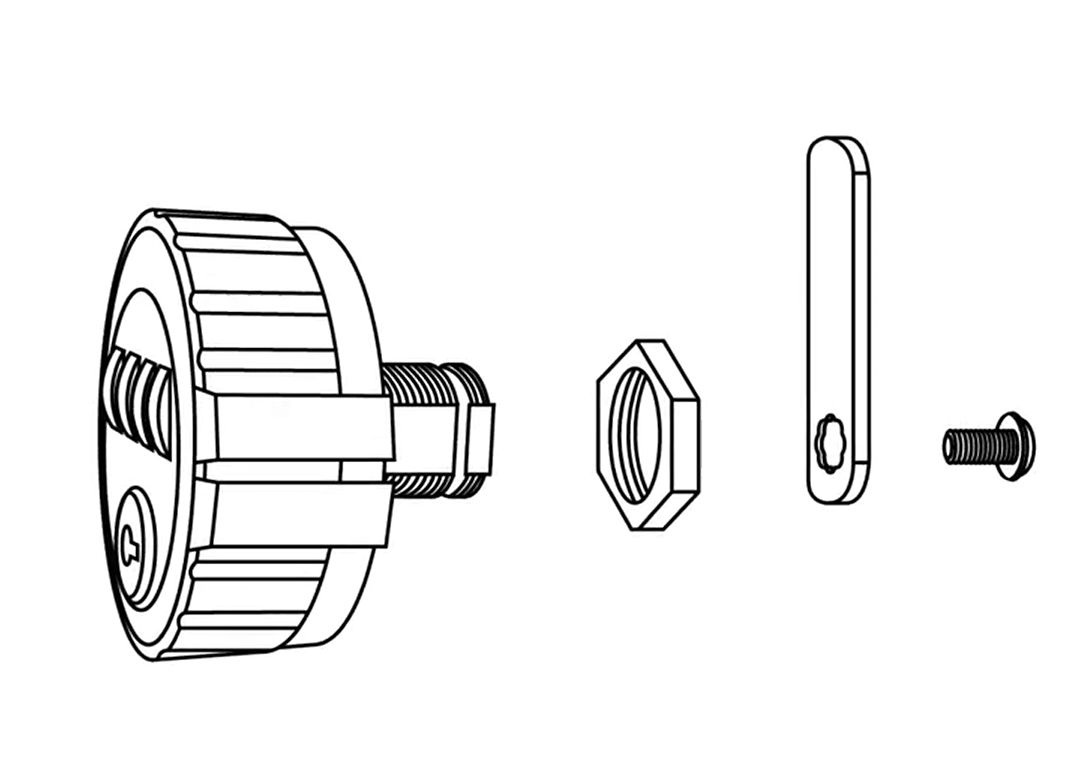

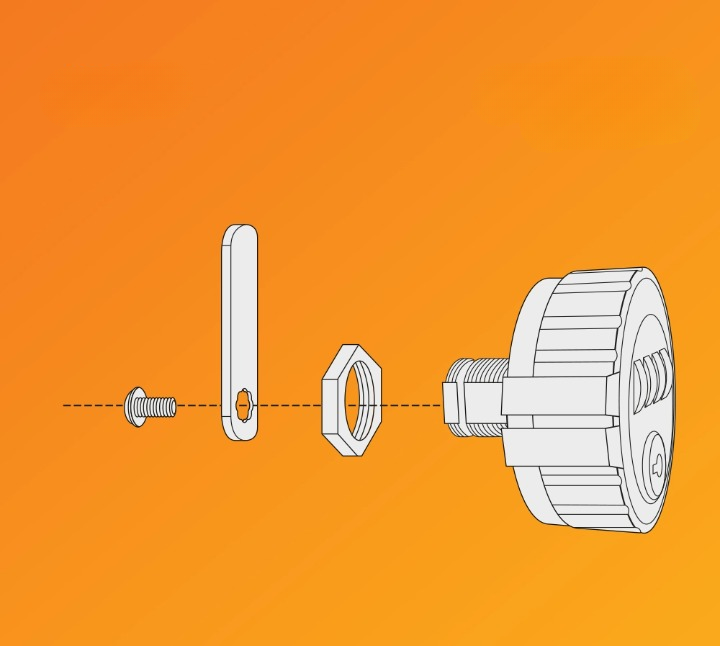

The KL10 is provided with a straight cam, hex nut, cranked cam, metal clip, washer and three screws as standard.
FUNCTION
- Private
- Public
FINISH
Black
LOCK MATERIAL
Zinc Alloy
KEY FEATURES

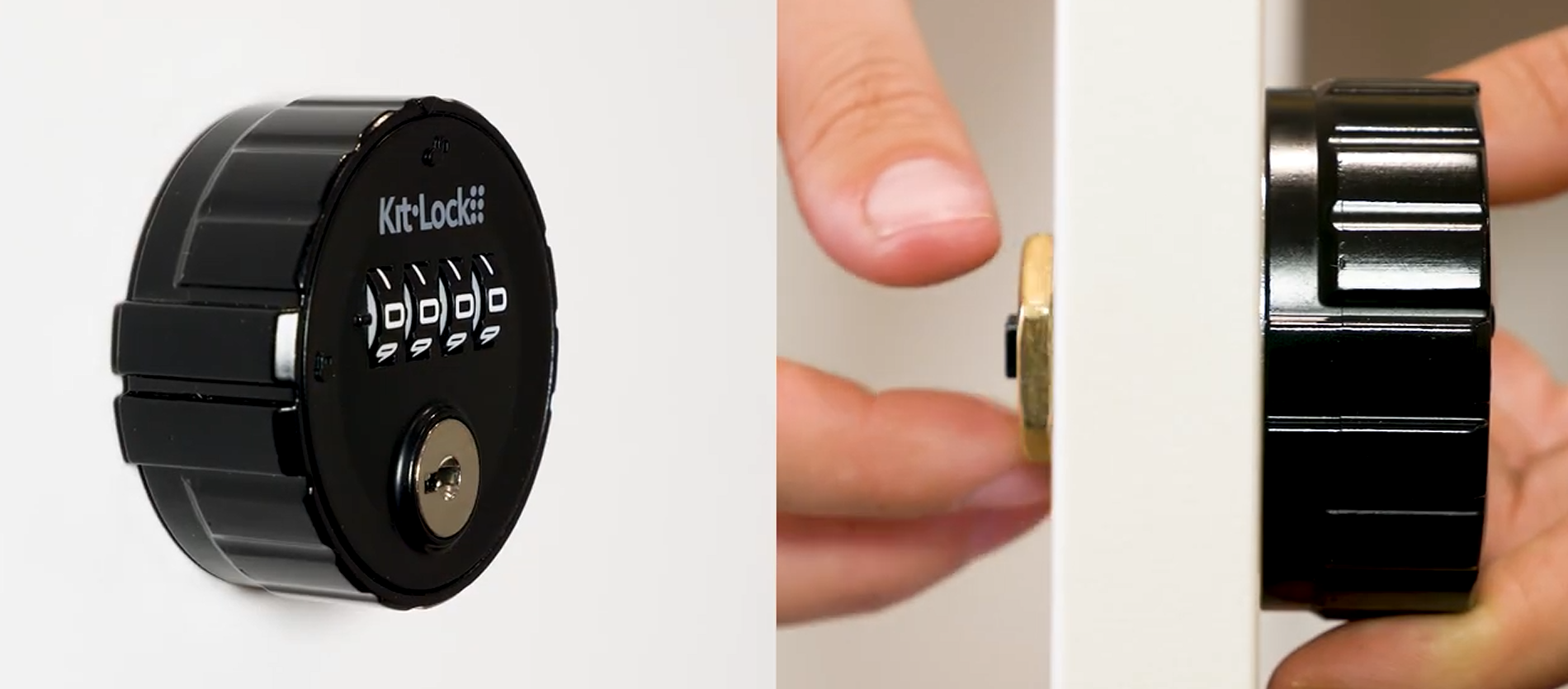

- Easy to install and retrofit
- Easy grip outer casing
- Code retrieval function
- Code Finding Key available

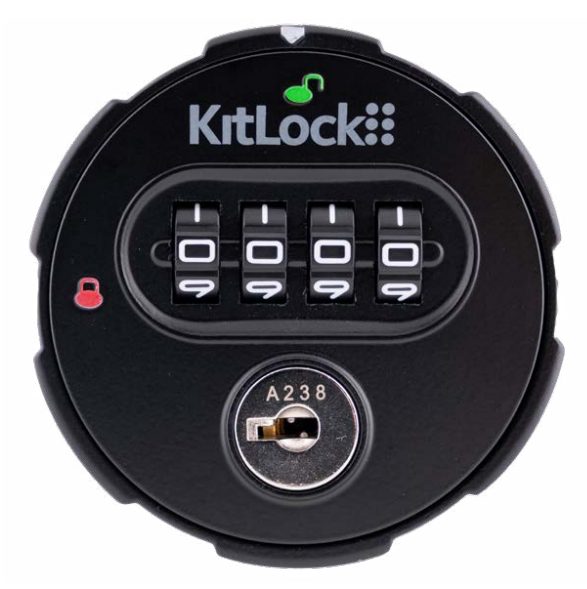

- 4 wheel code combination
- Black powder coated finish
- Locked and unlocked indicators
- Up to 10,000 unique combinations
- Public or Private Function models available
INDICATORS
- Locked
- Unlocked
CODE LENGTH
4 digit
CODE STORAGE
Single Code
FASTENERS
Nut supplied - additional washer / clip available separately
DOWNLOADS
↓ KL10 Brochure
↓ KL10 Data Sheet
↓ KL10 Private Installation and Operating Instructions
↓ KL10 Public Installation and Operation Instructions
CLEAN
-Clean by Codelocks is an optional finish which can be applied to any of our Codelocks products. Clean by Codelocks features an ISO certified* photocatalytic coating which, when applied to our locks, offers enhanced protection against viruses, bacteria, germs and other environmental toxins.
-The coating utilises a process called photocatalytic oxidation, which means that the coating converts harmful bacteria and germs into a non-toxic compound, resulting in a clean and hygienic surface. The clear coating combats SARS-CoV-2 coronavirus (COVID-19) and can reduce bacterial growth by 99.96%*, providing an additional measure of protection over sanitisation.
