La Boite Concept PR Alta Vinyl Player
PR ALTA VINYL PLAYER
PR ALTA VINYL PLAYER
Designed by Jean Louis Iratzoki
A compact, powerful and elegant audio package.
Following the international success of the LX Turntable, La Boite concept continues to develop its range of all-in-one audio furniture with the PR Alta.
Designed as a compact piece of furniture, the PR Alta integrates a connected hifi loudspeaker equipped with its patented APR technology - Active Pressure Reflex 2.0 - and a turntable in a complete audio package in vertical format, for deep bass in a compact volume.
INFORMATION
BRAND
La Boite Concept
PRODUCT TYPE
Vinyl Player
COLLECTION
PR Alta
SUB-PLATTER MOUNTED
0.001 mm
ARM

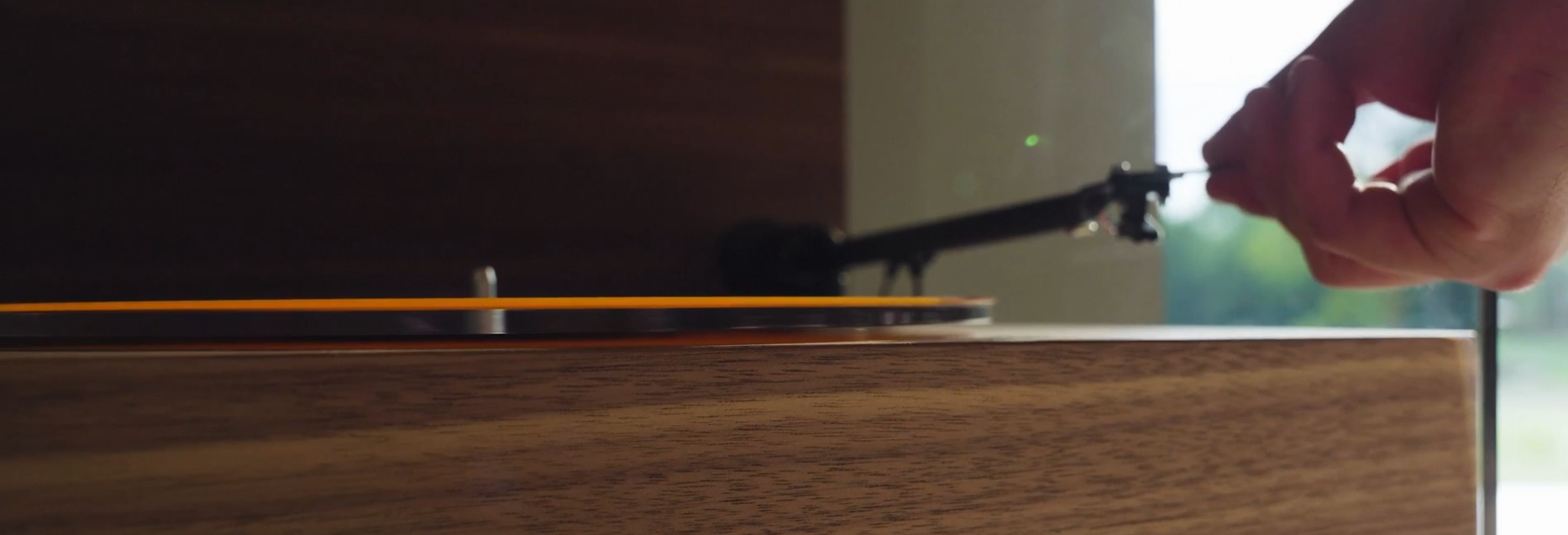

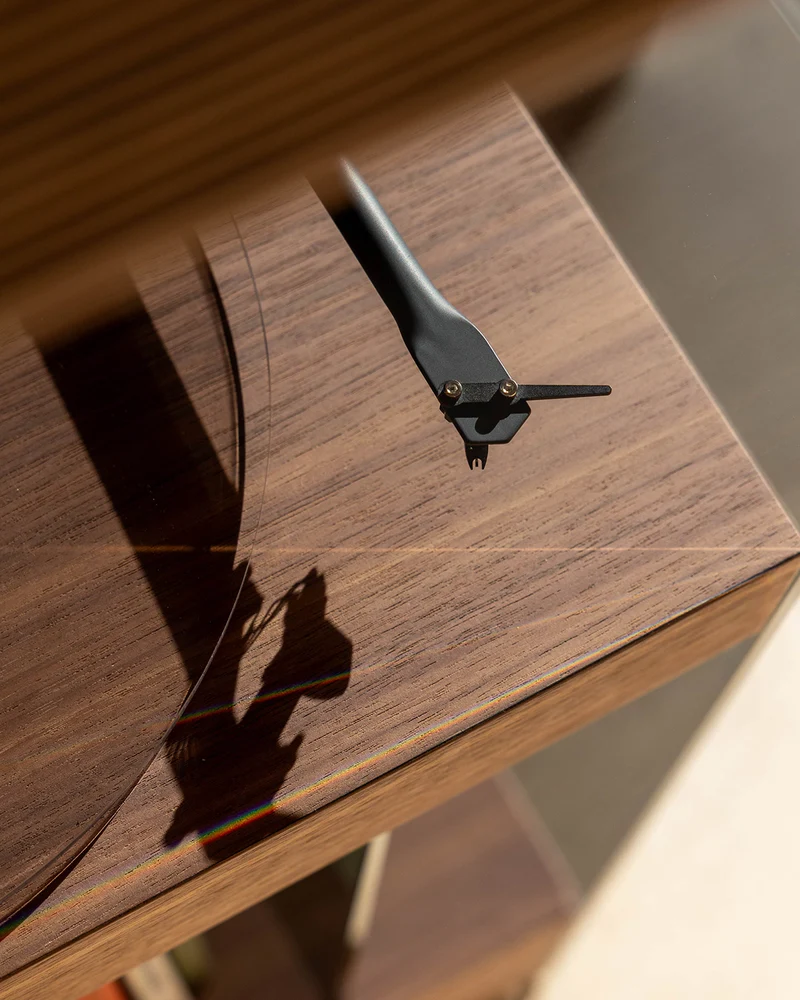

The 20 cm-long aluminum arm (light and rigid) incorporates a cell holder. Its one-piece, conical design eliminates reflections and standing waves. The arm is fitted with low-friction bearings to guarantee high reading accuracy.
The arm's counterweight is specifically pre-set for the turntable's top-of-the-range Ortofon OM10 cartridge, eliminating the need for further configuration or adjustment. This top-of-the-range cell features an elliptical diamond profile to ensure perfect tracking of the grooves on vinyl records. It offers a frequency response between 20 Hz and 25 kHz.

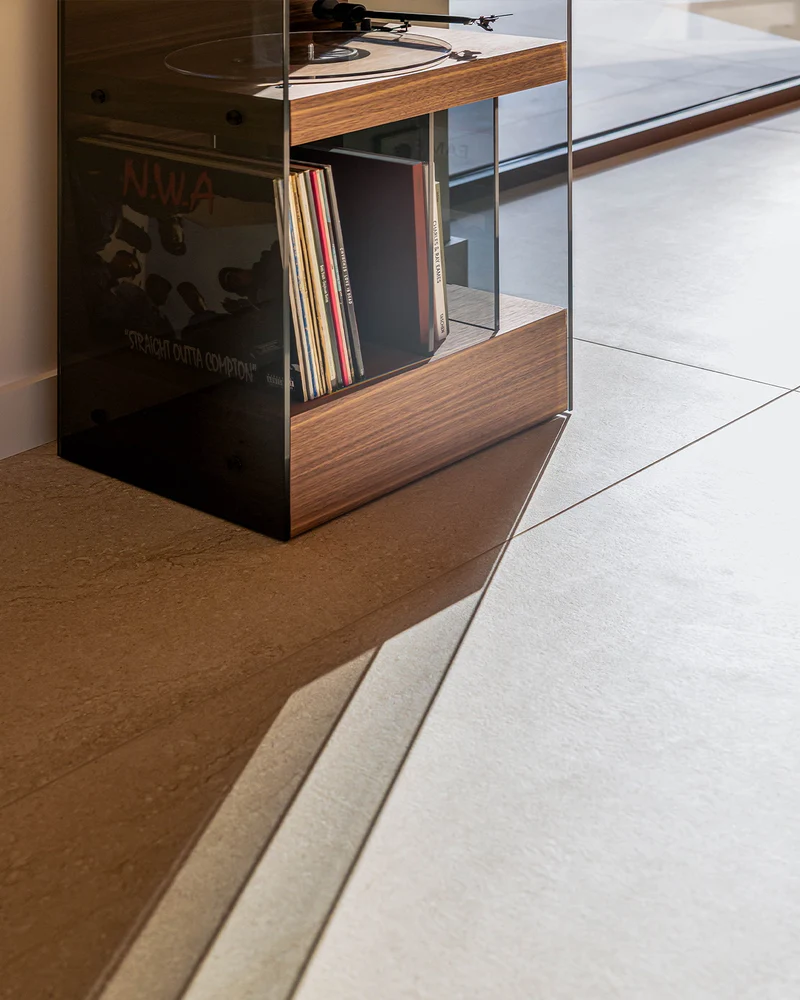

STORAGE UNIT
Up to 90 vinyl records
DESIGN
Elegant
QUALITY
High
PADS
Foam-absorbing Pads
LISTENING RECORDS
33 and 45 rpm
ANTI-VIBRATION SYSTEM
-The turntable incorporates a tripod anti-vibration system developed by La Boite concept, to avoid parasitic vibrations that could interfere with vinyl playback. -Thanks to these foam-absorbing pads, the turntable rests on 3 points directing vibration to the rear. This solution absorbs vibrations, translating only those of the vinyl groove. This technology neutralizes parasitic bass vibrations from the built-in speaker.
MATERIAL

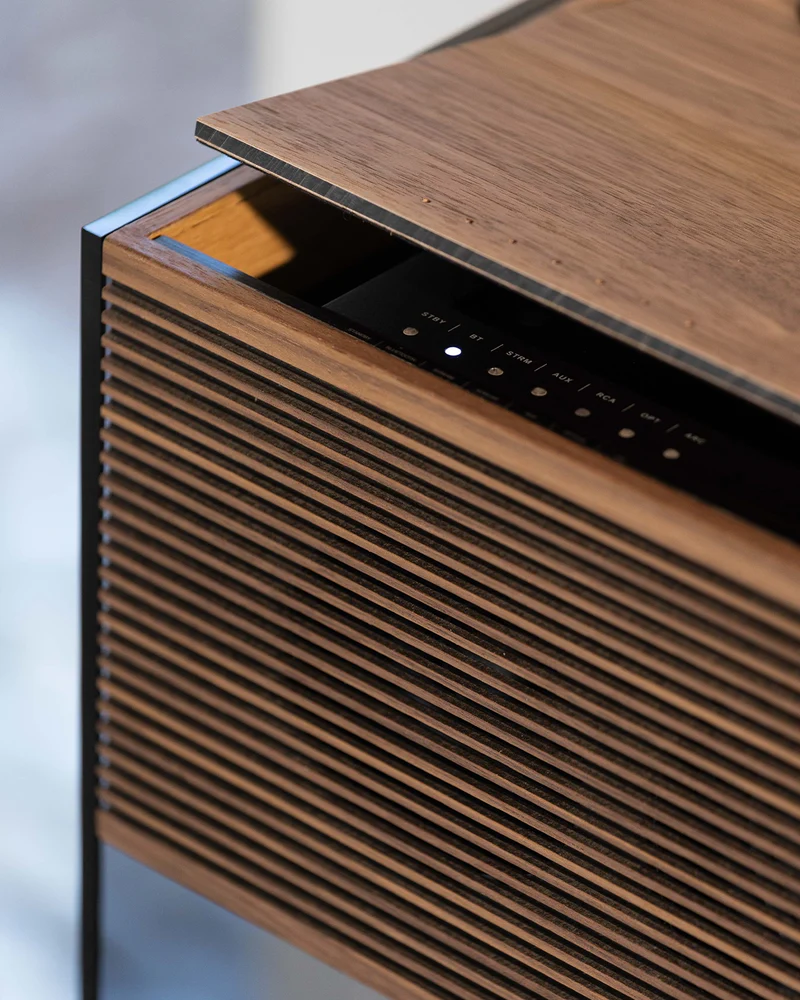

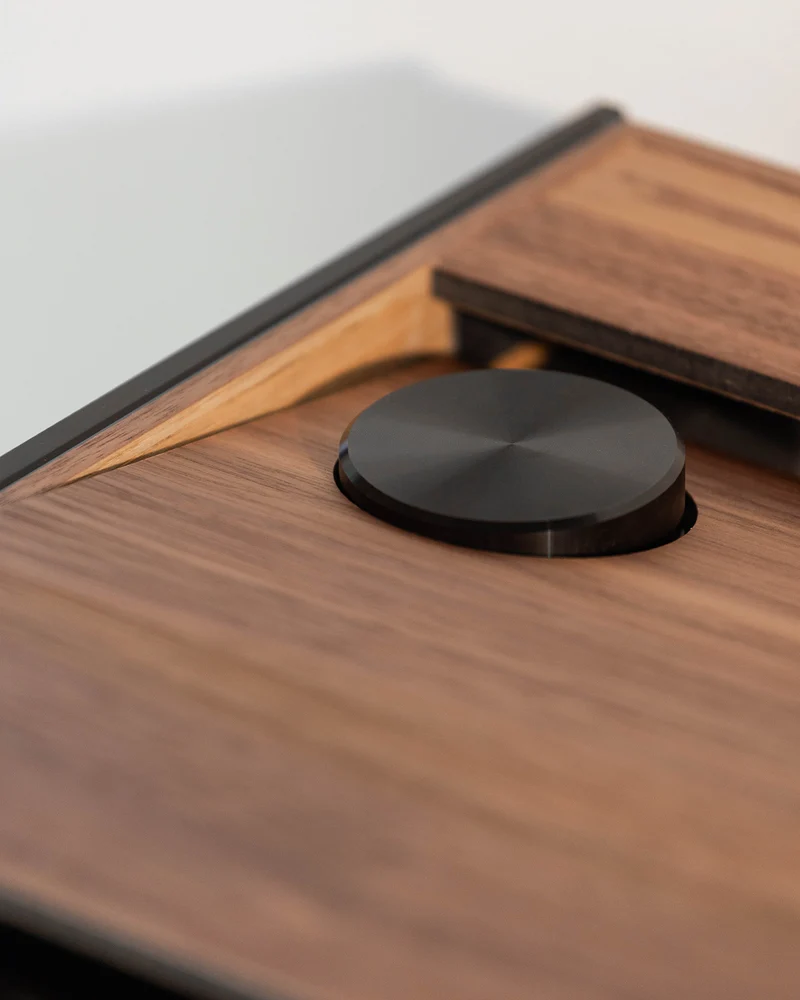

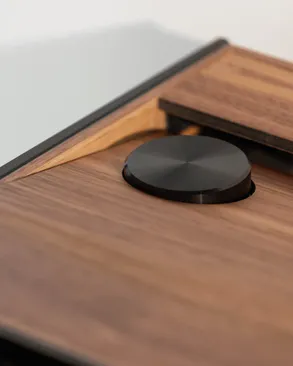

Made in Europe PR Alta is made from noble materials such as smoked glass, Walnut and aluminum for timeless elegance. Visit PR Alta has been designed for simple, intuitive operation. The controls are discreetly integrated into the overall design. The single knob, in solid aluminum, forms a seamless part of the object, allowing volume adjustment or source change with a simple gesture.
DIMENSIONS
- Length : 44 cm
- Depth : 34 cm
- Height : 105 cm
WEIGHT
40kg
ARM TONE
Aluminium
PRODUCTION
Made in France
FREQUENCY
20 Hz and 25 kHz
ACTIVE PRESSURE REFLEX
2.0
SPEED

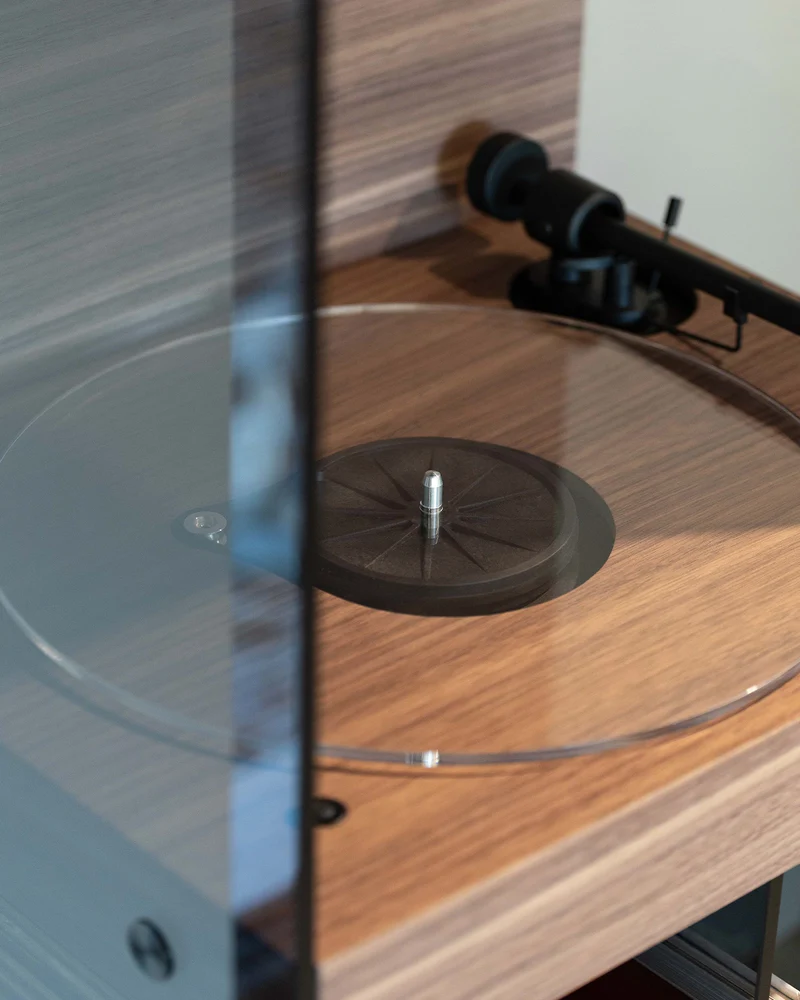

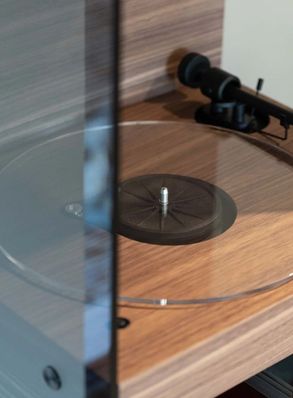

-Two speeds are available: 33 and 45 rpm. Thanks to a simple button on the turntable, you can switch between these two speeds with ease. -The transparent acrylic vinyl support reveals the rotation mechanism: a sub-platter mounted in a 0.001 mm main bearing, benefiting from a hardened steel axle and a brass ring to avoid any vibration or play in the bearings. The sub-platter is rotated by a low-vibration belt system. The turntable is driven by a mains-powered synchronous motor for maximum stability and silence.
SPEAKERS
4 exclusive CCLAB speakers La Boite concept in its Active Pressure Reflex® technology with dissipating aluminum ring :
- 2 x 1.9'' Dome Tweeter
- Custom-made laminar bass reflex.
- 1 x 4.5'' Woofer paper cone with very long excursion - neodymium magnetic load
- 1 x 4.5'' Medium paper membrane with very long excursion - neodymium magnetic charge
BELT-DRIVEN MODEL
A belt-driven model equipped with an aluminum tone arm, on which an Ortofon OM10 cartridge is mounted. High-quality components make this turntable an aesthetically pleasing, high-fidelity solution for discovering or rediscovering the world of vinyl and listening to 33 and 45 rpm records.
USE
Entertainment
SHIPPING
Two to three working days
POWER
- Total power : 240 W
- RMS amplifier power : 140W
- RMS amplification power at 8 Omhs : 110 W
- Perceived sound level in dB at 1M : 96 dB
- Maximum recommended sound area : 180 m2
- All four channels total 140W: - 2 Class D amplification stages for midrange and woofer, with 110 watts of real hifi power at - 1% THD: 2 x 55W - 2 Class AB stereo amplifier stages for tweeter, with - 1% THD hifi power of 30 watts real: 2 x 15W.
CONNECTORS
- RCA
- USB charging port
- Bluetooth® Apt-X
- Mini-jack 3.5mm
- Optical toslink (24bits)
- Chromecast Audio®
- USB-C charging port
- ARC input for box or TV
- Voice control systems compatible
- Multi-room systems compatible
- Induction charger compatible
- Roon Ready® and Spotify Connect®
- Wireless Wi-Fi multi-room streamer compatible with Airplay 2®

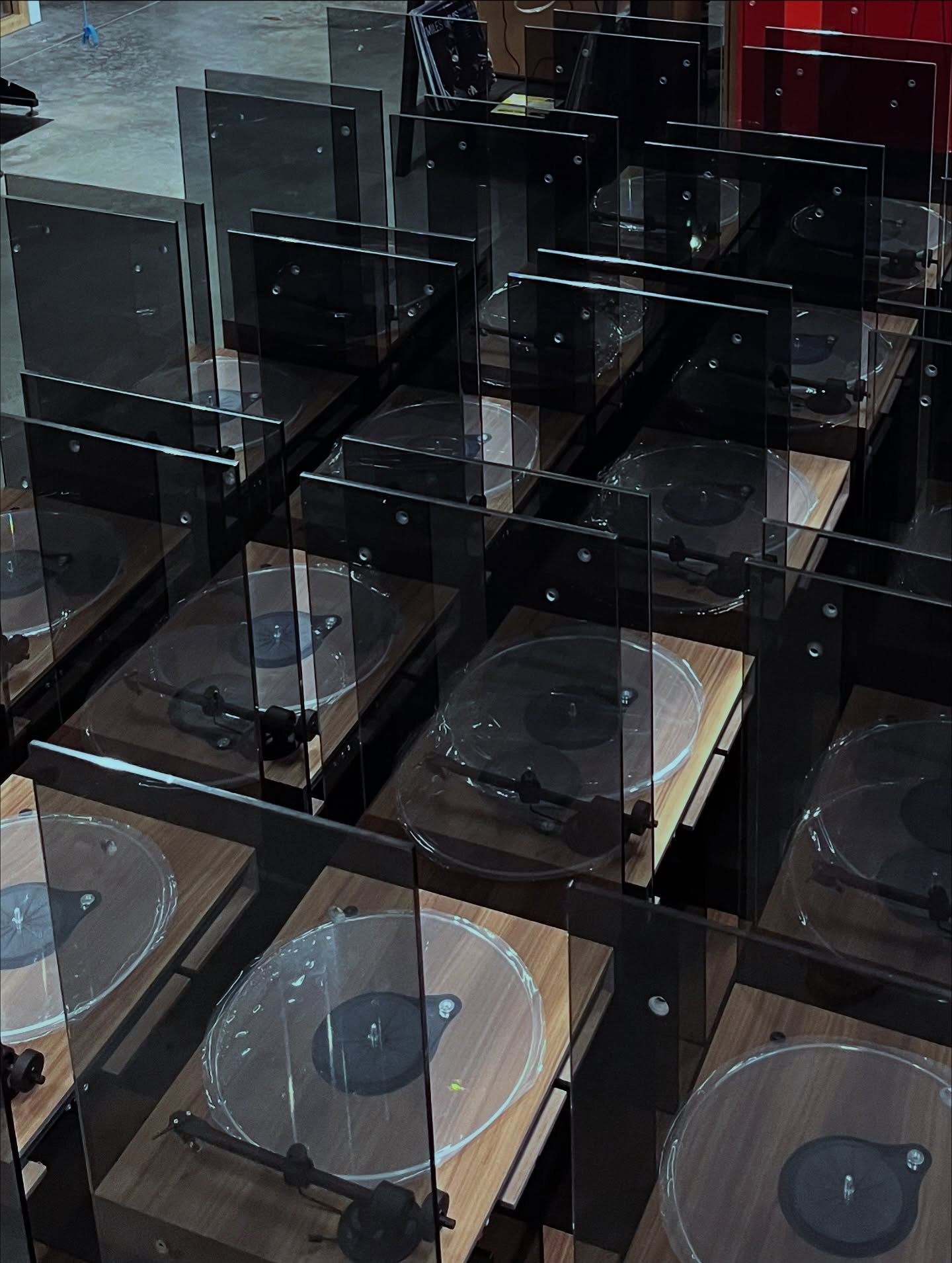

BEHIND THE SCENE

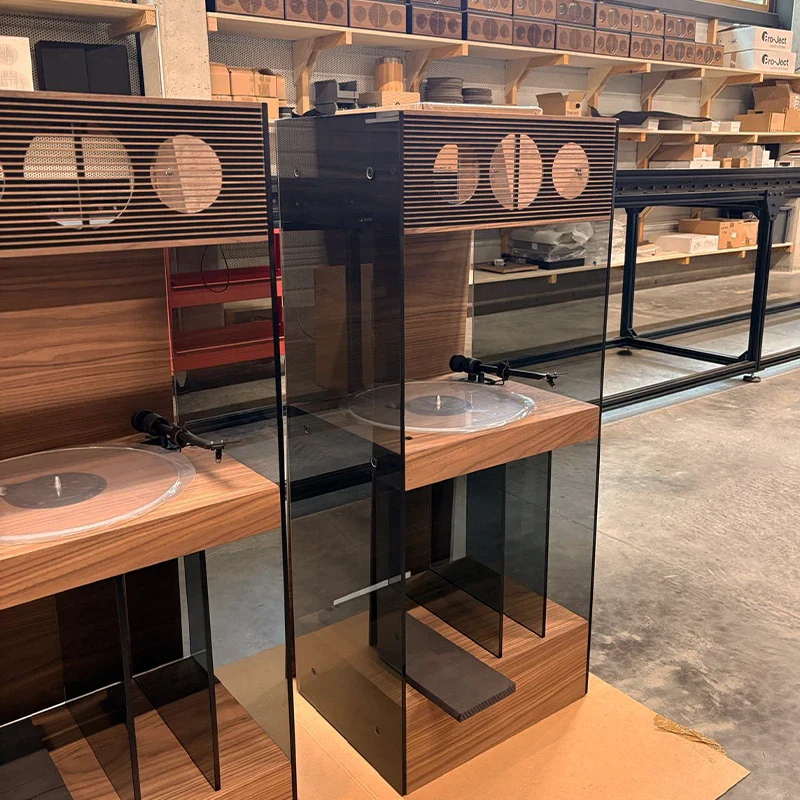

La Boite concept is a certified"Made in Europe" exporter. We draw on the know-how of our local partners, experts in wood, crafts and industry, based in the French and Spanish Landes and Basque regions. In addition to these valuable collaborations, we have an in-house workshop enabling us to guarantee a high level of quality and attention to detail at several stages of production.
We have a dual geographical presence :
-In Soorts-Hossegor (Landes), our sales and technical teams are in direct contact with our local partners, promoting local production and innovation in our integrated laboratory: Custom Creation Lab (CC LAB). -In Paris, our dedicated marketing, communications and events team works to strengthen our presence and influence, while remaining true to our values and heritage. -All our products are designed and manufactured with passion by our team.
DESIGNER - JEAN LOUIS IRATZOKI
Founded in 1998 by Basque Jean-Louis Iratzoki, a graduate of the École Boulle and the École Expérimentale in Madrid, the Basque Country is the setting for a multi-disciplinary team that designs sustainable objects, combining high aesthetic standards with social responsibility. Working alongside a select group of companies, the studio is involved in furniture, lighting, textiles and ephemeral architecture, in collaboration with brands rooted in the Basque Country and now with La Boite concept.
DETAIL
SPACE

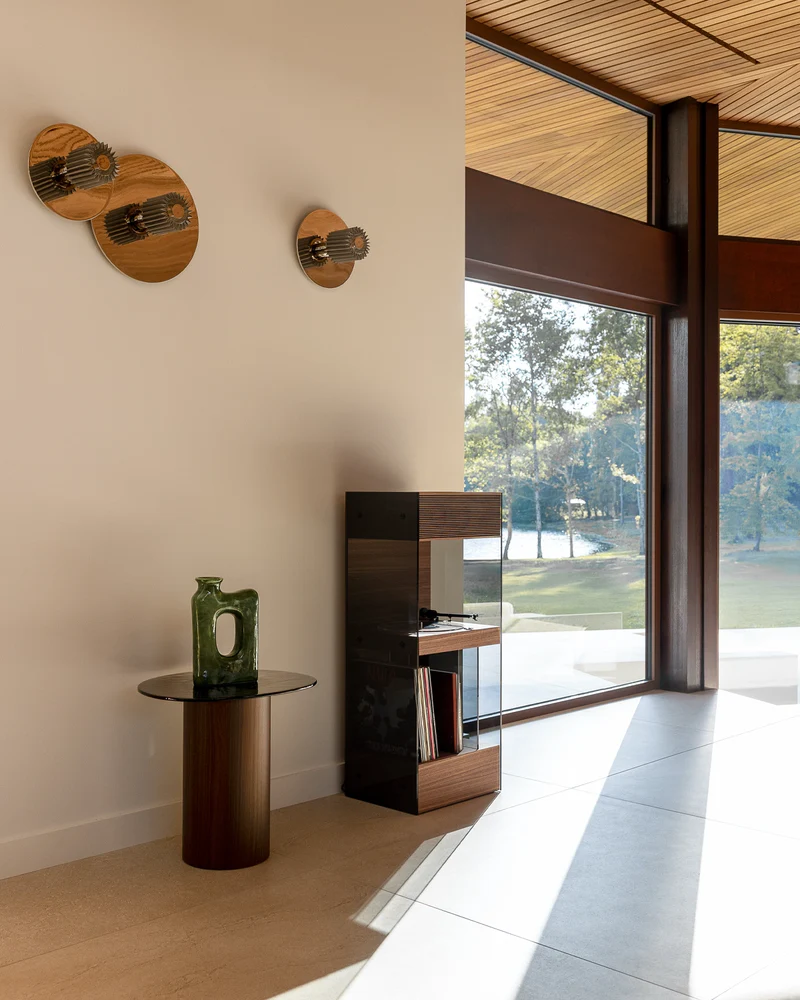

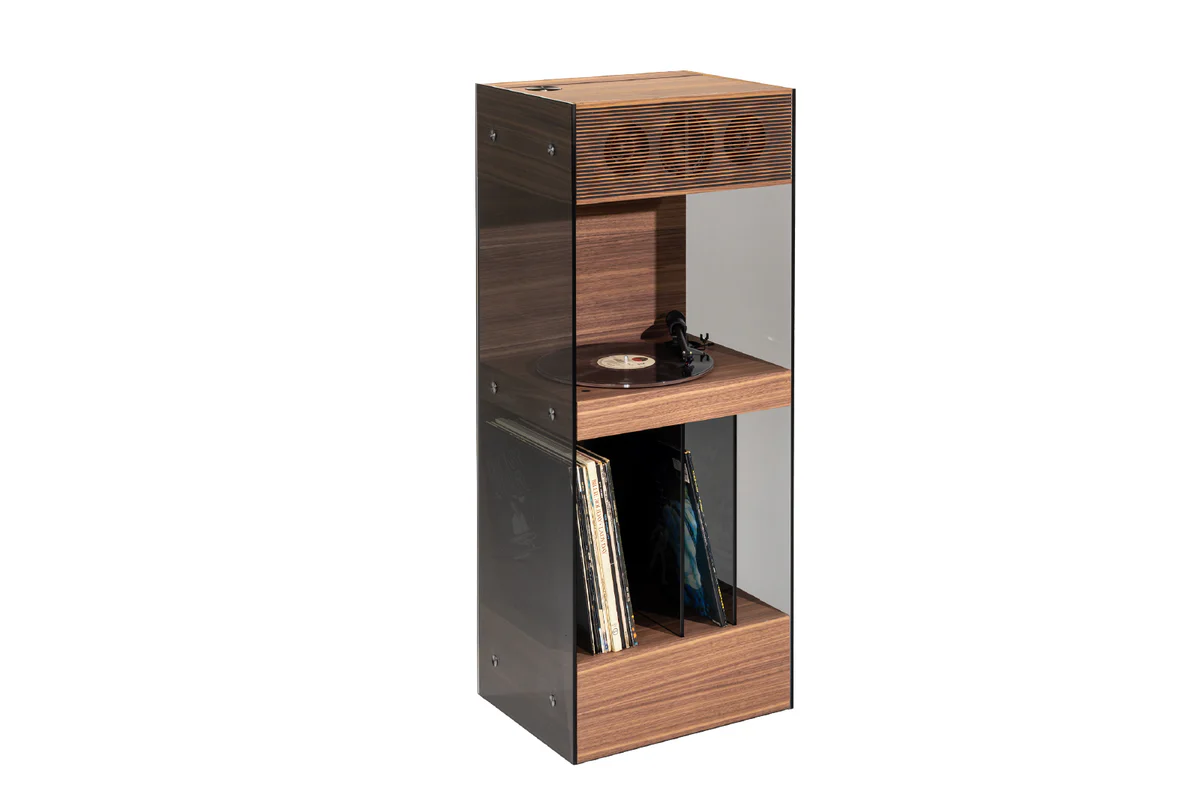

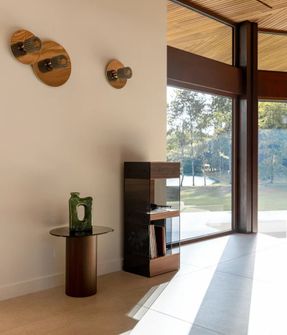

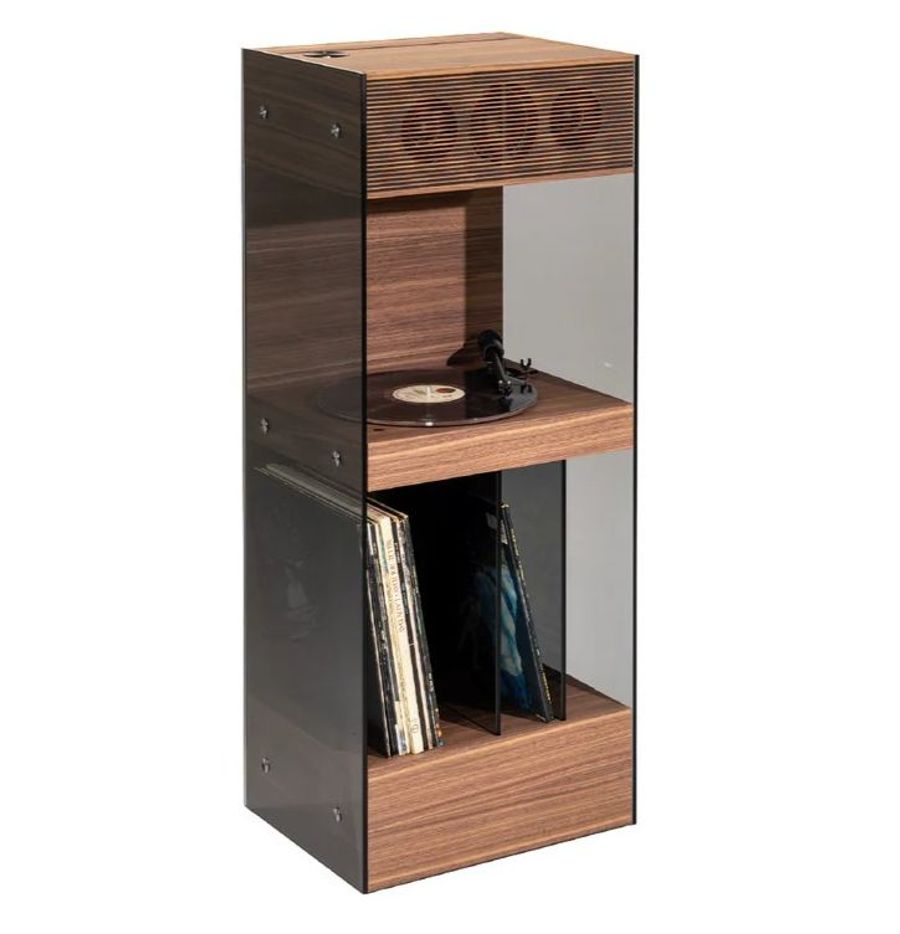

The PR Alta is an all-in-one audio cabinet combining high-fidelity loudspeaker, integrated turntable and storage unit for up to 90 vinyl records. Its compact column format combines aesthetics, performance and practicality. An elegant, complete solution designed to blend harmoniously into any interior, while offering a powerful HiFi listening experience.
TOP-OF-THE-RANGE AMPLIFICATION
Combined AB-D amplification, combining Class D technology for low frequencies with Class AB technology for high frequencies. Designed and developed by Micromega®, this innovative approach ensures high definition and deep bass.
LA BOITE CONCEPT X IRATZOKI STUDIO®

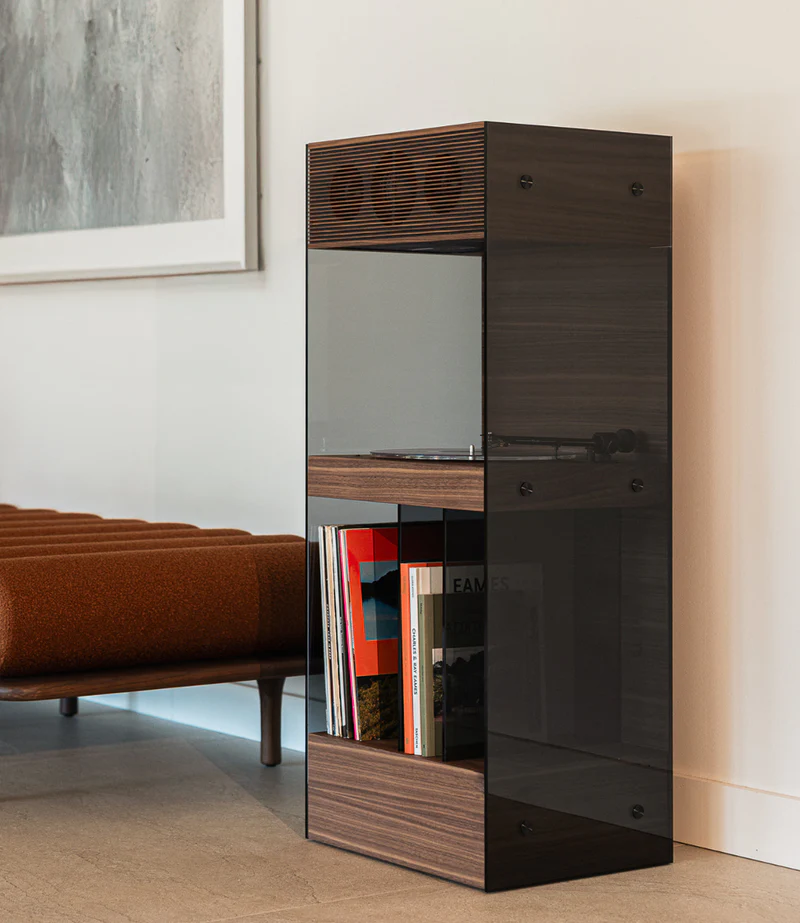

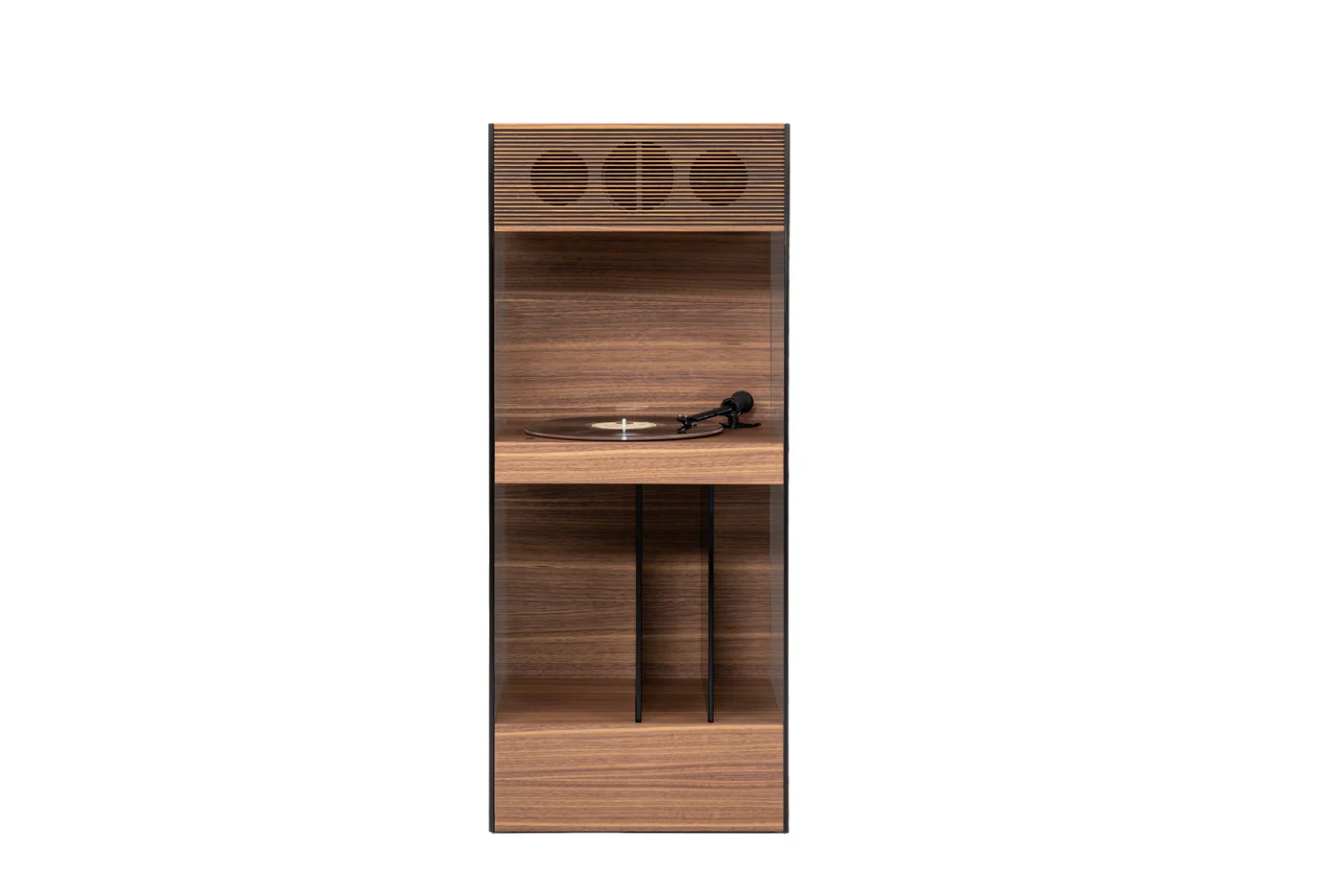

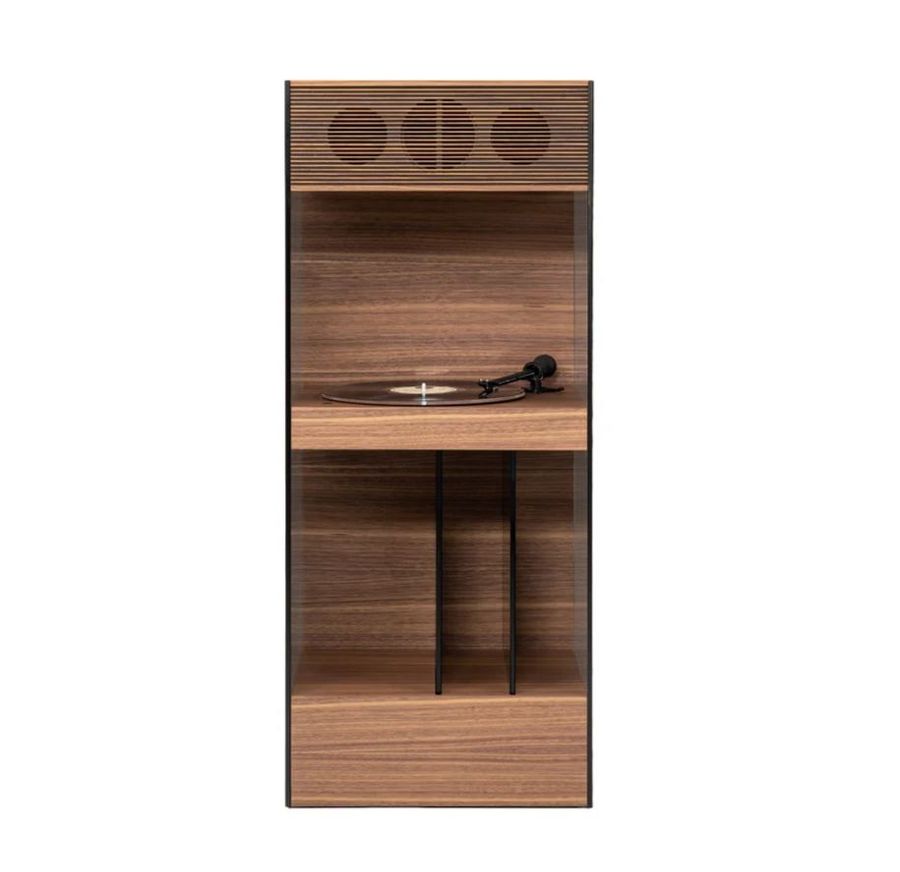

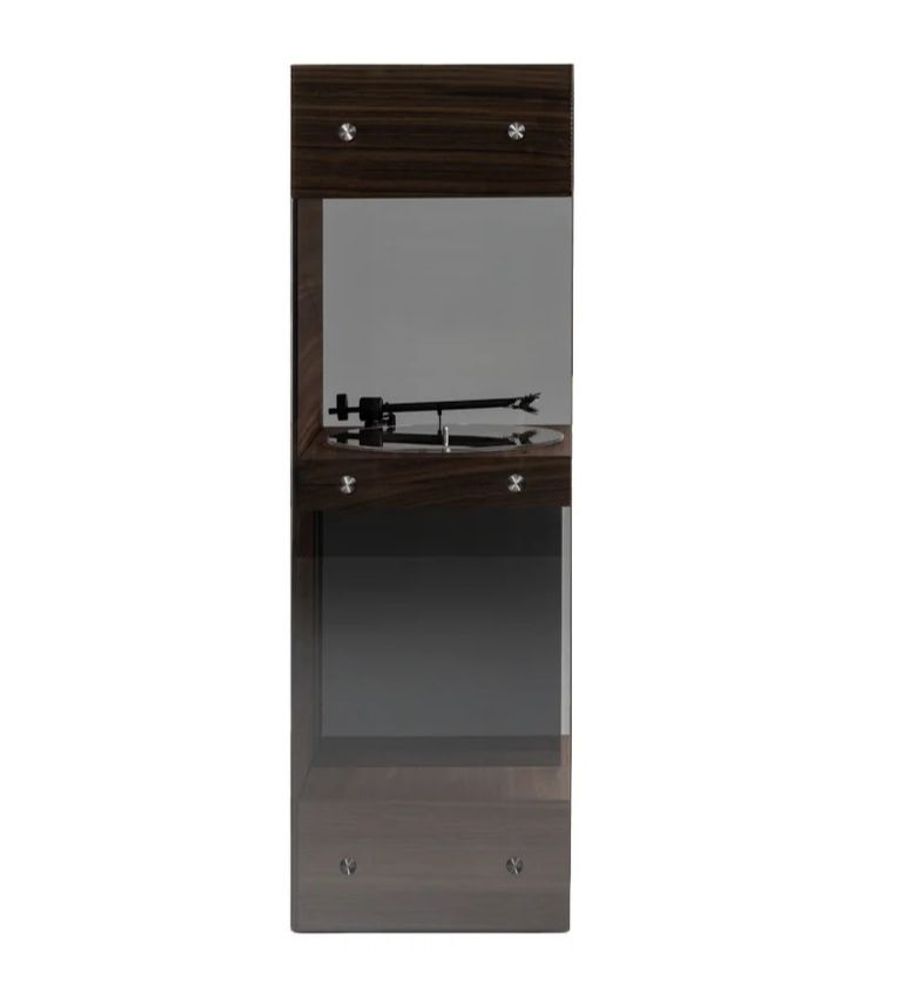

The brainchild of La Boite concept and Iratzoki Studio, this set combines speaker, turntable and vinyl storage on three levels, linked by two tempered glass panels. The result is a transparent three-tiered monolith that is both sober and functional. Its transparency and simple lines give it a light, luminous and elegant presence in any room.
SOURCES
-Whether you want to create a multiroom system with AirPlay 2® or Google Cast® thanks to the integrated M1 Air Escape module, connect a smartphone via Bluetooth®, enjoy TV sound via ARC-HDMI or simply listen to your favorite vinyl records, the PR Alta meets all everyday needs. -An ergonomic, discreet magnetic flap in natural Walnut wood veneer conceals cables and makes the product upgradeable.
