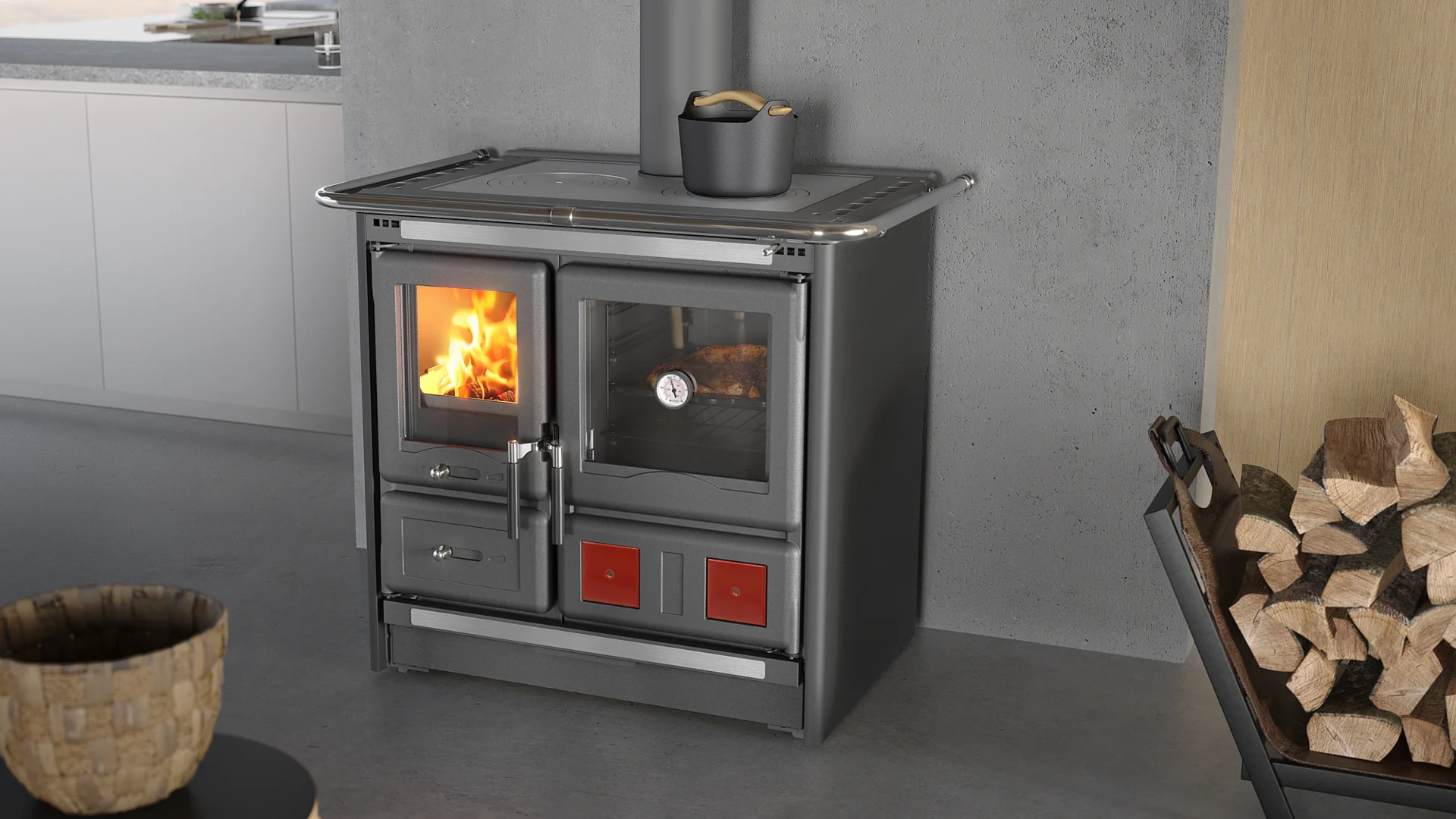

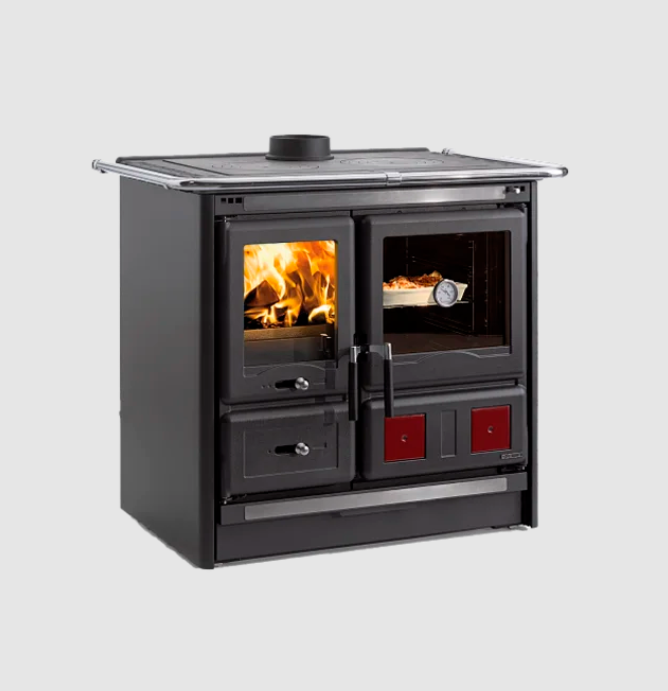

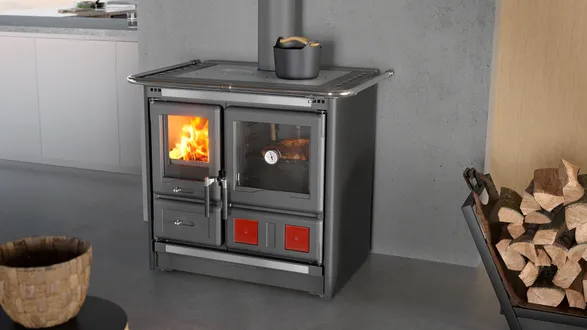

Nordica Extraflame Rosa L.16 Steel Stove
EXTRAFLAME ROSA L.16 STEEL STOVE
EXTRAFLAME ROSA L.16 STEEL STOVE
The timeless elegance that captures every gaze
INFORMATION
BRAND
Nordica Extraflame
PRODUCT TYPE
Stove
COOKING
Top cooking plate and rings in polished cast-iron
FRAME & DOOR
- Facade and frame
- Enamelled cast iron doors
ADJUSTABLE
Adjustable primary and secondary air for better combustion management
GLASS
Ceramic glass
DRAWER
Wood drawer
EMISSIONS
Post-combustion system for low emissions
OVEN
55 l porcelain enamelled steel oven
HEARTH
Cast iron refractory hearth
DRAWER
Extractable ash drawer
PLATE
Chrome plated oven grill
ADVANTAGES
Double glass fire door
OUTLET
Upper, side or rear rh side smoke discharge outlet
COLOR
Anthracite Black : Enamelled steel exterior cladding
ENERGY CLASS
A+
EFFICIENCY
86 %
NET WEIGHT
192 kg
OUTLET
Upper, side or rear rh side smoke discharge outlet
HOURLY CONSUMPTION
2.5 kg/h
FUMES OUTLET DIAMETER (Ø)
150 mm
DIMENSIONS
- Width : 975 mm
- Depth : 670 mm
- Height : 861 mm
PLATE
Chrome plated oven grill
ADVANTAGES
Double glass fire door
DOWNLOADS
↓ Ecodesign
↓ Data sheet
↓ User Manual
↓ Energy labelling - Labelling
↓ Declaration of conformity
↓ Declaration of Performance
↓ Energy labelling - product sheet
NOMINAL THERMAL POWER
9.5 kW
HEATABLE M³
272 m³ (*)
CERTIFICATIONS
CE
The CE marking indicates conformity with EU standards, enabling the free marketing of marked products within the European market.
FLAMME VERTE
French trademark of the ADEME agency for the environmement and the energy. The products “Flamme Verte” approved guarantee the best high energy performances and respect for the environment.
BLMSCHV
German regulations on controlling emissions.
ECODESIGN
European certification defining the ecodesign guidelines for biomass products.
MFB
Only for Germany: The products is ready to be connected to a multiply chimney connection , just when the installation is made in accordance with requirements of the regional and national standards, and when observed the norms DIN EN 13384-2, DIN V 1816-1, DIN 18896 and MFeuV-2007 (Muster- Feuerungsverordnung), and that the district chimney sweeper has checked and approved the correct installation.
TECHNOLOGY
GLASS CLEANING SYSTEM
A system of pre-heated air which removes any deposit from the fire-door glass.
DOORS IN CAST IRON
The high-quality cast-iron doors are made to last and ensure perfect sealing at all times.
OUTDOOR AIR INTAKE (ASC)
A particular connection system which allows to introduce air from the outside into the pre-heated environment around the fire-box.
POST COMBUSTION
The combustion system developed by La Nordica-Extraflame allows, due to a secondary/tertiary air system, a post combustion which significantly reduces emissions.

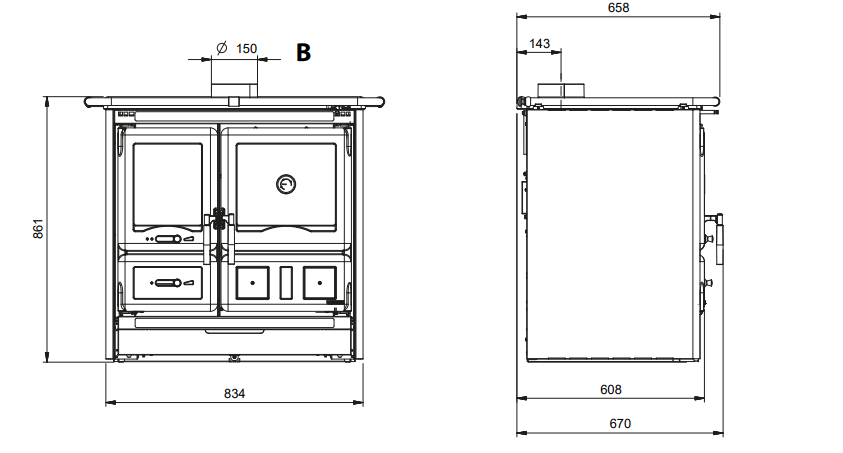

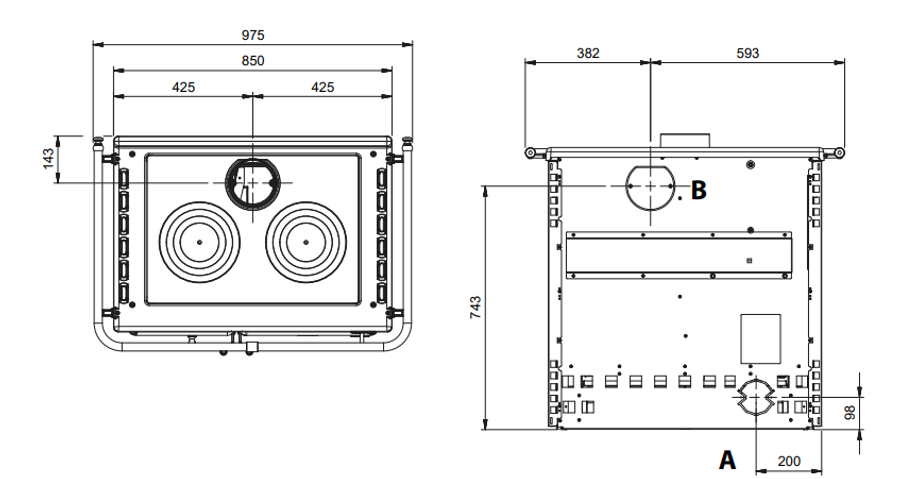

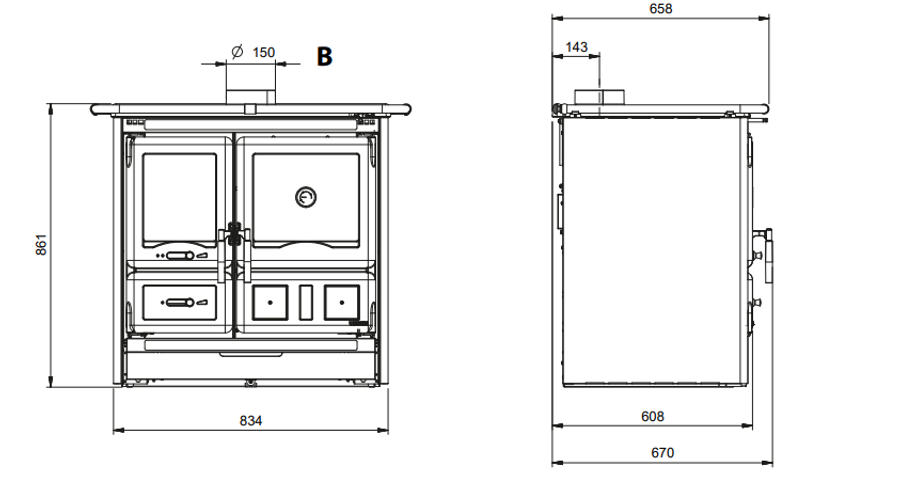

TEHNICAL DRAWINGS
ALL DRAWINGS
