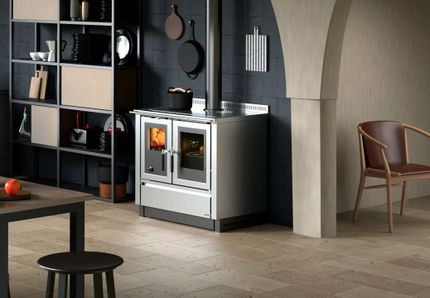

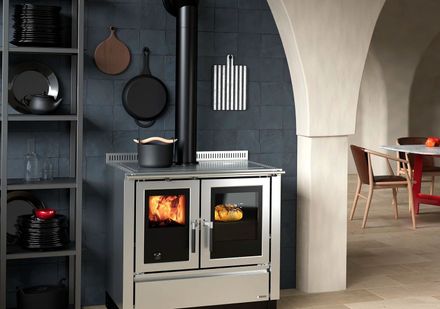

Nordica Extraflame Venezia.16 Stove
VENEZIA.16 STOVE
VENEZIA.16 STOVE
Insertion or free-standing wood burning cooker
Option to draw air from the outside and feed it directly into the stove’s regulators
INFORMATION
FITTING
Option of fitting between furniture cabinets without an additional kit
BRAND
Nordica Extraflame
PRODUCT TYPE
Stove
COLLECTION
Venezia
DRAWER
Wood Drawer
NOMINAL THERMAL POWER
8.3 kW
HOURLY CONSUMPTION
2.2 kg/h
ENERGY CLASS
COOKING PLATE
Top cooking plate and rings in polished cast-iron
EFFICIENCY
86 %
HEATABLE
238 m³
DOOR
Double-glazed oven door with stainless steel gaskets
DIMENSIONS
- Width : 900 mm
- Height : 850 mm
- Depth : 600 mm
FUMES OUTLET DIAMETER (Ø)
130 mm
DOWNLOADS
↓ Ecodesign
↓ Data sheet
↓ Declaration of conformity
↓ Energy labelling - Labelling
↓ Declaration of Performance
↓ Energy labelling - product sheet
NET WEIGHT
175 kg
FUNCTION
Heating
MATERIAL
44 L Porcelain enamelled steel oven with light
OVEN
Cast iron fire door, steel oven door
ADJUSTMENT
Automatic adjustment of primary air
EMISSION
Post-combustion system for low emissions
ADVANTAGES
- Double glass fire door
- Stainless steel frame
- Extractable ash drawer
- Enamelled cast iron top
- Standard top height 3 cm
- Cast iron refractory hearth
- Oven with excess steam valve
- Right side, rear and centre upper smoke output
COLORS
-.webp)
.webp)

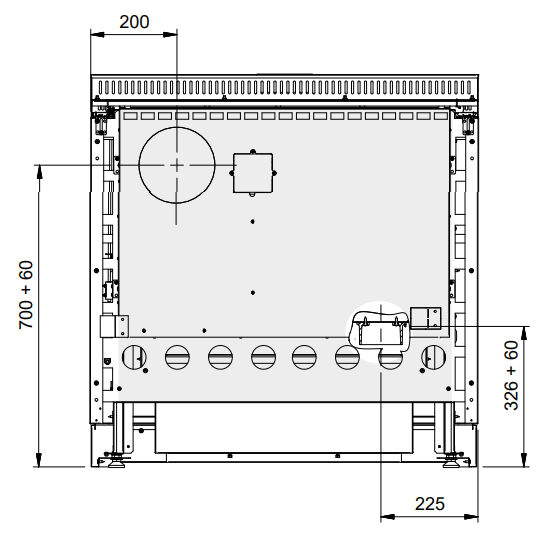

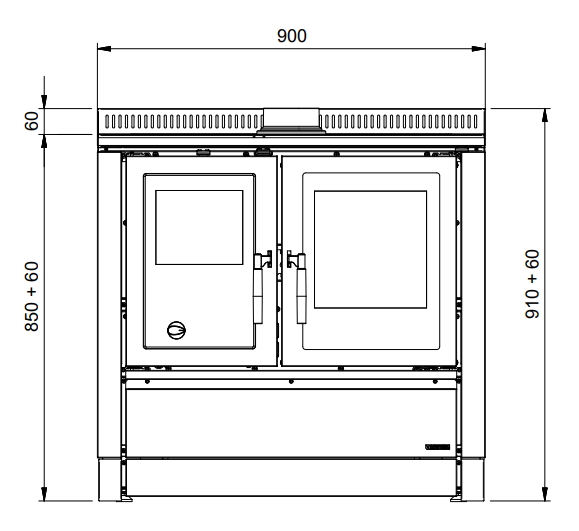

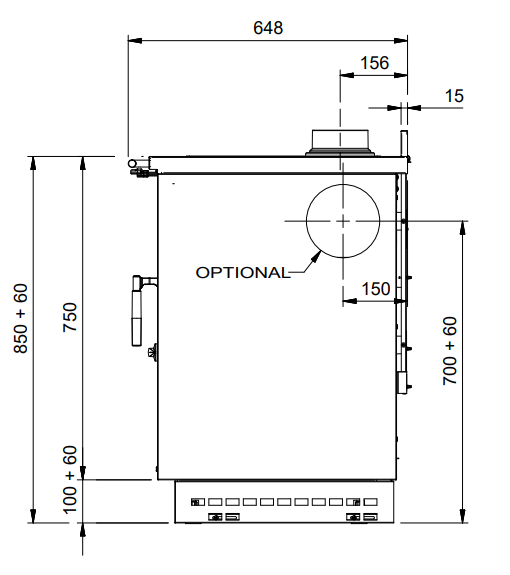

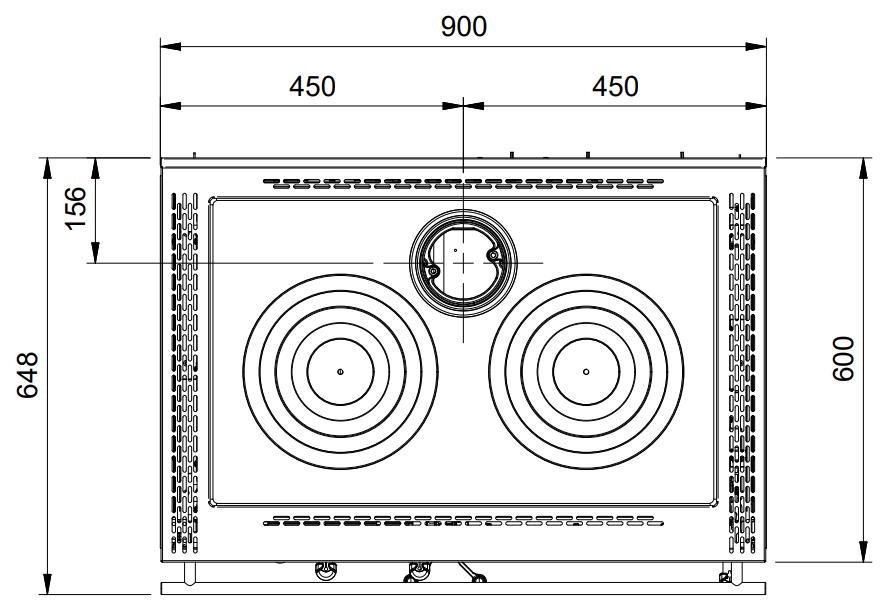

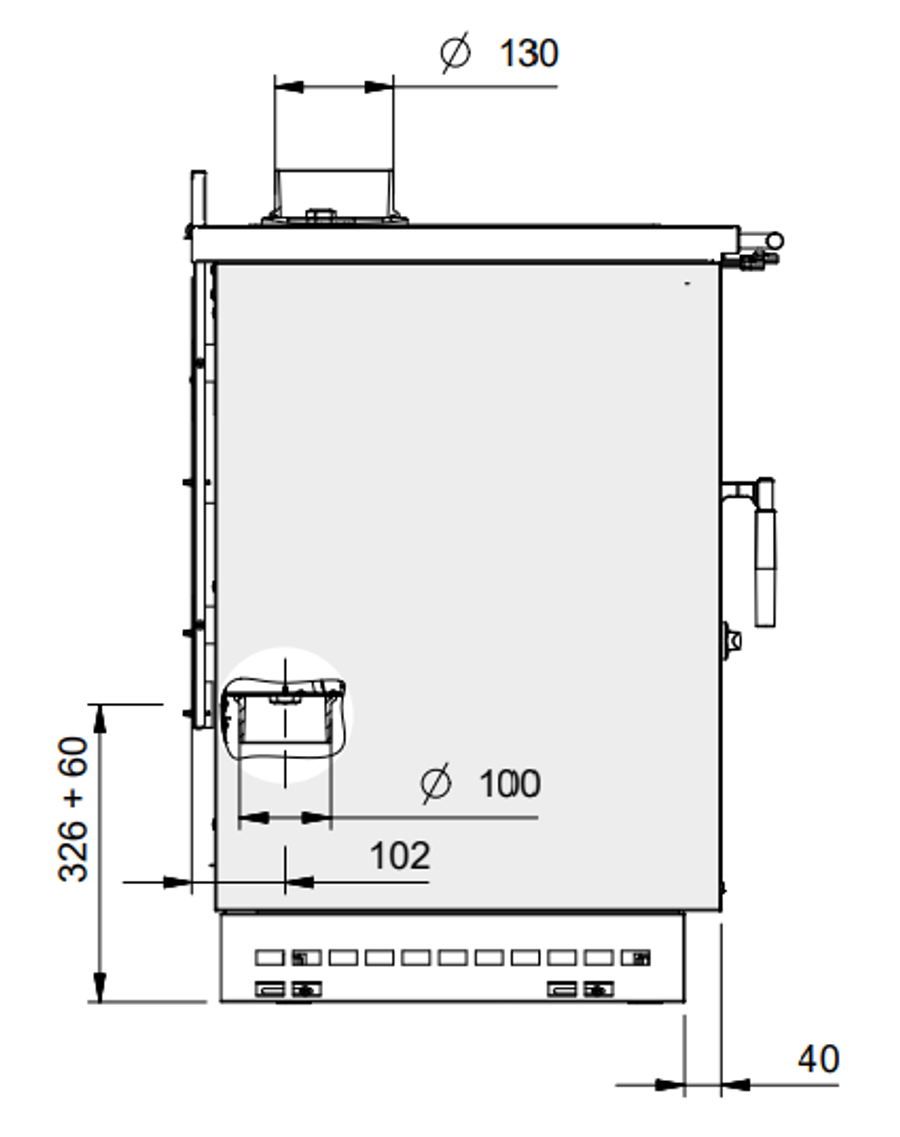

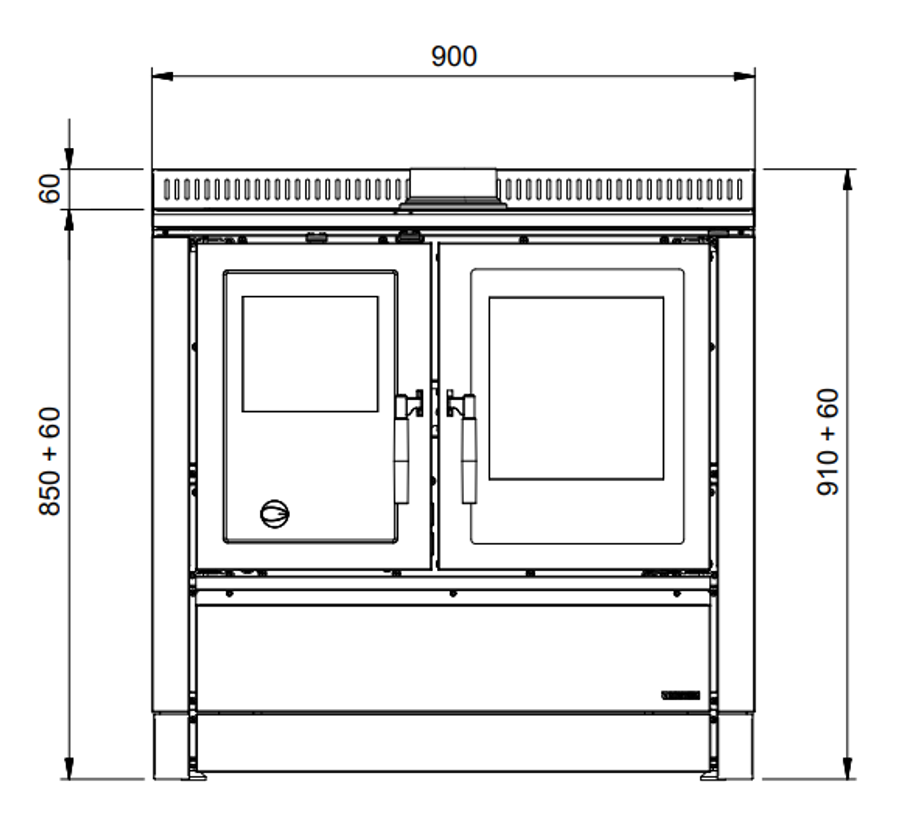

TEHNICAL DRAWINGS
ALL DRAWINGS
TECHNOLOGY
GLASS CLEANING SYSTEM
A system of pre-heated air which removes any deposit from the fire-door glass.
DOORS IN CAST IRON
The high-quality cast-iron doors are made to last and ensure perfect sealing at all times.
NORDIKER HEARTH
La Nordica-Extraflame uses a special material called Nordiker for the production of hearth walls refractories.
POST COMBUSTION
The combustion system developed by La Nordica-Extraflame allows, due to a secondary/tertiary air system, a post combustion which significantly reduces emissions.
DIRECT OUTDOOR AIR INTAKE (BBC)
Air intake system which draws fresh air from outside directly into the adjust system combustion regulation of the firebox of the appliance.
CERTIFICATIONS
BLMSCHV
German regulations on controlling emissions.
ECODESIGN
European certification defining the ecodesign guidelines for biomass products.
CE
The CE marking indicates conformity with EU standards, enabling the free marketing of marked products within the European market.
FLAMME VERTE
French trademark of the ADEME agency for the environmement and the energy. The products “Flamme Verte” approved guarantee the best high energy performances and respect for the environment.
MFB
Only for Germany: The products is ready to be connected to a multiply chimney connection , just when the installation is made in accordance with requirements of the regional and national standards, and when observed the norms DIN EN 13384-2, DIN V 1816-1, DIN 18896 and MFeuV-2007 (Muster- Feuerungsverordnung), and that the district chimney sweeper has checked and approved the correct installation.
