Marantz SA-10 CD Player
SA-10 CD PLAYER
SA-10 CD PLAYER
Reference SACD and CD Player with DAC and Custom HDAM
The SA-10 is a reference level SACD/CD player built to reproduce all the depth and detail of any recording and deliver a truly upscale listening experience.
FEATURES
REDISCOVER YOUR MUSIC
The SA-10 is designed to set a new standard in audio. Whether listening to music on disc or content streamed from a computer, enjoy your collection in refined clarity.
IT STARTS WITH THE DISK
Whether playing sacds, cds, or other data discs containing music, it's vital that any player retrieves the information as accurately as possible: unlike a computer reading a disc for ripping, there's no time for repeated re-scans when playing music - it happens in real time, so the disc transport needs to get things right first time.
PURE MARANTZ SOUND
Hdam technology combined with optimized circuit design layout and carefully selected components, provides exceptional sound quality and performance.
SOUND MASTER TUNED
The marantz sound master meticulously tuned sa-10 for amazing performance with careful parts selection to create the most musical sound in your home.
UPSCALE LISTENING
Innovative marantz musical mastering “mmm-stream” up-sampling to dsd and filtering.
INFORMATION
BRAND
Marantz
PRODUCT TYPE
CD Player
PRODUCTION
Made in US
PROGRAM PLAY (CD / SA-CD)
Yes / Yes
FUNCTIONS
- Copper Plated Chassis : Yes
- Symmetric circuit layout : Yes
- Customised Components : Yes
- Bit-perfect transmission : Yes
- HDAM version : HDAM+HDAM SA2
- Asynchronous mode rear USB : Yes
- Signal isolator for DAC Mode operation : Yes
- iPod / iPhone compatible USB input : Yes
- High Grade Audio Components : Yes
- Power Transformer: Toroidal / El : Yes / No
- Digital out off / Audio EX Mode : Yes / No
- Data Disc Compatibility: DSD / WAV / ALAC : <=5.6 / 192 / 96
- DAC operation mode: USB / Coax / Optical : Yes / Yes / Yes
- Extra metal plate for chassis strengthing : Yes- Headphone: Standard / Buffer / Current feedback : No / Yes (HDAM SA2+HDAM) / Yes
- CD Compatibility: CD / CD-R/RW / SA-CD / WMA / MP3 / AAC : Yes / Yes / Yes / Yes / Yes / Yes
- CD-Text / SA-CD Text / ID3 Tag / WMA Meta Tag / AAC Meta data : No / Yes / Yes / Yes / Yes
AVAILABLE COLORS: GOLD / SILVER / BLACK / SILVER-GOLD
Yes / No / Yes / No
REPEAT
Yes
RANDOM PLAY
Yes

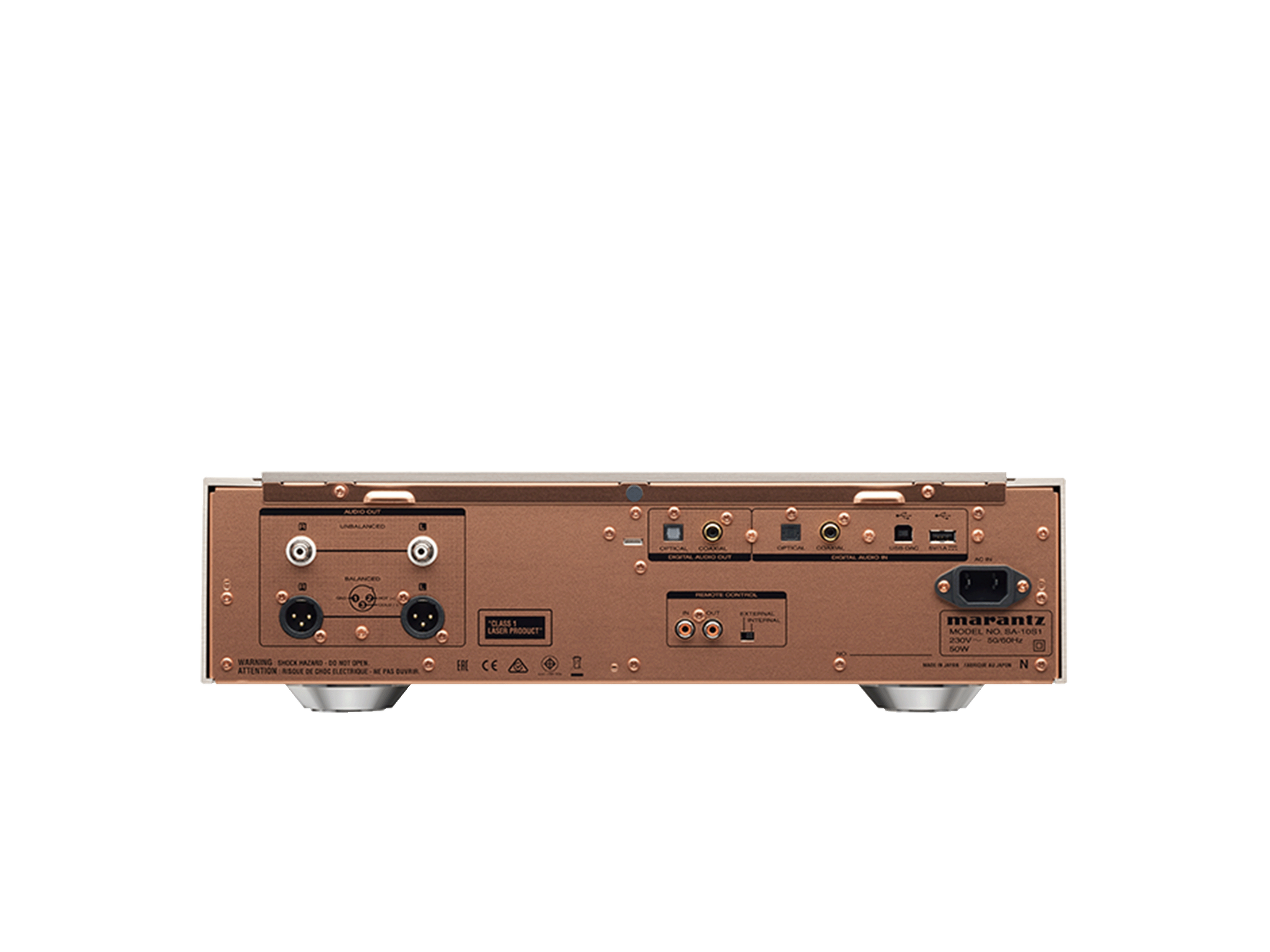

INPUTS /OUTPUTS
- Digital Optical In / Out : Yes / Yes
- Digital Coaxial In / Out : Yes / Yes
- Sample Rate digital In : 192 kHz / 24-bit
- USB type B input for PC (rear) : 384 kHz / 32-bit
- USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 : -> DSD11.2
- USB type B input for PC (rear) Sample Rate USB type B In : Yes
- USB Audio (Front) / Made for iPod / Made for iPhone® : rear / Yes / Yes
- Headphone Out : Yes
- Balanced Out : Yes
- Analogue Out (Cinch) : 2ch
- Gold Plated Cinch : silver / nickel
- Asynchronous mode rear USB : Yes
- Headphone Volume Control : Yes
REMOTE CONTROL
RC004PMSA
METAL FRONT PANEL
Yes
START SOUND MODE FOR SA-CD
Yes
POWER CONSUMPTION IN W
50
DIMENSIONS
- Width : 440 mm
- Depth : 419 mm
- Height : 127 mm
WEIGHT
18.4 kg
WARRENTY
5 Years
OTHERS
- Separated rectifier circuit for analogue and digital circuitry : Yes
- Display: Dimmer / Off : No / Yes
- 5mm Aluminum top cover : Yes
- Marantz Musical Mastering Conversion : Yes
- Low noise LCD display : Yes
- Selectable filter: CD / SA-CD / DAC-Mode : Yes / No / Yes
- Marantz Musical Mastering : Yes (HD)
- Marantz Musical Mastering Stream : Yes
DETAIL
- Exclusive HDAM
- SACD, CD & DVD Support
- Crafted in Shirakawa, Japan
- Marantz Musical Mastering DAC
KEY TECHNOLOGIES
- SACD
- Hi-Res Audio
- Roon Tested
SPECIFICATIONS
- Mechanism : SACD-M3 (METAL)
- D/A Conversion/DAC IC : Marantz Musical Mastering Conversion
- Digital Filter/Noise Shaper : DSP (Marantz)
- Low Pass Filter stage : HDAM x 2
- Dynamic Range : 98 dB
- Output Buffer : HDAM SA2
- Signal to Noise Ratio : 104 dB
- Channel separation : 100 dB
- Total Harmonic Distortion : 0.00%
- Frequency response : 2 Hz - 20 kHz
AUTO POWER OFF
Yes
DETACHABLE POWER CABLE
Yes
