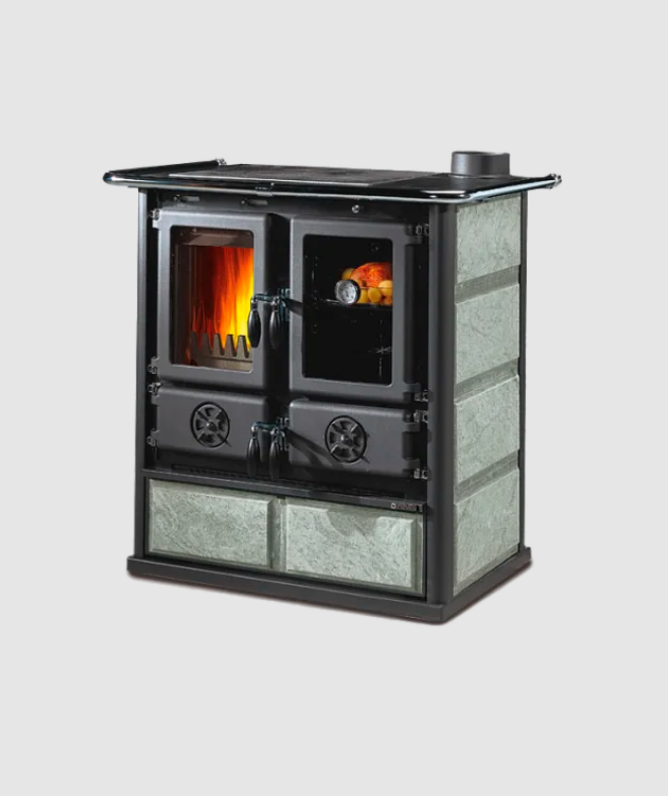

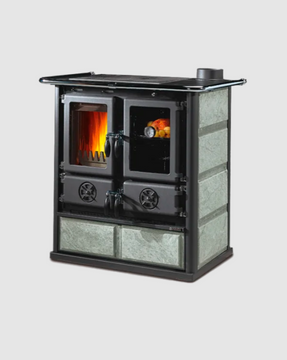

Nordica Extraflame Rosetta.16 Petra Stoves
ROSETTA.16 PETRA STOVES
ROSETTA.16 PETRA STOVES
The strength of nature reflected in an authentic texture
TECHNOLOGY
DOORS IN CAST IRON
The high-quality cast-iron doors are made to last and ensure perfect sealing at all times.
GLASS CLEANING SYSTEM
A system of pre-heated air which removes any deposit from the fire-door glass.
POST COMBUSTION
The combustion system developed by La Nordica-Extraflame allows, due to a secondary/tertiary air system, a post combustion which significantly reduces emissions.
DIRECT OUTDOOR AIR INTAKE (BBC)
Air intake system which draws fresh air from outside directly into the adjust system combustion regulation of the firebox of the appliance.
INFORMATION
PRODUCT TYPE
Stove
BRAND
Nordica Extraflame
COMBUSTION
Adjustable primary and secondary air for better combustion management
DIMENSIONS
- Width : 885 mm
- Height : 843 mm
- Depth : 572 mm
DOWNLOADS
↓ Ecodesign
↓ User Manual
↓ Data sheet
↓ Declaration of conformity
↓ Energy labelling - Labelling
↓ Declaration of Performance
↓ Energy labelling - product sheet
COLLECTION
Venezia
DRAWER
Extractable ash drawer
AVAILABLE VERSIONS
Natural Stone Cladding
GLASS
Ceramic glass
DRAWER
Wood drawer
EMISSIONS
Post-combustion system for low emissions
PORCELAIN
28 l porcelain enamelled steel oven
ENERGY CLASS
EFFICIENCY
86 %
NET WEIGHT
175 kg
OUTLET
Rear or upper smoke discharge outlet
FUMES OUTLET DIAMETER (Ø)
130 mm
NOMINAL THERMAL POWER
8.3 kW
HOURLY CONSUMPTION
2.1 kg/h
HEATABLE
238 m³

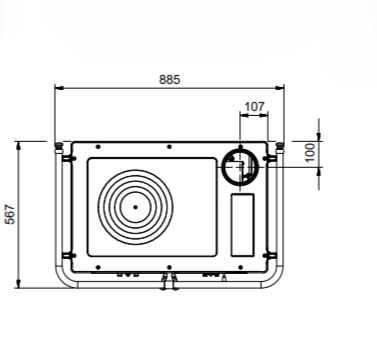

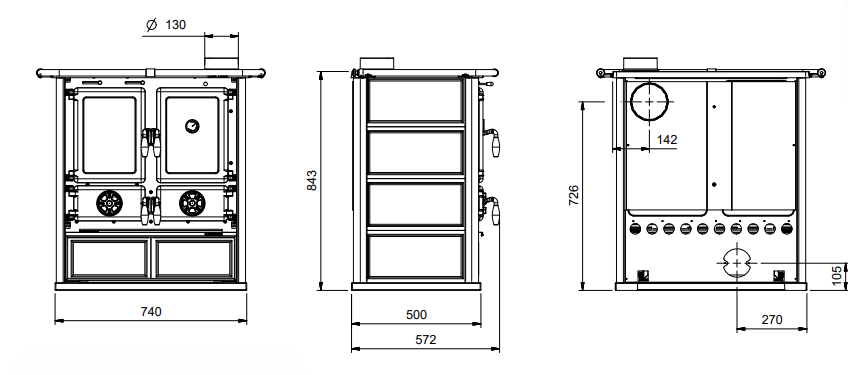

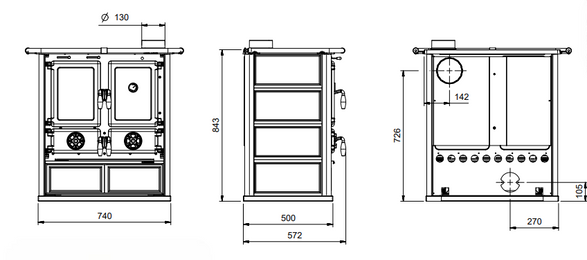

TEHNICAL DRAWINGS
HEARTH
Cast iron hearth
DOME
Enamelled steel dome
TOP COOKING
Top cooking plate and rings in polished cast-iron
FRAME
Enamelled cast iron doors and frame
CERTIFICATIONS
BLMSCHV
German regulations on controlling emissions.
ECODESIGN
European certification defining the ecodesign guidelines for biomass products.
CE
The CE marking indicates conformity with EU standards, enabling the free marketing of marked products within the European market.
FLAMME VERTE
French trademark of the ADEME agency for the environmement and the energy. The products “Flamme Verte” approved guarantee the best high energy performances and respect for the environment.
