Mobotix p71 Thermal ECO security camera
P71 THERMAL ECO SECURITY CAMERA
P71 THERMAL ECO SECURITY CAMERA
The Intelligent Thermal Imaging Camera for Indoor Use
The MOBOTIX p71 Thermal ECO camera provides you with a low-cost basic thermal solution for indoor use with a wide viewing angle.
INFORMATION
BRAND
Mobotix
PRODUCT TYPE
Security Camera
COLLECTION
P71
PRODUCTION
Made in Germany
APPLICATION
Reliably cover a wide range of basic applications such as perimeter protection, intrusion prevention and temperature monitoring.
ANGLE
Wide Viewing
TEMPERATURE
Monitoring
FEATURES
- CIF resolution (320x240), 9 fps
- Integrated microphone and speaker
- Single-lens indoor thermal camera
- Wide viewing angle of up to 105° x 75°
- Visible Temperature range from -40 to +330°C
- Versatile since it can be manually adjusted along three axes
USE
Security
ENVIRONMENT
Indoor
DOWNLOADS
PRODUCT FLYERS
↓ MOBOTIX Thermal ECO
↓ Thermal Solutions – Flyer
↓ Thermal Technology – Security
↓ Thermal Technology – Early Fire Detection
↓ Thermal Technology – Quality Assurance
DECLARATIONS
↓ End User Statement - Thermografic Cameras 9hz
TECHNICAL SPECIFICATION
QUICK INSTALL & DRILLING TEMPLATES
↓ MOBOTIX p71
↓ MOBOTIX p71 ECO Thermal
DETAIL

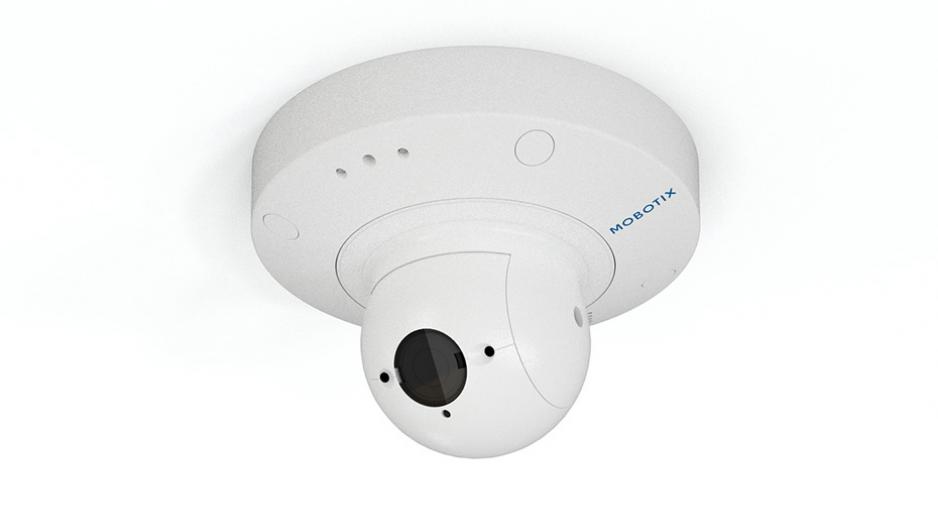

SMALL CAMERA, WIDE VIEWING ANGLE
The compact p71 ECO Thermal camera has a striking design and is made for indoor use. The single-lens camera can be equipped with thermal modules with viewing angles of 56° x 42° or 105° x 75°, each with CIF resolution (320x240).
IDEAL FOR AROUND-THE-CLOCK PROPERTY AND PERIMETER PROTECTION

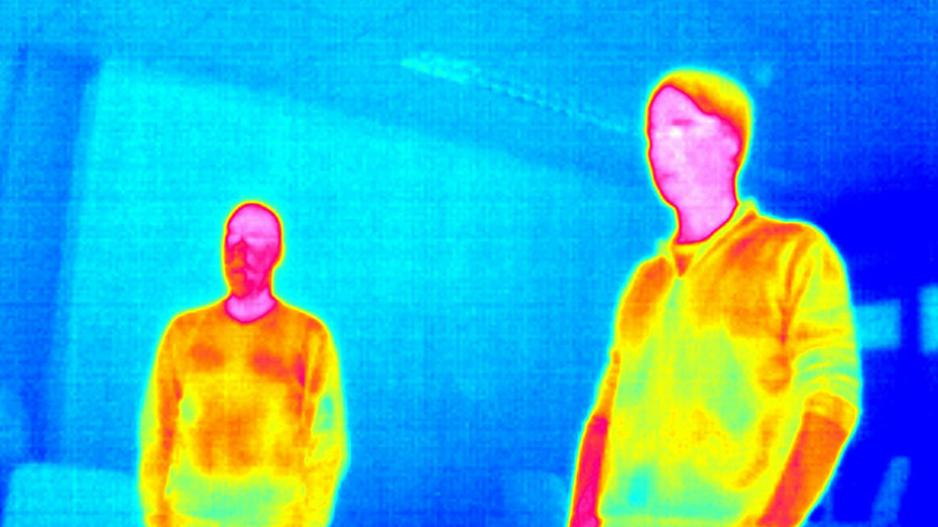

The affordable and energy-efficient camera can be used in applications where temperature measurement is not required — e.g. for in complete darkness and in a way that respects privacy, since the thermal imaging allows people to be detected but not identified (GDPR compliant).
AFFORDABLE TEMPERATURE MONITORING
The MOBOTIX p71 ECO Thermal camera is an affordable alternative for applications where precise temperature measurement is not required and registering significant differences and deviations from specified references is sufficient.

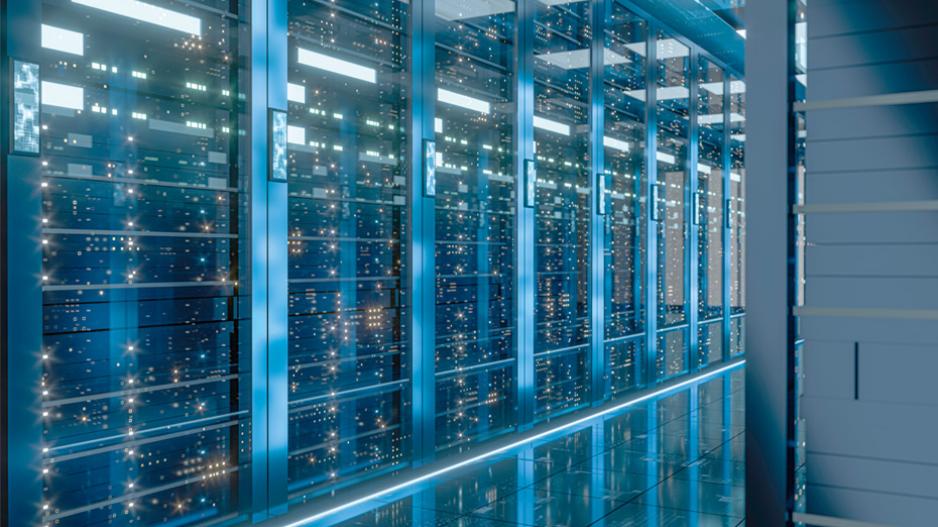

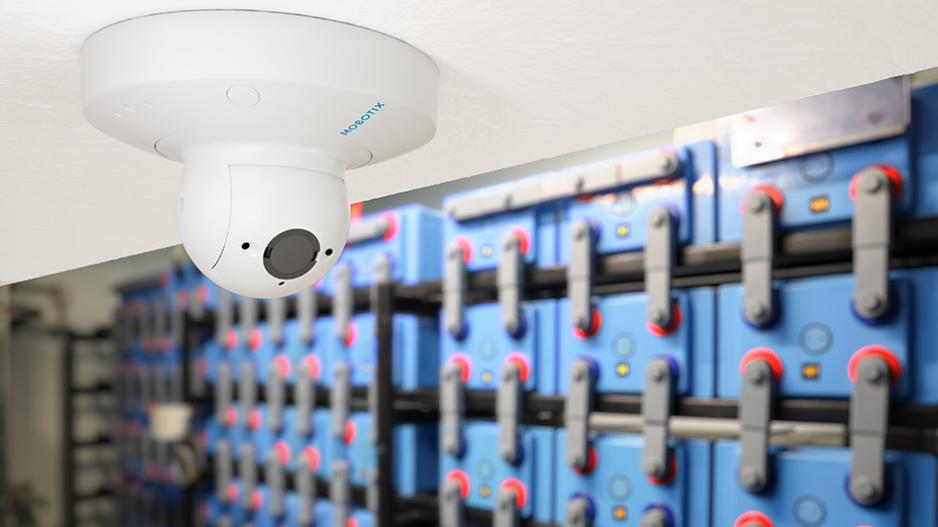

For example, it is ideally suited for monitoring capital goods such as storage batteries and data centers. Thanks to its wide viewing angle of up to 105° x 75°, extensive areas can be covered using just a few video systems. Using a small number of affordable thermal cameras for each project will help you keep to your budget.
EXPAND THE POSSIBILITIES OF THE P71 WITH INTELLIGENT APPS
As part of the MOBOTIX 7 platform, the p71 ECO Thermal supports intelligent apps for expanding its range of functions. The MOBOTIX camera apps are based on deep learning and come from reputable partners.
For example, the MOBOTIX ActivitySensor and the Irisity IRIS Core Intrusion app can detect objects and reduce false alarms to a minimum. The solutions are almost infinite. You can even develop and program your own app solutions for the p71 ECO Thermal camera.
