Thermador Freedom® Built-in Refrigerator Column 24'' Panel Ready T24IR905SP
Freedom® Built-in Refrigerator Column 24'' Panel Ready T24IR905SP
FREEDOM® BUILT-IN REFRIGERATOR COLUMN 24'' PANEL READY
Model : T24IR905SP
INFORMATION
BRAND
Thermador
PRODUCT TYPE
Refridgerator
SPECIAL MODES
- Sabbath
- Economy
- Vacation
REVERSIBLE DOOR SWING
Yes
SOFT CLOSE DRAWERS
Yes
HUMIDITY MANAGED DRAWER
1
PANEL READY
Yes
SOFT CLOSE DOOR
Yes
ENERGY STAR® CERTIFIED
Yes
ADJUSTABLE SHELVES
4

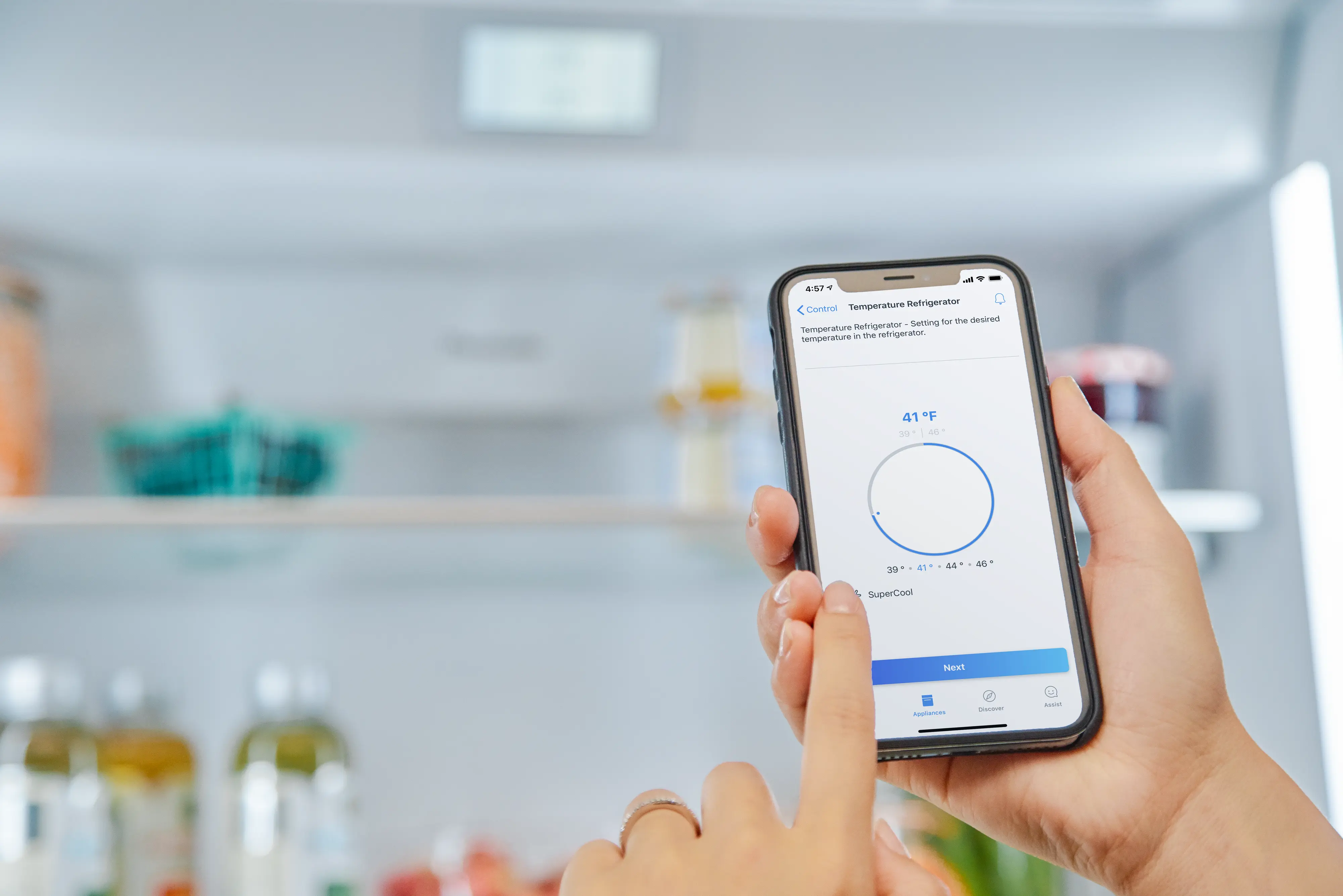

HOME CONNECT® (WI-FI ENABLED)
Yes
REFRIGERATOR SHELVES
4
CARBON AIR FILTER
Yes
TEMPERATURE CONTROLLED DRAWER
30°F (-1°C) to 38°F (3°C)
GENERAL USE DRAWER
1
PRODUCTION
Made in United States
FULL EXTENSION DRAWERS @ 90° DOOR OPENING ANGLE
Yes
VOLTS (V)
110-120 V
CURRENT (A)
15 A
POWER CORD LENGTH
118 in.
REQUIRED CUTOUT SIZE
- Height : 84"
- Width : 24"
- Depth : 25"
FULL EXTENSION DRAWERS @ 115° DOOR OPENING ANGLE
Yes
DOOR BINS
3
NET / GROSS WEIGHT
330 (352 lbs)
ENERGY SAVING (ECONOMY) MODE
43°F (6°C)
SUPERCOOL
36°F (2°C) for approximately 6 hours
TEMPERATURE CONTROLLED DRAWER
1
APPLIANCE DIMENSIONS 1
- Height : 83 3/4"
- Width : 23 3/4"
- Depth : 24"
REFRIGERATOR
36°F (2°C) to 46°F (8°C)
PLUG TYPE
120V-3 Prong
ANNUAL ENERGY CONSUMPTION
254 kWh
WATTS (W)
350 W
SHELF MATERIAL
Glass W/aluminum Profile
FREEFLOW® COLD AIR SYSTEM
Yes
GALLON DOOR BINS
1
FREQUENCY (HZ)
60 Hz
OPEN DOOR ASSIST
Yes
DOOR OPEN ALARM
Yes
LIGHTING
Led Sidewall And Theater Lighting
DEDICATED EVAPORATOR & COMPRESSOR SYSTEM
Yes
WARRENTY
- Limited Warranty for Stainless Steel Rust-Through : Lifetime
- Limited Warranty for Sealed Refrigeration System*; Parts Only : 7th to 12th Year
- Limited Warranty for Sealed Refrigeration System*; Parts and Labor : 3rd to 6th Year
- Limited, Entire Appliance, Parts and Labor on Any Part of the Refrigerator that Fails Because of a Manufacturing Defect : 2 Year
SUPERCOOL
Yes
TOTAL CAPACITY (CU. FT.)
13.0 cu. ft
TECHNICAL DRAWINGS

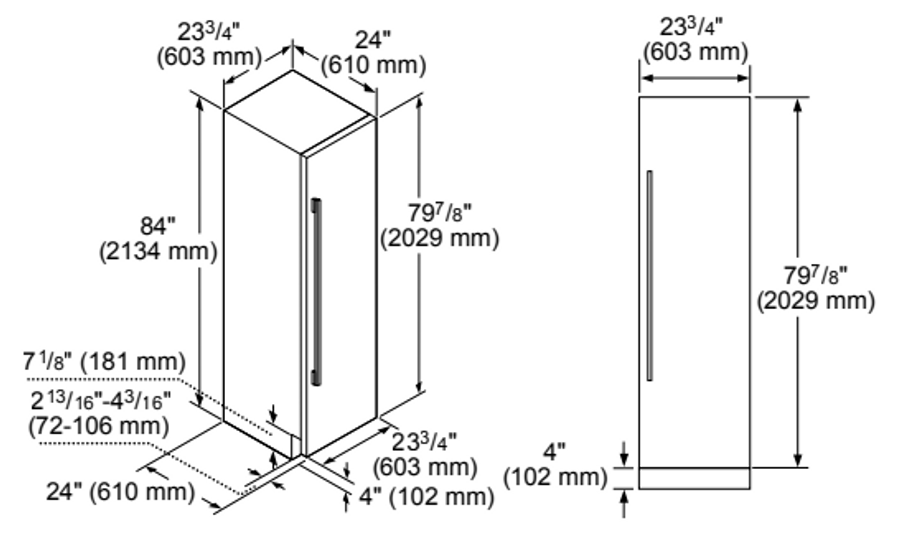

TECHNICAL DRAWING

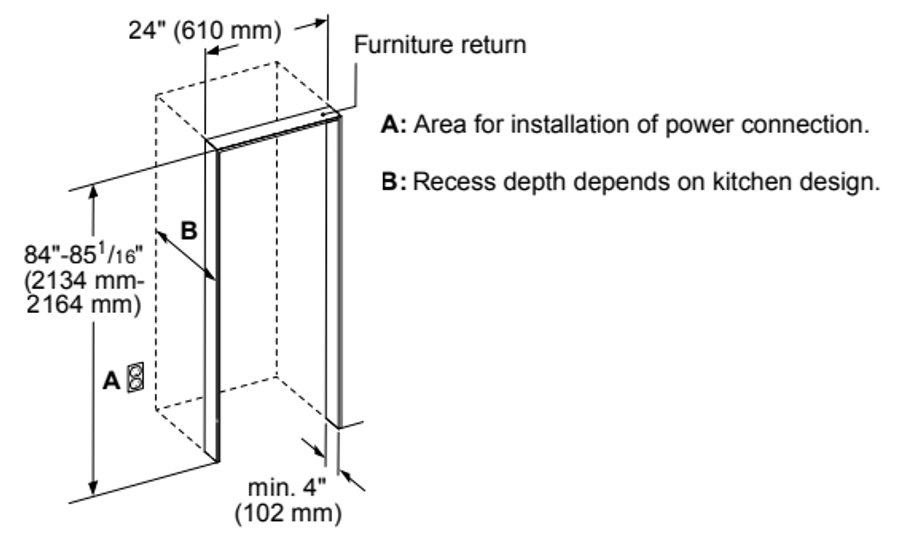

INSTALLATION

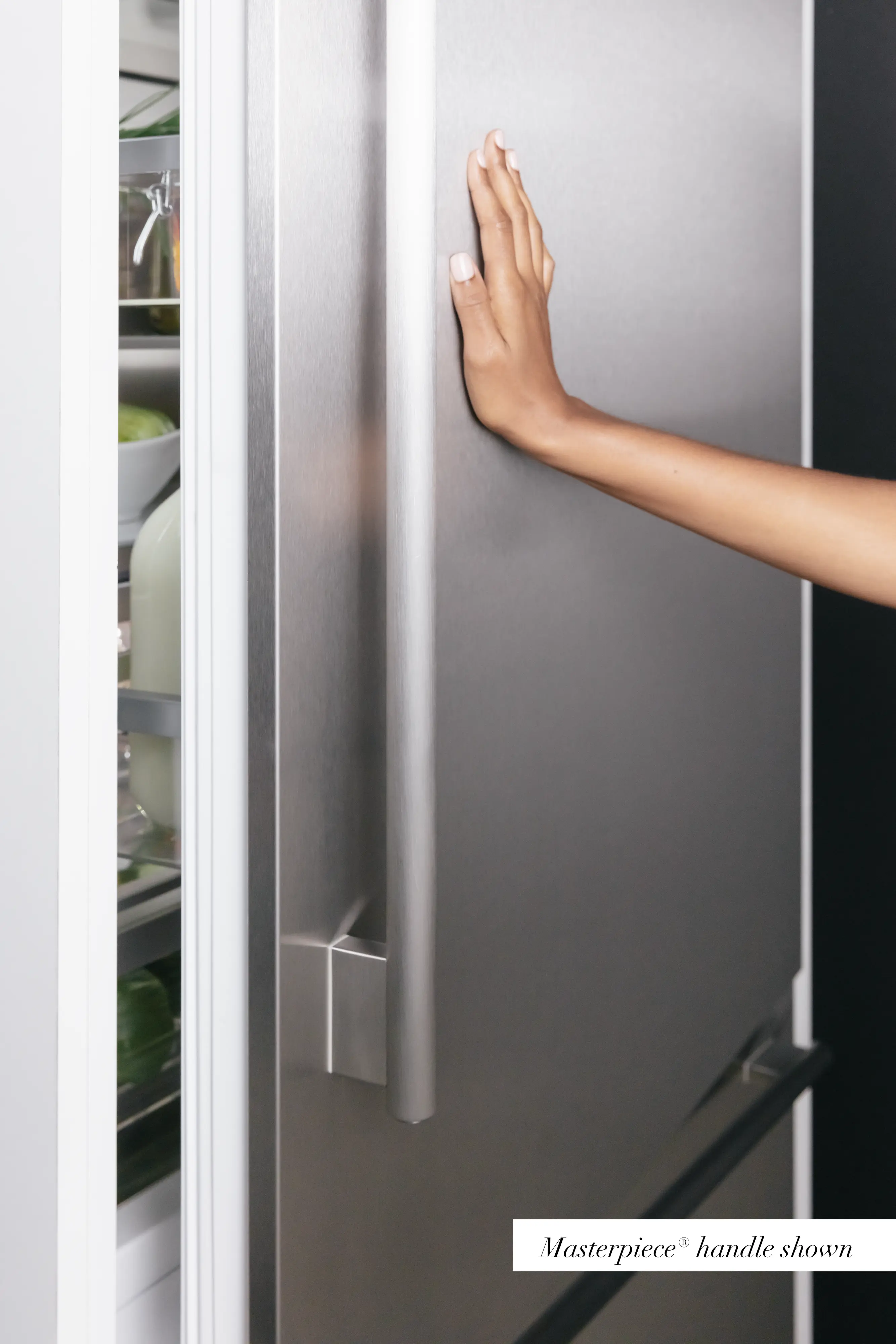

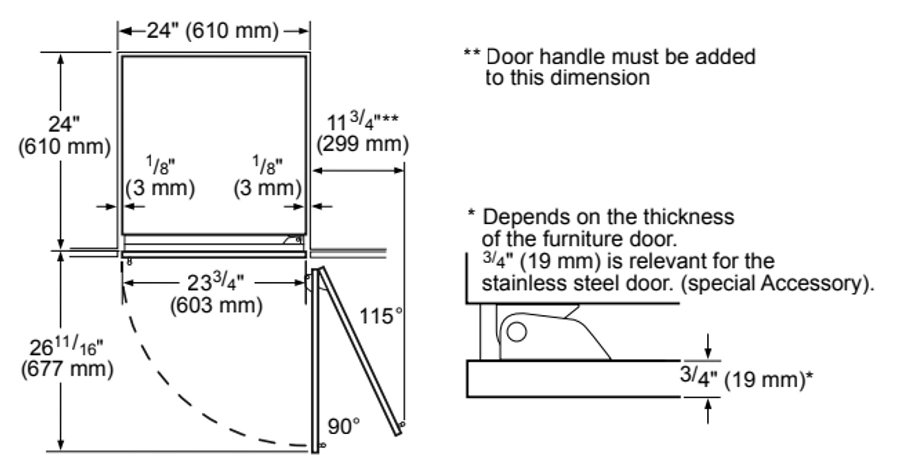

DOOR HANDLE
HIGHLIGHTS
STAR-K CERTIFIED
This appliance is Star-K certified making it possible to use it on the Sabbath or the holidays.

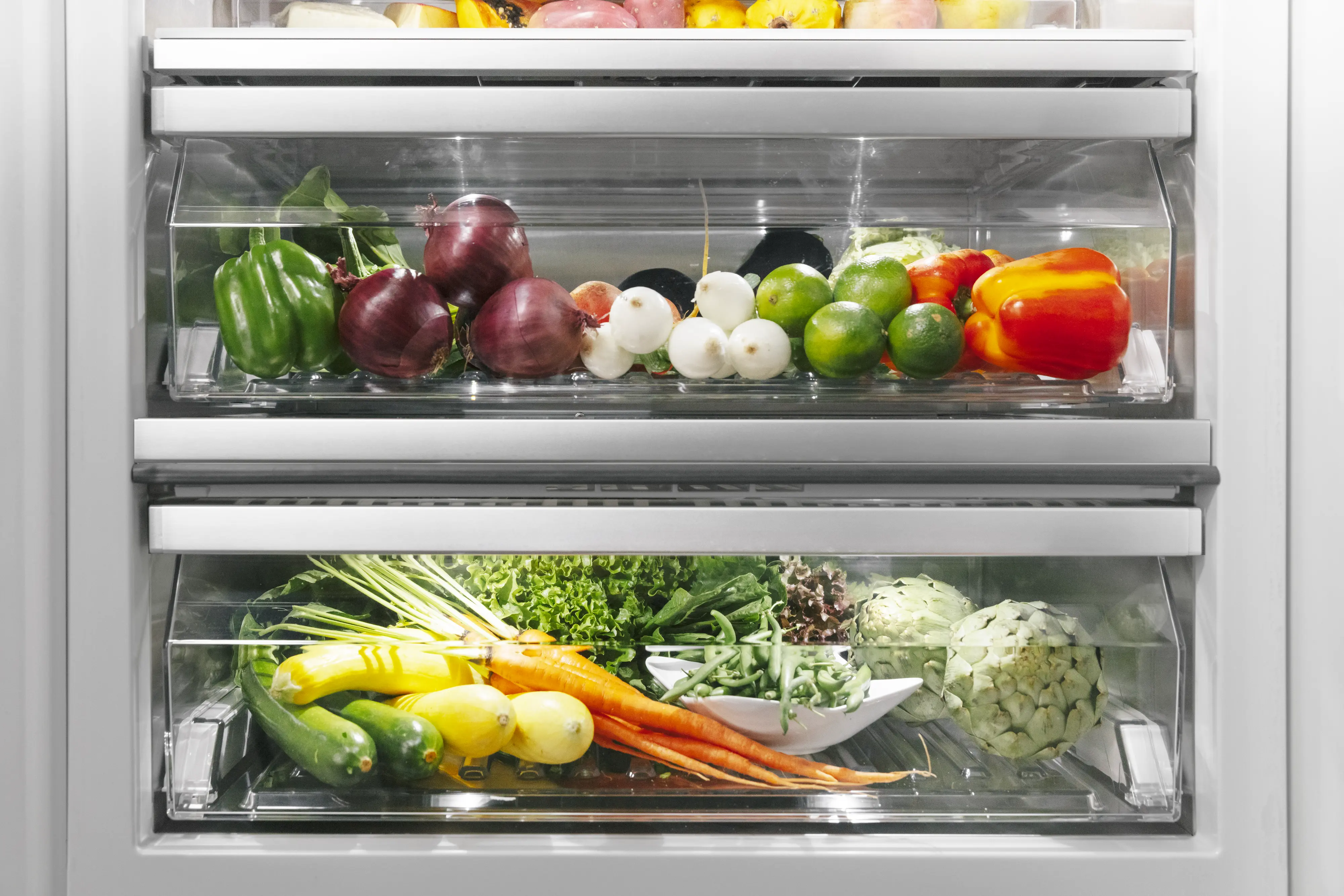

THERMAFRESH® SYSTEM KEEPS YOUR PRODUCE FRESH
The thermafresh® system is equipped with advanced and improved cooling technology for humidity control and temperature management.
ALL-LEG LEVELING FOR QUICKER INSTALLATION
All-leg leveling allows for quicker and faster installation.
