Novy Gas Hob Novy Drum Top 120 cm
GAS HOB NOVY DRUM TOP 120 CM
GAS HOB NOVY DRUM TOP 120 CM
Type number: 56014

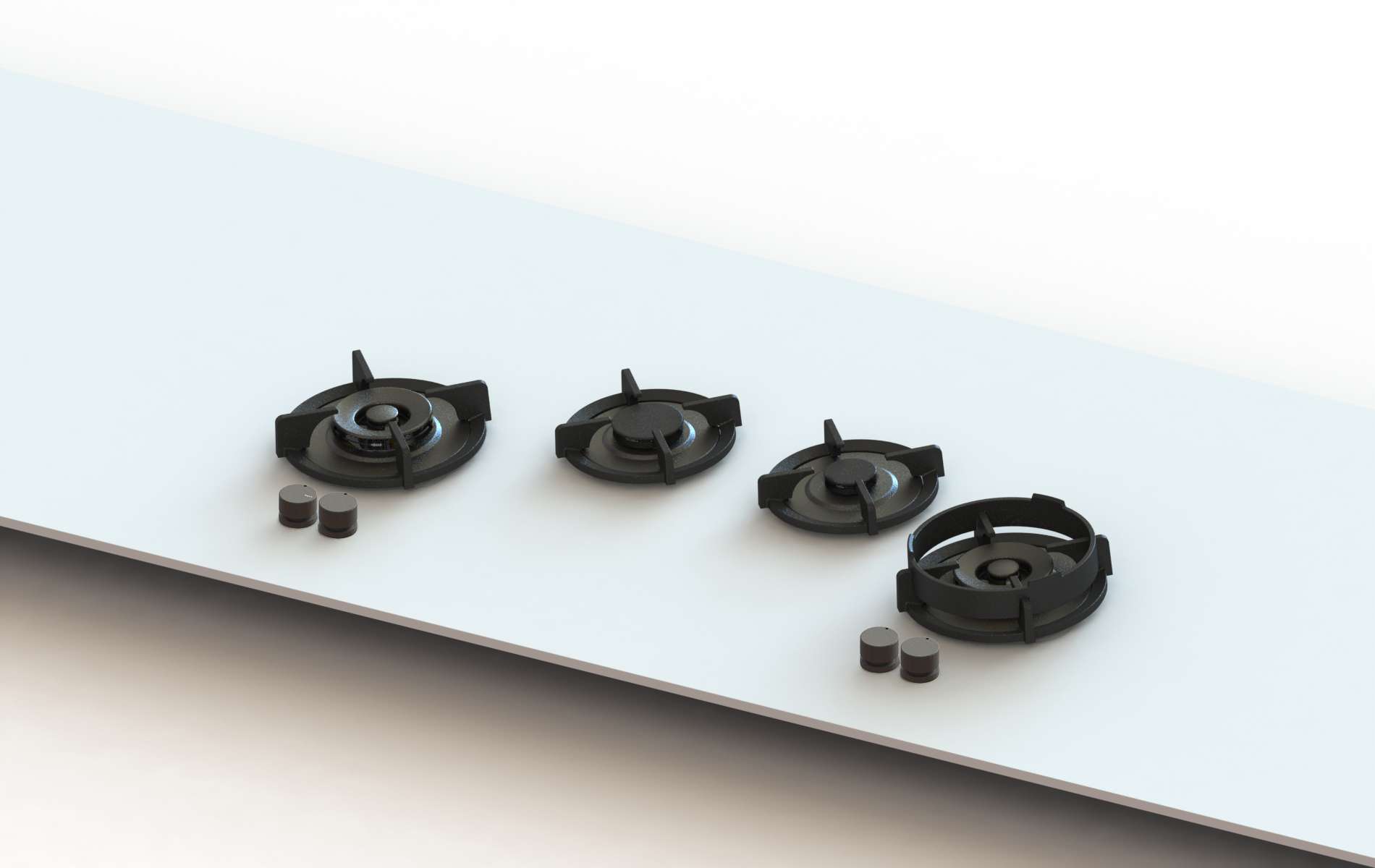

Gas burners are directly integrated in your worktop
INFORMATION
FEATURES

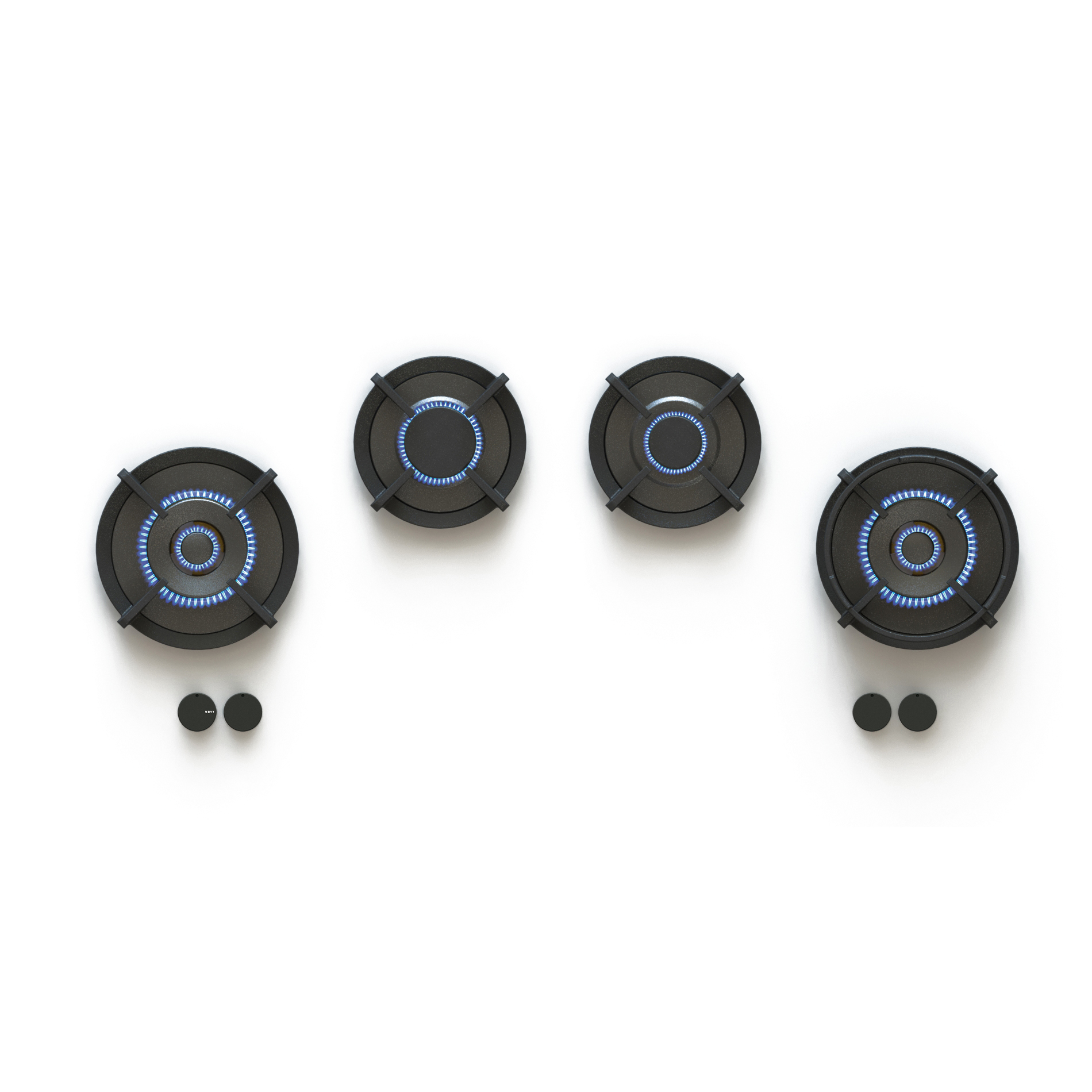

- Visual control of the flame
- Choice of various cooking setups
BRAND
Novy
PRODUCT TYPE
Gas Hob
NUMBER OF COOKING ZONES
4 zones
PRODUCT WEIGHT
36 Kilogram
NICHE DEPTH
600 Millimetre
DIMENSIONS
- Product Depth : 503 Millimetre
- Product Width : 1157 Millimetre
- Product Height : 89 Millimetre
PRODUCT CASING WIDTH
1157 Centimetre
POT MOVE FUNCTION
No
SAFETY TIME-SWITCH-OFF
No
EXTERIOR FINISH COLOR
Black
STOP & GO FUNCTION
No
CHILDPROOF LOCK
No
FLEXZONE
Not applicable
CHEF FUNCTION
No
MOUNTING METHOD
Surface-mounted
COOKING ACCESSORIES
93005

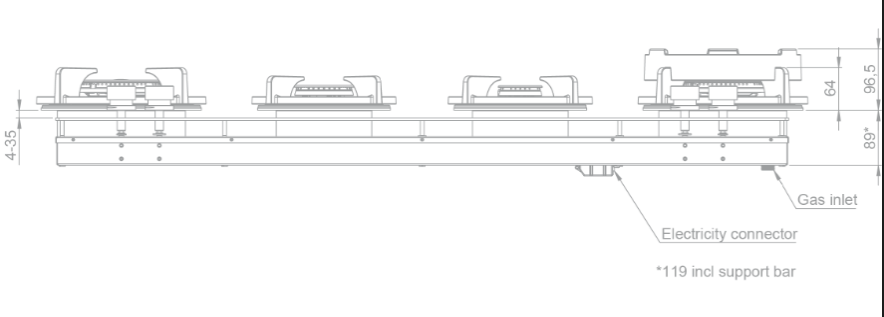

HEIGHT INCL. SUPPORT BAR
119 mm
ENERGY SPECIFICATIONS
- Primary Energy Type : Gas
- Electrical frequency : 50 Hertz
- Electrical Connection (Plug) Type : Schuko
- Electrical Connection Location : Back
IGNITION TYPE
Yes
GRILL FUNCTION
No
INSTALLATION DETAILS
Installation Type : Built-in appliance
CLEANING PRODUCTS
- 906091
- 906092
- 906093
BURNERS
Sufficient space between the burners for large pots and pans
LOOK
Robust, cast iron pot carriers in stylish and timeless look
INTOUCH FUNCTION
Not applicable
CONTROL LOCATION
Bottom
TIMER TYPE
No Timer
CONTROL TYPE
Mechanical
CONTROL METHOD
Rotary knob
AUTOMATIC PAN RECOGNITION
No
RESIDUAL HEAT INDICATION IN WORKTOP
No
FINISHING
Cast iron
FLEXZONE ACTIVATION
Not applicable
SPECIFICATIONS
- Flame protection : Yes
- Super Power function : No
- Wipeguard function : No
- Main on/off switch : No
PRODUCT CODE
56014
EAN
5414425213443
COOKING SURFACE CONFIGURATION
| COOKING ZONE | POSITION | COOKING ZONE TYPE | POWER RATING | POWER RATING (POWER) |
|---|---|---|---|---|
| Cooking zone 1 | Left | Gas Burner | 200 Watt | 5000 Watt |
| Cooking zone 2 | Left Center | Gas Burner | 3000 Watt | - |
| Cooking zone 3 | Right Center | Gas Burner | 2000 Watt | - |
| Cooking zone 4 | Right | Gas Burner | 200 Watt | 5000 Watt |

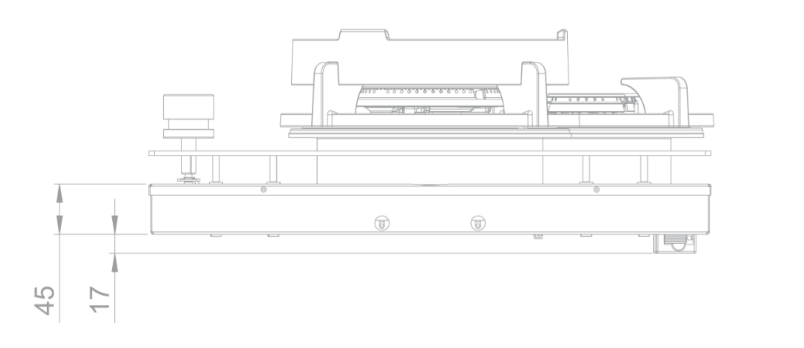

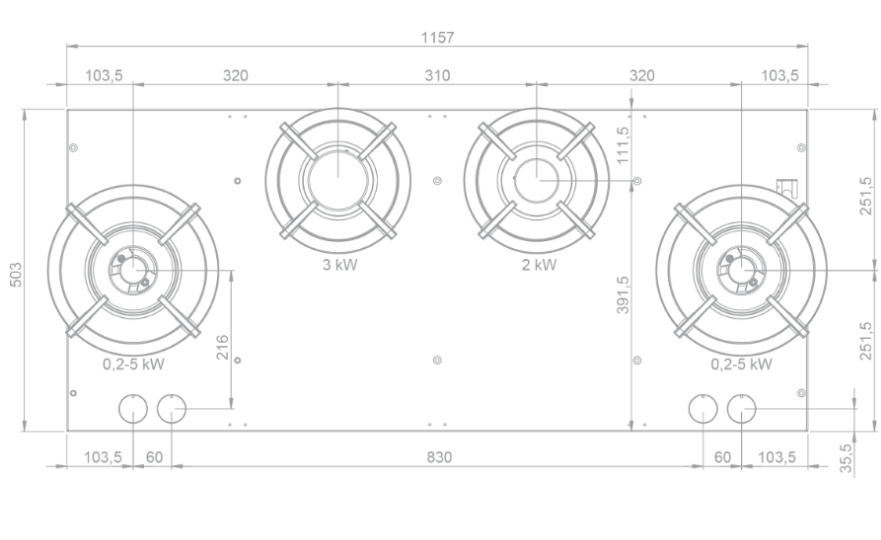

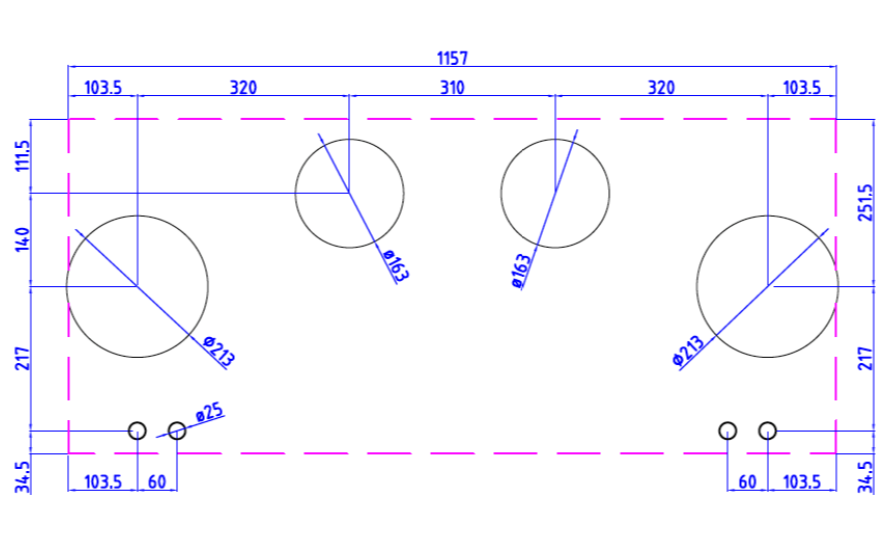

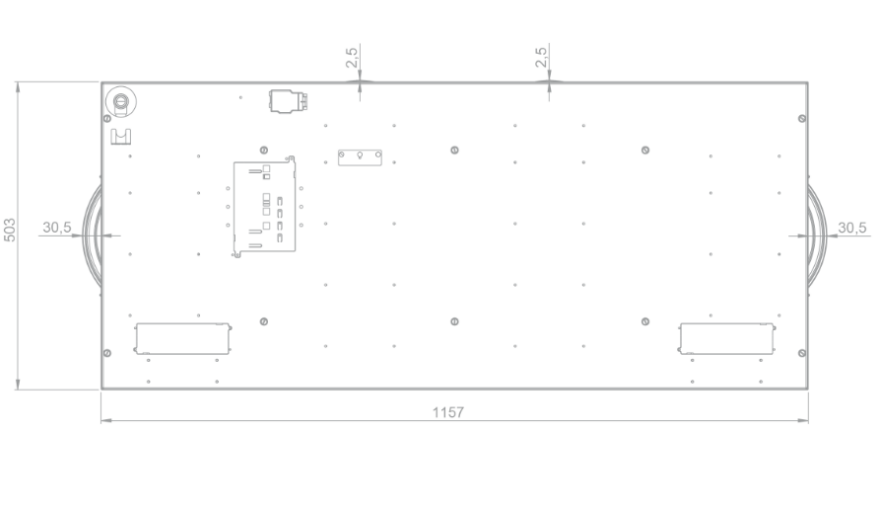

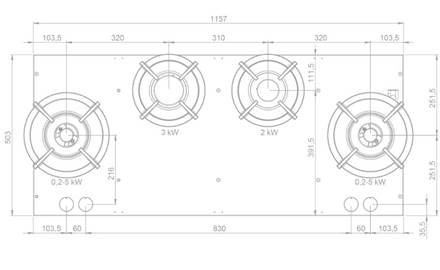

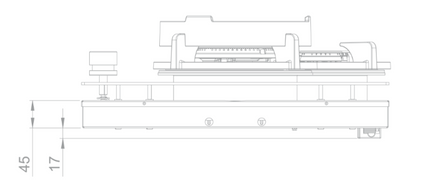

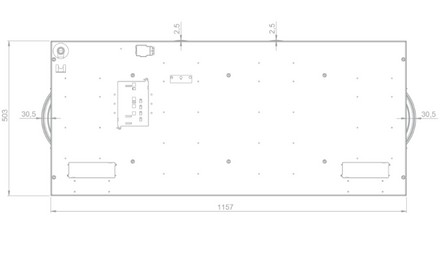

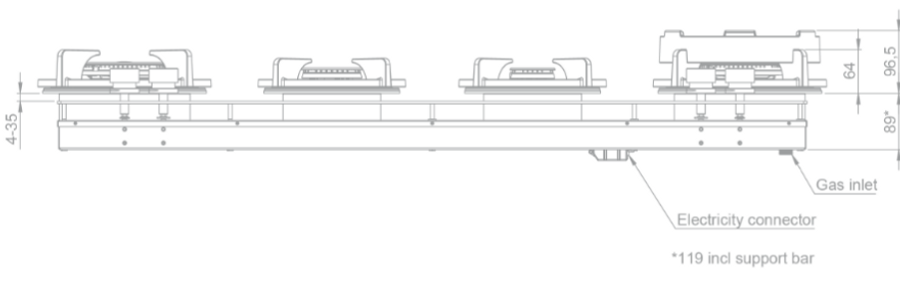

TECHNICAL DRAWING
TECHNICAL VIEW
