Ge Appliances Ge Profile™ 30" Warming Drawer
GE PROFILE™ 30" WARMING DRAWER
GE PROFILE™ 30" WARMING DRAWER
Model #:PTW9000SPSS
Variable temperature control – Address any heating need with variable temperature control that provides a wide range of temperatures
INFORMATION
BRAND
Ge Appliances
PRODUCT TYPE
Warming Drawers
COLOR APPEARANCE & HANDLE COLOR
Stainless Steel

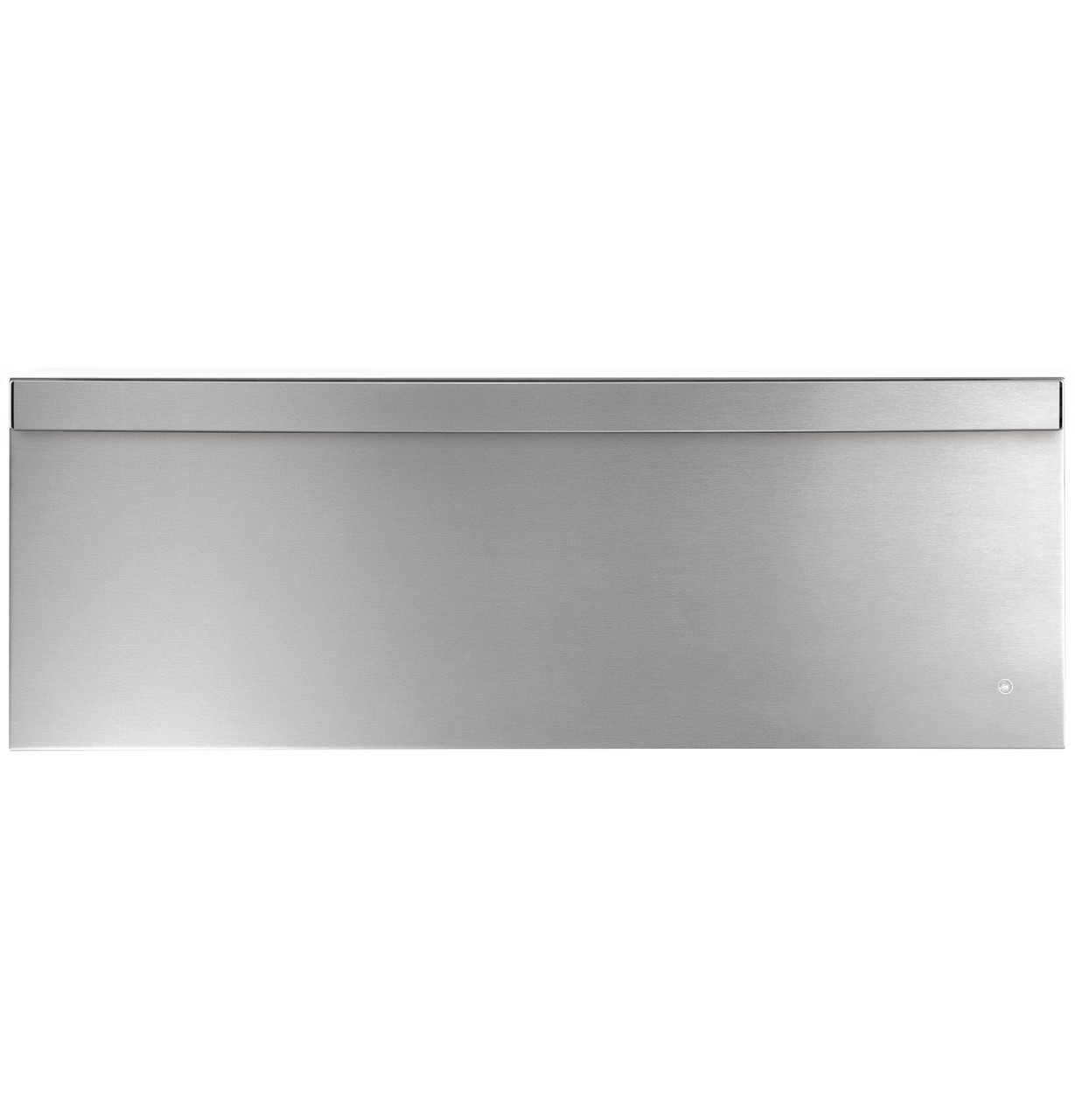

FRAMELESS DRAWER FRONT
Enjoy a modern, seamless look with a frameless drawer front
CONTROL TYPE
On/Off Rocker Switch
TOTAL CAPACITY (CUBIC FEET)
1.90 cu ft

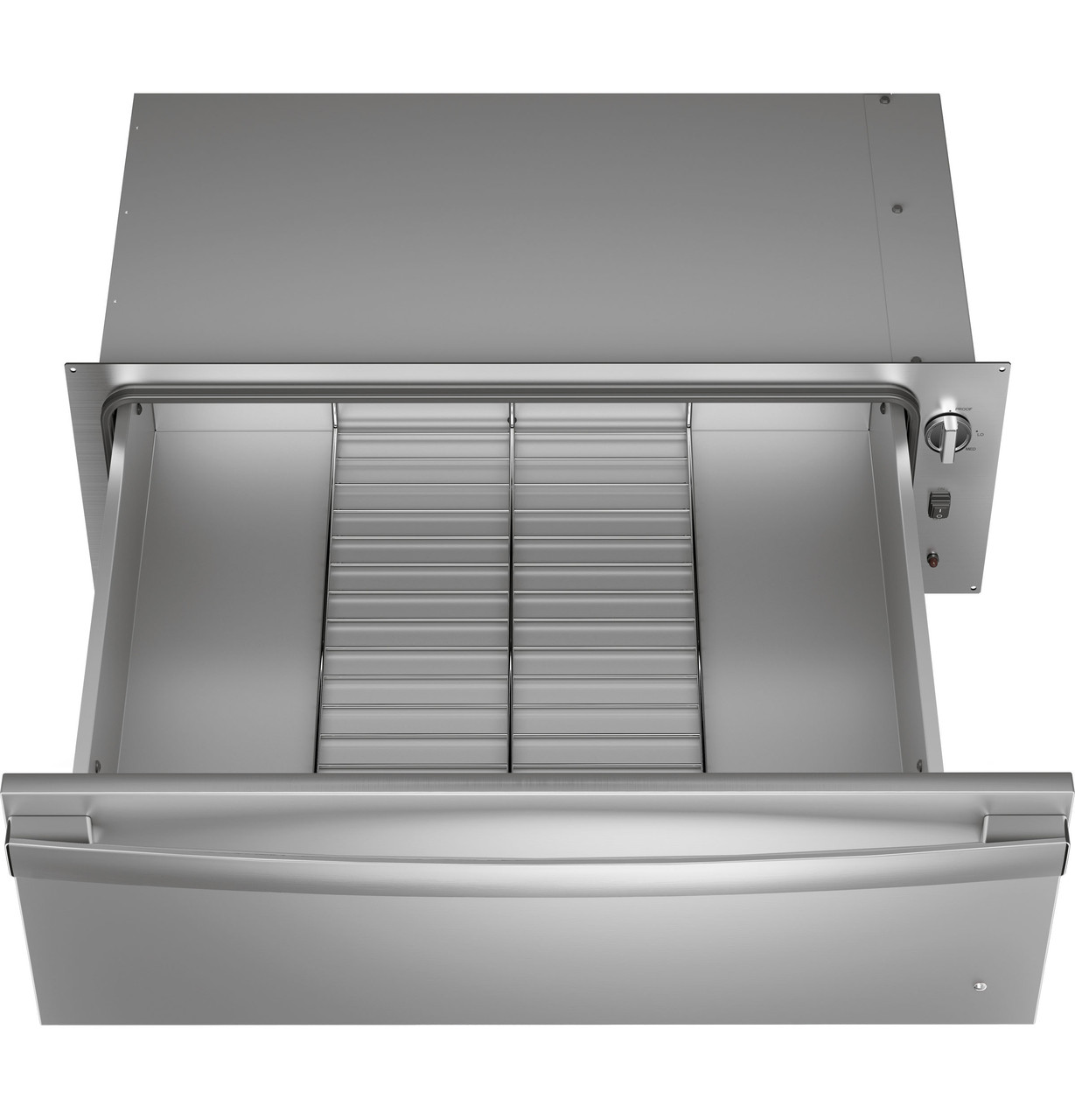

HALF RACK
Warm more items at once thanks to a half rack that maximizes drawer space
MODEL
PTW9000SPSS
HANDLE DESIGN
Profile Designer Style
CUTOUT DIMENSIONS
- Width : 28 cm (1/2) in
- Depth : 23 cm (1/2 in)
- Height : 9 cm (1/4 in)
DIMENSIONS
- Overall Width : 29.75 in
- Overall Depth : 23.25 in
- Overall Height : 10.5 in
INTERIOR DIMENSIONS
- Width : 23 cm (7/8) in
- Depth : 22 cm (1/16 in)
- Height : 6 cm (1/4 in)
NET WEIGHT
59 lb
APPROXIMATE SHIPPING WEIGHT
65 lb
CABINET WIDTH
30 in
FULL EXTENSION BALL BEARING GLIDES
Yes
INSTALLATION
- Under Cooktop
- Under Wall Oven
- Flush Appearance with Hidden Controls

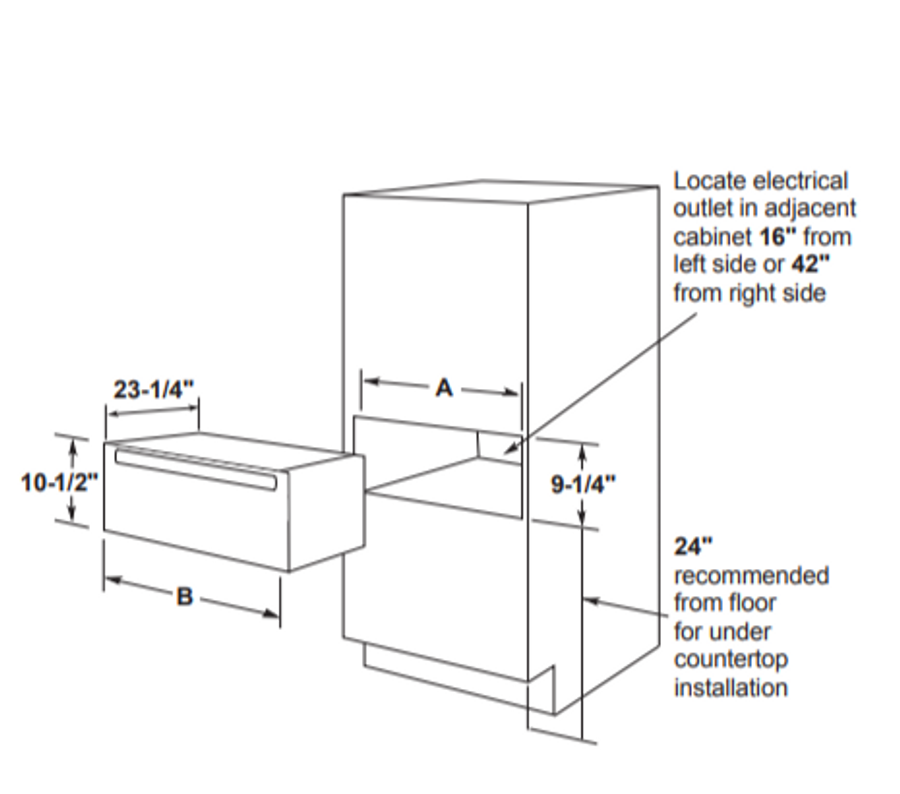

UNDER OVEN INSTALLATION
Additional clearance between cutouts may be required. Check to be sure that oven supports above the warming drawer location do not obstruct the required interior 23-1/2" depth and 9-1/4" height. Door handle protrudes 2-3/4" from door face. Cabinets and drawers on adjacent 45° and 90° walls should be placed to avoid interference with the handl
MATERIAL
Steel
FREQUENCY
60 Hz
POWER CORD LENGTH
4' 8"
ONE-PIECE STAINLESS STEEL DRAWER
Yes
"ON” INDICATOR LIGHT
Always know when your drawer is on with an indicator light that illuminates when it’s in operation
VARIABLE TEMPERATURE CONTROL
- Proof(80)
- Low(140)
- Med(170)
- High(210)
DOWNLOADS
↓ Warranty
↓ Quick Specs
↓ Use and Care Manual
↓ Installation Instructions
↓ UL Approved Combinations
HEATING ELEMENT WATTAGE
450 W
VARIABLE HUMIDITY CONTROL
Crisp - Moist
VARIABLE HUMIDITY CONTROL
Maintain any food’s desired texture thanks to variable humidity control with customized warming capabilities
INDICATOR LIGHTS
"ON"
LABOR/PARTS WARRANTY
Limited 1-year entire appliance

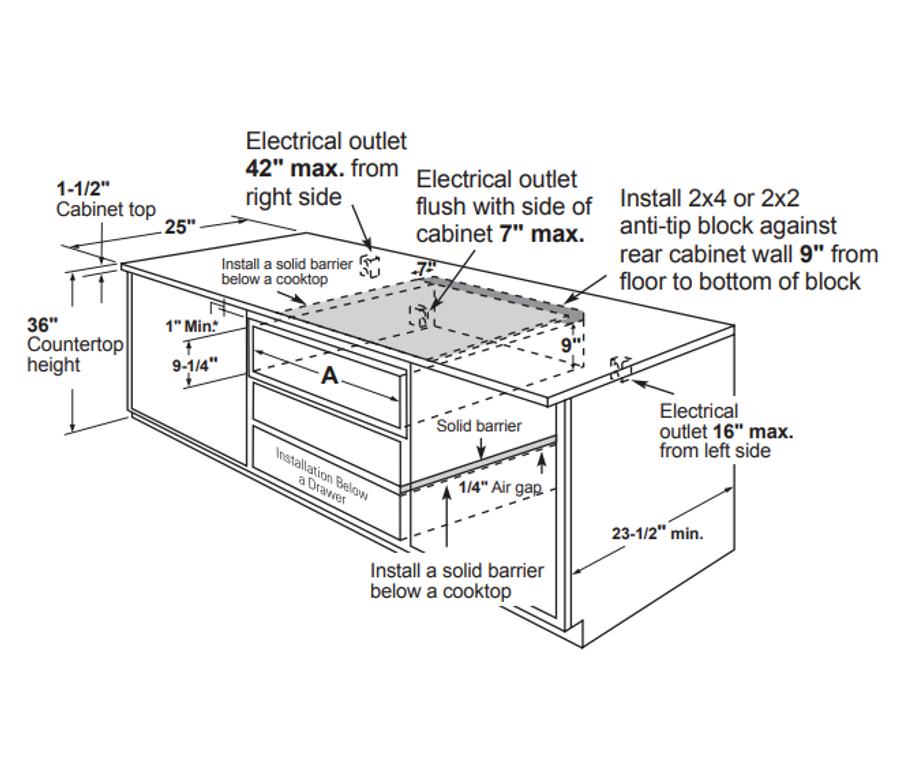

UNDERCOUNTER INSTALLATION
A solid barrier must be installed at least 1" from the lowest point of the bottom of cooktop burner box to the top of the cutout. Use any solid material such as 1/4"-thick plywood. Allow at least 1/4" air gap between the barrier and the top of the warming drawer. See label on top of the warming drawer for approved cooktop models.

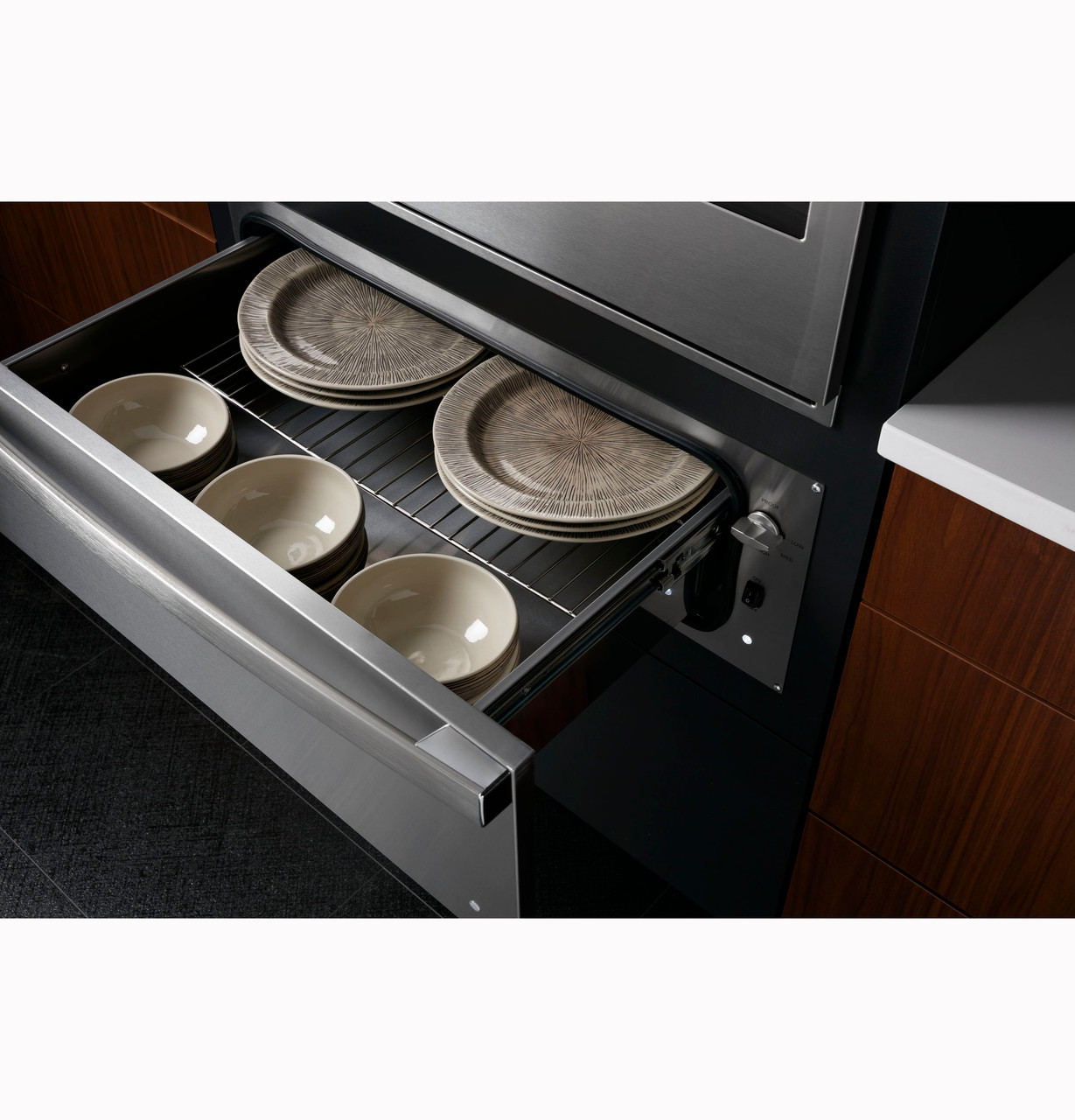

RACK
Yes
RECEPTACLE TYPE
3-Prong Grounding

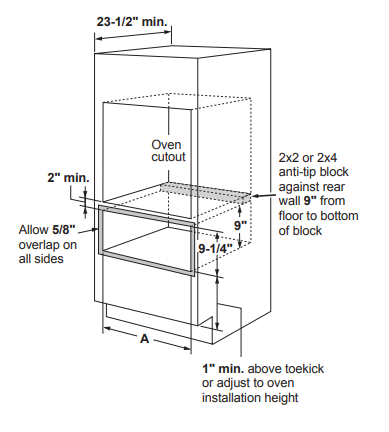

TECHNICAL DRAWINGS
FEATURES

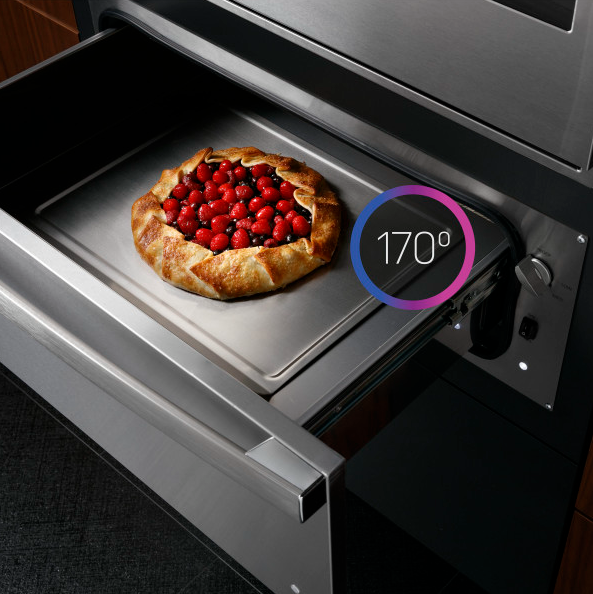

VARIABLE TEMPERATURE CONTROL
Address any heating need with variable temperature control that provides a wide range of temperatures
“ON” INDICATOR LIGHT
Always know when your drawer is on with an indicator light that illuminates when it’s in operation

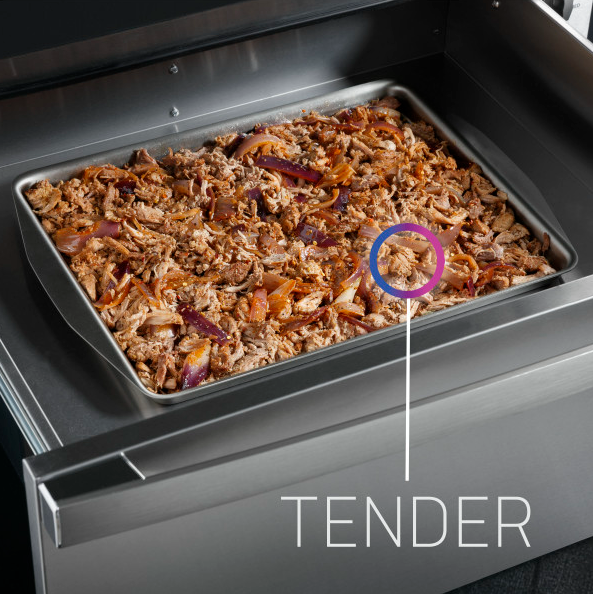

VARIABLE HUMIDITY CONTROL
Maintain any food’s desired texture thanks to variable humidity control with customized warming capabilities
