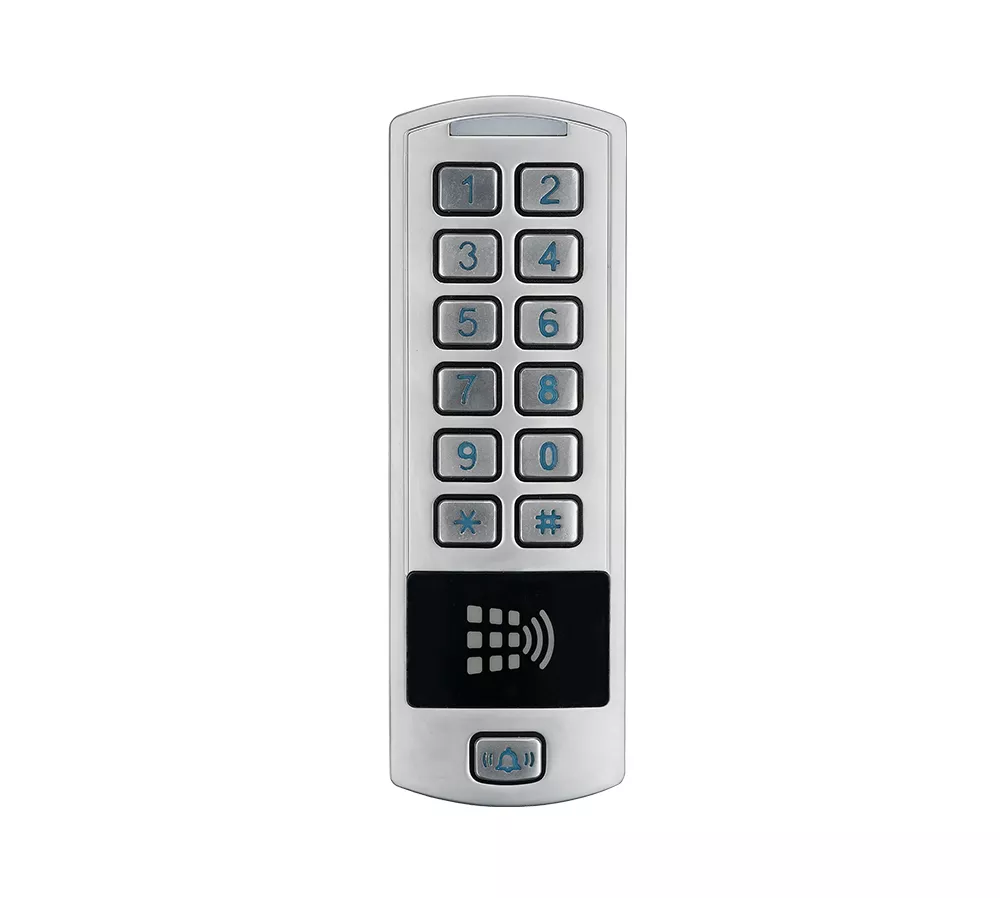

Codelocks A3 Vandal Resist Standalone Door Controller with RFID Doorlock
A3 VANDAL RESIST STANDALONE DOOR CONTROLLER WITH RFID DOORLOCK
A3 VANDAL RESIST STANDALONE DOOR CONTROLLER WITH RFID DOORLOCK
Heavy duty RFID MIFARE® compatible with keypad and doorbell connections. Provides proximity access for up to 600 Code/Card Clients.
INFORMATION
BRAND
Codelocks
PRODUCT TYPE
Door Lock
WIEGAND
Input/Output : 26-37 bits PIN Output: 4 bits, 8 bits (ASCII), 10 Digits Virtual Number (4 bits default)
KEY FEATURES
- Surface mount
- LED status indicators
- Conforms to IP66 rating
- Alarm and doorbell connections
TECHNOLOGIES
The A3 Vandal Resist door controller offers you a keyless solution as a standalone product; an affordable access control system that does not require complex software purchases, external programmers or licensing costs.
FINISH
Silver Grey
COLLECTION
A3 Vandal Resist
LOCK MATERIAL
Plastic
DOWNLOAD
↓ Access by Codelocks Brochure
LOCK DIMENSIONS
2" x 5 7⁄8" x 3⁄4" ( 50.5 x 150 x 20.5mm )
BUTTONS
2 x 6
CLIENTS – SMART CARDS
Up to 600
SUITABLE FOR
- Internal
- External
USER TYPES
- Code
- Card
POSSIBILITIES
Many smaller business buildings are still secured by traditional lock and key, meaning doors can be left unlocked all day leaving them open to possibilities of unauthorised persons gaining access, as well as keys going missing.
IP RATING
IP66
KEYPAD
12 individual buttons
CONFIGURABLE
Configurable penalty time
HUMIDITY
10%RH ~ 98%RH
COMPATIBLE
Mifare® Compatible
SENSOR
Anti-tamper sensor
ORIENTATION
Vertical
IP66 RATING
3
TEMPERATURE
-40°C ~ 60°C (-40°F ~ 140°F)
INPUTS/OUTPUTS
- Relay
- Push-to-Exit
- Alarm
- Door Contact
- Wiegand Input
- Wiegand Output
CONTROL SYSTEM
The A3 Vandal Resist MIFARE® compatible door controller provides a compact, affordable proximity access control system allowing flexible entry for up to 600 users, including two Panic Clients.
WORKING CURRENT
100mA
READ RANGE
60mm (23 /8”)
VOLTAGE
12-28V DC
IDLE CURRENT
65mA
CLIENTS
- Max. Capacity : Up to 600
- Compatible With : 3.56MHz MIFARE® (ISO 14443 Type A) & 125KHz
USER LEVELS
- Master
- User
- Panic

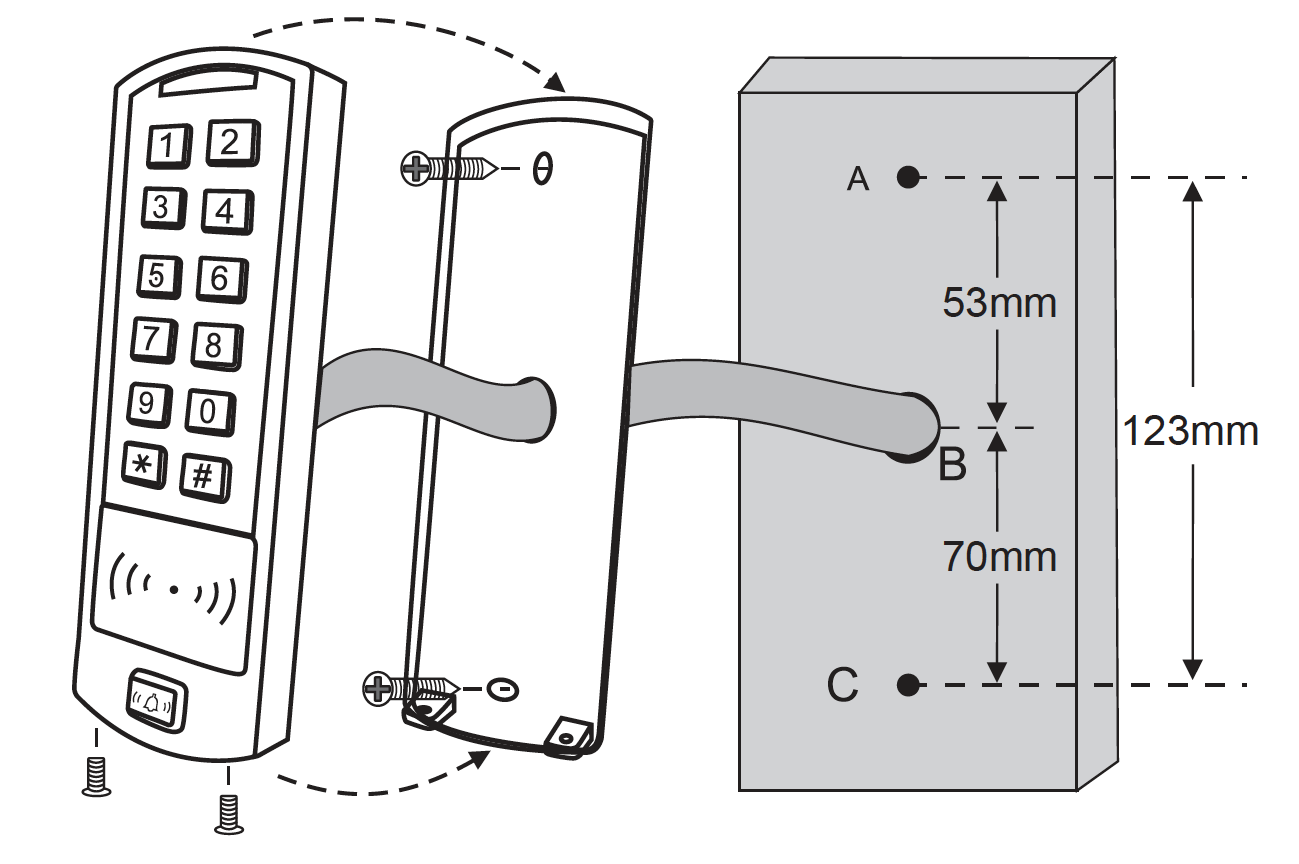

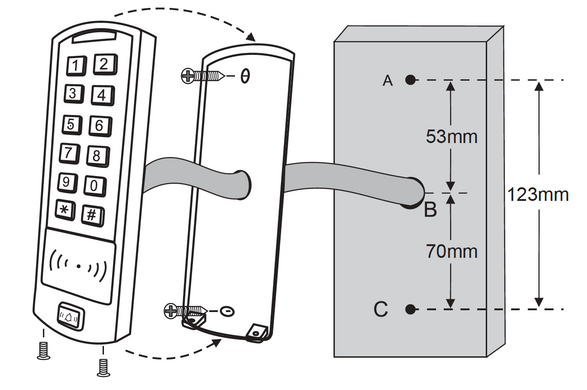

INSTALL
-Remove back cover from the unit by removing the bottom screws -Drill two fixing holes1 and a cable passage hole -Fix back cover to the wall-Thread cable through back cover into cable passage hole -Reattach unit to the back cover
