Ecoforest Air pellet stove Lyon
AIR PELLET STOVE LYON
AIR PELLET STOVE LYON
At Ecoforest we have developes round models to meet market demands for new designs.
This model of pellet stove is the smallest of the range, being perfect for installations with small heating demands. It is also airtight, which makes it the ideal choice for installations in passive houses and houses in rural areas.
INFORMATION
BRAND
Ecoforest
PRODUCT TYPE
Air Stove
AIRTIGHT
Airtight (Passive House)
MULTIPLE SECURITY
Multiple security systems
INTERNET-BASED CONTROL
Wifi and internet-based control
COLLECTION
Air
PRODUCTION
Made in India
ECOFOREST EXCLUSIVE
Ecoforest exclusive electronics
DIMENSIONS
- Height : 874 mm
- Pipe Diameter : Ø60 mm
- Outlet Diameter : Ø80 mm
- Diameter (Top View) : Ø520 mm
- Inner Diameter: Ø500 mm (approx.)
- Vertical Sections: 209 mm / 234 mm
UNPACKING THE BOILER
Remove the packaging and the protective plastic. Remove the screws or bolts that fasten the stove to the pallet and remove it. If our model has a plastic protection, it must be removed before starting it. Remove exhaust blower protection . The Monaco model has 3 gas output possibilities. Airtight installation (Moon, keops and Lyon): Remove protection from the air intake pipe .
WEIGHT
78 kg
PERFORMANCE
93 %
AUTOMATIC MODULATION
Automatic modulation of combustion air, supply of pellets and convection air
HOPPER
12 kg
AUTONOMY
19 - 7 h
CONTROL AND PROGRAMMING
Control and programming by power or temperature with power modulation by room probe or optional thermostat

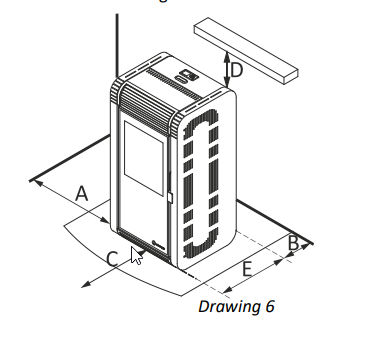

TECHNICAL DETAIL
- A Lateral wall : > E
- B Back of the stove. Minimum separation B that allows visualizing the label
marking the stove : ≥ 80 mm
- C 1.5 x depth of stove
- D Shelf : > 500 mm
- E Depth of stove
GAS OUTLET DIAMETER
60 mm
GAS INLET DIAMETER
80 mm
CONSUMPTION
600 - 1600 g/h
SYSTEM
Vacuum cleaning system
DETAIL
- EcoSILENCE mode
- Hearth with vermiculite
LOCATION AND SAFETY DISTANCES
Do not install the stove in a sleeping room.
Install a fire protection between the ground and the stove if the floor is a combustible material. Security distances should be respected when the stove is installed in spaces where materials around it, be it the construction material itself, the fuel or any other type of materials, are likely to be flammable. Ensuring a better access to the stove for future maintenance or repair work is also worth considering.
POWER
7.5 kW
HEAT EXCHANGER
Daily cleaning-free finned heat exchanger
COLORS

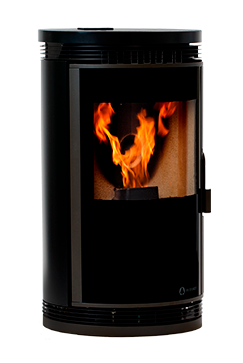

- Black (Ref. 20900)

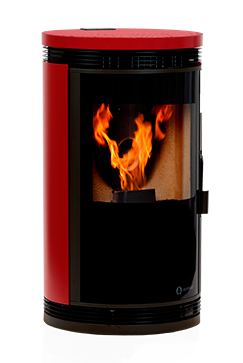

- Red (Ref. 20901)

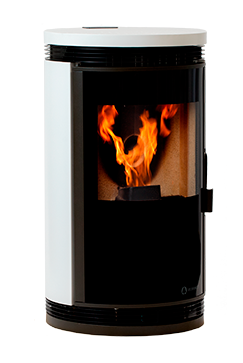

- White (Ref. 20902)
DOWNLOADS
BURNING
Cast iron burning pot
MULTIFUEL
Multifuel (pellets, almond shell, olive stone)
CLEANING AND MAINTENCE

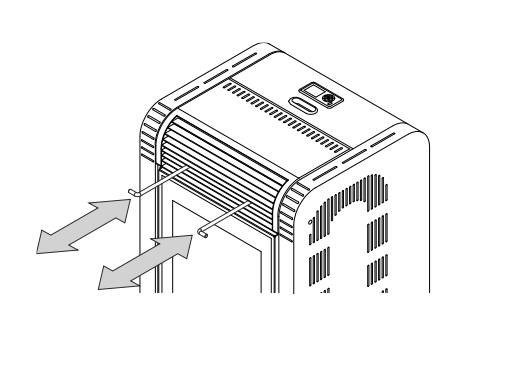

- Heat Exchanger. (Only Vigo II model) : Pull the drawers of the rake-this shall be done while the glass door closed in order to reach the ash inside the stove. This shall be done every day when the stove is cold.
- Burning pot & Burning pot holder : Clean the burning pot, check its holes and vacuum the burning pot holder. After cleaning, replace the burning pot correctly.
- Fireplace door : Clean the glass with a towel, using a liquid for glass cleaning, always when cold.
