Hydro pellet stove - Hidrocopper 24 Slim

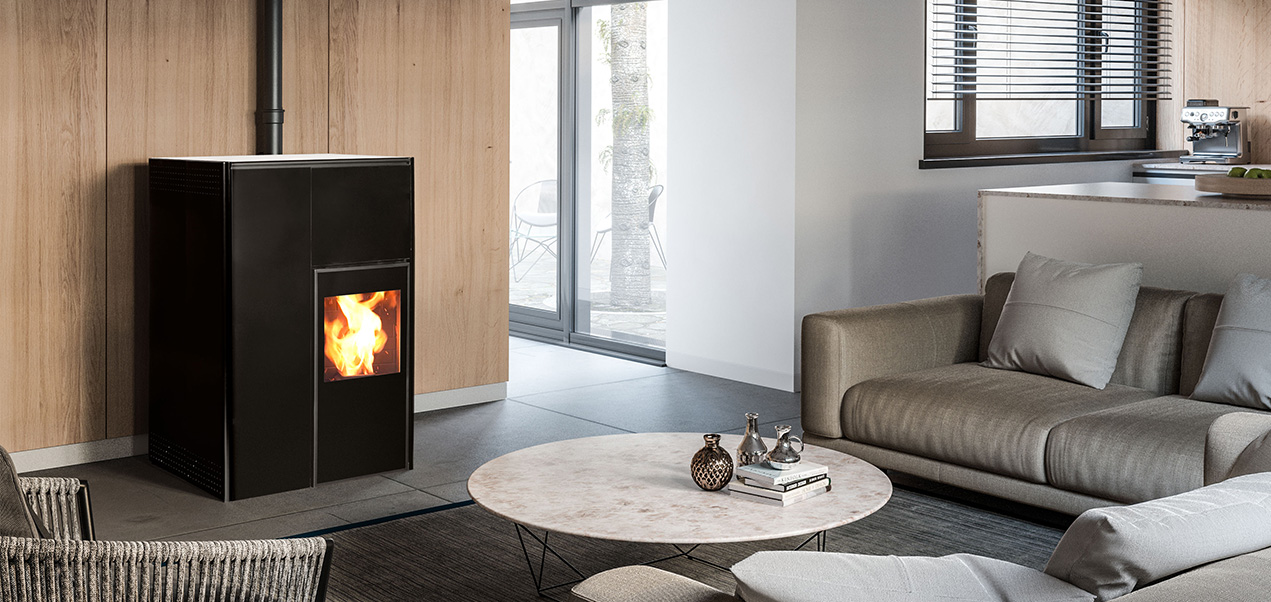

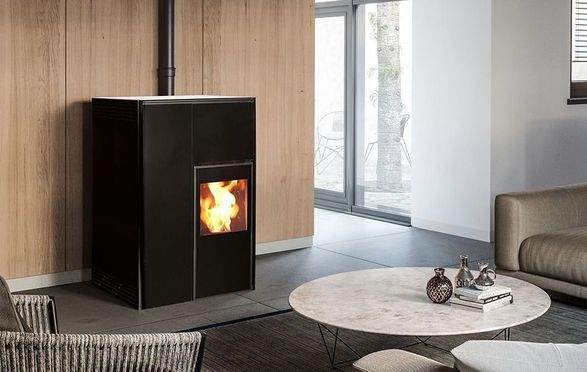

With the Hidrocopper 24, a pellet hydro-stove, you can heat all the rooms in a house distributing the heat energy through the network of water radiators, as well as enjoying a product that respects the environment and decorates the house.
INFORMATION
BRAND
Ecoforest
PRODUCT TYPE
Air Stove
AIRTIGHT
Airtight (Passive House)
MULTIPLE SECURITY
Multiple security systems
INTERNET-BASED CONTROL
Wifi and internet-based control
COLLECTION
Air
PRODUCTION
Made in Spain
ECOFOREST EXCLUSIVE
Ecoforest exclusive electronics
TECHNICAL DETAIL
- A Lateral wall : > E
- B Back of the stove. Minimum separation B that allows visualizing the label
marking the stove : ≥ 80 mm
- C 1.5 x depth of stove
- D Shelf : > 400 mm
- E Depth of stove
UNPACKING THE BOILER
Remove the packaging and the protective plastic. Remove the screws or bolts that fasten the stove to the pallet and remove it. If our model has a plastic protection, it must be removed before starting it. Remove exhaust blower protection . The Monaco model has 3 gas output possibilities. Airtight installation (Moon, keops and Lyon): Remove protection from the air intake pipe .
WEIGHT
171 kg
PERFORMANCE
94 %
AUTOMATIC MODULATION
Automatic modulation of combustion air, supply of pellets and convection air
HOPPER
40 kg
AUTONOMY
20 - 8 h
CONTROL AND PROGRAMMING
Control and programming by power or temperature with power modulation by room probe or optional thermostat

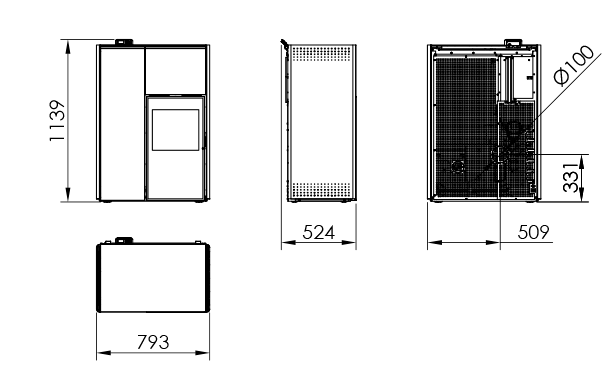

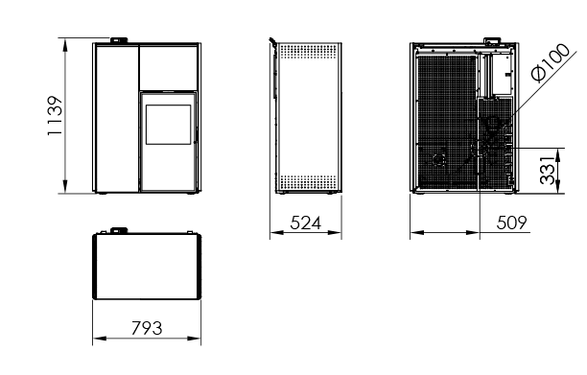

DIMENSIONS
- Height : 1139 mm
- Width : 793 mm
- Depth : 524 mm
- Inner Width : 509 mm
- Pipe Diameter : Ø100 mm
- Inner Height Section : 331 mm
GAS OUTLET DIAMETER
100 mm
GAS INLET DIAMETER
60 mm
CONSUMPTION
2000 - 5100 g/h
SYSTEM
Vacuum cleaning system
DETAIL
- EcoSILENCE mode
- Hearth with vermiculite
LOCATION AND SAFETY DISTANCES
- Do not install the stove in a sleeping room.
- Install a fire protection between the ground and the stove if the floor is a combustible material.
- Security distances should be respected when the stove is installed in spaces where materials around it, be it the construction material itself, the fuel or any other type of materials, are likely to be flammable. Ensuring a better access to the stove for future maintenance or repair work is also worth considering.
POWER
23.6 kW
HEAT EXCHANGER
Daily cleaning-free finned heat exchanger
CLEANING AND MAINTENCE
- Heat Exchanger : Activate the cleaning lever several times. This shall be done while the glass door closed in order to reach the ash inside the boiler. This shall be done every day when the boiler is cold.

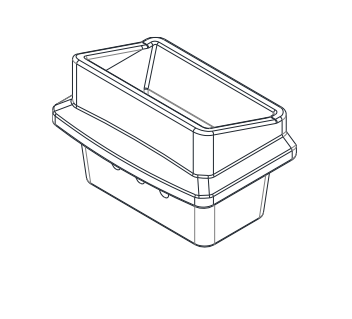

- Burning pot & Burning pot holder : Clean the burning pot, check its holes and vacuum the burning pot holder. After cleaning, replace the burning pot correctly.
- Fireplace door : Clean the glass with a towel, using a liquid for glass cleaning, always when cold.
DOWNLOADS
BURNING
Cast iron burning pot
MULTIFUEL
Multifuel (pellets, almond shell, olive stone)
COLORS

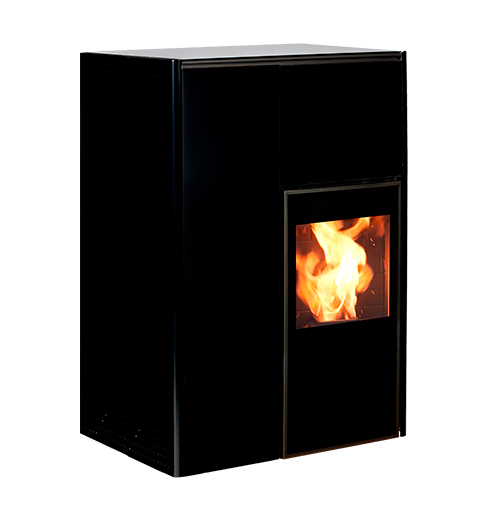

- Black (Ref. 20900)

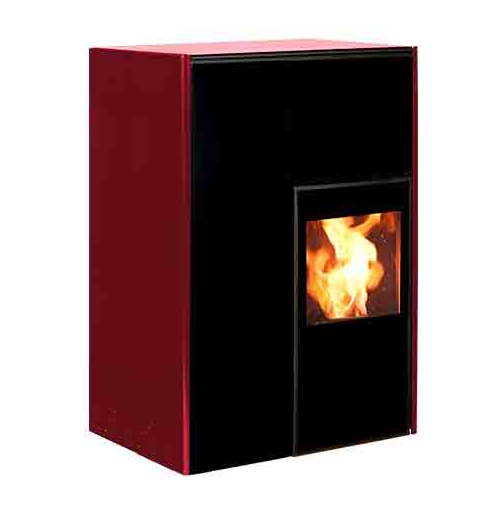

- Red (Ref. 20901)

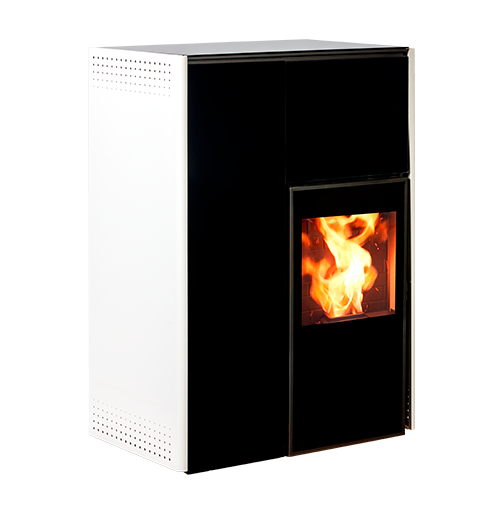

- White (Ref. 20902)
