BORA MULTI-DRAWER
BORA MULTI-DRAWER
The extremely versatile heat drawer with variable functions
The bora multi-drawer is extremely versatile and can be used in numerous ways, such as pre-heating crockery, cooking at low temperatures, keeping food warm or regenerating/defrosting food.
You can use it to defrost frozen food or cook dishes at low temperatures. The functions can easily be set using the multi-drawer touchscreen or even via the bora x bo.The multi-drawer therefore makes the perfect addition to the bora x bo.
INFORMATION
BRAND
Bora
PRODUCT TYPE
Warming Drawer
SUPPLY VOLTAGE
220–240 V
TEMPERATURE CONTROL RANGE
30–100 °C
MAXIMUM POWER CONSUMPTION
810 W
WEIGHT (INCL. ACCESSORIES/PACKAGING)
19.2 kg
WEIGHT (NET)
16.4 kg
COOKING CHAMBER VOLUME
20 L
DIMENSIONS - 1
- Width : 559 mm
- Depth : 537 mm
- Height : 140 mm
CHAMBER DIMENSIONS - 2
- Width : 525 mm
- Depth : 410 mm
- Height : 97 mm
MAINS SUPPLY CABLE PLUG TYPE
C13/E+F
MAINS SUPPLY CABLE LENGTH
1.8 m
FREQUENCY
50/60 Hz
MAXIMUM LOAD
25 kg
ACCESSORIES
Multi-drawer glass front 140 mm msf140, multi-drawer mains supply cable type g msnlg (UK, ie) / type
J msnlj (ch) / type I msnli (AU)
SCOPE OF DELIVERY
Multi-drawer 140 mm ms140, country-specific mains supply cable, communication cable, 5 pairs of decorative trims (different widths), installation accessories, operating and installation instructions
FUNCTIONS

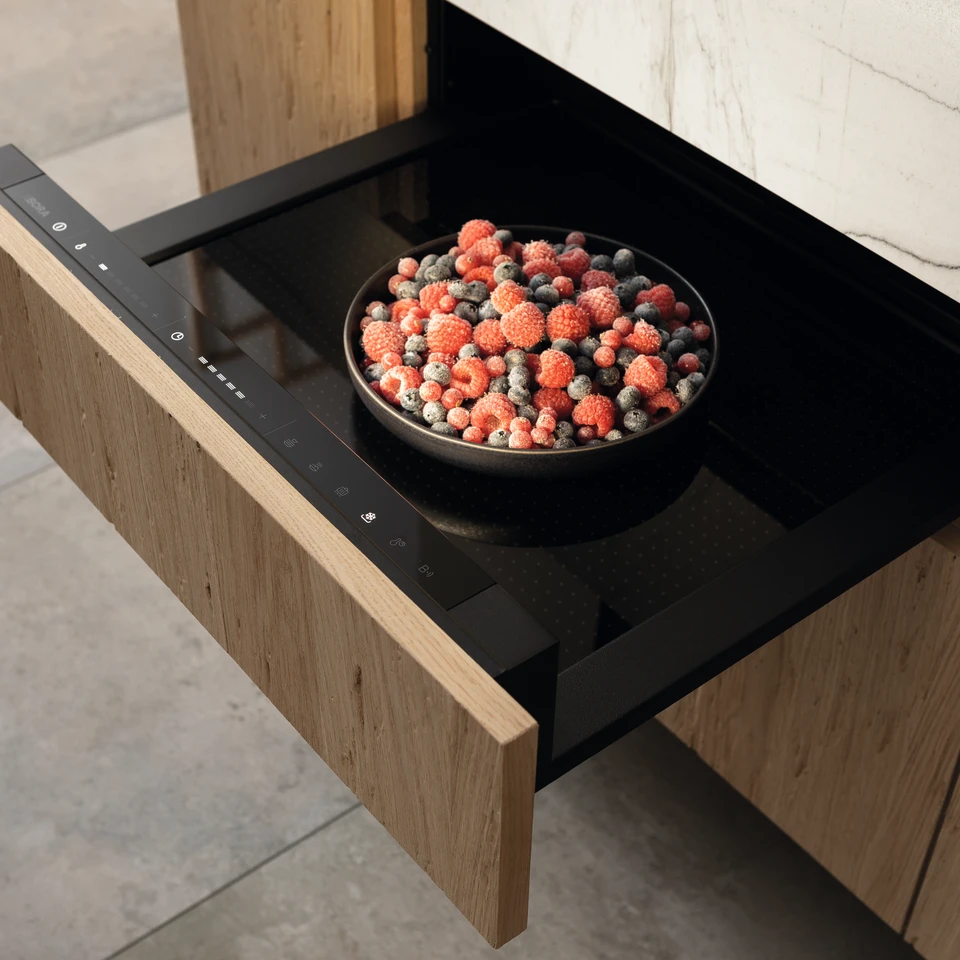

- Reheat food
- Defrost food
- Delayed start
- Warm crockery
- Keep food warm
- Low-temperature cooking

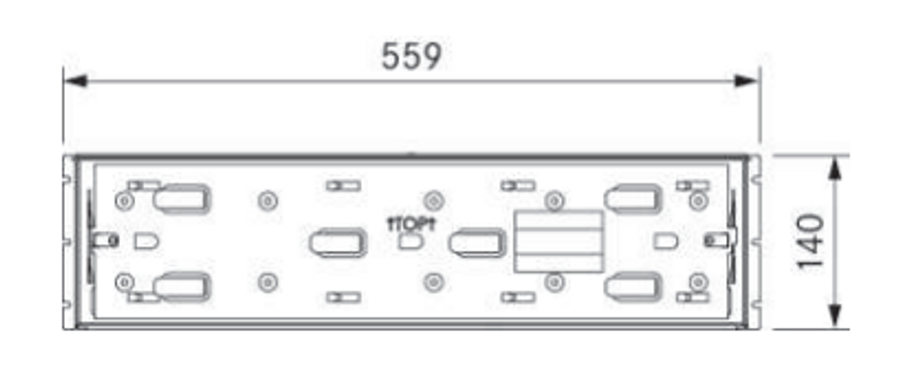

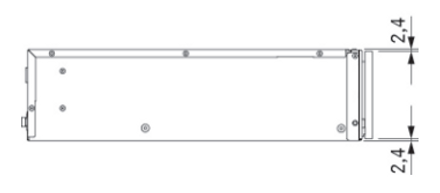

TECHNICAL DRAWINGS
PRODUCT AND PLANNING INFORMATION
- The back panel of the kitchen unit must not be fitted behind the appliance.
- The base panel must be fixed and designed to withstand the appliances’ weight.
- Built-in appliances weighing up to 105 kg can be placed directly on top of the multi-drawer.
TIME LEVELS
1–6
TEMPERATURE LEVELS
1–6
PRODUCT DESCRIPTION
- Simple cleaning
- Powerful and versatile
- High-quality materials (e.g. glass and metal)
- Intuitive operation (icon and audio-supported touch display)
- Push2Open – easy opening by lightly pressing the front of the drawer
- Pre-set programmes or manual temperature and time adjustment
- Minimalist design to match the BORA X BO (flush-mounted, handleless, All Black)
- Bora connectivity – expanded operating options and range of functions thanks to networking with Bora x bo
FUNCTIONS
A HEAT DRAWER WITH COUNTLESS USES
Defrosting, keeping warm, cooking and much more besides
The all-purpose multi-drawer is really easy to operate and features numerous preset programmes that make cooking even easier. The BORA multi-drawer is an multi-talented appliance that is second to none.

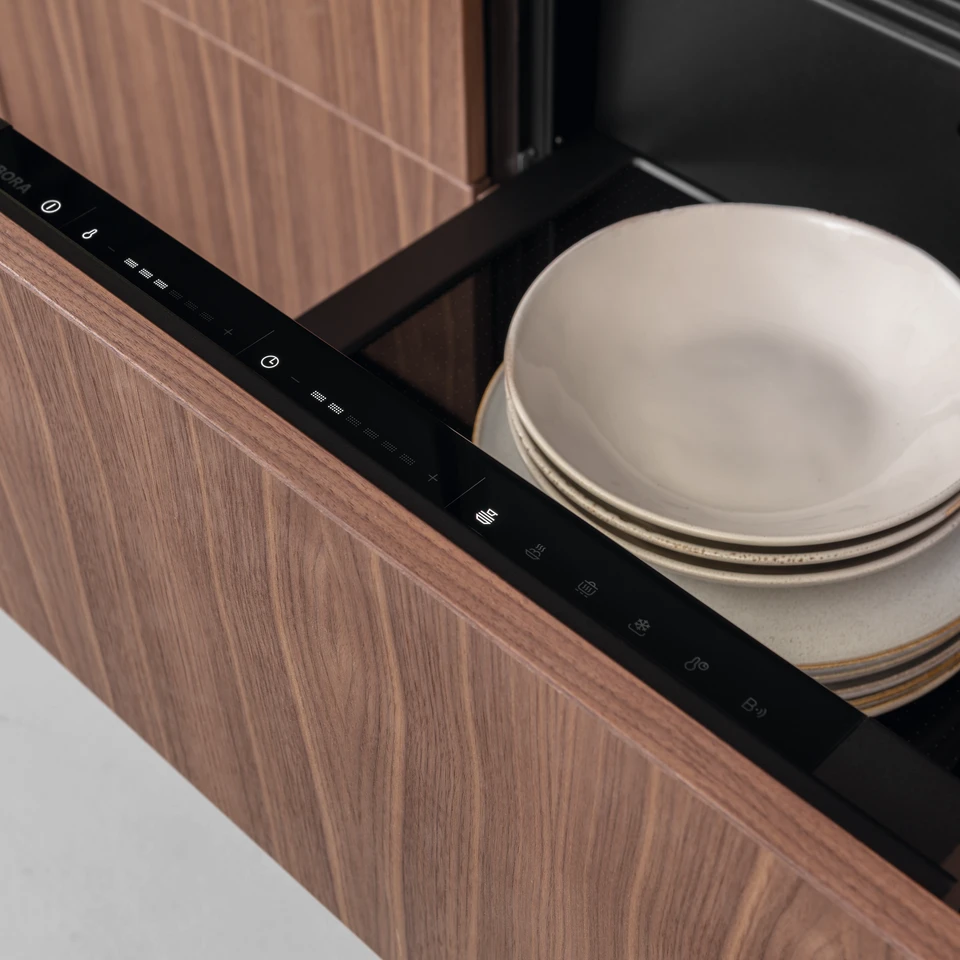

INTUITIVELY EASY TO OPERATE
Simply tap the user-friendly touchscreen to select the desired programme from the presets – or set the temperature and heating duration individually. If connected to the BORA X BO, the multi-drawer can also be controlled via its display.
SIMPLE CLEANING
All of the BORA multi-drawer’s surfaces are easy to access and quick to clean. The sophisticated design has no sharp edges or joints, so everything is sparkling clean again in a flash.
PREMIUM MATERIALS AND FINISH
Best quality: the BORA multi-drawer is exclusively made with carefully selected materials. The refined metal components and black glass base ensure durability and robustness. All workmanship is of the highest quality, so you can enjoy your BORA multi-drawer for many years to come.
MINIMALIST DESIGN
The BORA multi-drawer’s black design focuses on the bare essentials. You have two choices for the handleless front: either you adapt it to your existing kitchen units so that it blends seamlessly into your kitchen design, or you create a design highlight with the BORA glass front which perfectly matches the elegant appearance of the BORA X BO.
BORA X BO AND MULTI-DRAWER
Experience professional cooking technology for your home
Both appliances feature professional kitchen technology, boast a unique timeless elegance and are designed for everyday use at home. The BORA X BO and the multi-drawer are the winning team, guaranteeing maximum enjoyment and extraordinary cooking experiences.
