Thermador 36-Inch Masterpiece® Induction Cooktop
36-INCH MASTERPIECE® INDUCTION COOKTOP
36-INCH MASTERPIECE® INDUCTION COOKTOP

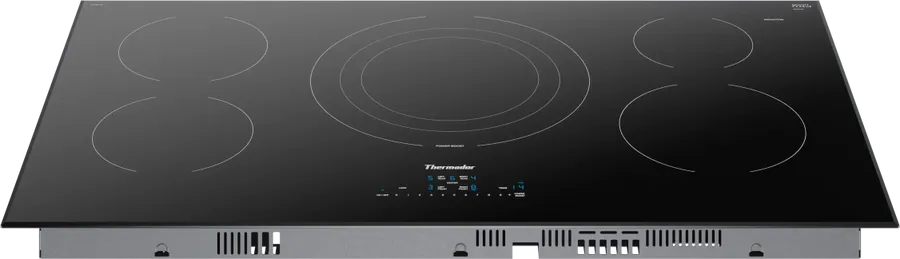

Black Glass with a frameless design
Black Glass creates a sleek design to complement any kitchen.
HIGHLIGHTS

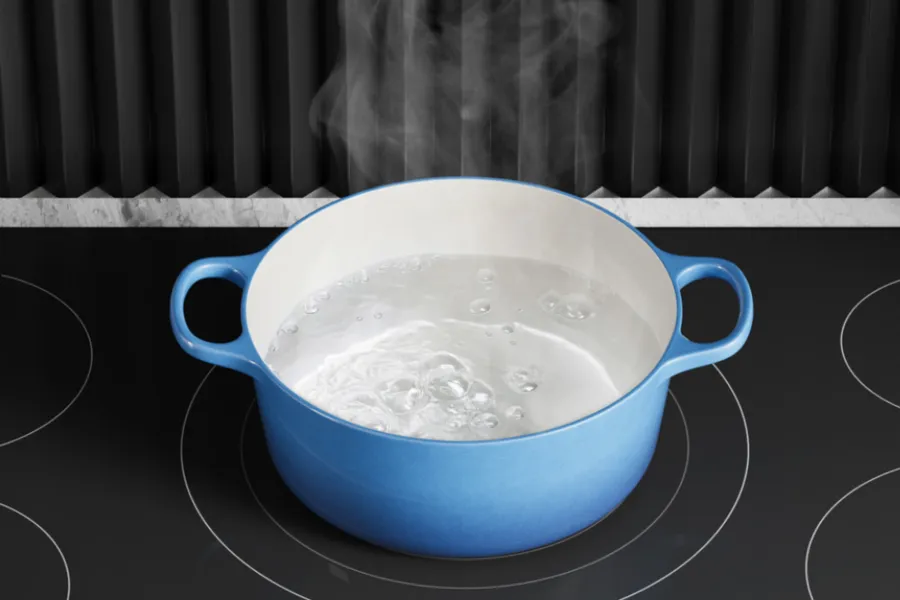

POWERBOOST® HEATS UP POTS OR BOILS WATER QUICKER
PowerBoost® increases element power by up to 50%, saving time to heat up pots or boil water quicker.
17 POWER LEVELS PROVIDE PRECISE COOKING

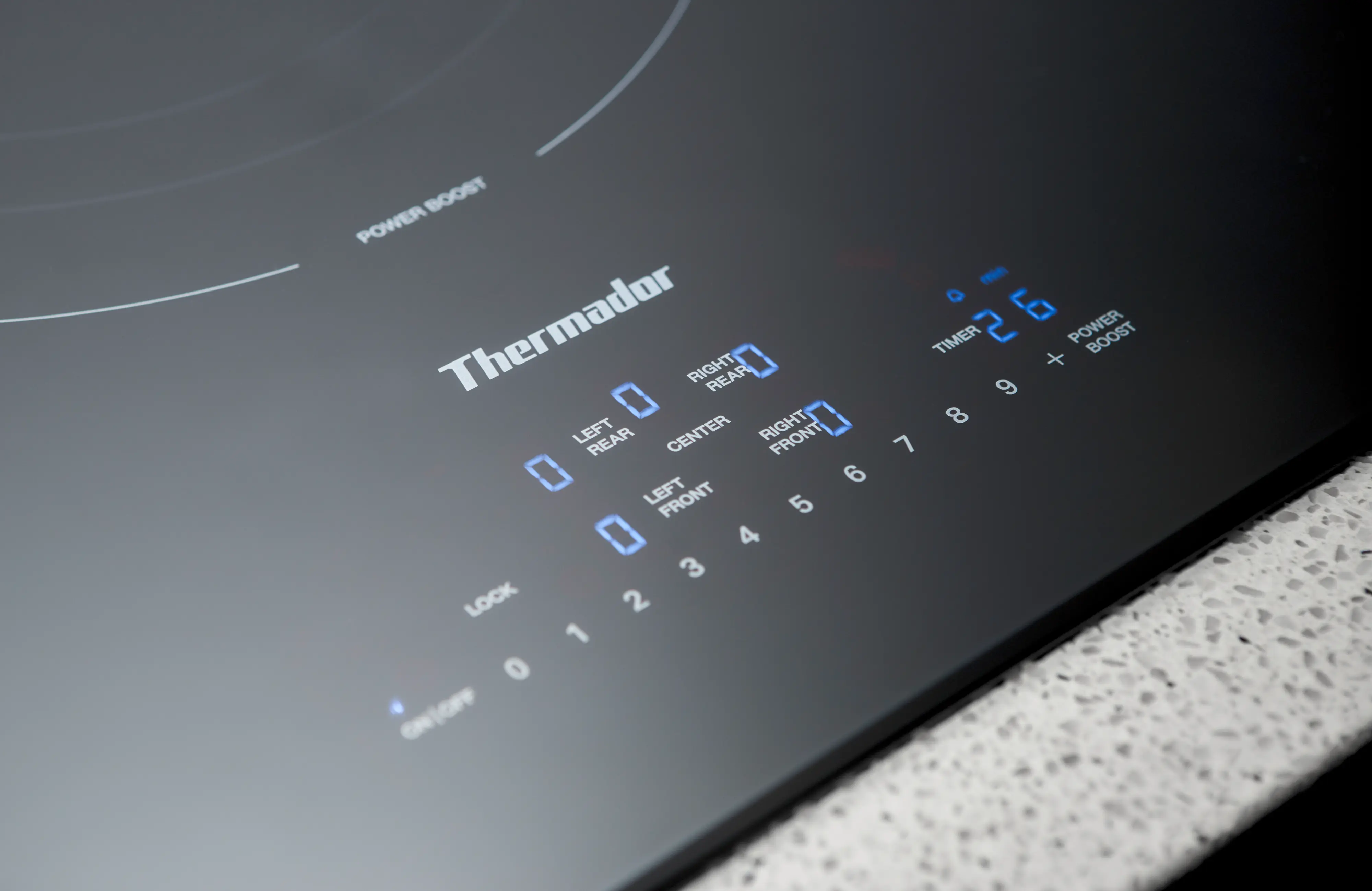

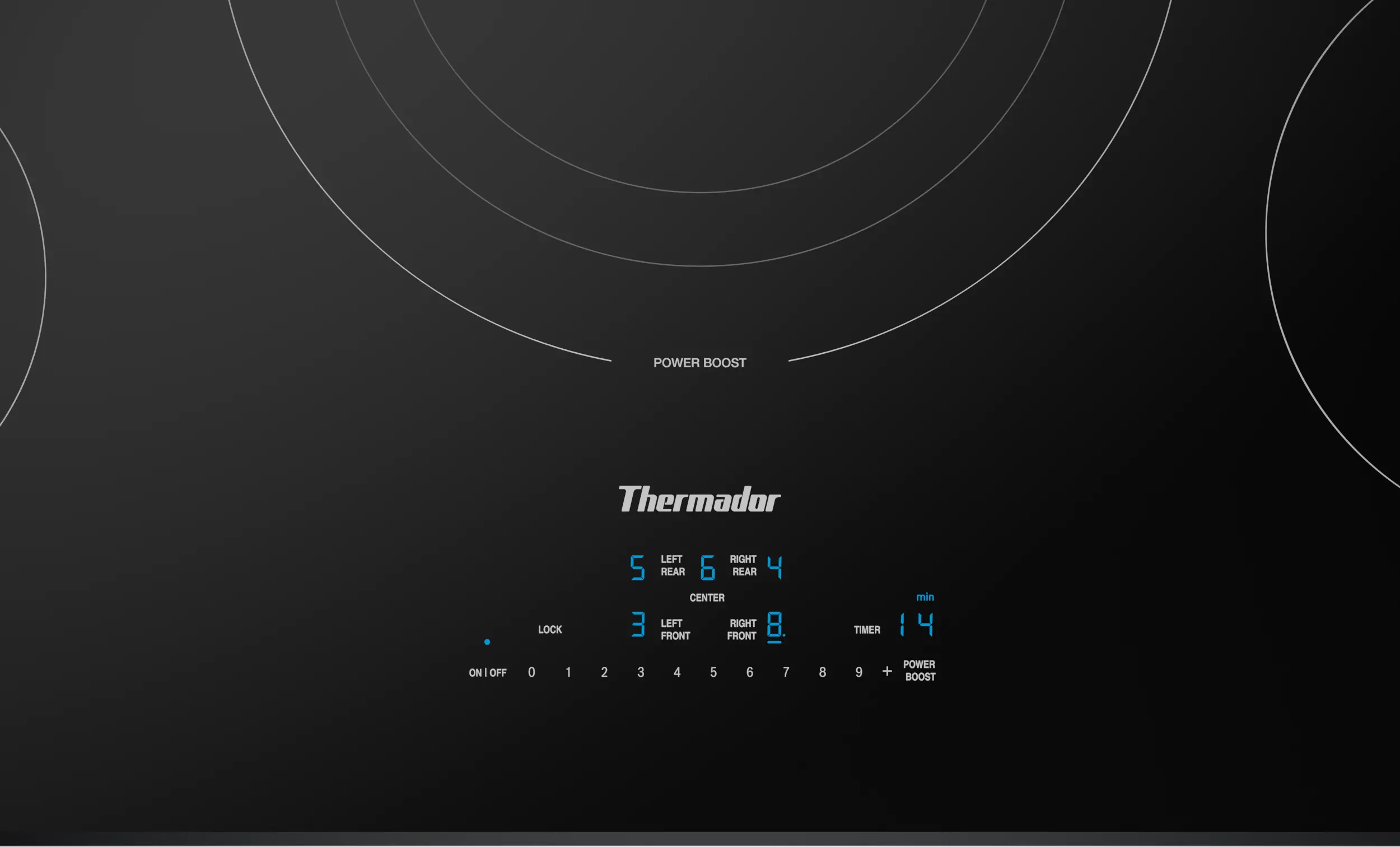

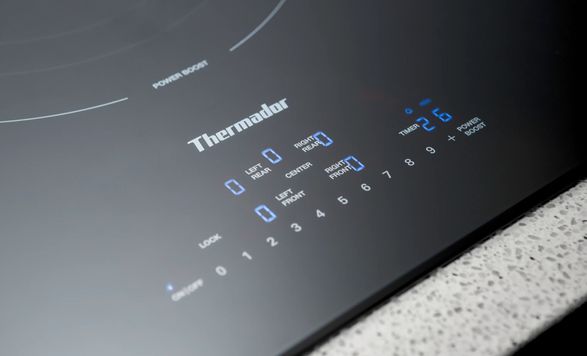

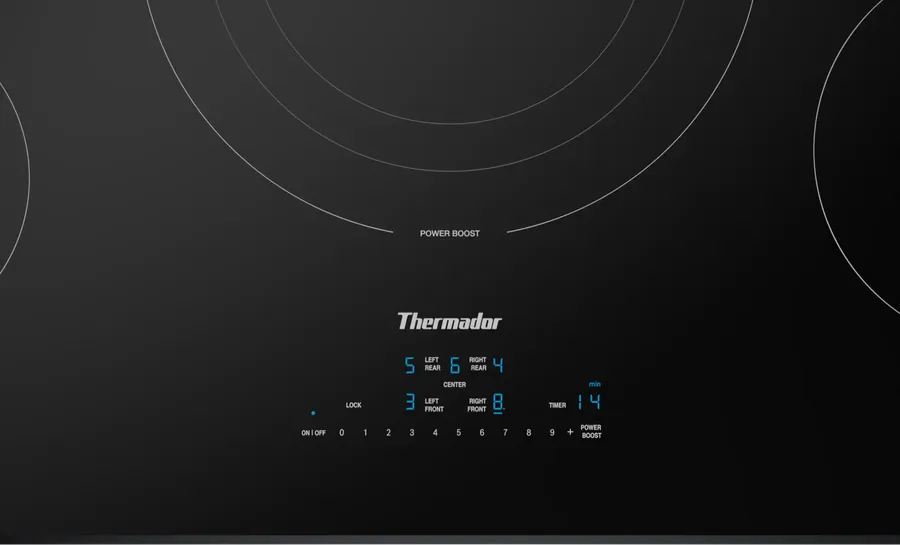

17 Power Levels provide precise cooking with an illuminated touch control panel that is easy to clean.

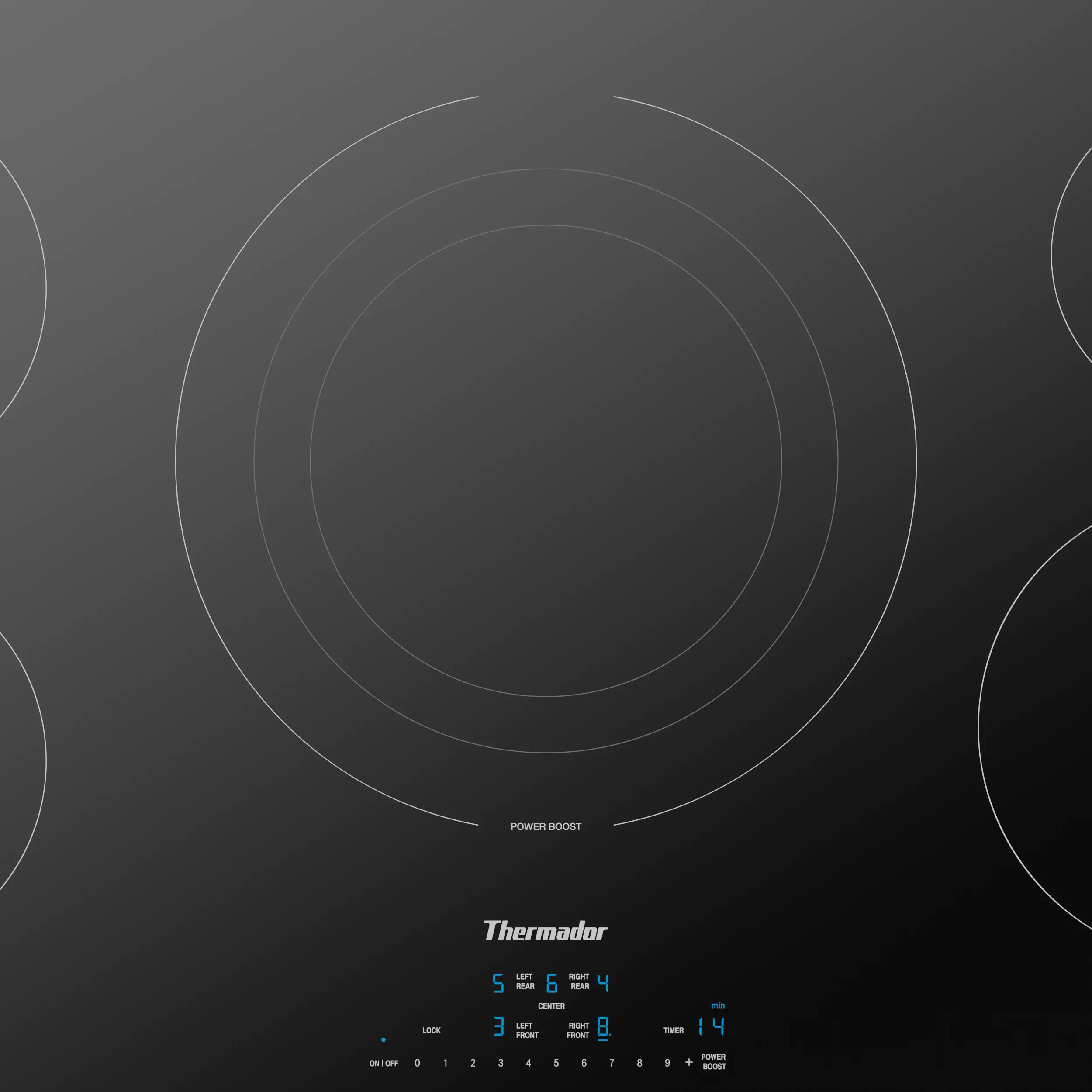

13" HEATING ZONE ACCOMMODATES LARGE COOKWARE
13" Heating Zone allows you to accommodate large pots and pans with the ultra-spacious 13" heating zone at a powerful 5,500 W.
INFORMATION
TOTAL NUMBER OF HEATING ELEMENTS
5
BRAND
Thermador
PRODUCT TYPE
Induction Cooktop
COOKING ZONE FLEXIBILITY
Triple Zone Element
TIME SAVING AND EFFICIENCY
- MyZone® : No
- MoveMode® : No
- PowerBoost® : Yes, All Cooking Zones
- Frying Sensor Technology : Not Applicable
- Cooking Sensor Ready - Sensor Not Included : No
- HeatShift® Increase/ Decrease Power Level via Moving Pot : No
FLEXIBILITY OF COOKING ZONES
- TeppanyakiPro™ : No
- Join Split Function of Cooking Zones : No
WATTS
10800 W
COLOR
Black
DESIGN
- Frame Type : No Frame
- Type of Control : MultiTouch Control
SAFETY
- Residual Heat Indicator : Yes
- Safety : Child lock, Safety shut-off, ,
GLASS PROTECT
No
TIMER
Kitchen Timer
ADA COMPLIANT (WHEN INSTALLED TO ADA REQUIREMENTS)
No
KEEP WARM
No
AUTOMATIC COOKWARE DETECTION
No
REQUIRED CUTOUT SIZE
- Height : 3 7/8''
- Width : 34 7/8''
- Depth : 20''
OVERALL APPLIANCE DIMENSIONS
- Height : 3/8'' + 3 7/8''
- Width : 37''
- Depth : 21 1/4''
SIZE
36"
POWER CORD LENGTH
37''
VOLTS
208-240 V
AMPS
50 A
PRODUCT PACKAGING DIMENSIONS
- Height : 7 1/16''
- Width : 42 1/8'
- Depth : 26 3/4''
INSTANTANEOUS CHANGES IN TEMPERATURE WITH INDUCTION
Superior Responsiveness: Induction technology allows instantaneous temperature changes as the power level is adjusted. Induction automatically recognizes the size, shape and position of your cookware on the cooktop. The cooktop is easy to clean and provides superior responsiveness.

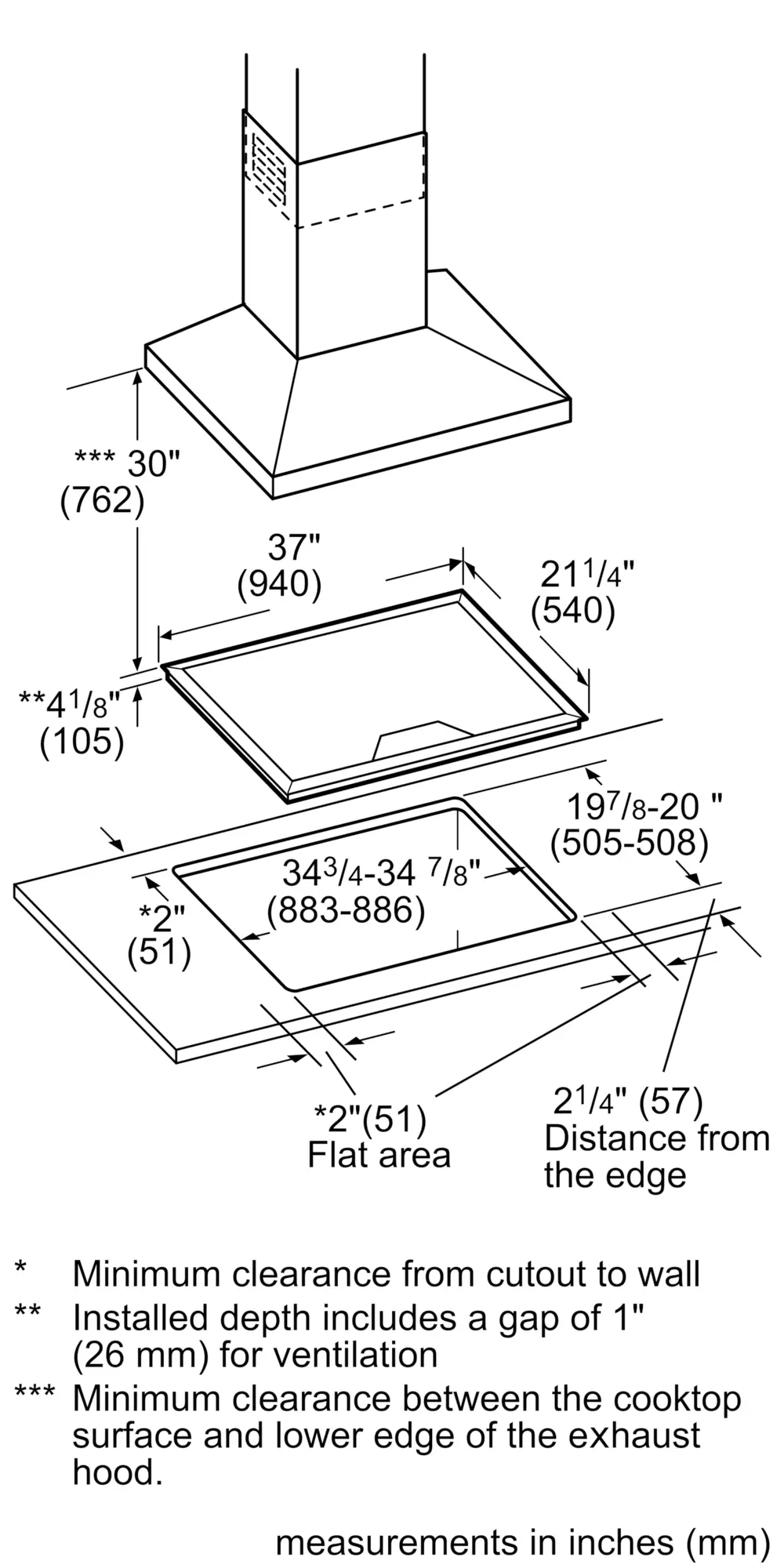

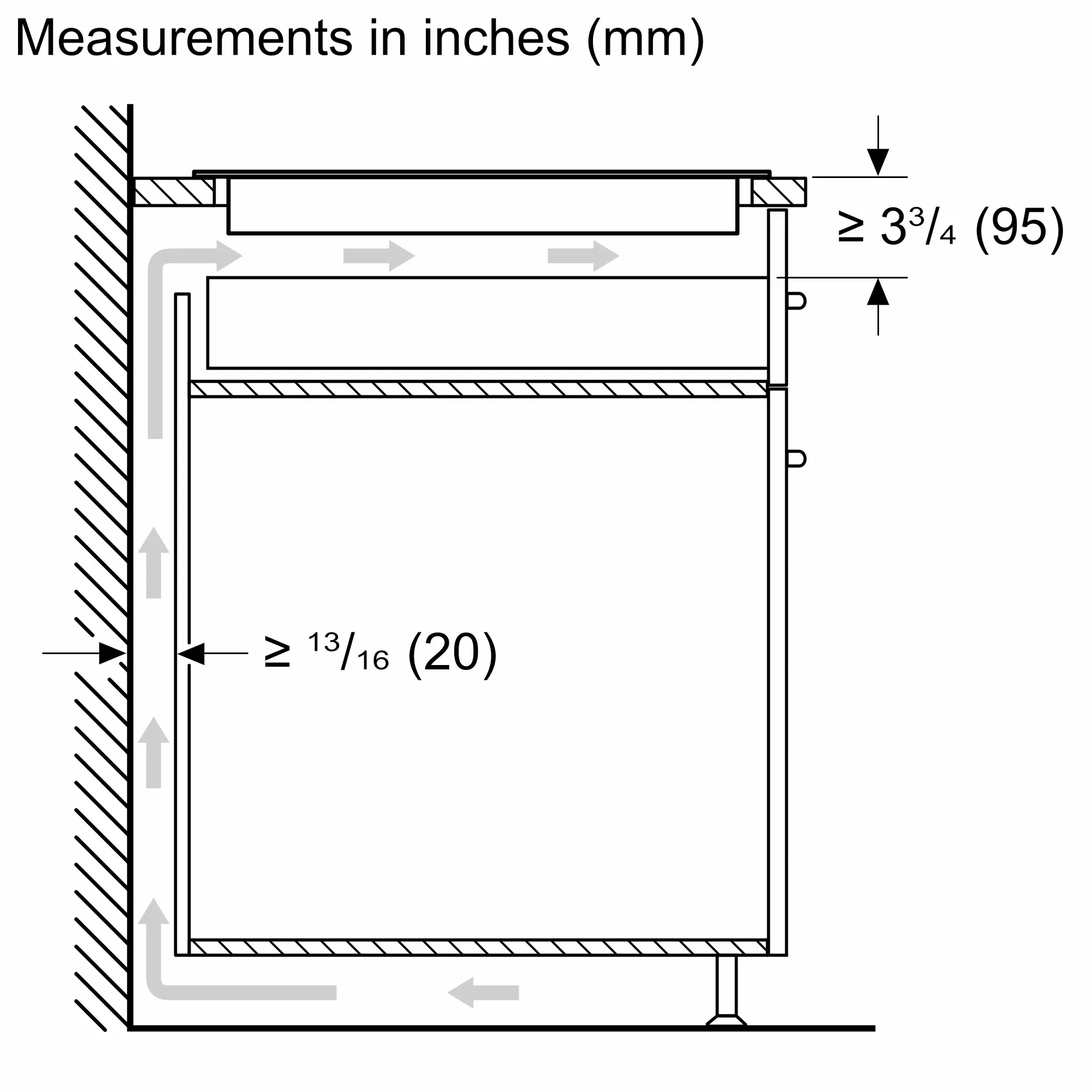

TECHNICAL DRAWINGS
DOWNLOADS
↓ User manuals
↓ Installation Instruction
↓ Warranty Service
↓ Product Specification Sheet
↓ Supplement
↓ Specifications
HOME CONNECT® WIFI-ENABLED
No
COOKTOP HOOD SYNC
No
